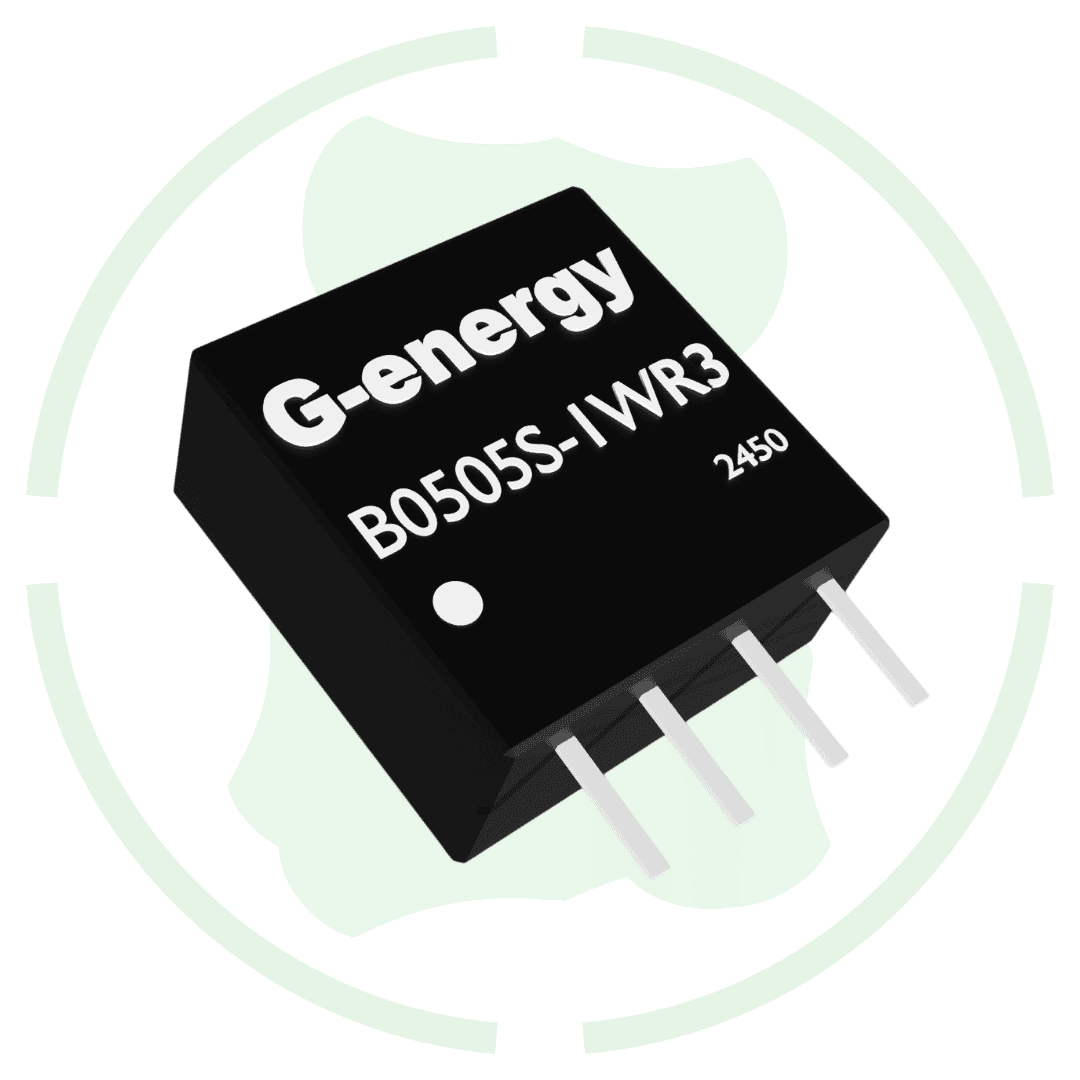

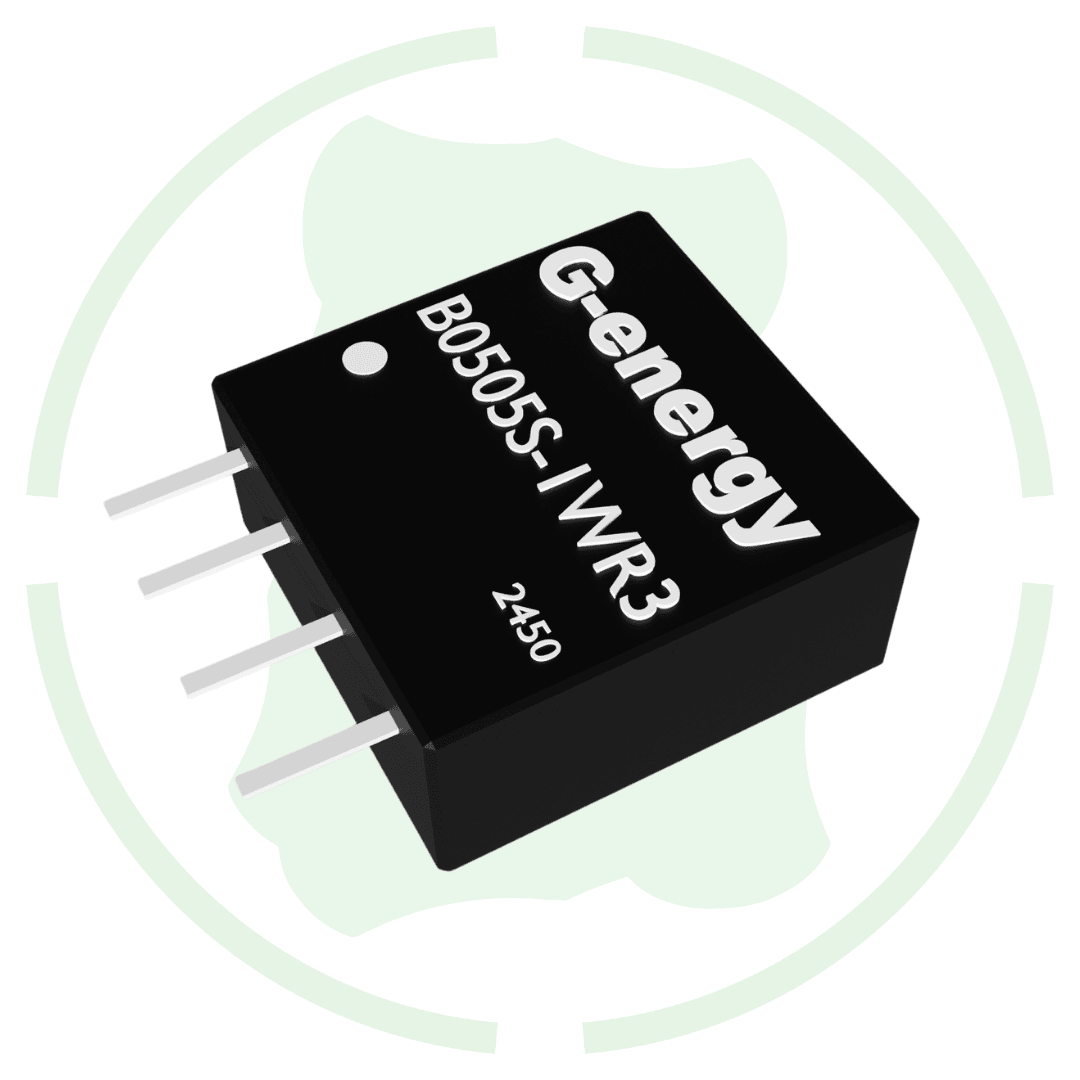

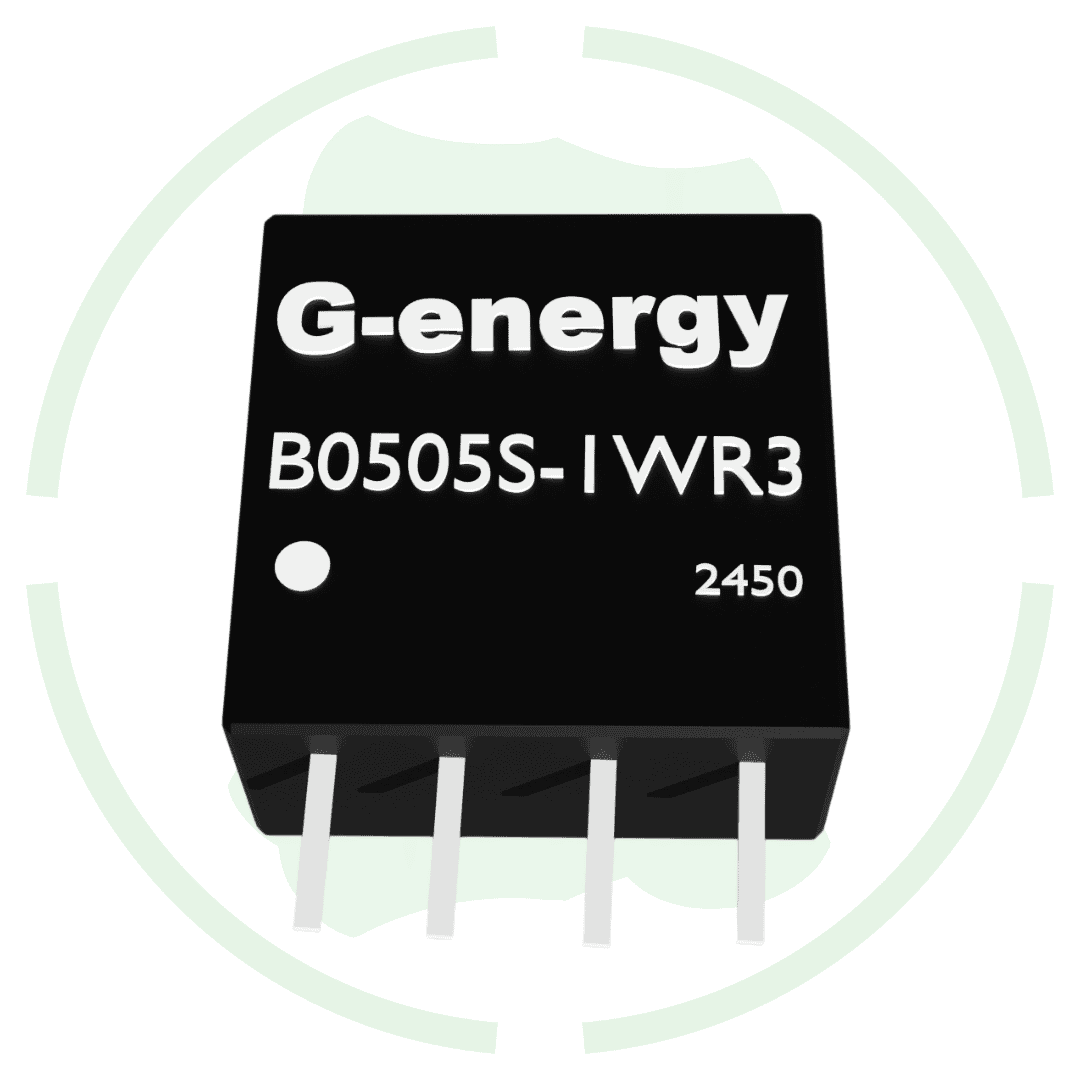

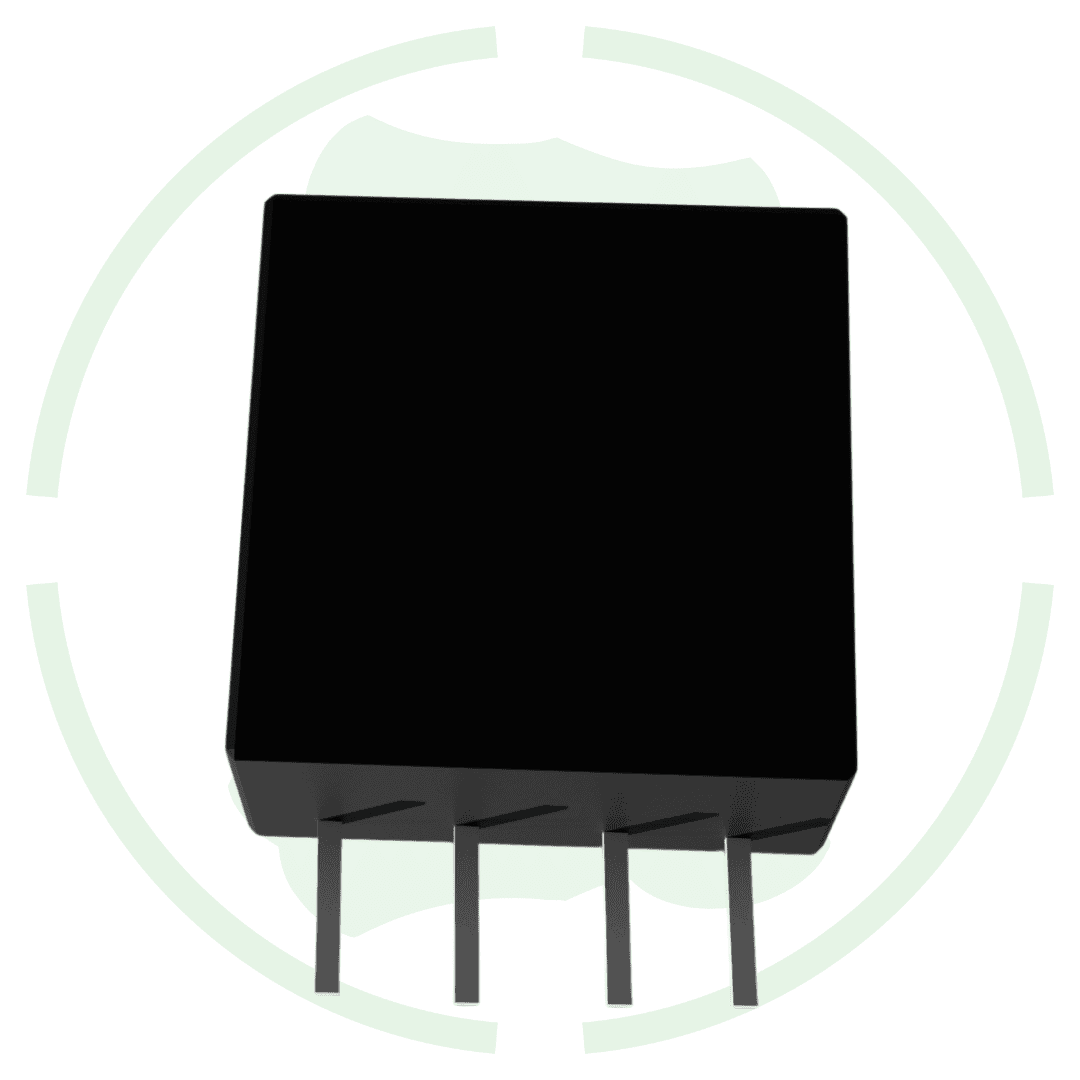

G Energy B0505S-1WR3 5V to 5V 200mA 1W Dc Dc Converter IP68 Buck Boost Converter

Overview of this G Energy B0505S-1WR3 5V to 5V 200mA 1W Dc Dc Converter

Introducing G-energy B0505S-1WR3 5V to 5V 200mA 1W dc dc converter IP68 buck boost converter at the best price in India with g-energy. This buck boost converter take 4.5-5.5V input voltage range and convert it to a fix 5v dc output. It also built in a small and lightweight design with IP68 waterproof rating for its smooth use in any condition.

Features

High Efficiency Design – This buck boost converter gives 85% efficiency and converts power efficiently, reducing heat and saving energy during operation.

200mA Output Current – It can provide up to 200mA of continuous current which is suitable for small devices and control boards.

Comes in SIP package – Converter comes in single Inline Package design for compact size and easy mounting on circuit boards.

Specification

1. Input Voltage Range: 4.5-5.5V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 85%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 75

10. Nominal Input Voltage: 5V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 11mm × 10mm × 5mm

17. Weight: 2 gm

18. Cooling Method: Free air convection (no fan required)
