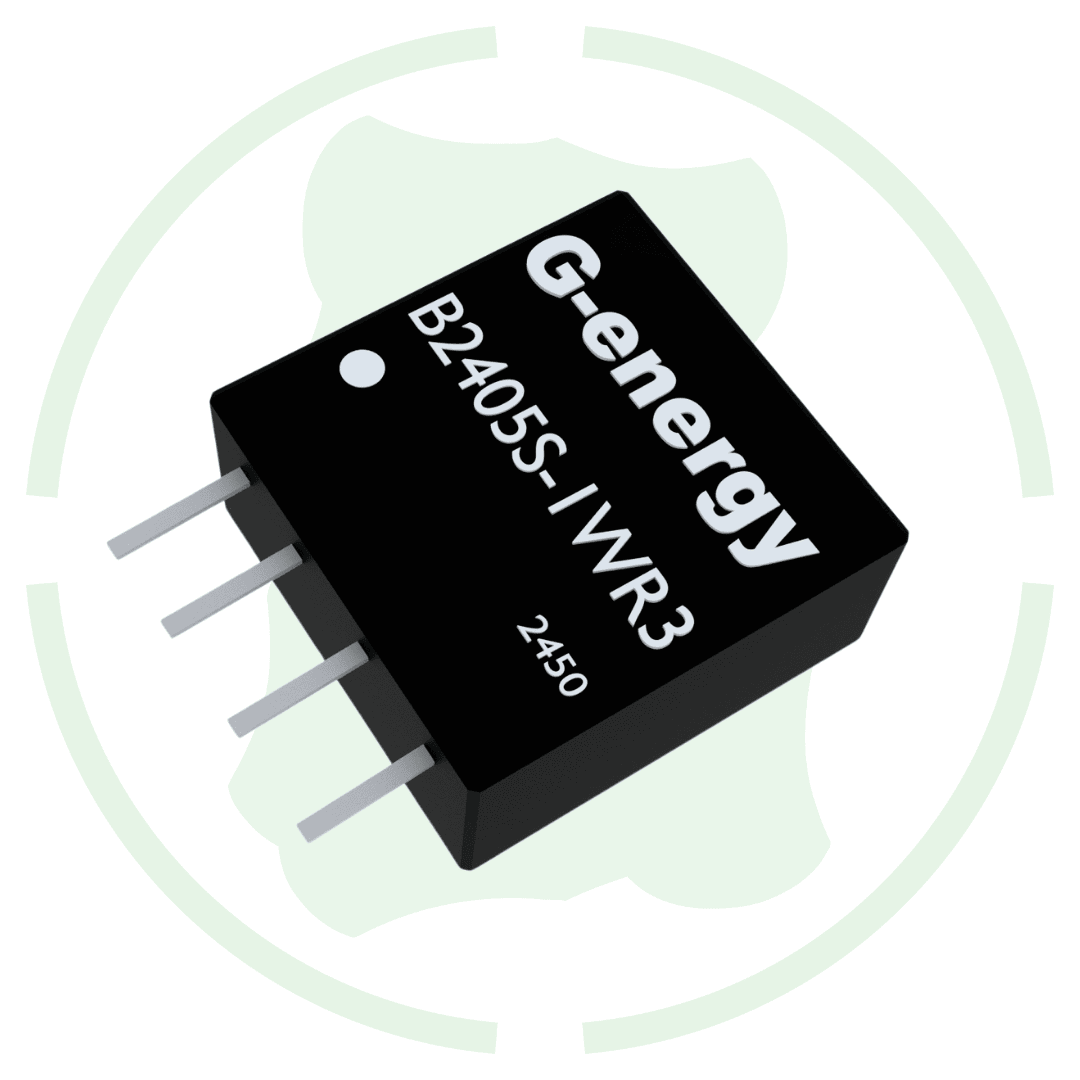

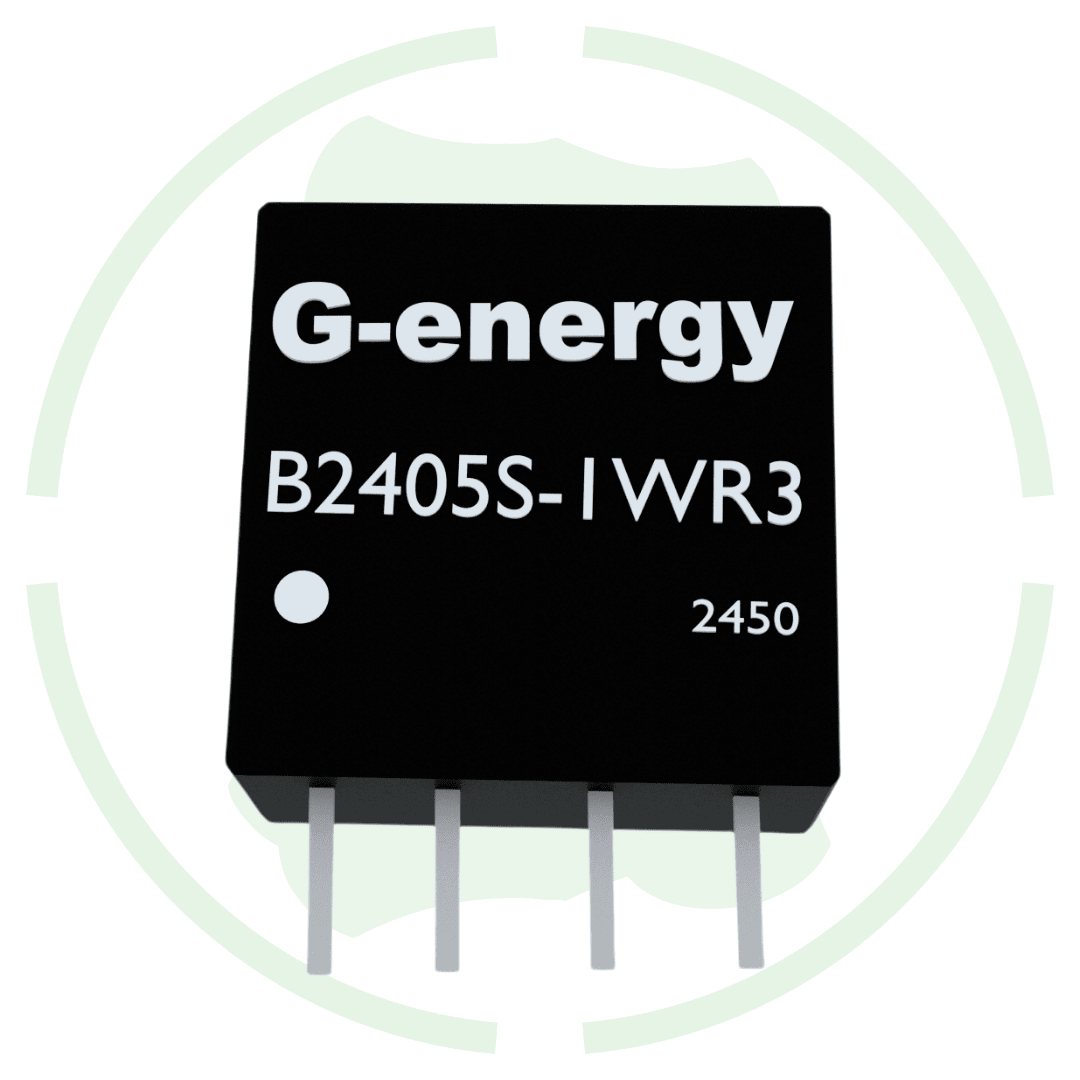

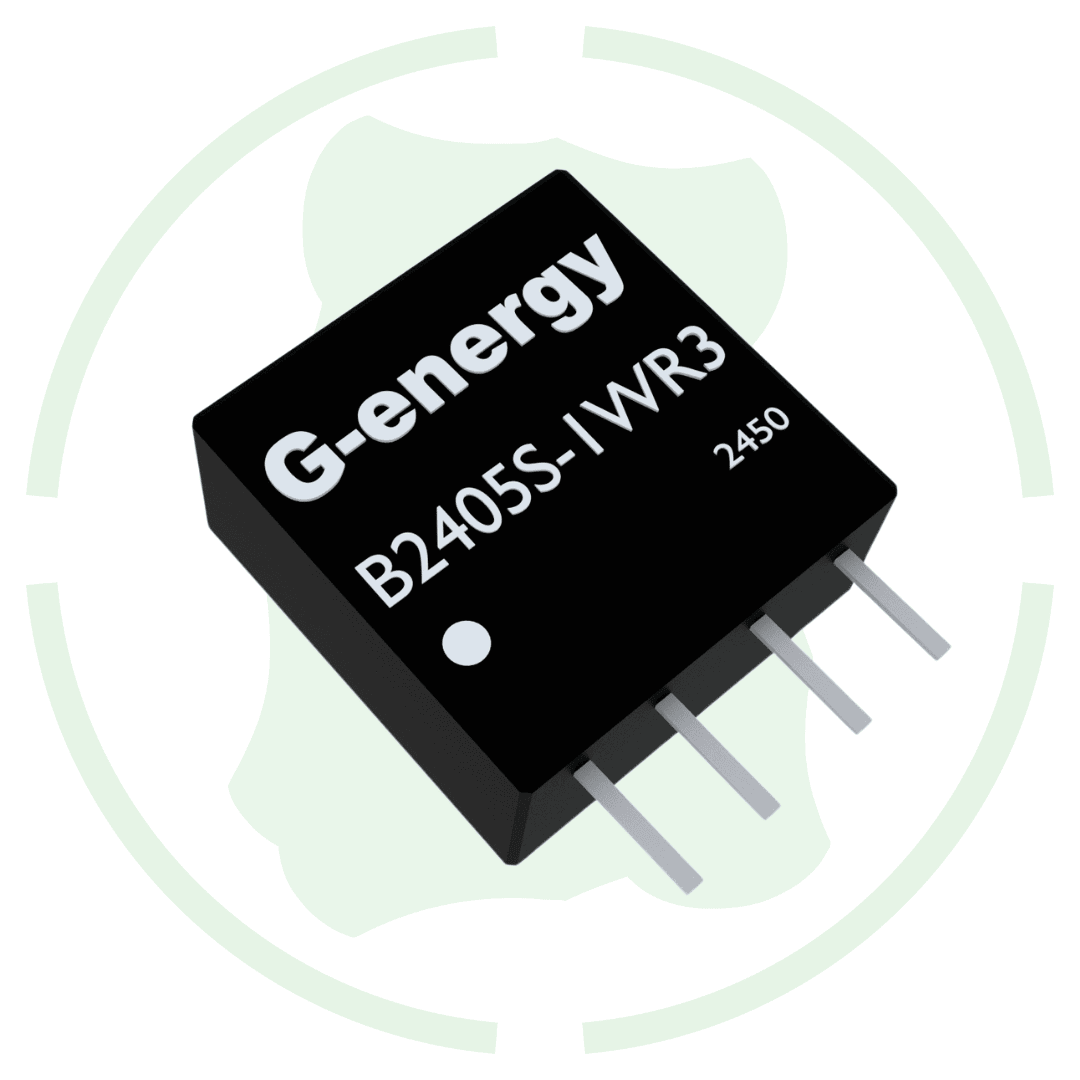

G-energy 24V to 5V 200mA 1W Dc Dc Converter IP68 Buck Converter

Overview of this G-energy B2405S-1WR3 24V to 5V 200mA 1W Dc Dc Converter

Introducing G-energy B2405S-1WR3 24V to 5V 200mA 1W dc dc converter ip68 buck converter at the best price in India with g-energy. This buck converter take an input voltage of 21.6v to 26.4v and changes it to a stable 5V output voltage. It deliver a maximum of 1 watt power and ensure efficient energy use while preventing overload for small load.

Features

Input Voltage: This buck converter works perfectly with 21.6v to 26.4v dc input voltage for its use in multiple dc device.

IP68 Waterproof & dust proof: It also come with fully sealed ip68 body for protection from water, dust, and moisture.

High Efficiency: This buck converter gives up to 83% efficiency and convert power with minimal loss & reduce heat and saving energy.

Specification

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 5V DC

3. Output Current: 200mA

4. Output Power: 1W

5. Efficiency: 83%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50/100mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 9mm × 3mm × 5mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
