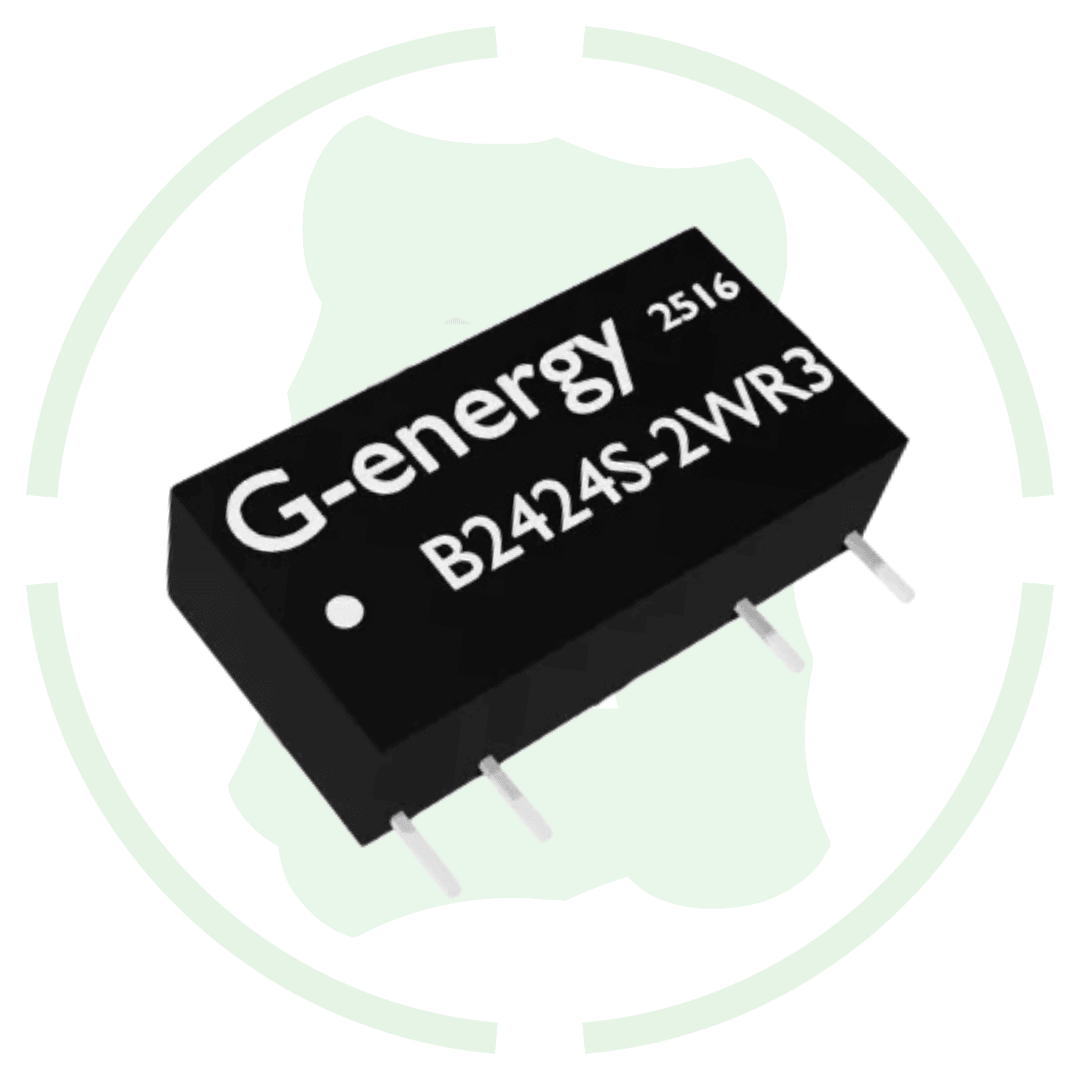

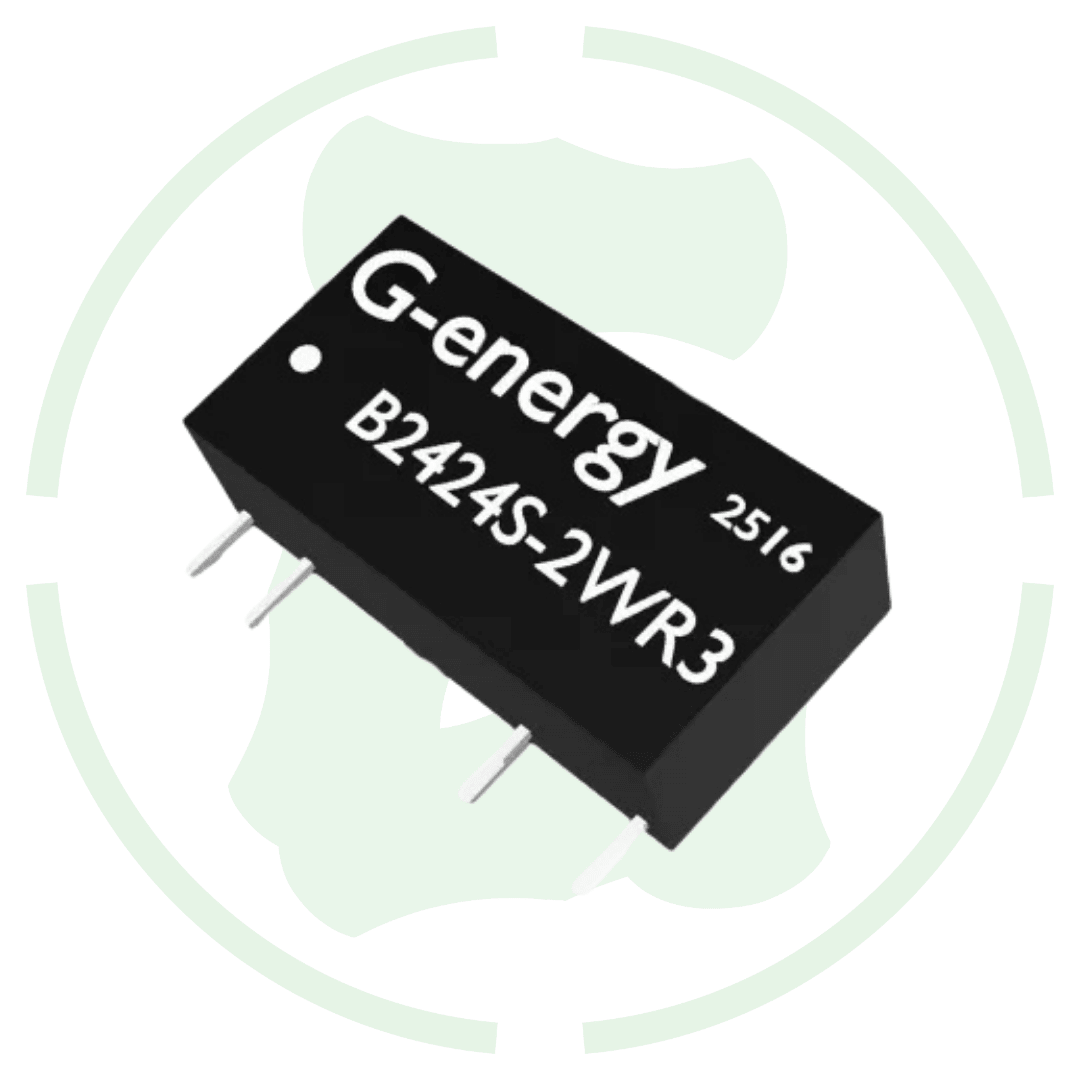

G energy B2424S-2WR3 24V to 24V 83mA 2W Dc Dc Converter IP68 Buck Boost Converter

Overview of this G energy B2424S-2WR3 24V to 24V 83mA 2W dc dc Converter

Introducing G energy B2424S-2WR3 24V to 24V 83mA 2W Dc Dc Converter. This converter works in both step-up (boost) and step-down (buck) modes, so it can adjust the voltage whether the input is a bit higher or lower than 24V. This converter boasts a 1500VDC isolation voltage and make it best choice to power sensitive electronic system.

Features

Isolation Voltage: This B2424S-2WR3 Dc Dc Converter stand out with a1500VDC isolation voltage.

Compact Design: This B2424S-2WR3 compact design make it perfect solution for application with limited space & provide versatility in installation.

2W Output Power – Converter can provide up to 2 watts of power and making it suitable for small electronics, sensors, and control circuits.

Specification

1. Input Voltage Range: 21.6-26.4V

2. Output Voltage: 24V

3. Output Power: 2W

4. Output Current: 83mA

5. Isolation Voltage: 1500 V DC

6. Efficiency: Up to 91%

7. Operating Temperature Range: –40 °C to +85 °C

8. Storage Temperature Range: –55 °C to +125 °C

9. Input Ripple Current: 15mA

10. Output Ripple Voltage: 30 mVp-p

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 19mm × 7mm × 10mm

17. Weight: 3 gm

18. Cooling Method: Free air convection (no fan required)
