G Energy F1212S-1WR3 12V to 12V 83mA 1W Dc To Dc Converter IP67 Buck Boost Converter

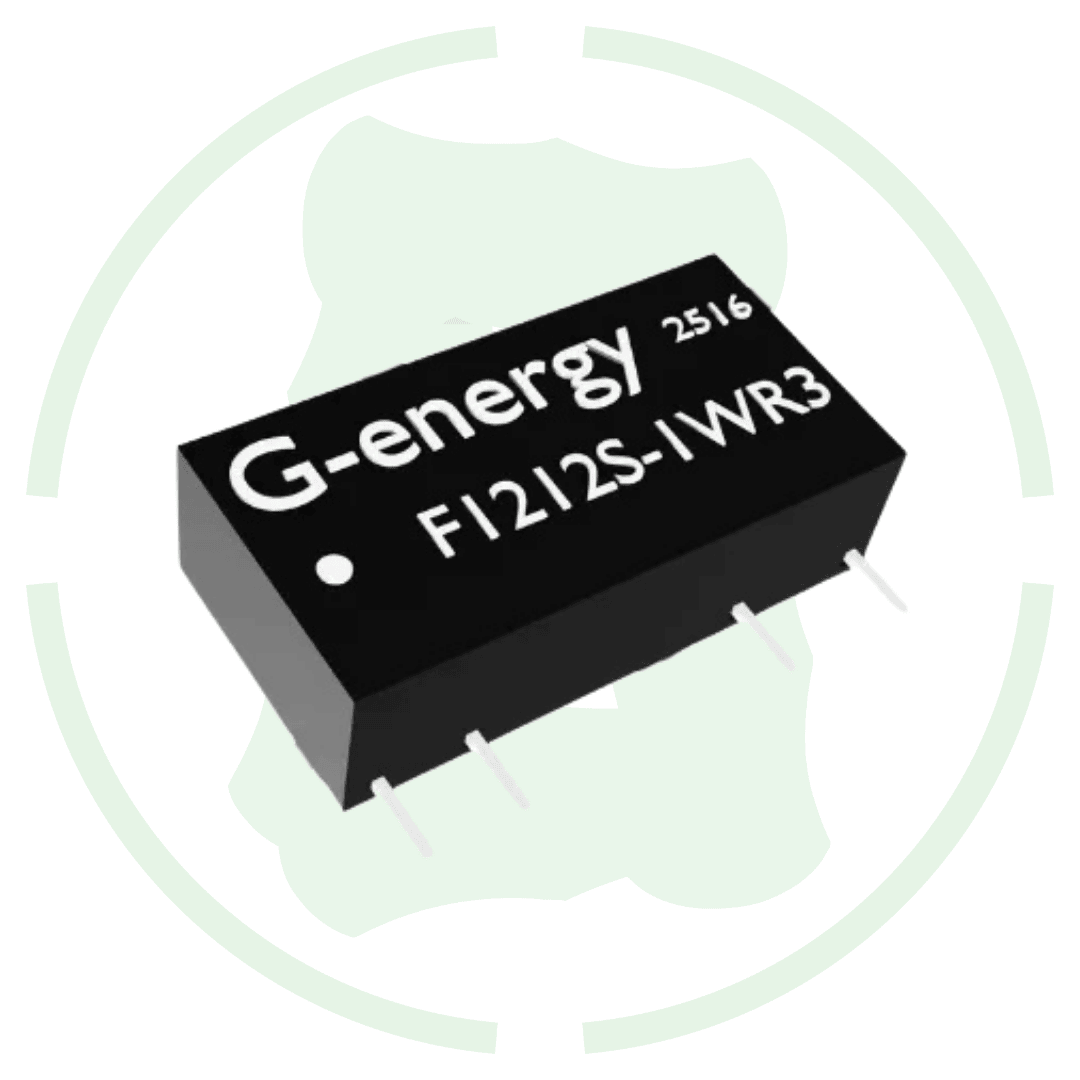

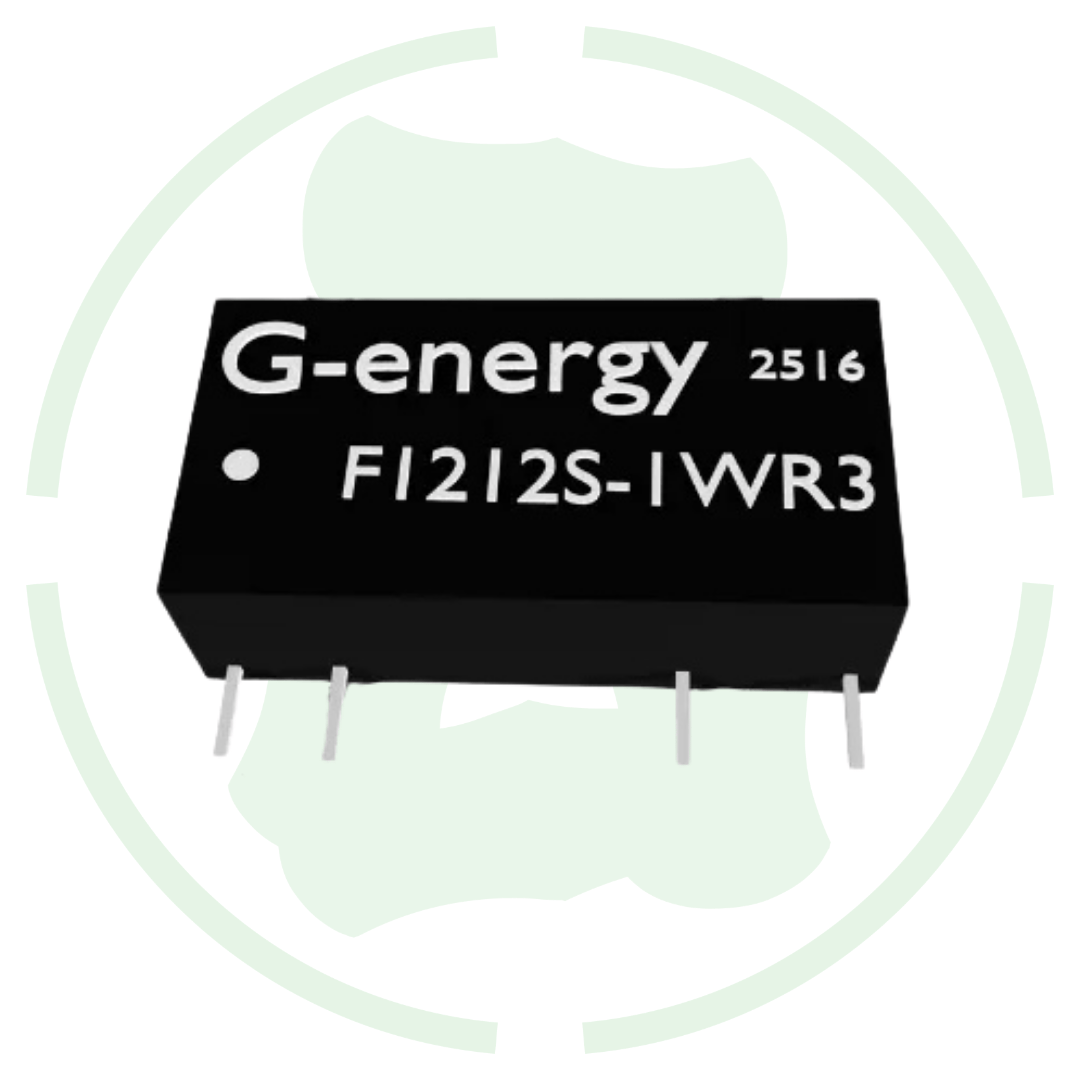

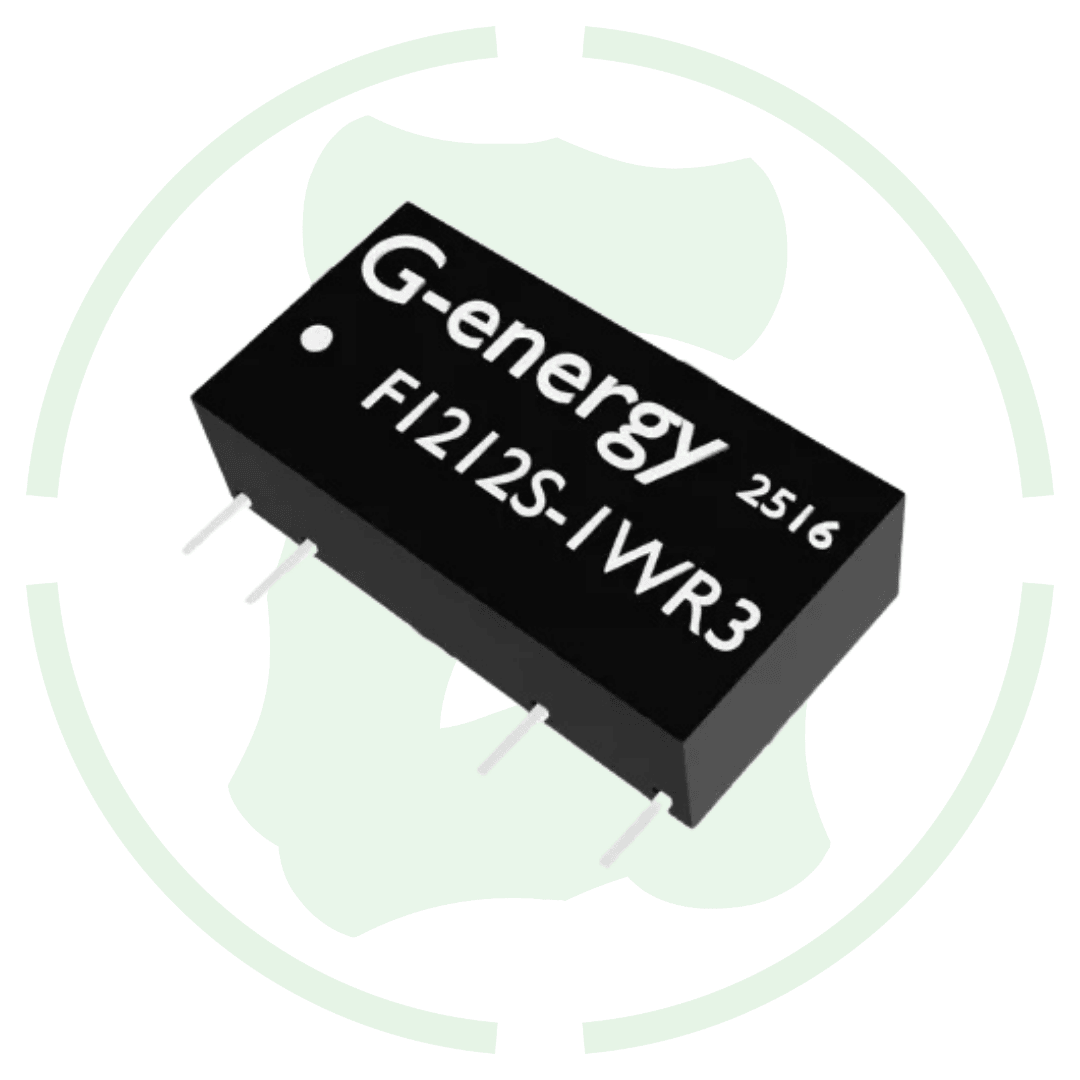

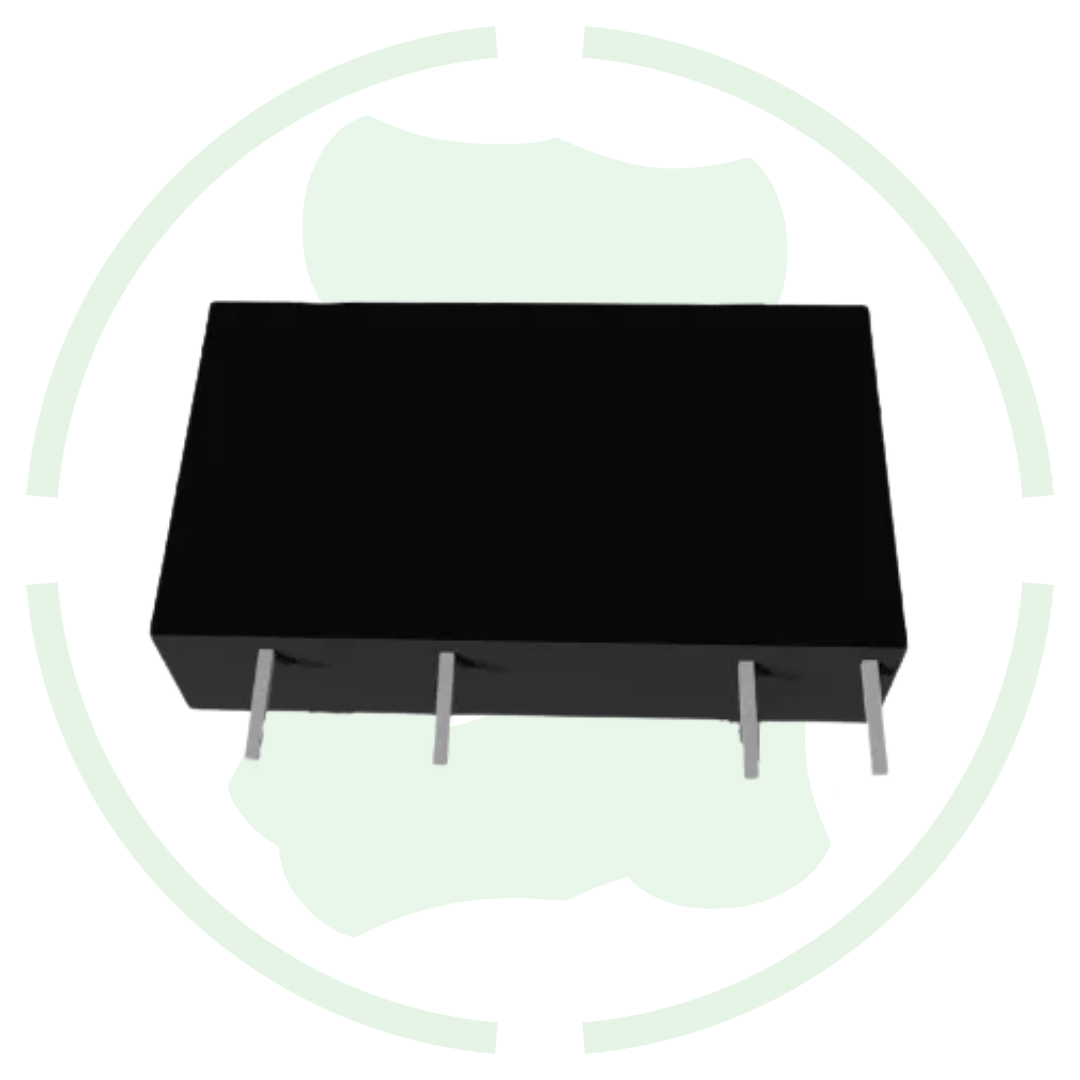

Overview of this F1212S-1WR3 12V to 12V 83mA 1W Dc Dc Converter

Introducing F1212S-1WR3 12V to 12V 83mA 1W dc dc converter at best price in India. It designed for easy use, this F1212S-1WR3 transforms 9-18v input voltage range to a stable 12V output with 83mA 1W power. It comes with compact design for space-saving benefit and easy installation make it best choice for 12V to 12V voltage conversion need.

Features

Input Voltage – This converter designed to take a 12V input and provide a stable 12V output.

1W Power Output – It can deliver up to 1 watt of power which is perfect for low-power devices like multiple pcb board.

High Efficiency (Up to 91%) – This converter converts power with minimal energy loss, which reduces heat generation and improves reliability.

Specifications

1. Input Voltage Range: 9 to 18V

2. Output Voltage: 12V

3. Output Power: 1W

4. Input-to-Output Isolation Voltage: 1000V DC

5. Efficiency: Up to 91%

6. Operating Temperature Range: –40 °C to +85 °C

7. Storage Temperature Range: –55 °C to +125 °C

8. Short Circuit Protection: Yes

9. Overload Protection: Yes

10. Input Reverse Polarity Protection: Yes

Environmental Specifications

Operating Temperature Range: -40°C to +80°C

11. Storage Temperature Range: -40°C to +100°C

12. Humidity Range: 10% to 90% RH

🛡 Protections and Features

13. Waterproof Rating: IP65

14. Protections Included:

• • Short Circuit

  • Over current

  • Under voltage

  • Over temperature

  • Under voltage recovery




Mechanical & Physical

15. Dimensions: 19mm × 10mm × 5mm

16. Weight: 3gm

17. Cooling Method: Free air convection (no fan required)
