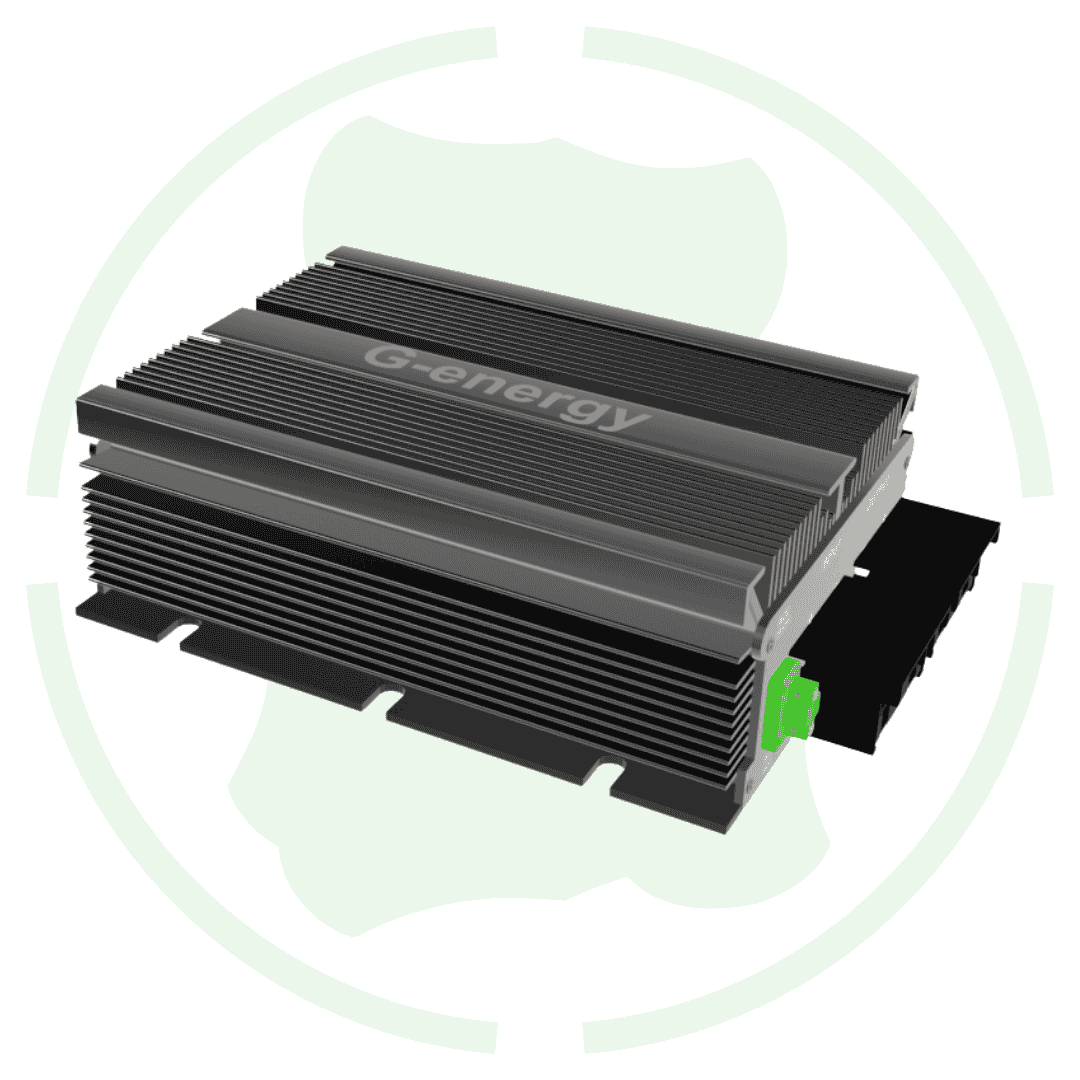

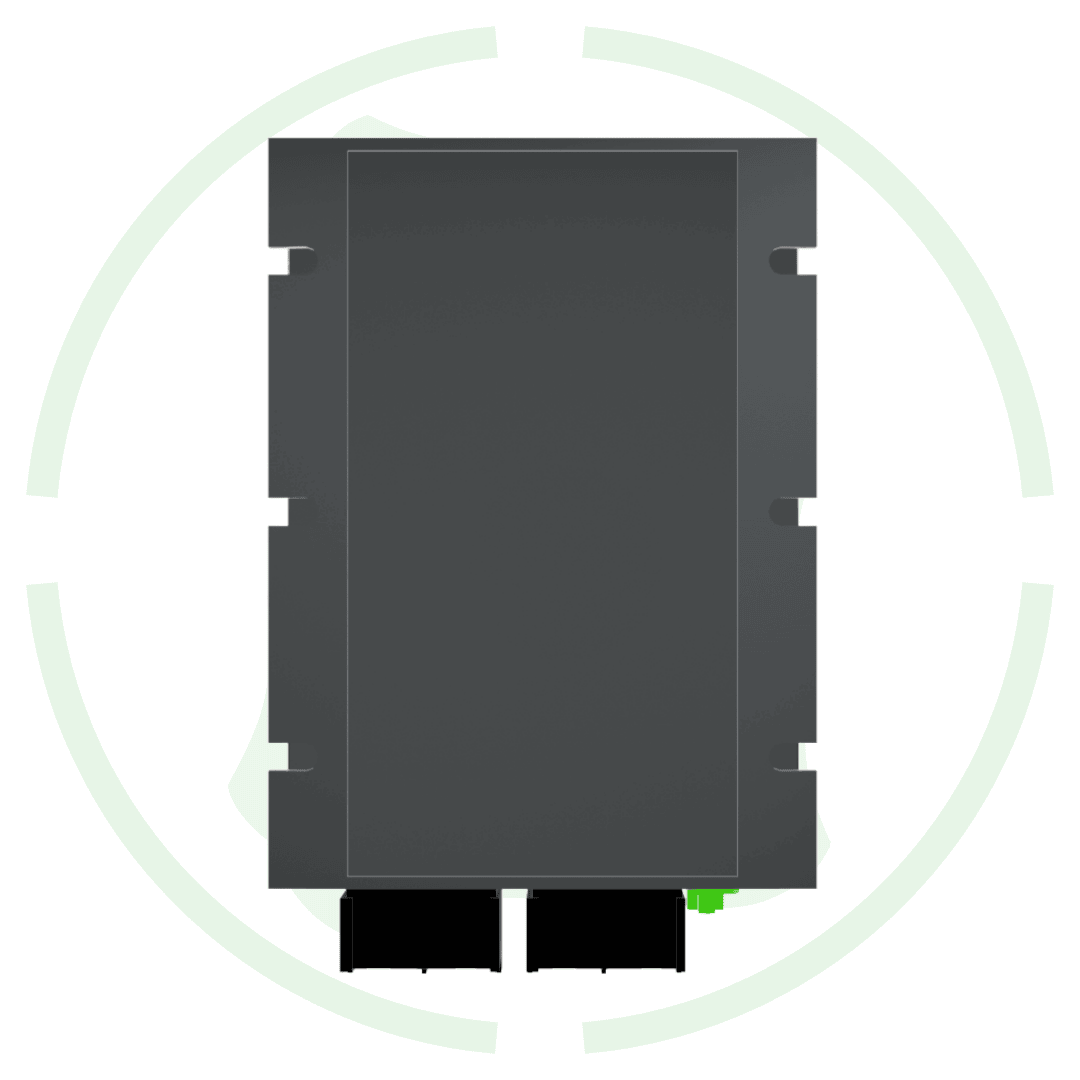

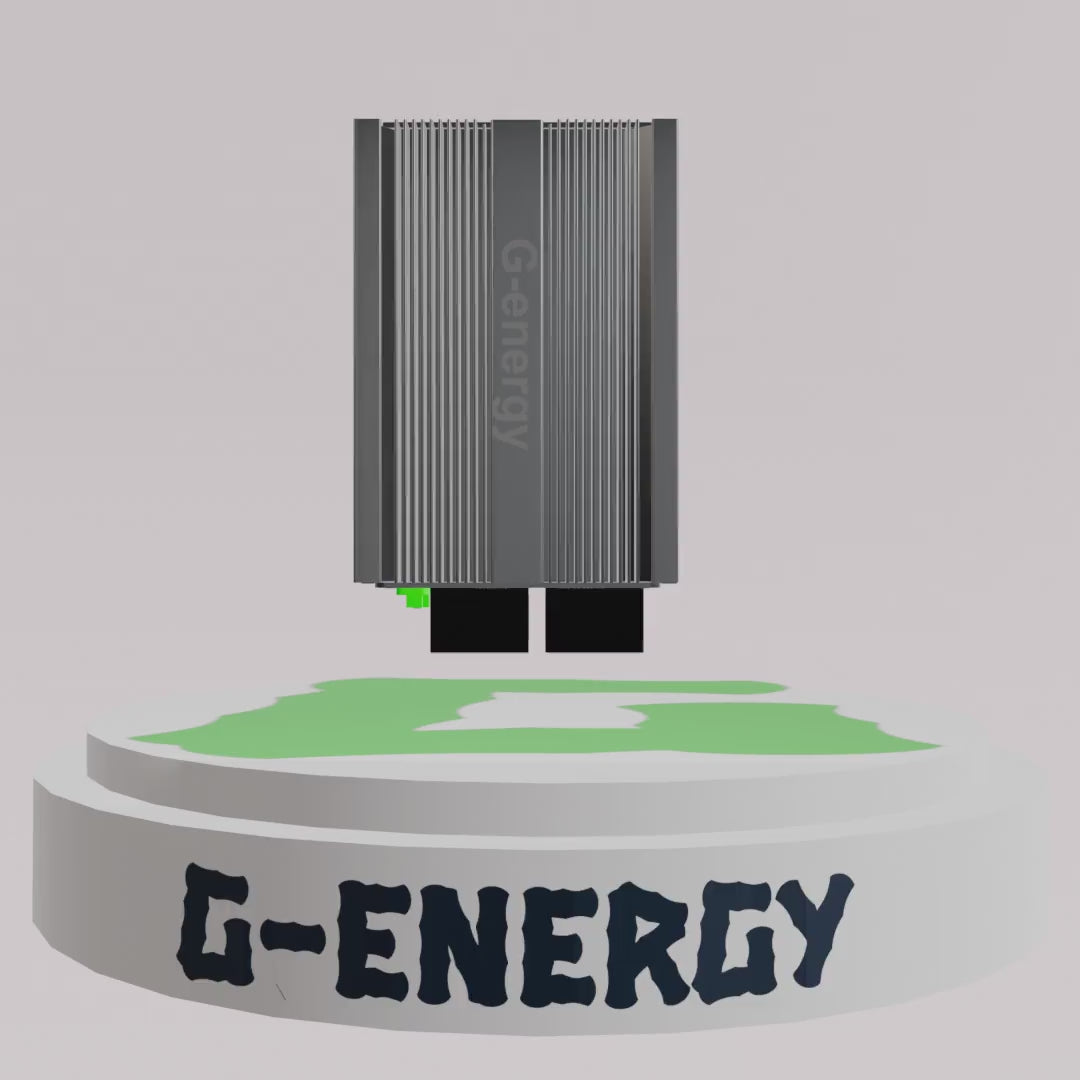

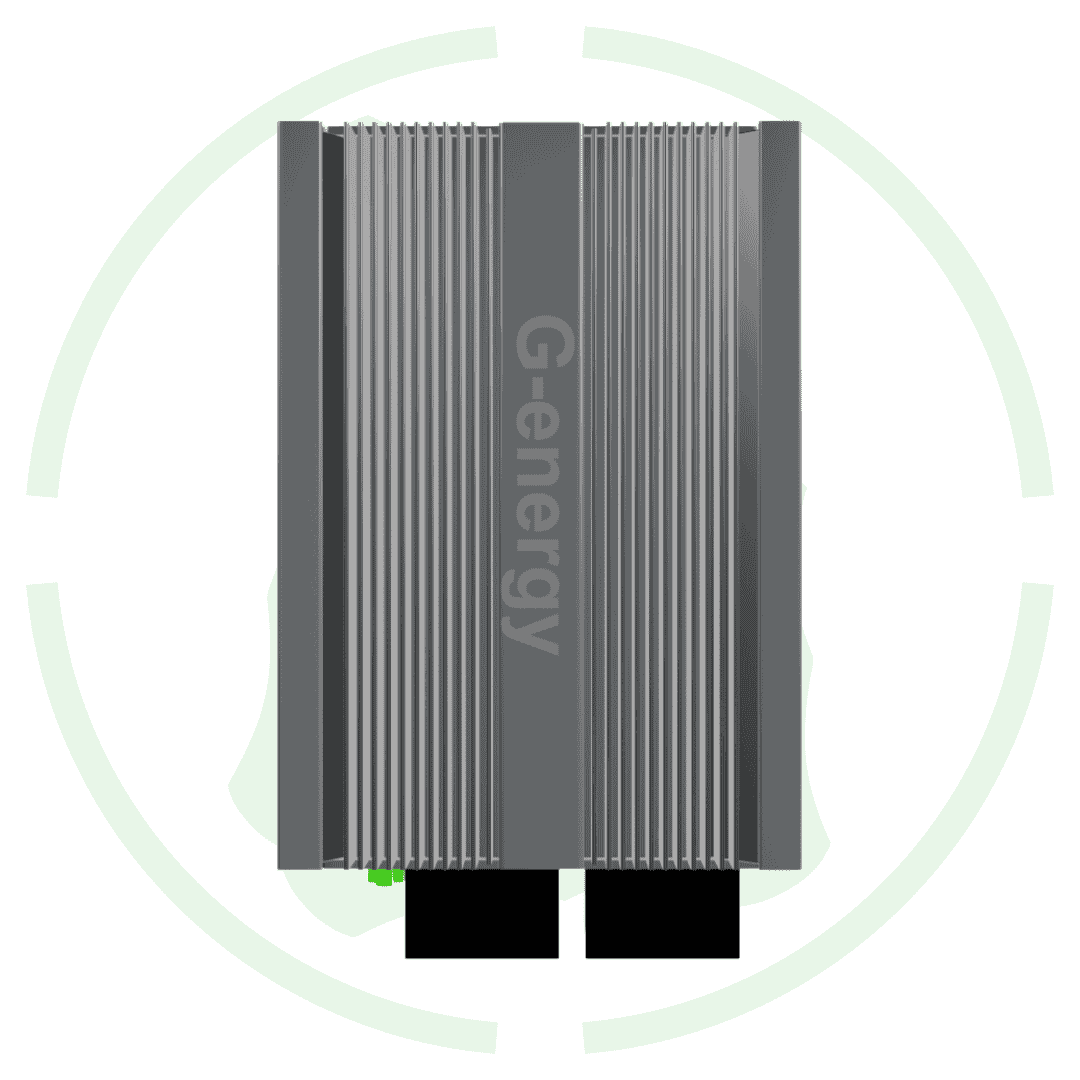

G-energy GEMSDF2412200 24V To 12V 200A 2400W Dc DC Converter

Overview of this 24v to 12v 200a 2400w dc dc converter

Introducing g-energy dc 24v to 12v 200a dc dc converter at best price in India. This voltage converter smoothly work on a wide input voltage of 18v to 32v dc input voltage for smooth use with changing input condition. It also built with synchronous rectification technology for high conversion efficiency up to 93% energy conversion.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 18V-32V DC

2. Rated Input Voltage: 24V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 200A

5. Maximum Output Power: 2400W

6. Efficiency (Typical): Up to 93%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 22mA @ 24V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

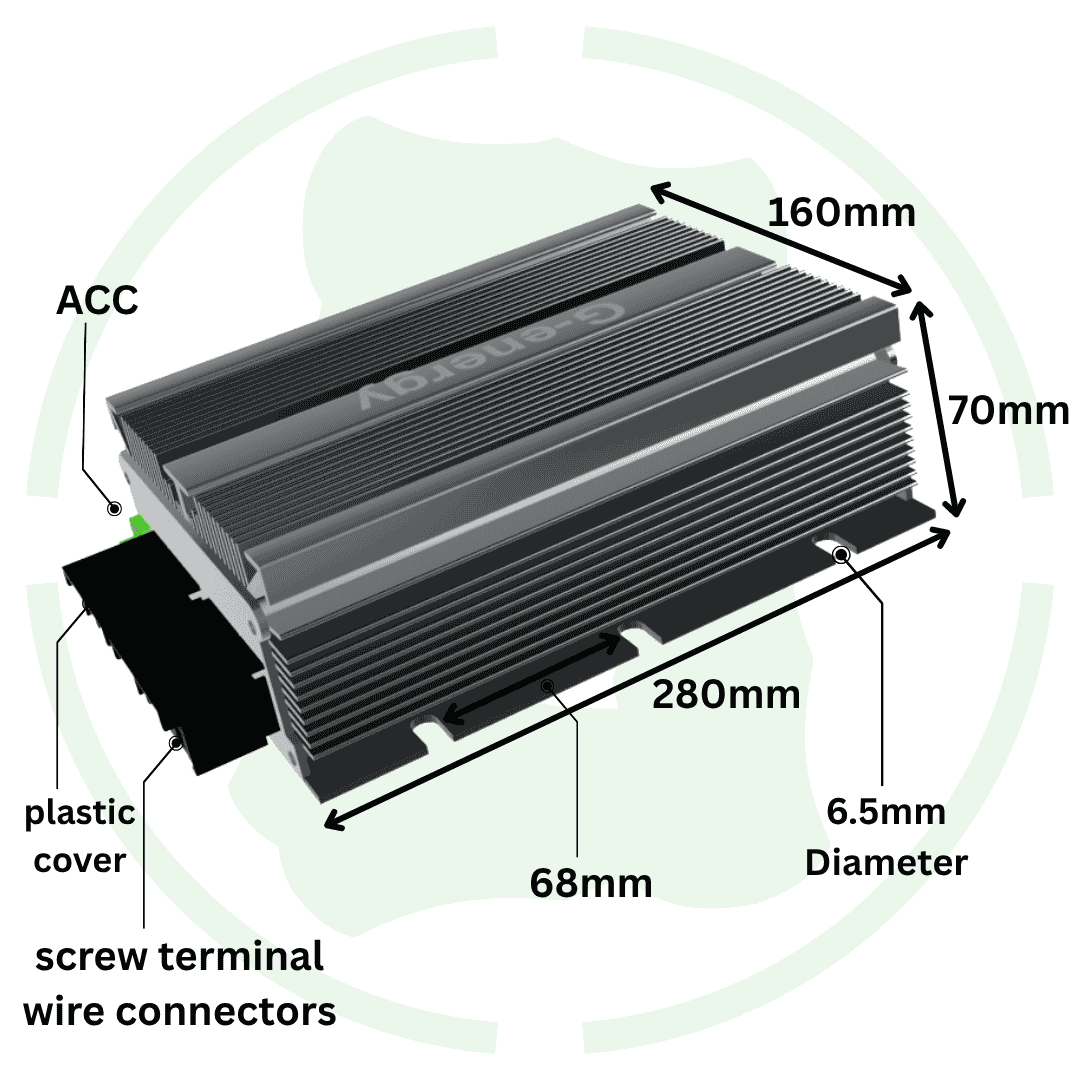

19. Dimensions: 28*16*7 cm

20. Weight: 3.8 Kg

21. Cooling Method: Free air convection (no fan required)
