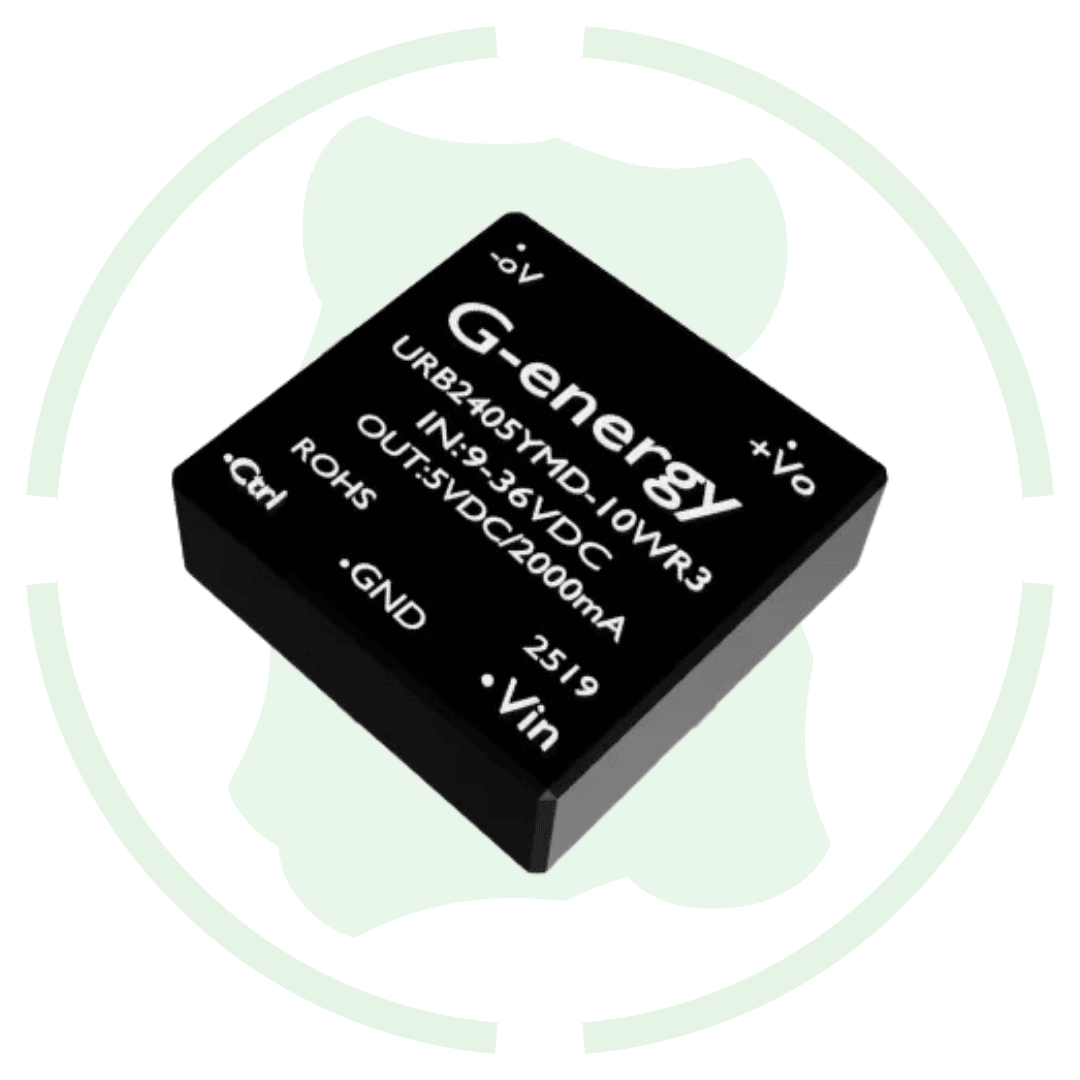

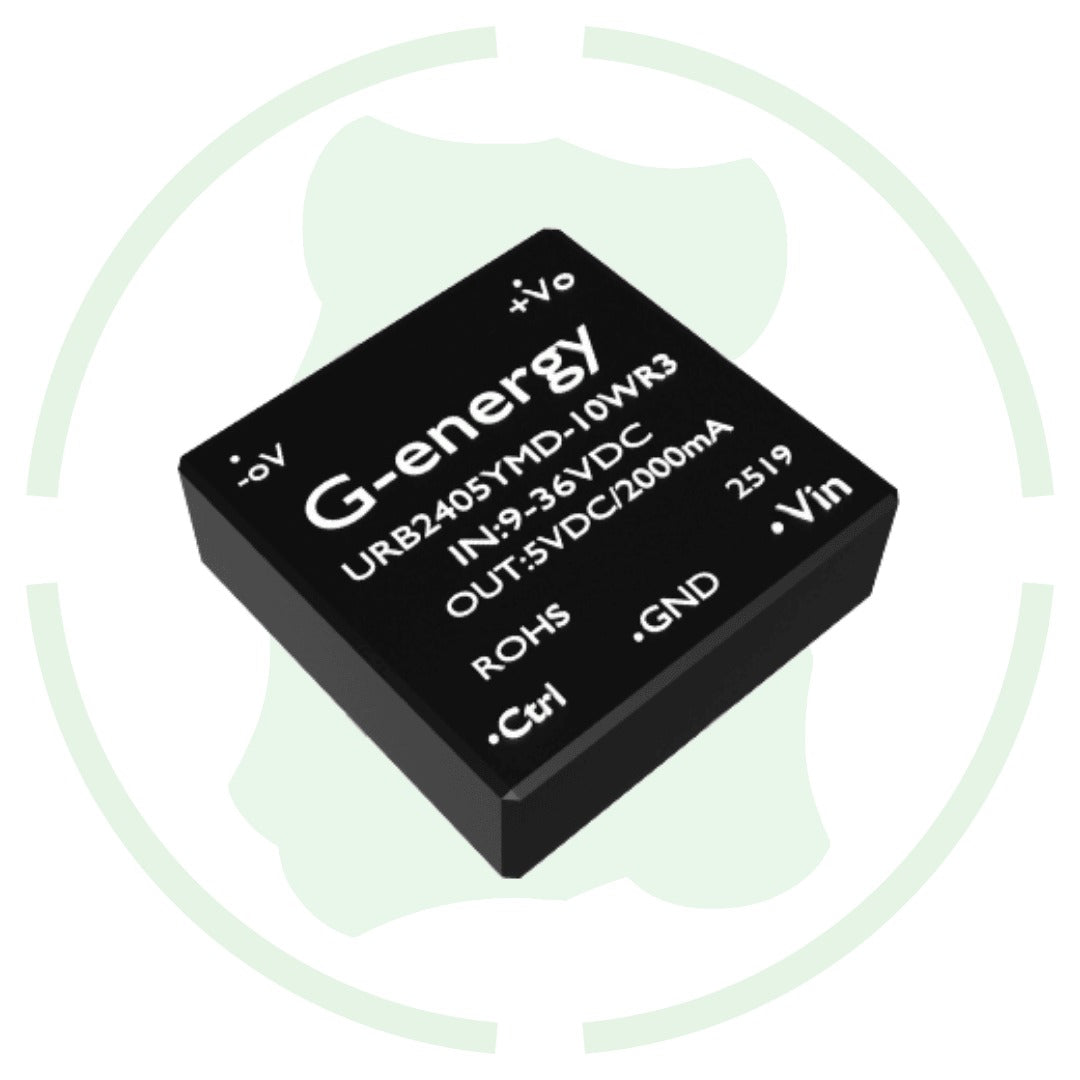

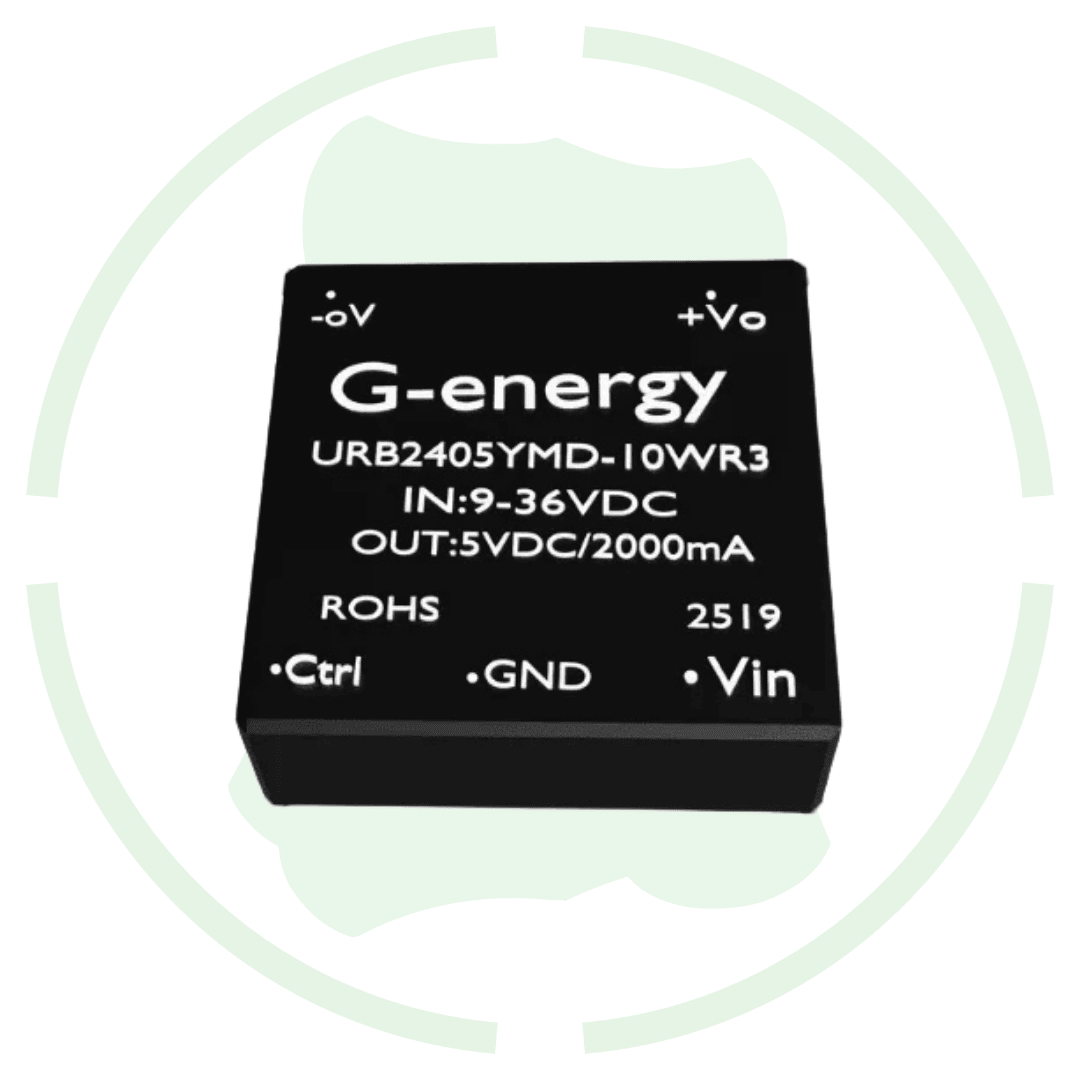

G energy URB2405YMD-10WR3 24V to 5V 2A 10W Dc to Dc Converter IP68 Step Down Converter

Overview of this G energy URB2405YMD-10WR3 24V to 5V 2A 10W dc to dc converter

Introducing  G energy URB2405YMD-10WR3 24v to 5V 10W dc dc converter. This buck converter designed by G energy gives a smooth and stable 10W output & ensure optimal performance for various application. This URB2405YMD-10WR3 stands out with its precision and efficiency & provide a remarkable 91% transfer efficiency.

Features

input voltage range: It can handle various 24 V sources (from 9 to 36 V), so it's flexible and works well even if your supply voltage.

Stable output voltage: Converter delivers a fixed 5 V output with a maximum current of 2 A (10 W power) it is suitable for powering electronics, sensors, and control boards.

91% Transfer Efficiency: This URB2405YMD-10WR3 24v to 5V 10W dc dc converter boast an impressive 91% transfer efficiency to reduce energy loss during the conversion process.

Specification

1. Input Voltage Range: 9-36V

2. Output Voltage: 5V

3. Output Power: 10W

4. Output Current: 2A

5. Efficiency: 91%

6. Conversion Type: Buck Converter

7. Operating Temperature Range: –40 °C to +85 °C

8.  Isolation Voltage: 1500 V DC

9. Overvoltage Protection: Yes

10. Short Circuit Protection: Yes

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

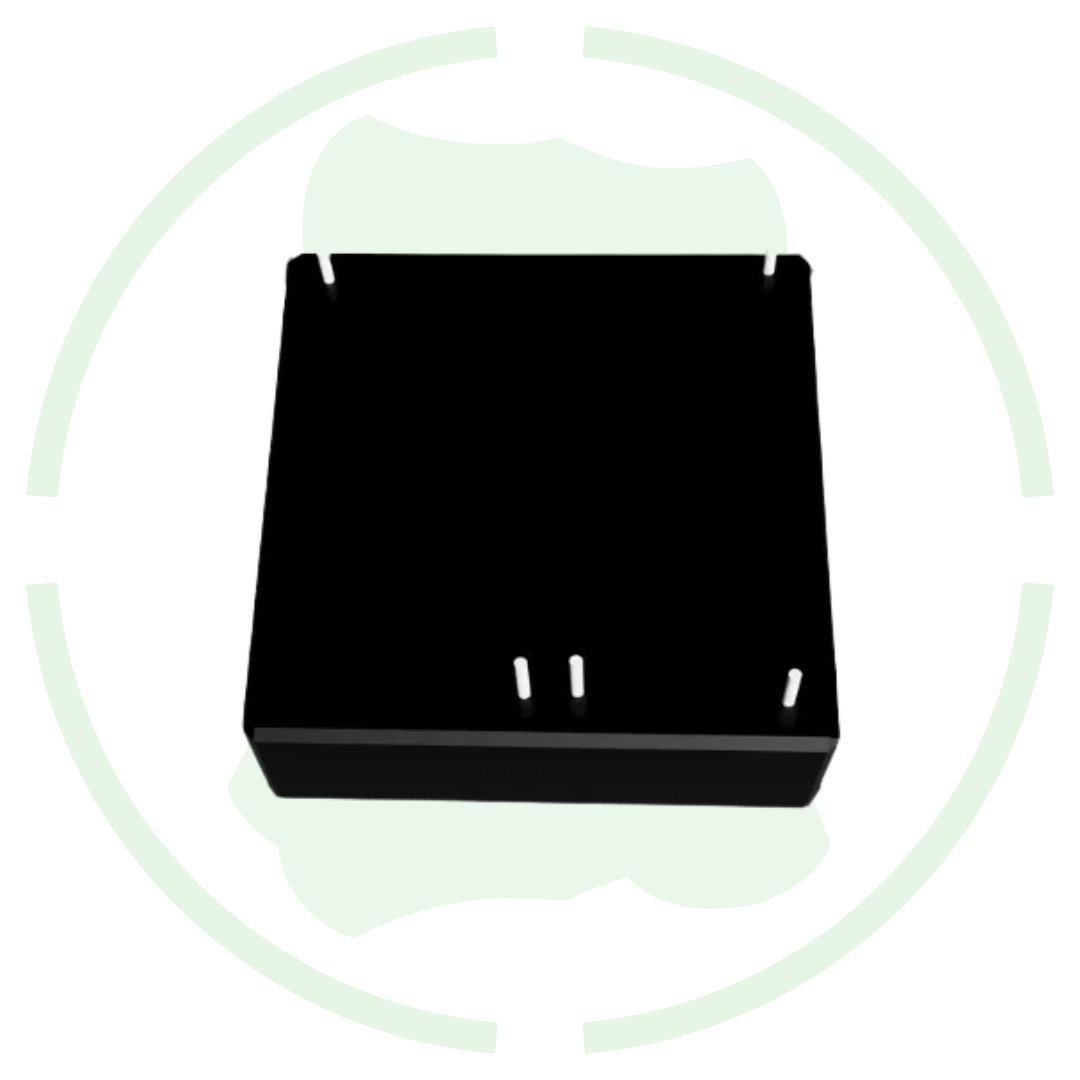

16. Dimensions: 25mm × 25mm × 11mm

17. Weight: 13 gm

18. Cooling Method: Free air convection (no fan required)
