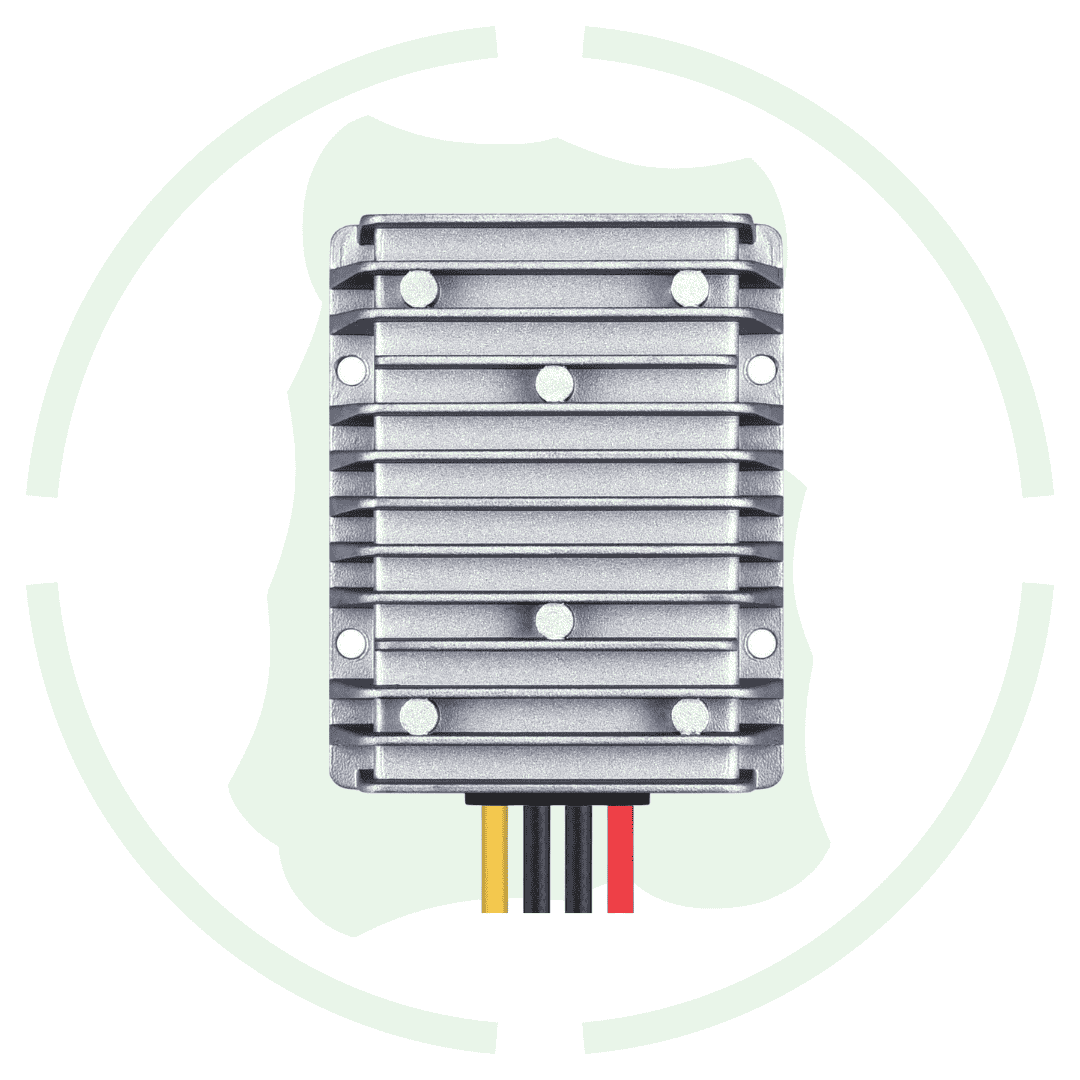

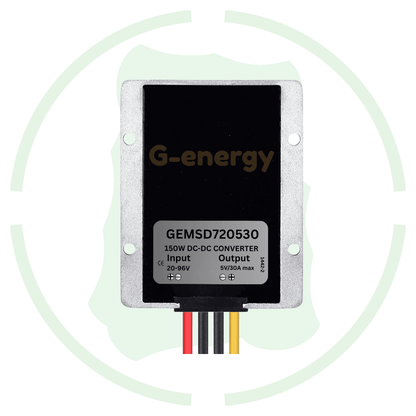

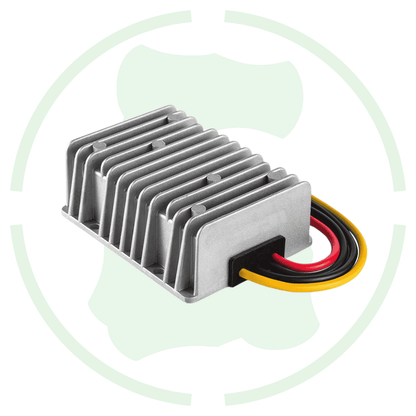

G-energy GEMSD720530 24V 72V To 5V 30A 150W Dc to Dc Converter Ip68 Step Down Converter

Overview of this 24v 72v to 5v 30a 150w dc to dc converter

Introducing g-energy 24v 72v to 5v 30a 150w dc to dc converter ip68 rated metal body waterproof buck converter at best price in India with G-energy. This voltage converter is designed to work on big input voltage of 20v to 96v for its use at multiple industrial applications. It also provide a fix 5v dc output voltage and 30a max dc current and 150w dc power for converter.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 20V-96V DC

2. Rated Input Voltage: 24V 36V 48V 60V 72V 90V DC

3. Output Voltage: 5V DC

4. Maximum Output Current: 30A

5. Maximum Output Power: 150W

6. Efficiency (Typical): Up to 95.4%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 30mA @ 60V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

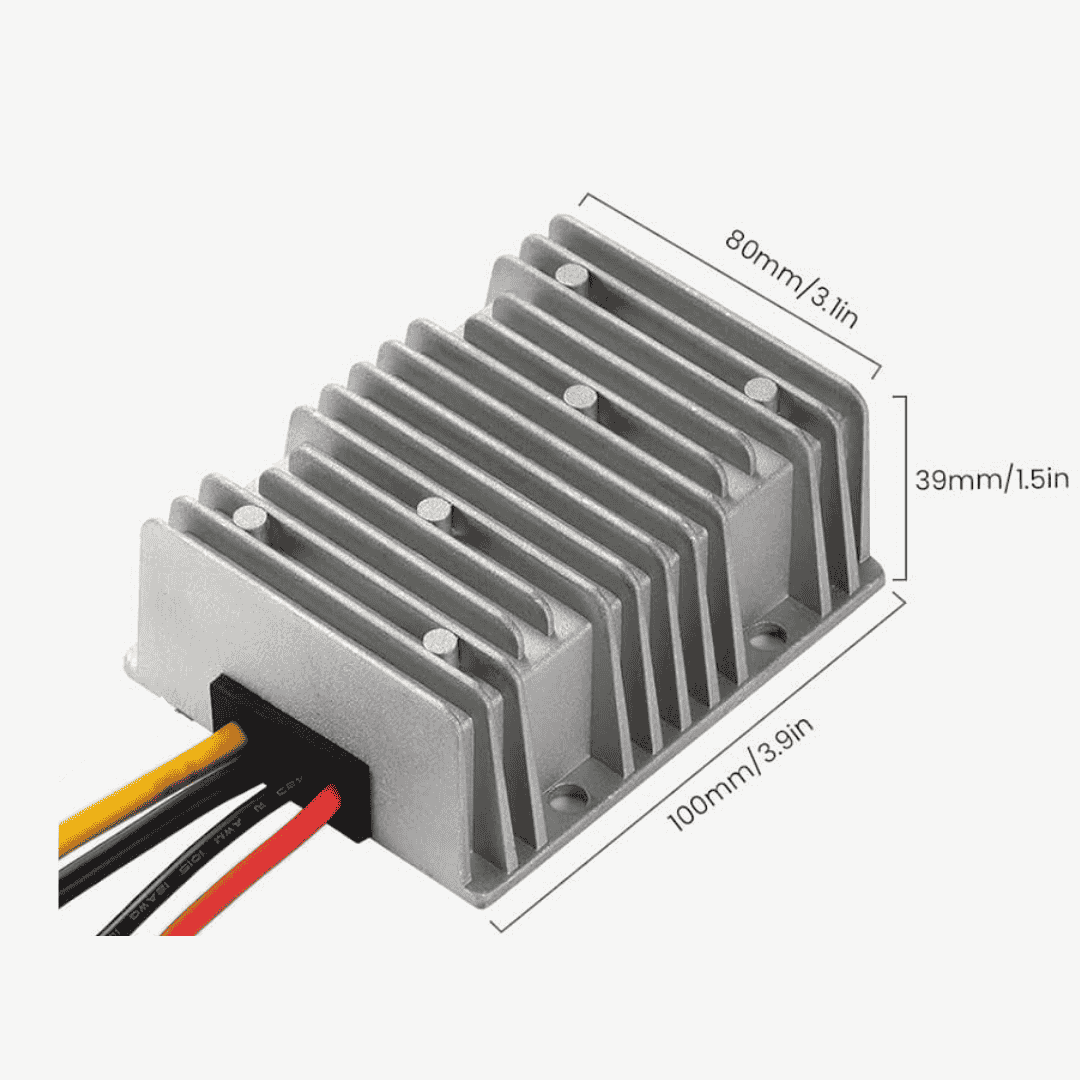

19. Dimensions: 100x80x39 mm

20. Weight: 550 gm

21. Cooling Method: Free air convection (no fan required)
