G-energy GEMSD2412100 24V To 12V 100A 1200W Dc Dc Converter Ip68 Step Down Converter

Overview of this 24v to 12v 100a 1200w dc dc converter ip68 step down converter

Introducing g-energy 24v to 12v 100a 1200w dc dc converter ip68 rated metal body waterproof converter at best price in India with G-energy. This dc voltage converter take input voltage of 18v to 36v and convert it to a fix 12v dc output with 1200w max dc power output. It is built with metal body 7 epoxy potting for its rough use in industrial condition. And it is built with screw terminal wire connection method for tight and secure connection.

Features

Input voltage range: This 24v to 12v buck converter work on wide input voltage of 18v to 36v input voltage for its smooth use at any place.

Ip68 water proofing: This buck converter is built with ip68 rated water proofing for converter safety & its long life any operating conditions.

Safety features: It is also built with multiple safety features including under voltage protection, short circuit protection, over load protection.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 18-36V DC

2. Rated Input Voltage: 24V 36V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 100A

5. Maximum Output Power: 1200W

6. Efficiency (Typical): Up to 97.3%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 200mV (at full load)

10. No-load Current Draw: 100mA @ 24V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

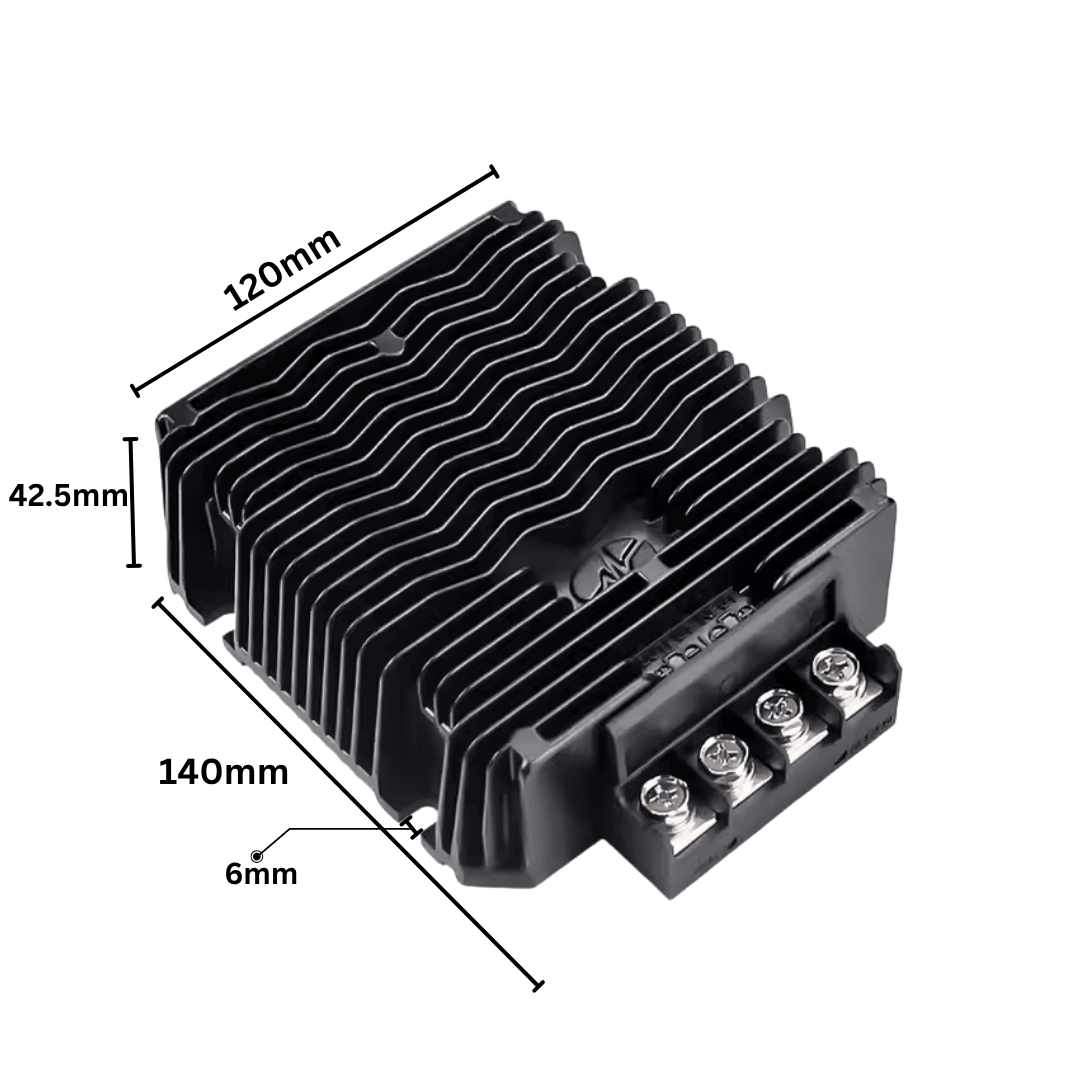

19. Dimensions: 140x120x42.5 mm

20. Weight: 1200 gm

21. Cooling Method: Free air convection (no fan required)
