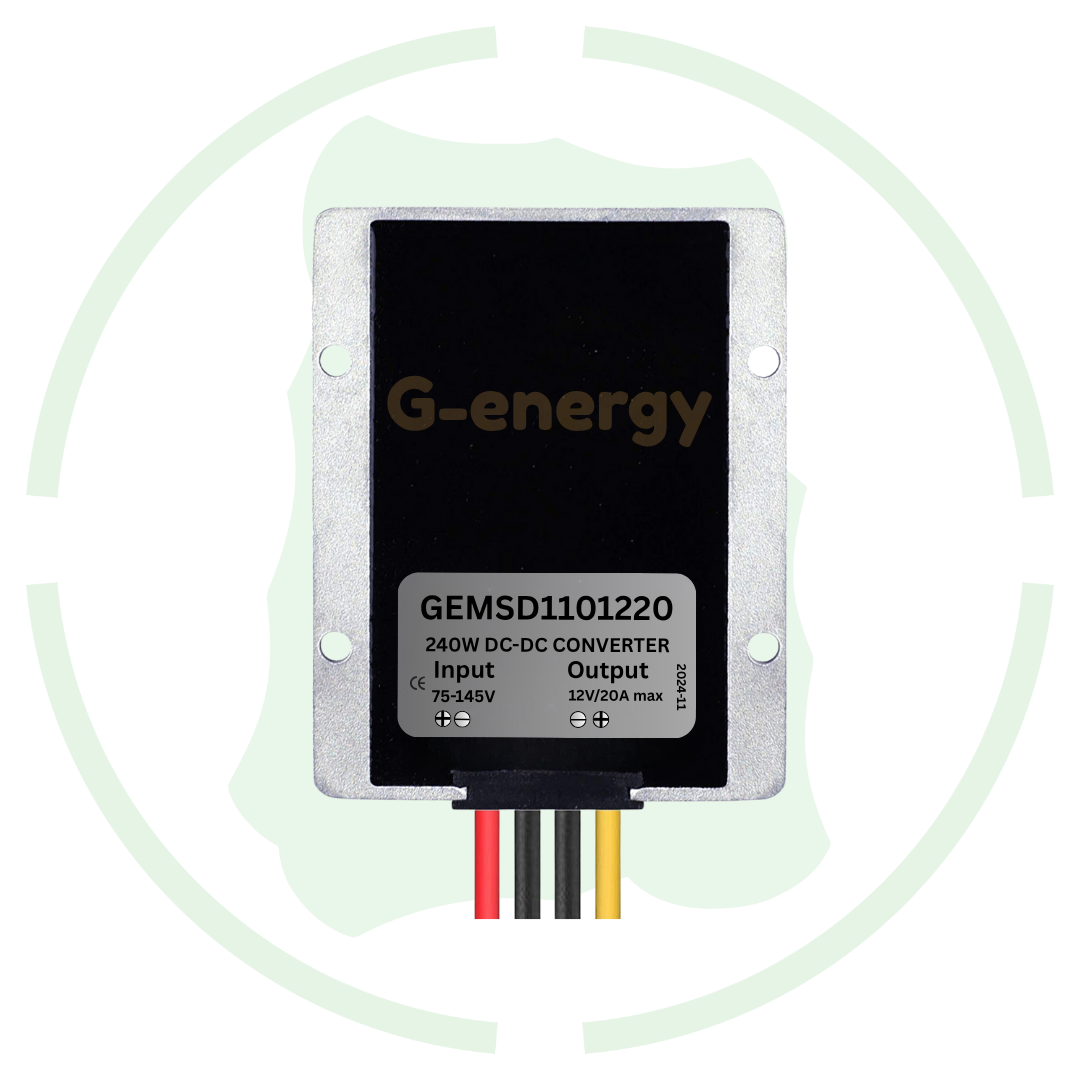

G-energy GEMSD1101220 90V 110V To 12V 20A 240W Dc To Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 12v 20a 240w dc to dc converter

Introducing g-energy 90v 110v to 12v 20a 240w dc to dc converter metal body buck converter at best price in India. This voltage converter is built with aluminum body and high quality input and output wire that can hand;e up to 600v dc voltage. It also come with light weight body to its use in any industrial set up with small space.

Features

Input voltage range: This voltage converter can work on input voltage range from dc voltage from dc 75v to 145v input voltage range.

High energy conversion: This converter come with high energy conversion efficiency up to 89% energy conversion.

High 240w power: This voltage converter provide high dc power up to 240w for smooth operation of high power dc industrial devices.

Specification

• Rated Input Voltage: 90V/110V

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 12V DC

• Maximum Output Current: 20A

• Maximum Output Power: 240W

• Efficiency: Up to 89%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 50mA

• Ripple Noise: 300mV (Full Load)

🌡️ Environmental Ratings

• Operating Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +80°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Build Features

• Short Circuit Protection: ✅

• Over current Protection: ✅

• Water proof Rating: IP68

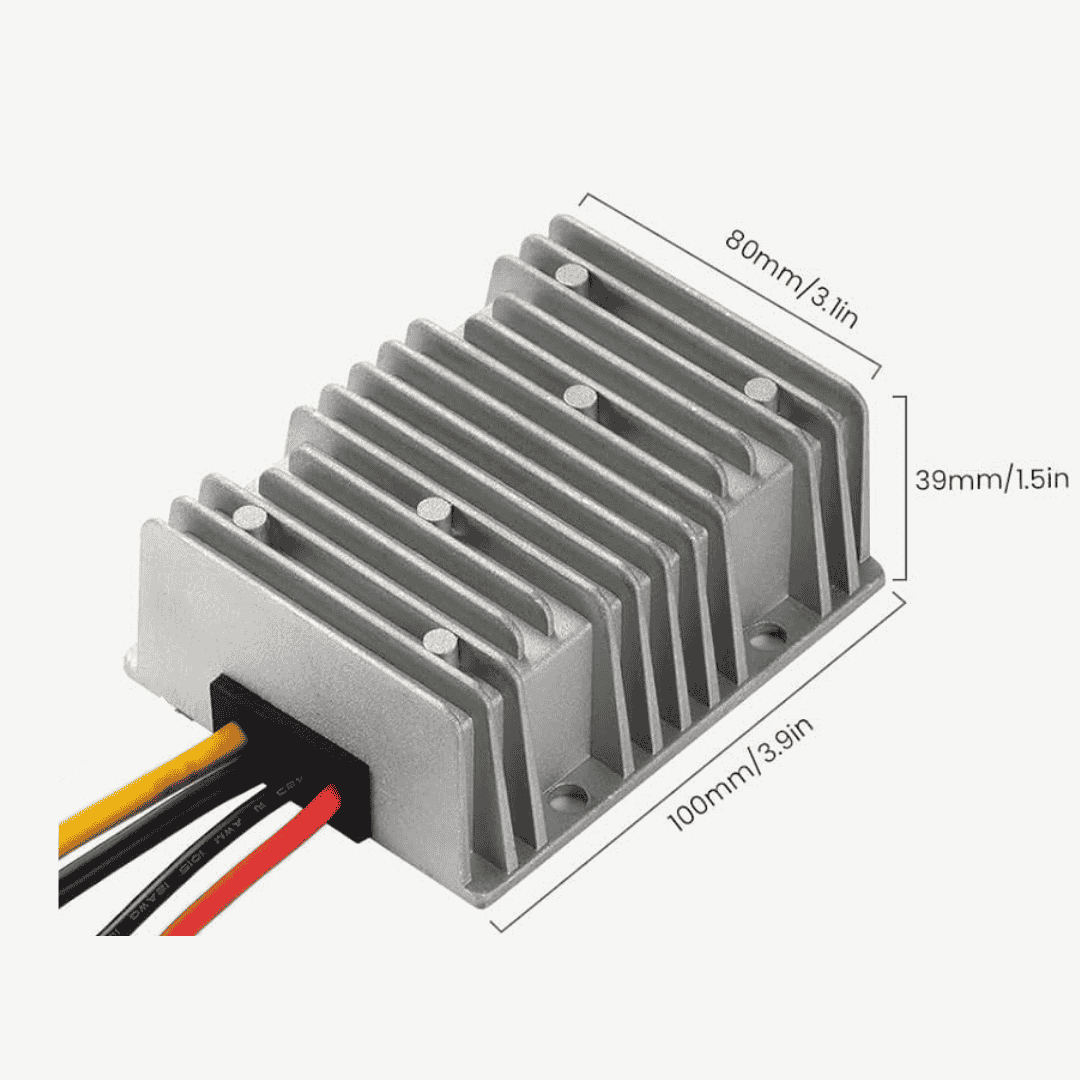

• Dimensions: 100x80x39 mm

• Weight: 1055g
