G-energy GEMSD1102415 90V 110V To 24V 15A 360W Dc To Dc Converter Ip68 Step Down Converter

Overview of this 90v 110v to 24v 15a 360w dc to dc converter

Introducing g-energy 90v 110v to 24v 15a 360w dc to dc converter aluminim metal body step down converter at best price in India with G-energy. This voltage converter is designed with with metal body frame and epoxy based for its use in any environmental condition. It can also work on input voltage range from dc 75v to 145v for its use at any industrial set up.

Features

Input voltage range: This converter is designed to operate on input range from dc 75v to 145v input voltage range and provide a fix 24v output voltage.

High output power: This converter provide a high dc power up to 360w dc output power to operate any high power industrial devices.

High quality built: Its high quality built ensure it can survive harsh temperature range from -40 to +55 degree celsius.

Specification

• Rated Input Voltage: 90V/110V

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 24V DC

• Maximum Output Current: 15A

• Maximum Output Power: 360W

• Efficiency: Up to 90%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 60mA

• Ripple Noise: 150mV (Full Load)

🌡️ Environmental Ratings

• Operating Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +80°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Physical Features

• Short Circuit Protection: ✅

• Over current Protection: ✅

• Waterproof Rating: IP68

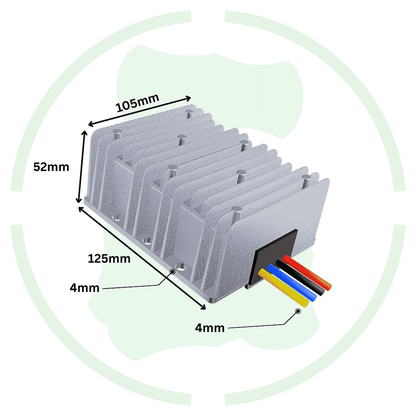

• Dimensions: 127 × 104 × 51 mm

• Weight: 1045g
