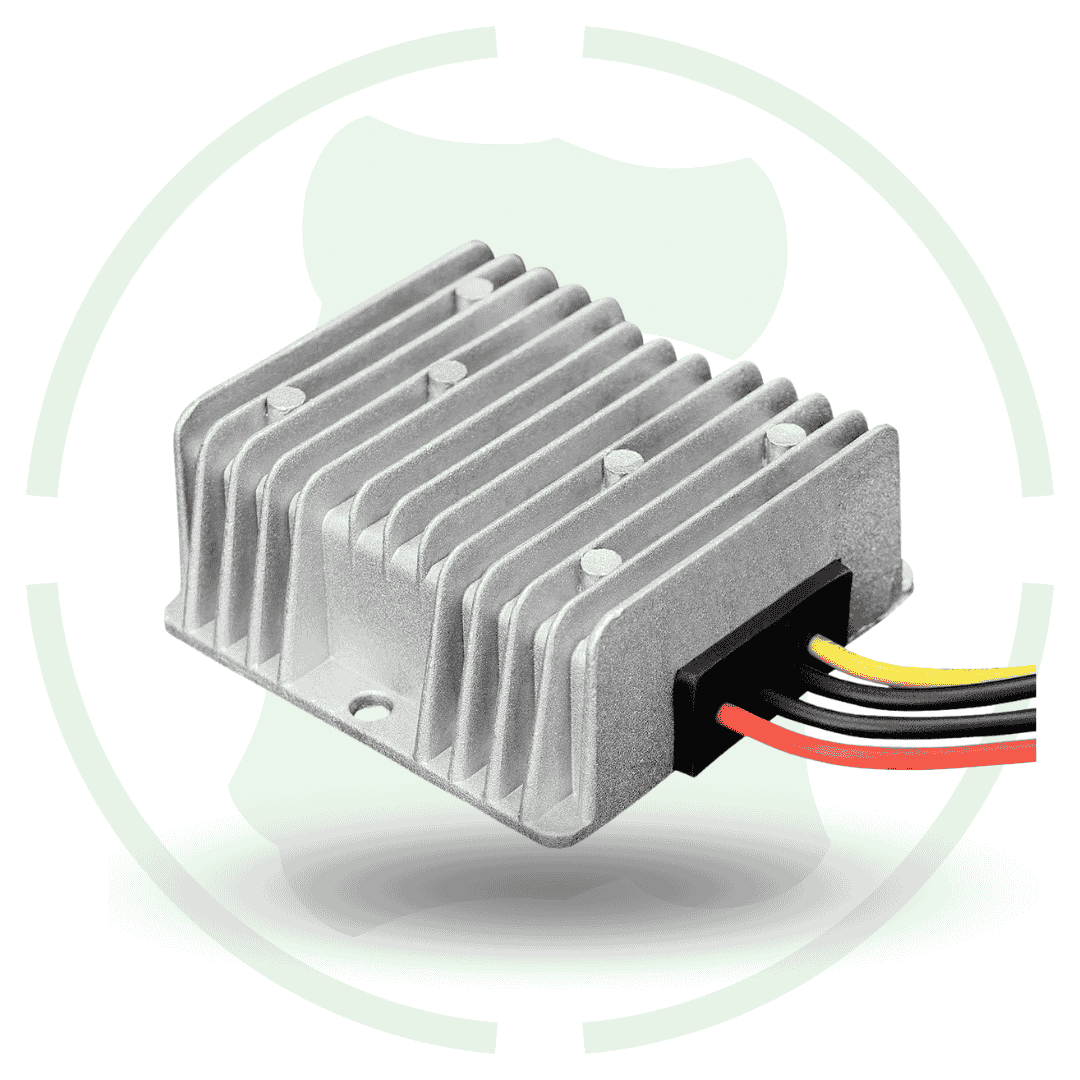

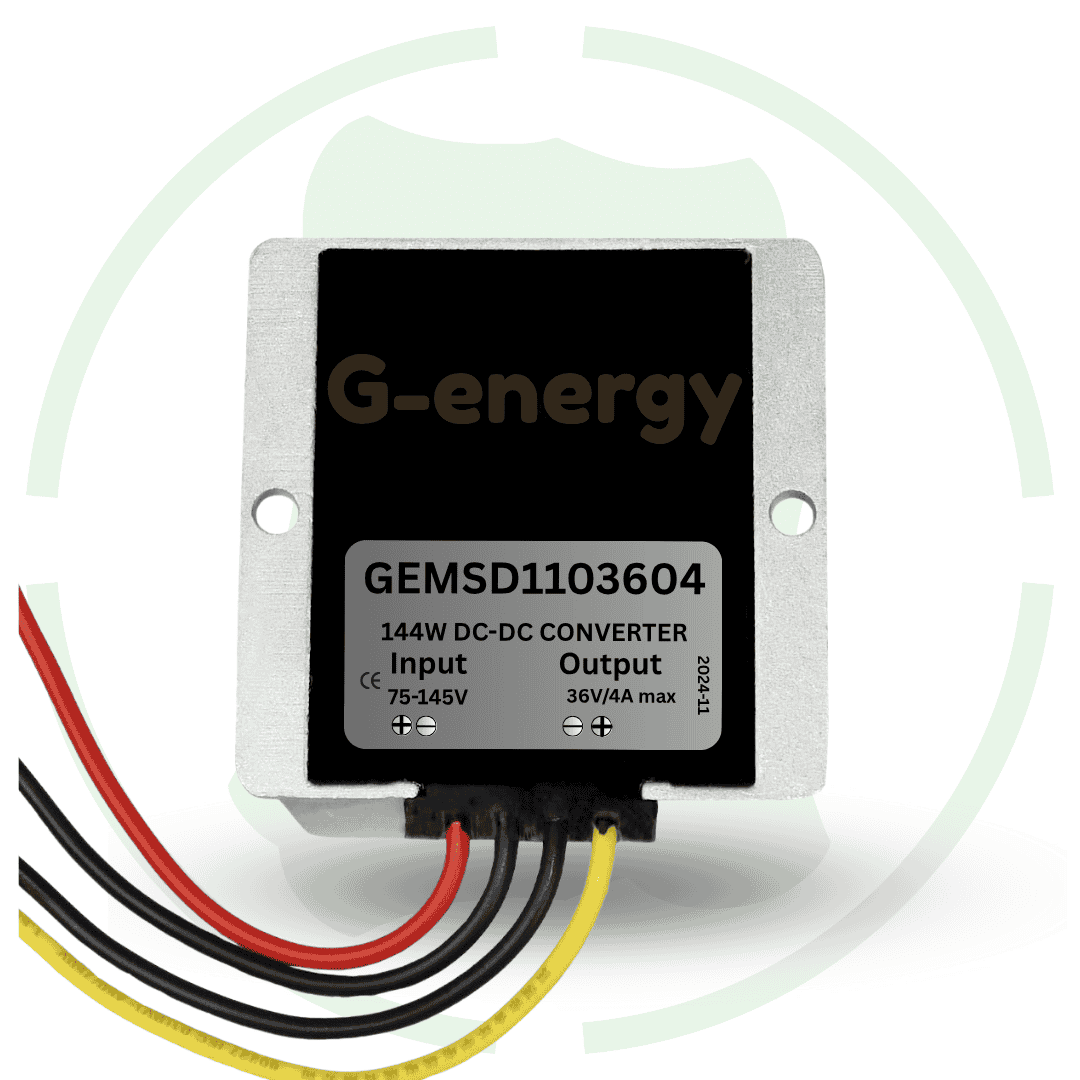

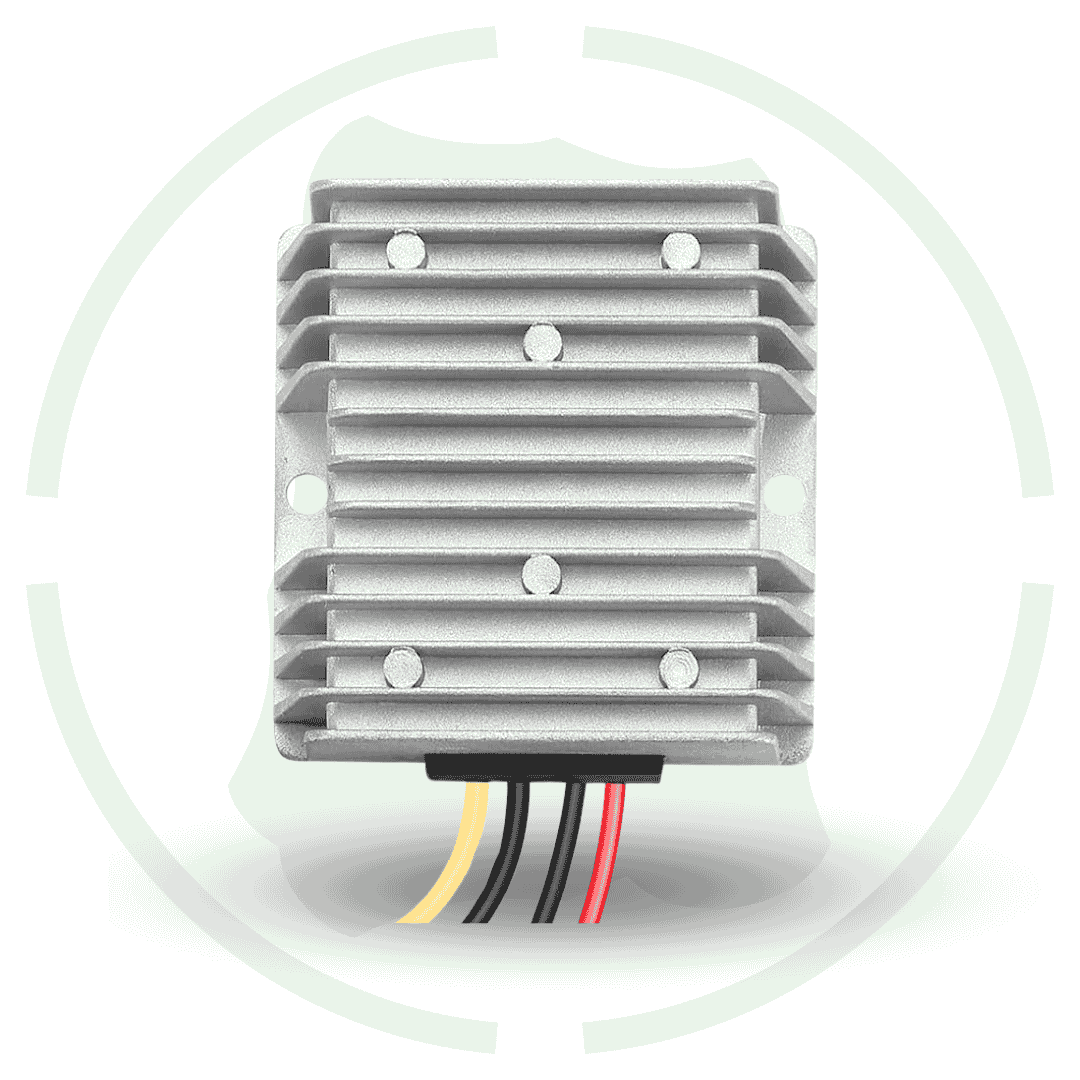

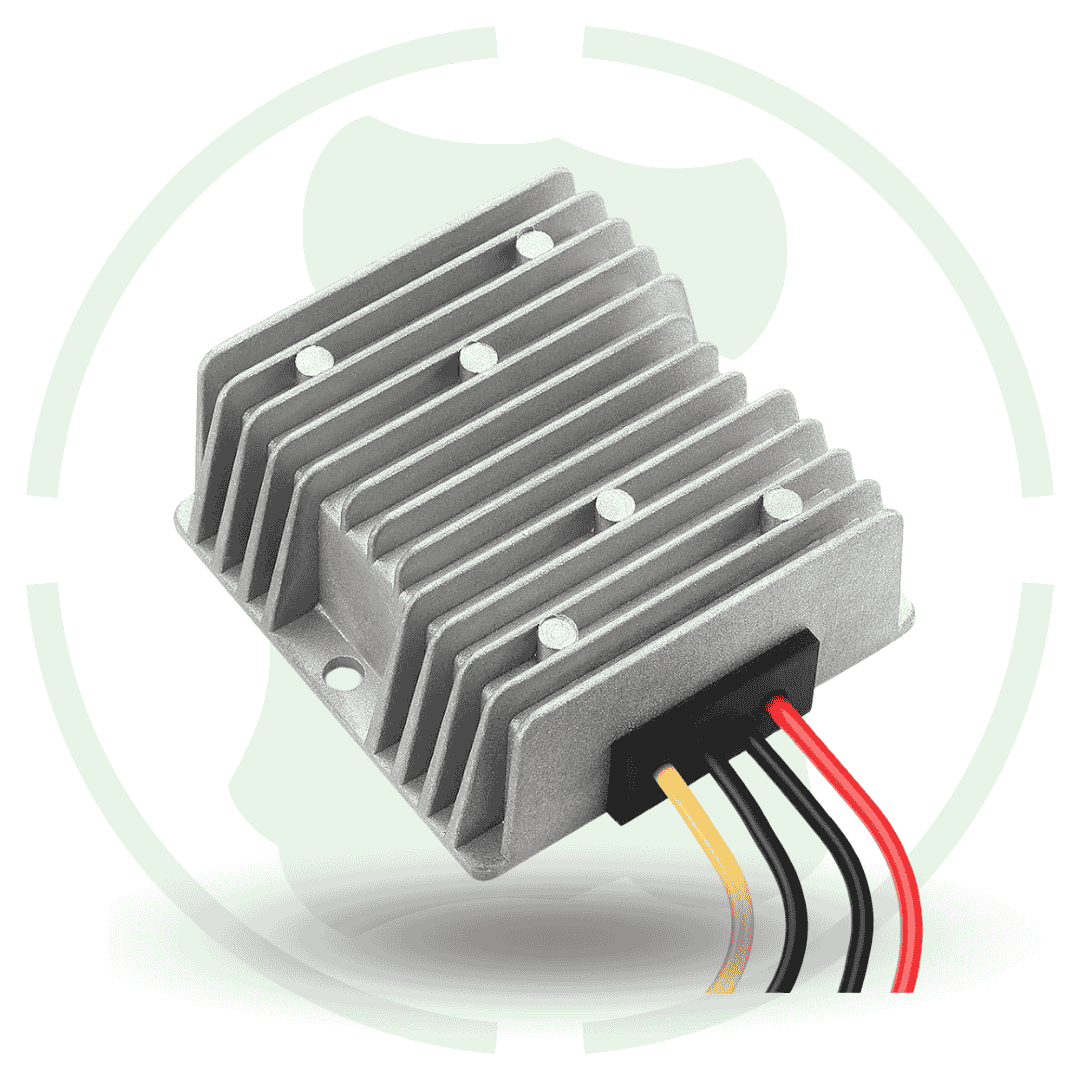

G-energy GEMSD1103604 90V 110V To 36V 4A 144W Dc To Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 36v 4a 144w dc to dc converter

Introducing g-energy 90v 110v to 36v 4a 144w dc to dc converter ip68 step down buck converter at best price in India with G-energy. This step down dc converter smoothly operate on input voltage from dc 75v to 145v voltage and provide a fix 36v output voltage. It also provide up to 3a dc current and maximum power up to 144w to operate any dc industrial device.

Features

Input range: This voltage converter work on input range from 75v to 145v input voltage range with a fix 36v output voltage.

144W Dc Power: This voltage converter provide dc power up to 144w dc power and maximum current up to 3a.

High conversion efficiency: This voltage converter is designed to provide high conversion efficiency up 89% energy conversion.

Specification

• Rated Input Voltage: 120V

• Input Voltage Range: 75V – 145V DC

• Output Voltage: 36V DC

• Maximum Output Current: 4A

• Maximum Output Power: 144W

• Efficiency: Up to 89%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 50mA

• Ripple Noise: 150mV (Full Load)

🌡️ Environmental Conditions

• Operating Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +80°C

• Operating Humidity: 10% – 90% RH

🛡️ Protection & Construction

• Short Circuit Protection: ✅

• Over current Protection: ✅

• Water proof Rating: IP68

• Dimensions: 74 × 74 × 32 mm

• Weight: 253g
