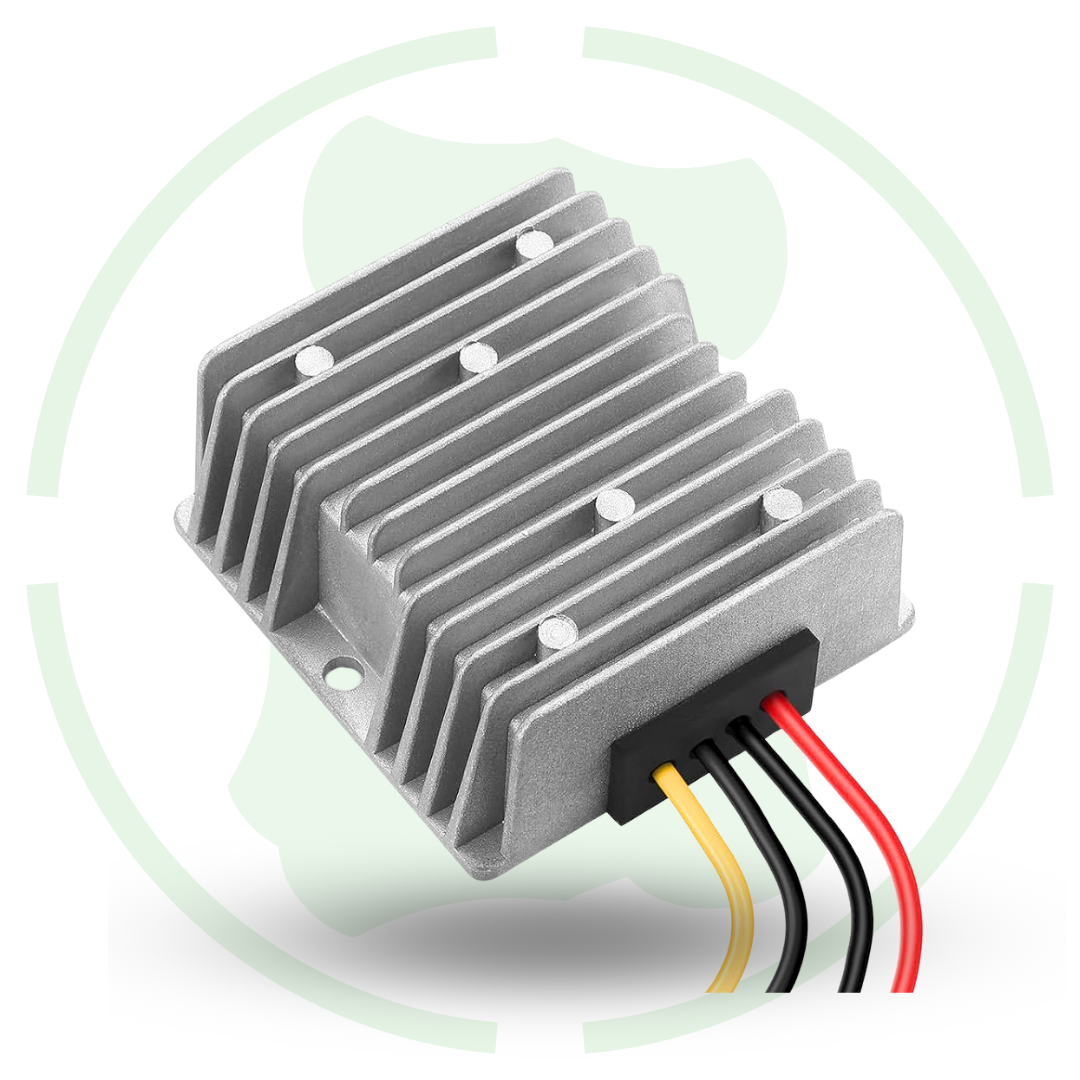

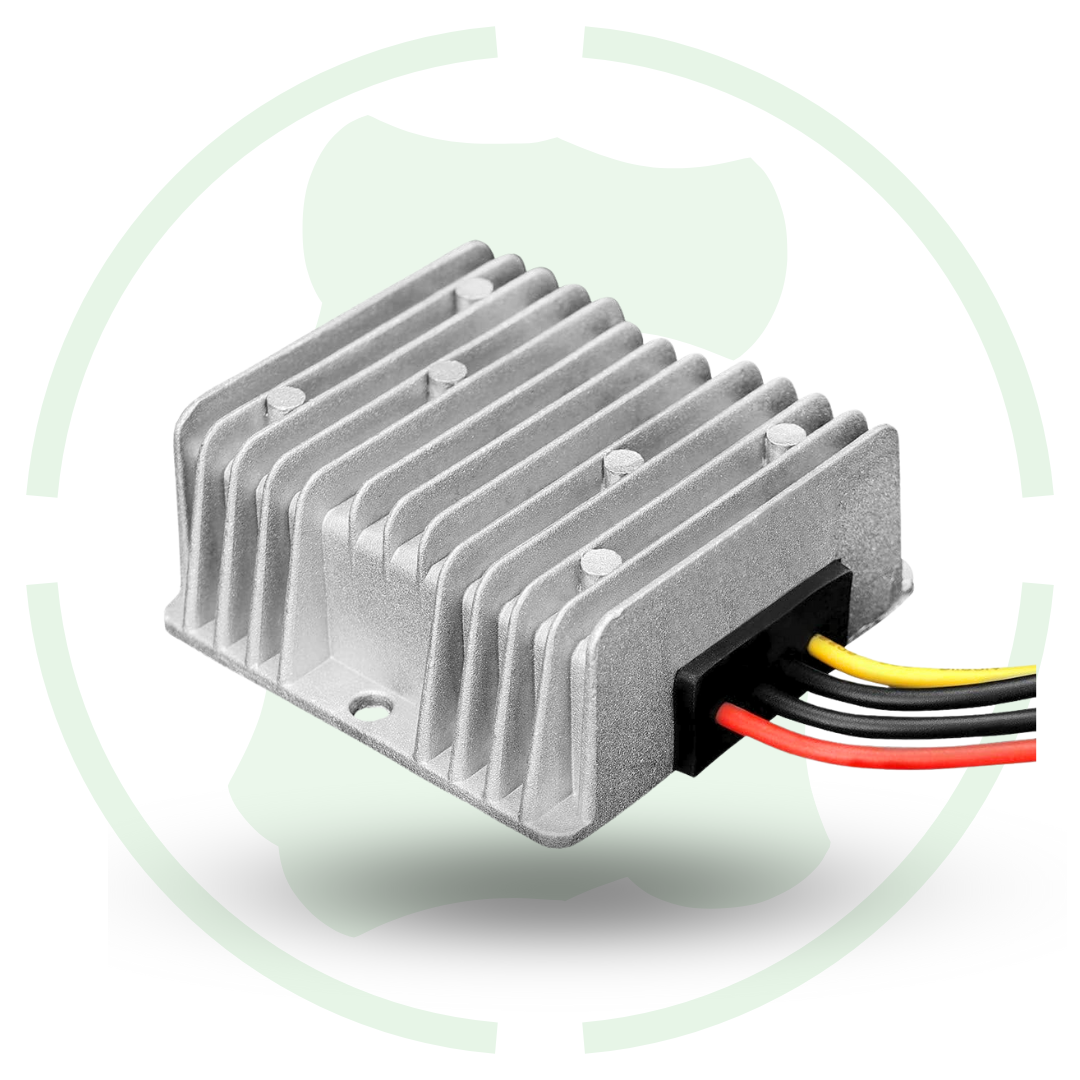

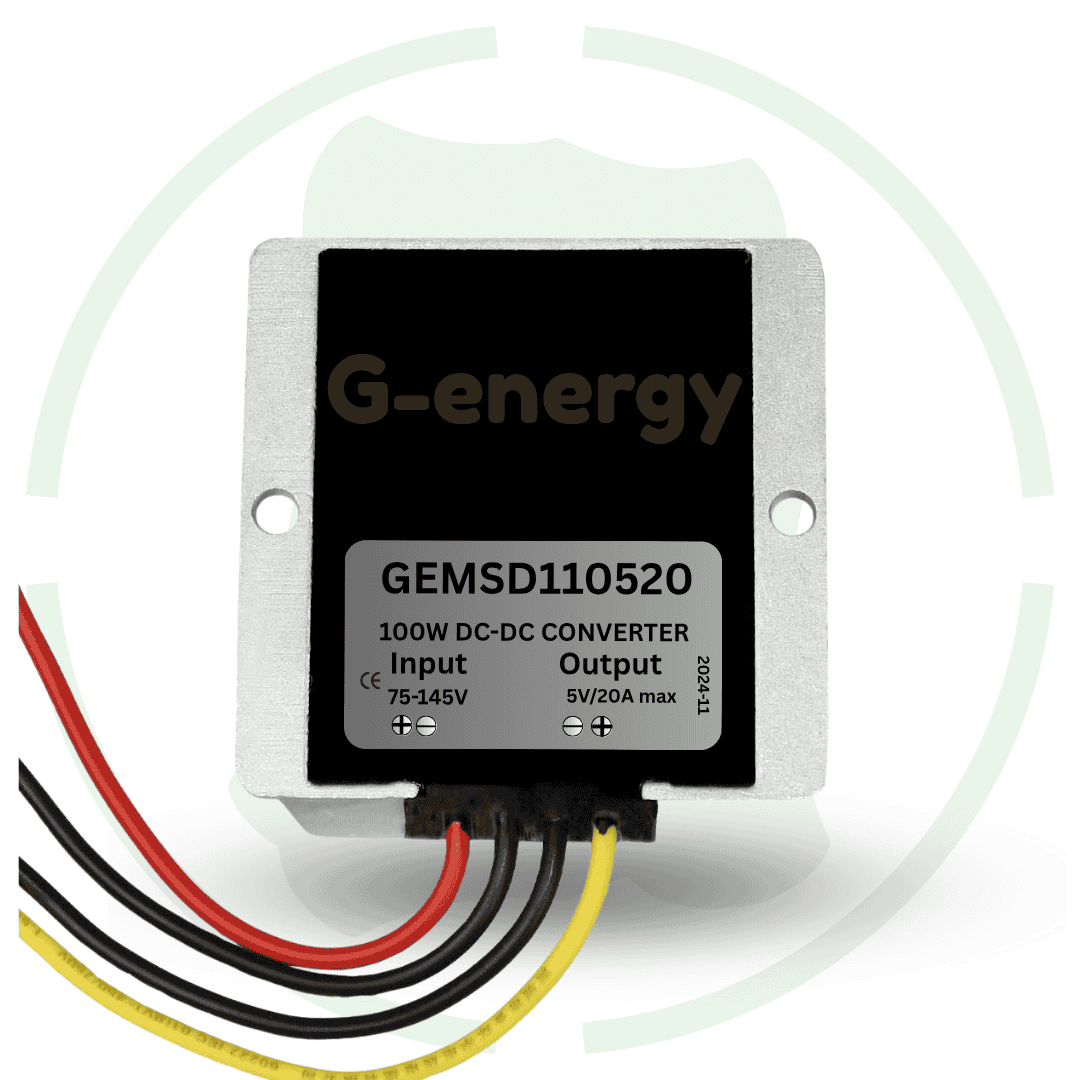

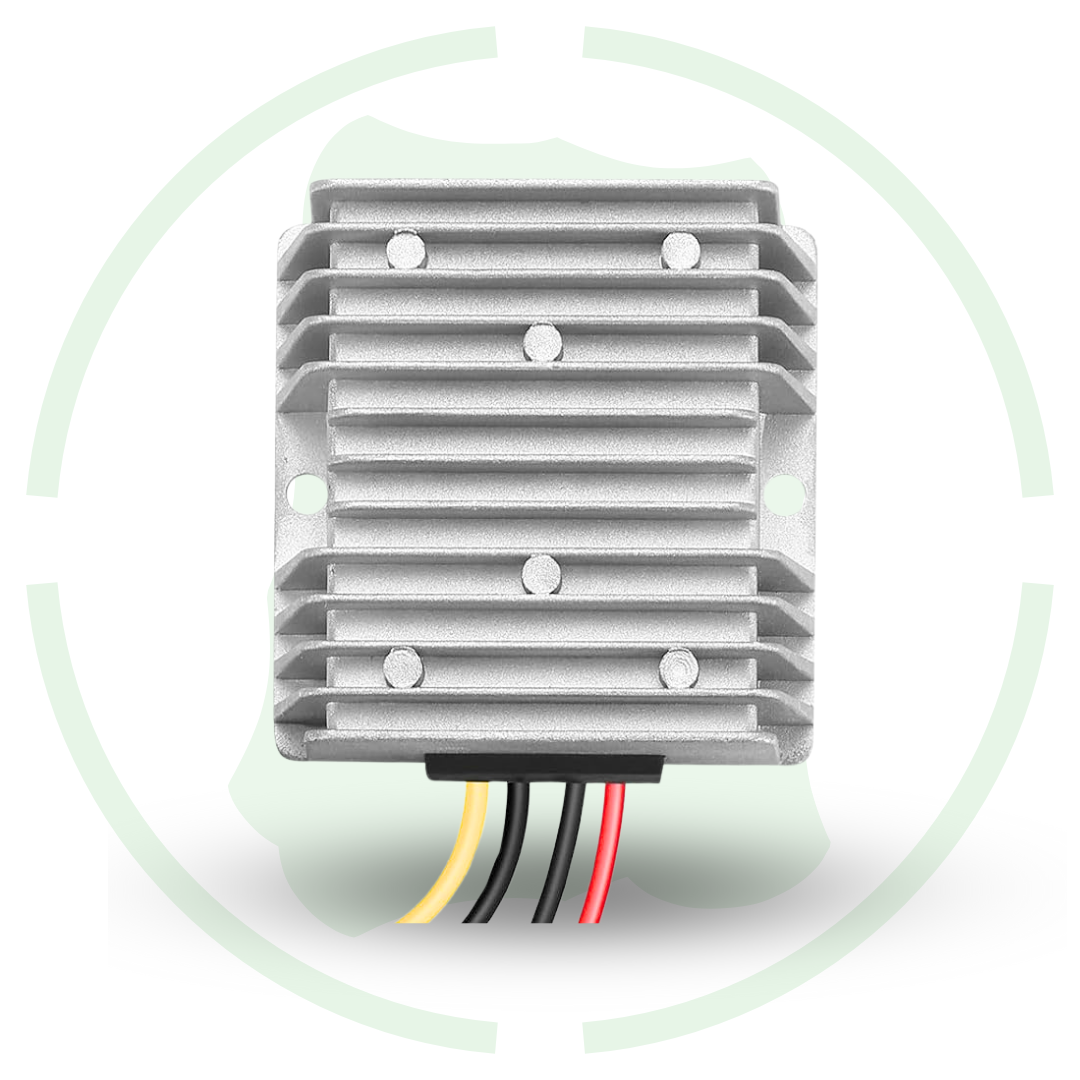

G-energy GEMSD110520 90V 110V To 5V 20A 100W Dc To Dc Converter Ip68 Step-down Converter

Overview of this 90v 110v to 5v 20a 100w dc to dc converter

Introducing g-energy dc 90v 110v to 5v 20a 100w dc to dc converter ip68 water proof step-down converter at best price in India with G-energy. This voltage converter is designed to convert input range from dc 75v-145v to a fix 5v output with up to 20a maximum dc current and max power up to 100W. Due to its small size and high quality aluminium body you can use it any industrial set up.

Features

Aluminium metal body: This voltage converter is designed with aluminum metal frame for its high built quality and its use in rough and tough conditions.

High quality wire: It also come with high quality input and output wire which can handle up to 600v dc input and output voltage.

Fix 5v output: This voltage converter provide a fix 5v dc output to operate any industrial device which need power up to 100w.

Specification

• Input Voltage Range: 75 – 145V DC

• Rated Input Voltage: 120V DC

• Output Voltage: 5V DC

• Output Current: Up to 20A

• Output Power: Up to 100W

• Efficiency: Up to 91%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 12mA

• Ripple Noise: 300mV (Full Load)

🌡️ Environmental Specifications

• Working Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +100°C

• Humidity Range: 10% – 90% RH

• Cooling Method: Free Air Convection

🛡️ Protection & Design Features

• Protection Features:
  ✅ Short Circuit
  ✅ Over current
  ✅ Under voltage
  ✅ Over temperature

• Waterproof Rating: IP68

📦 Mechanical & Packaging

• Dimensions: 74 × 74 × 32 mm

• Weight: 245g

• Wire Length: 140 mm

• Packaging: Box Packaging
