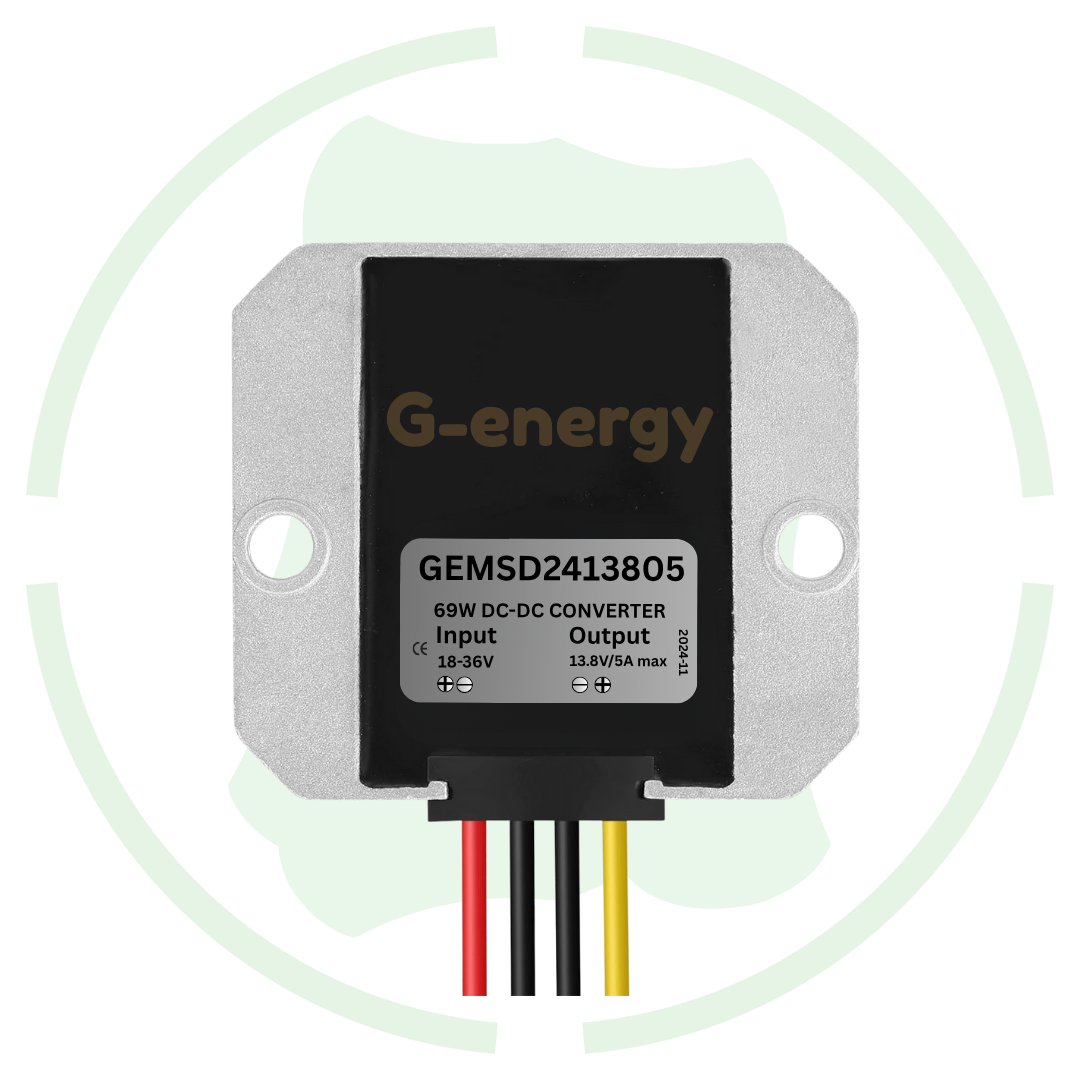

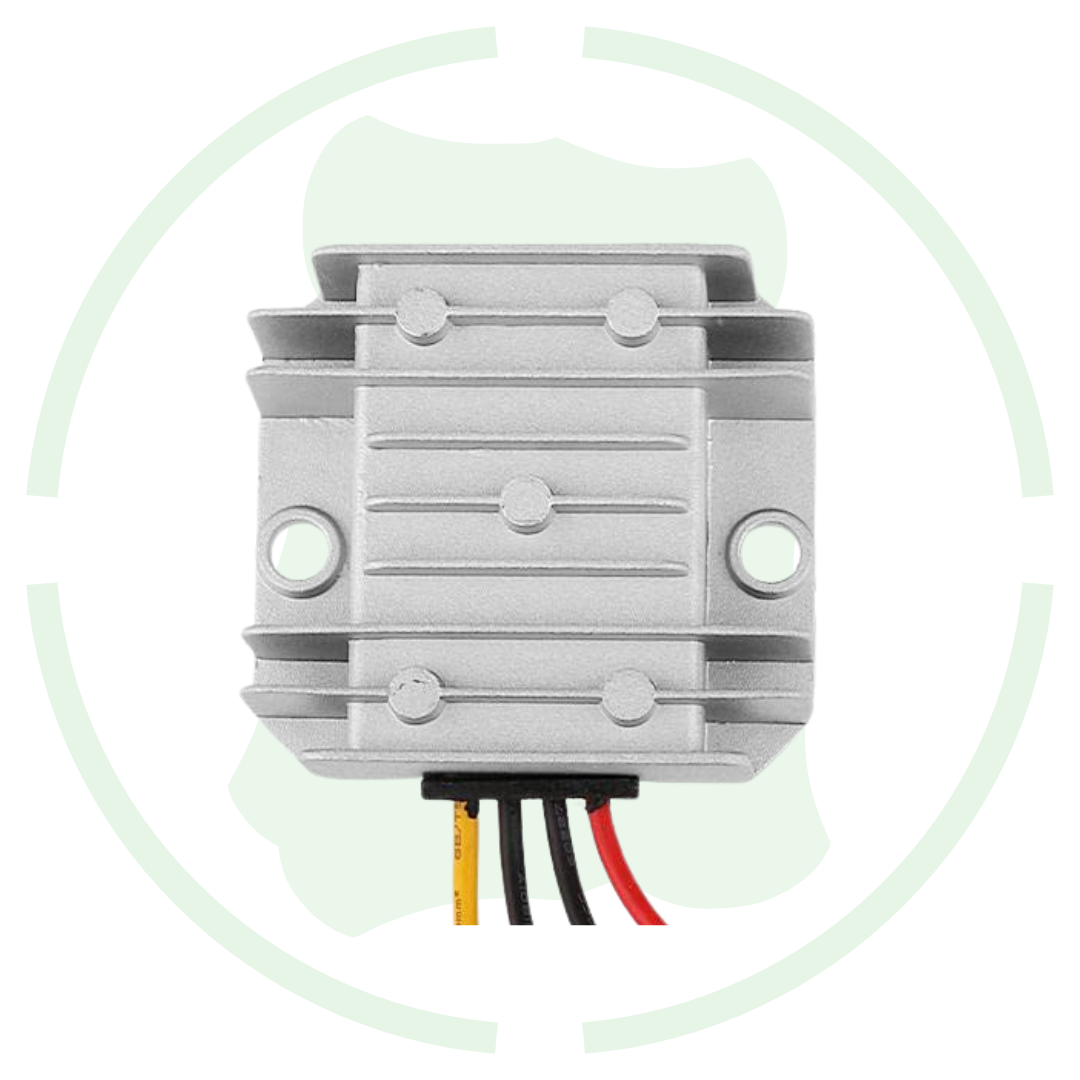

G-energy GEMSD2413805 24V To 13.8V 5A 69W Dc To Dc Converter Ip68 Buck Converter

Overview of this 24v to 13.8v 5a 69w dc to dc converter

Introducing g-energy 24v to 13.8v 5a 69w dc to dc converter ip68 small size water proof buck converter at best price in India with G-energy. This buck converter is designed to take input voltage of 18v to 36v input voltage & provide a fix 13.8v dc output voltage. It also built with high quality input output wire that can handle high dc voltage up to 600v input voltage.

Features

Input range: It smoothly work on wide input voltage of 18v to 36v input voltage to make it usable at multiple input sources.

Safety feature: It come with multiple safety features including over load protection, short circuit protection, and under voltage protection.

Under voltage protection: It come with under voltage protection for in case input voltage go below its input range then circuit get close & converter remain safe.

Specification

Item Type: DC Power Converter

Model: 24V To 13.8V 5A 69W

Input Voltage Range: 18V-36V DC

Standard Input Voltages: 24V DC

Output Voltage: 13.8V DC

Output Current: 5A

Output Power: 69W

Conversion Efficiency: Up to 94%

Material: Aluminum Alloy

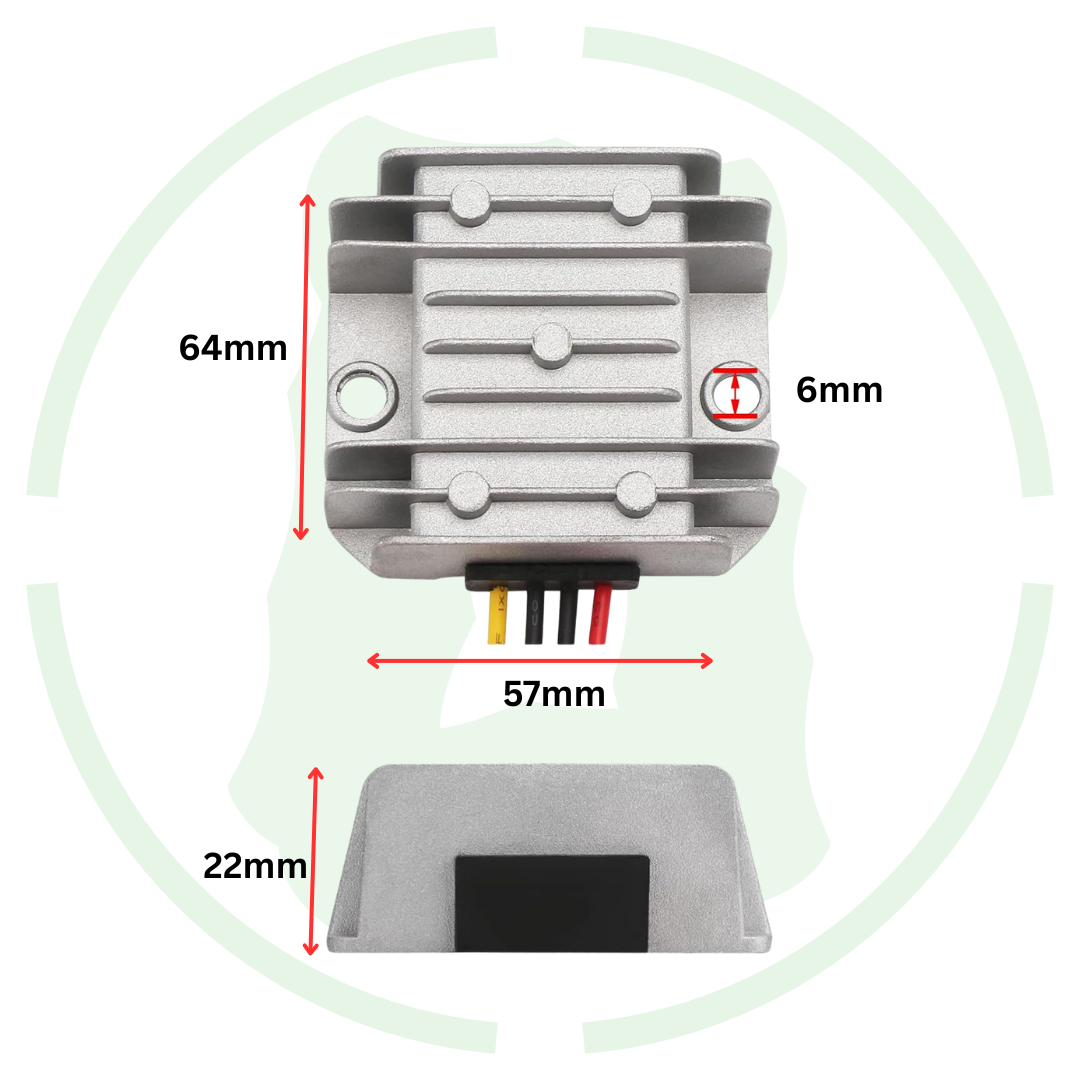

Dimensions: 64x57x22 mm

Weight: 120 g

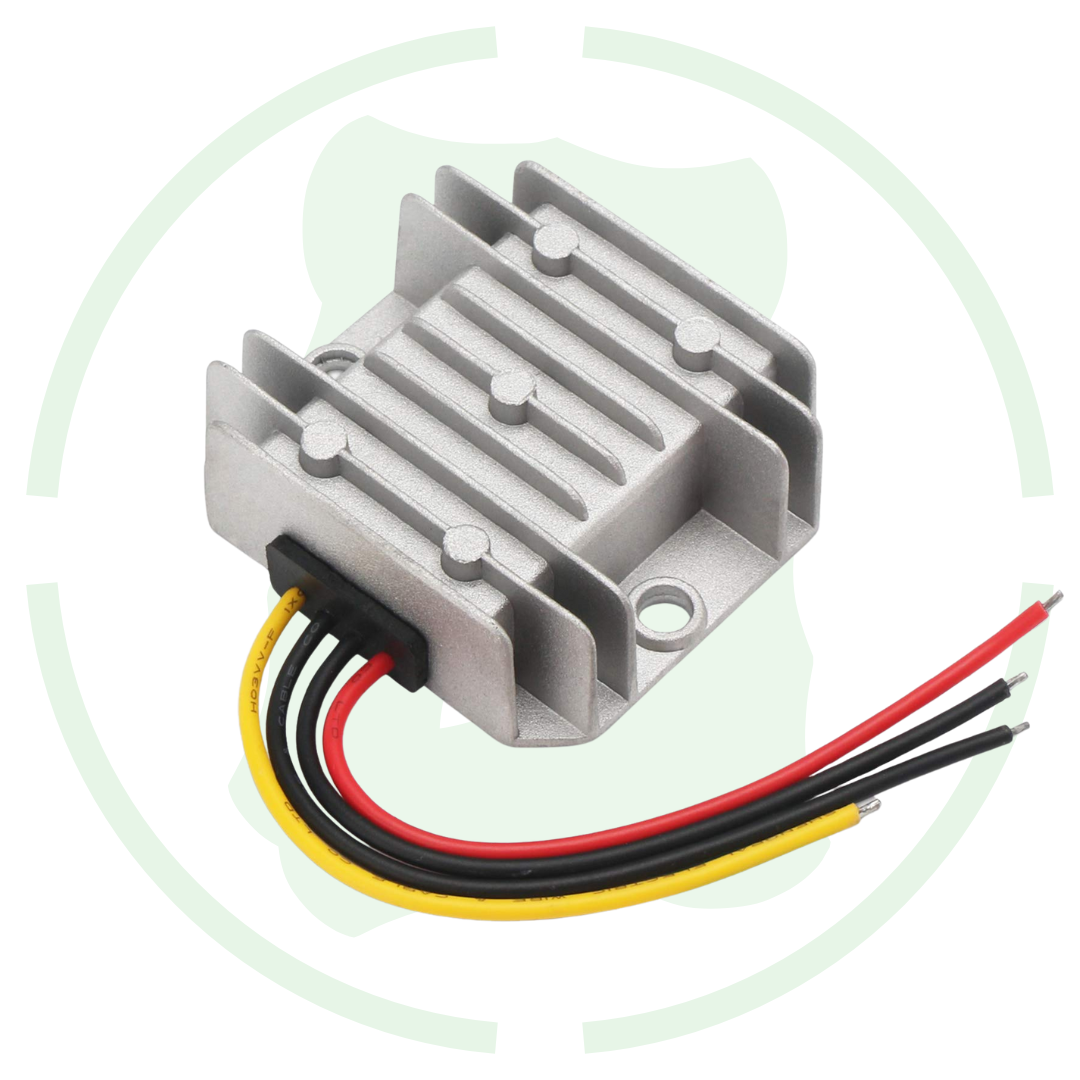

🔌 Wiring Method:

Input Terminal: Red (+), Black (−)

Output Terminal: Yellow or White (+), Black (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of this GEMSD2413805 24v to 13.8v 5a dc voltage converter
