G-energy GEMSD2413810 24V To 13.8V 10A 138W Dc To Dc Converter Ip68 Boost Converter

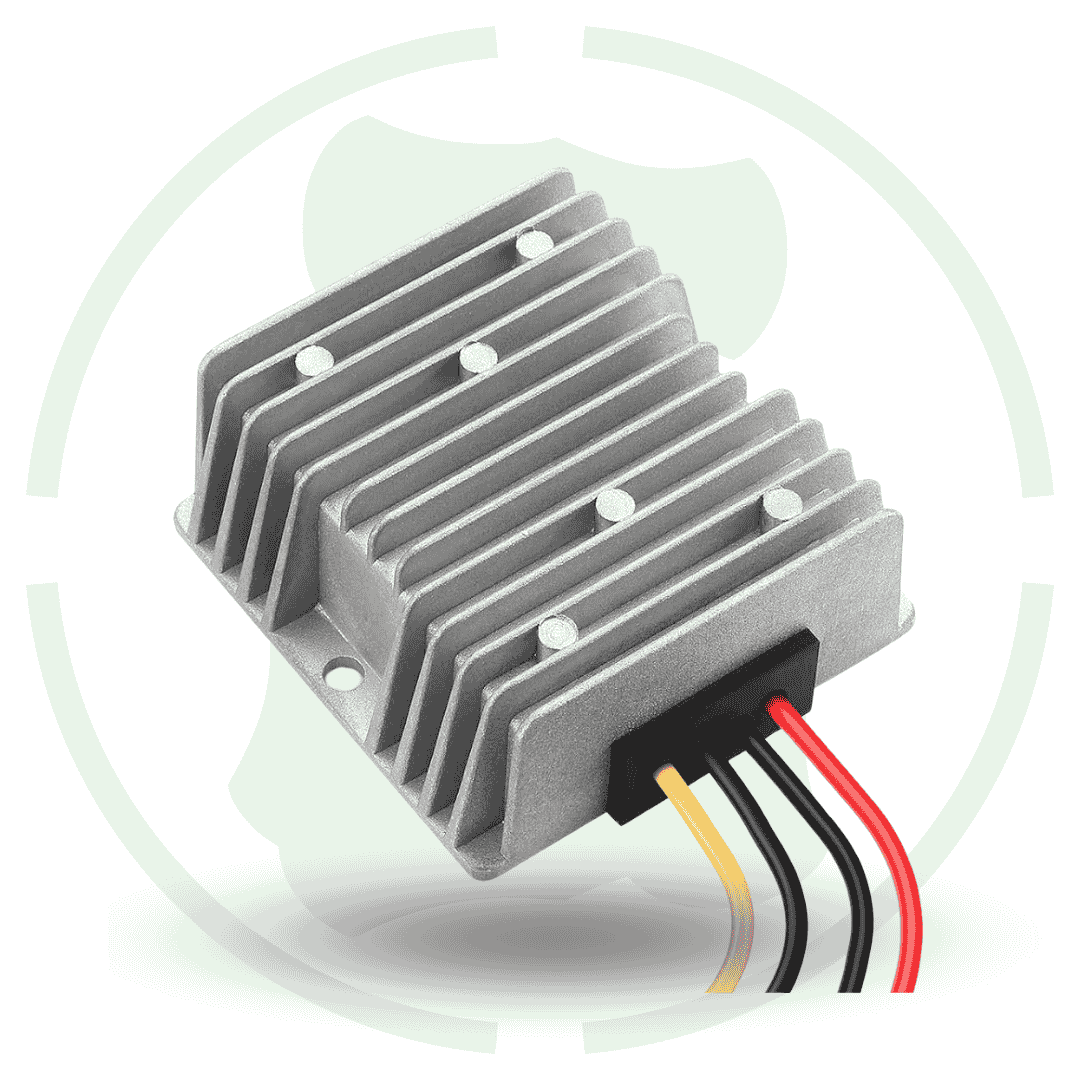

Overview of this 24v to 13.8v 10a 138w dc to dc converter

Introducing G-energy 24v to 13.8v 10a 138w dc to dc converter ip68 water proof buck at best price in India with g-energy. This voltage converter come to operate on wide input voltage range from dc 18v to 36v input voltage. It is also built with die cast metal shell with epoxy potting for for converter water & dust proofing & converter long life.

Features

Input range: This 24v to 13.87v buck converter is built with 18v to 36v input voltage range & provide a fix 13.8v output.

High conversion efficiency: This voltage converter is designed with high conversion efficiency up to 95.5% energy conversion.

Short circuit protection: This buck voltage converter is built with current limiting circuitry that help to provide short circuit protection.

Specification

Item Type: DC Power Converter

Model: 24V To 13.8V 10A 138W

Input Voltage Range: 18V-36V DC

Standard Input Voltages: 24V DC

Output Voltage: 13.8V DC

Output Current: 10A

Output Power: 138W

Conversion Efficiency: Up to 95.5%

Material: Aluminum Alloy

Dimensions: 74x74x32 mm

Weight: 290 g

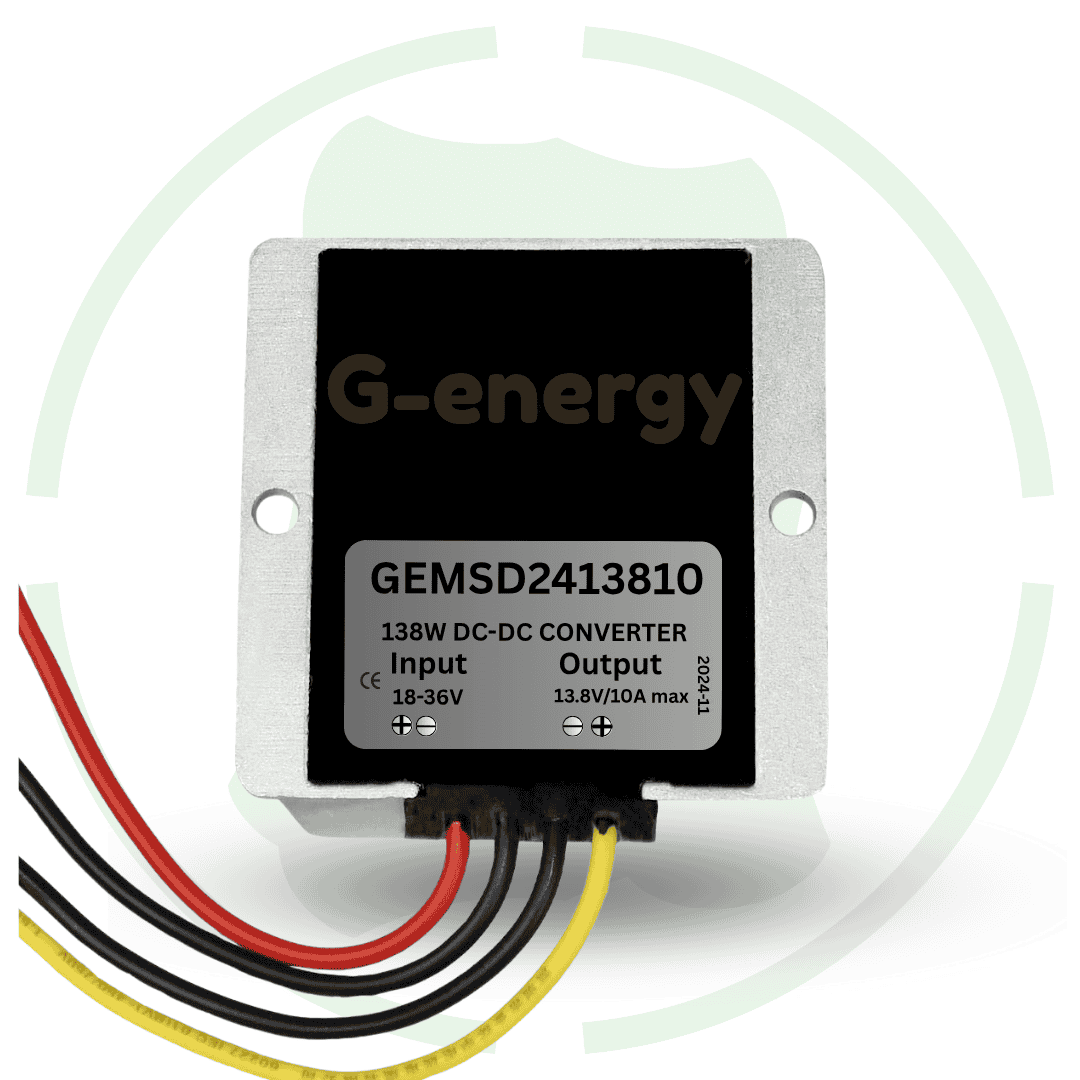

🔌 Wiring Method:

Input Terminal: Red (+), Black (−)

Output Terminal: Yellow or White (+), Black (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of GEMSD2413810 24v to 13.8v 10a dc voltage converter
