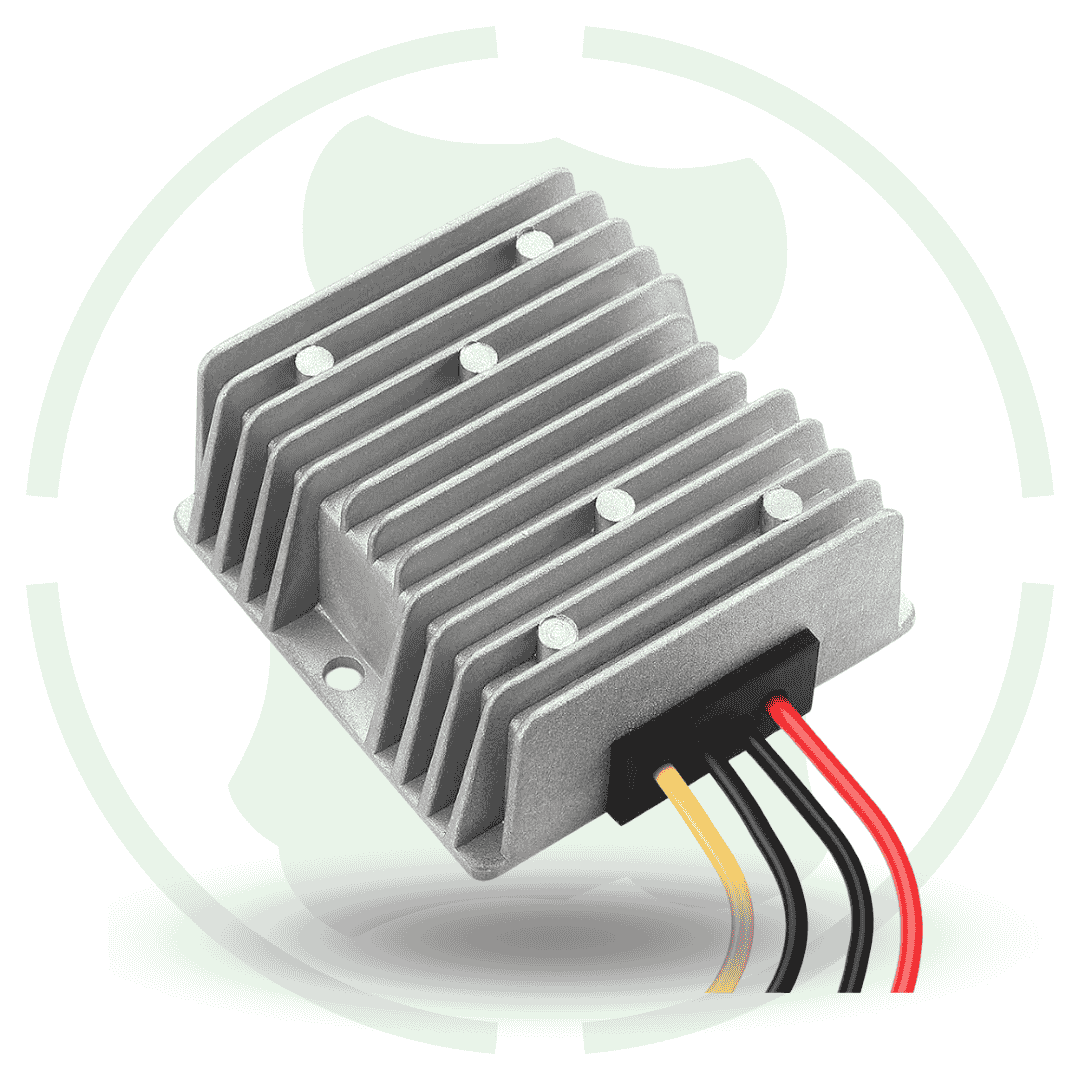

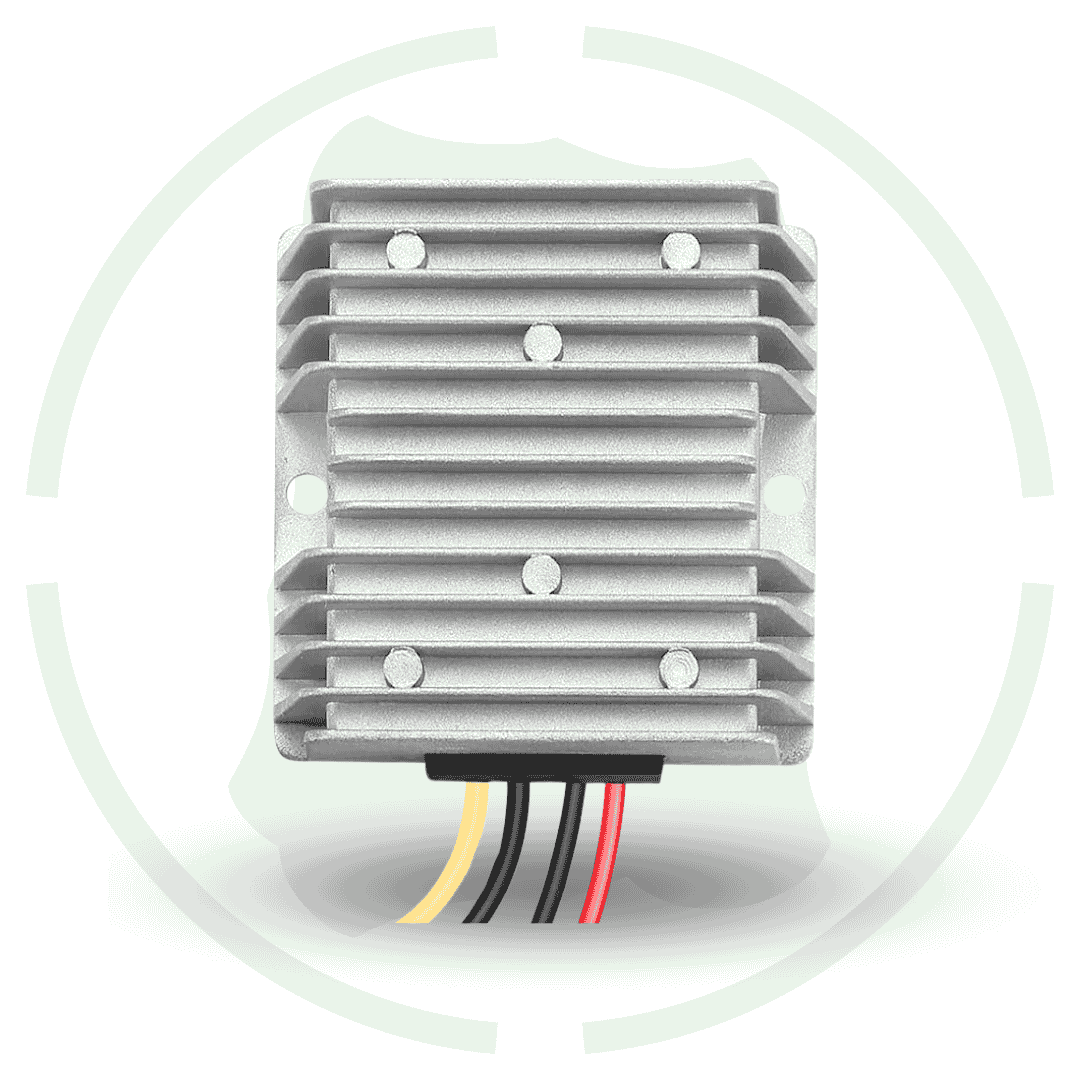

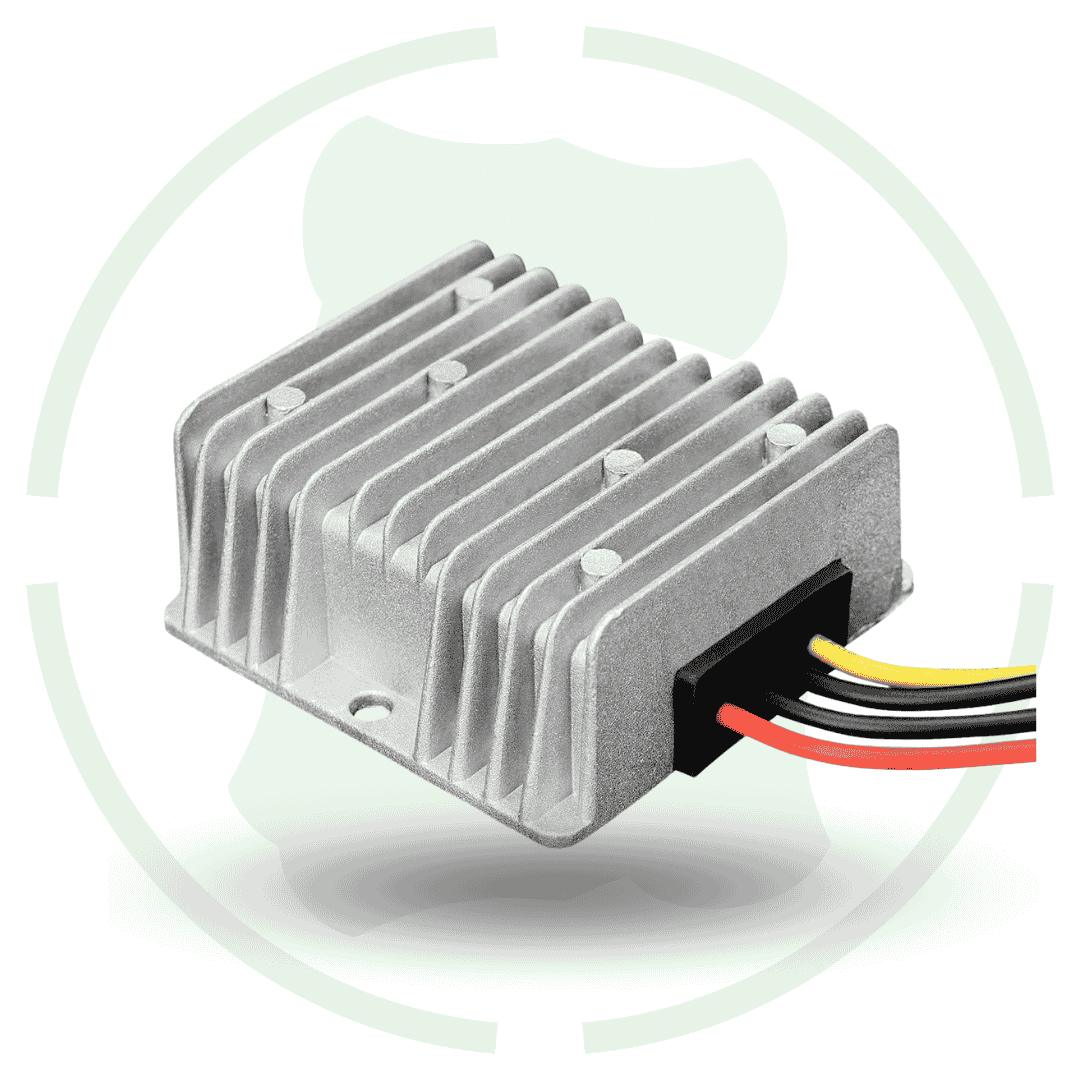

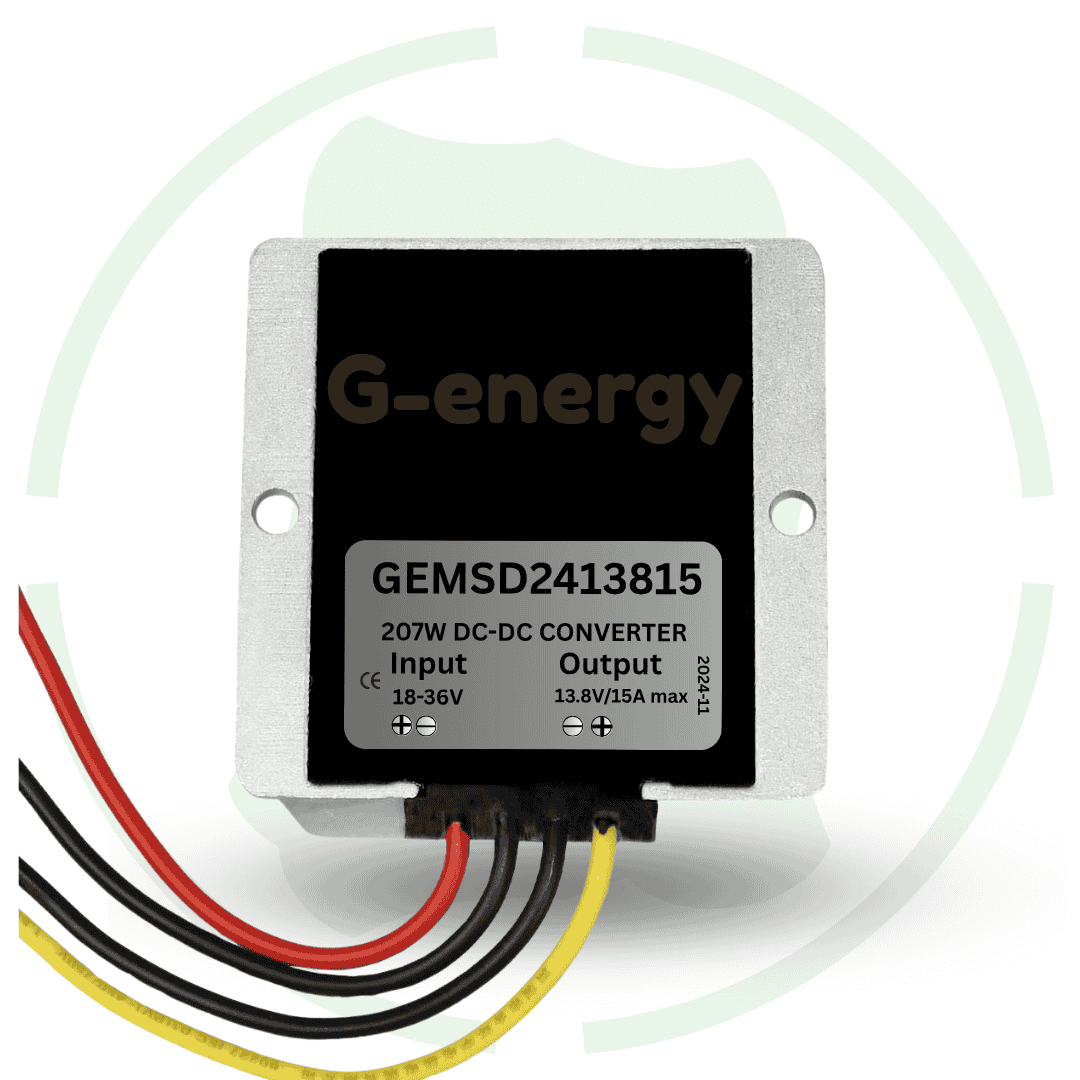

G-energy GEMSD2413815 24V To 13.8V 15A 207W Dc To Dc Converter Ip68 Buck Converter

Overview of this 24v to 13.8v 15a 207w dc to dc converter

Introducing g-energy 24v to 13.8v 15a 207w dc to dc converter ip68 rated waterproof buck converter at best price in India with G-energy. This voltage converter convert a input voltage of 18v to 36v & convert it to a fix 13.8v dc output voltage. It also provide dc current up to 15A and maximum dc power up to 207W Dc power.

Features

Input voltage: This converter is designed to operate on wide input voltage of 18v to 36v input voltage range.

Over temperature protection: This converter has an inbuilt temperature sensor that sense converter temperature & what its temperature go above its operating temperature than it close circuit & make converter safe.

Specification

Item Type: DC Power Converter

Model: 24V To 13.8V 5A 69W

Input Voltage Range: 18V-36V DC

Standard Input Voltages: 24V DC

Output Voltage: 13.8V DC

Output Current: 15A

Output Power: 207W

Conversion Efficiency: Up to 96.2%

Material: Aluminum Alloy

Dimensions: 74x74x32 mm

Weight: 300g

🔌 Wiring Method:

Input Terminal: Red (+), Black (−)

Output Terminal: Yellow or White (+), Black (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of this GEMSD2413815 24v to 13.8v 15a dc voltage converter
