G-energy GEMSD2413820 24V To 13.8V 20A 276W Dc To Dc Converter Ip68 Buck Converter

Overview of this 24v to 13.8v 20a 276w dc to dc converter

Introducing G-energy 24v to 13.8v 20a 276w dc to dc converter ip68 rated waterproof step down converter at best price in India with G-energy. This voltage converter is designed to work on a wide input voltage from dc 18v to 36v input voltage. It is also built with synchronous rectification that help it to get high conversion efficiency up to 95.7% energy conversion.

Features

Input voltage: This 24v to 13.8v converter is designed to operate on input voltage from dc 18v to 36v & provide a fix 13.8v dc output.

276W output power: This voltage converter also provide dc current up to 20a and maximum power up to 276w output power.

Under voltage recover: This voltage converter also built with under voltage recovery feature it in case converter get off due to its low input voltage then it automatically get on when it get desired input voltage.

Specification

Item Type: DC Power Converter

Model: 24V To 13.8V 20A 276W

Input Voltage Range: 18V-36V DC

Standard Input Voltages: 24V DC

Output Voltage: 13.8V DC

Output Current: 20A

Output Power: 276W

Conversion Efficiency: Up to 95.7%

Material: Aluminum Alloy

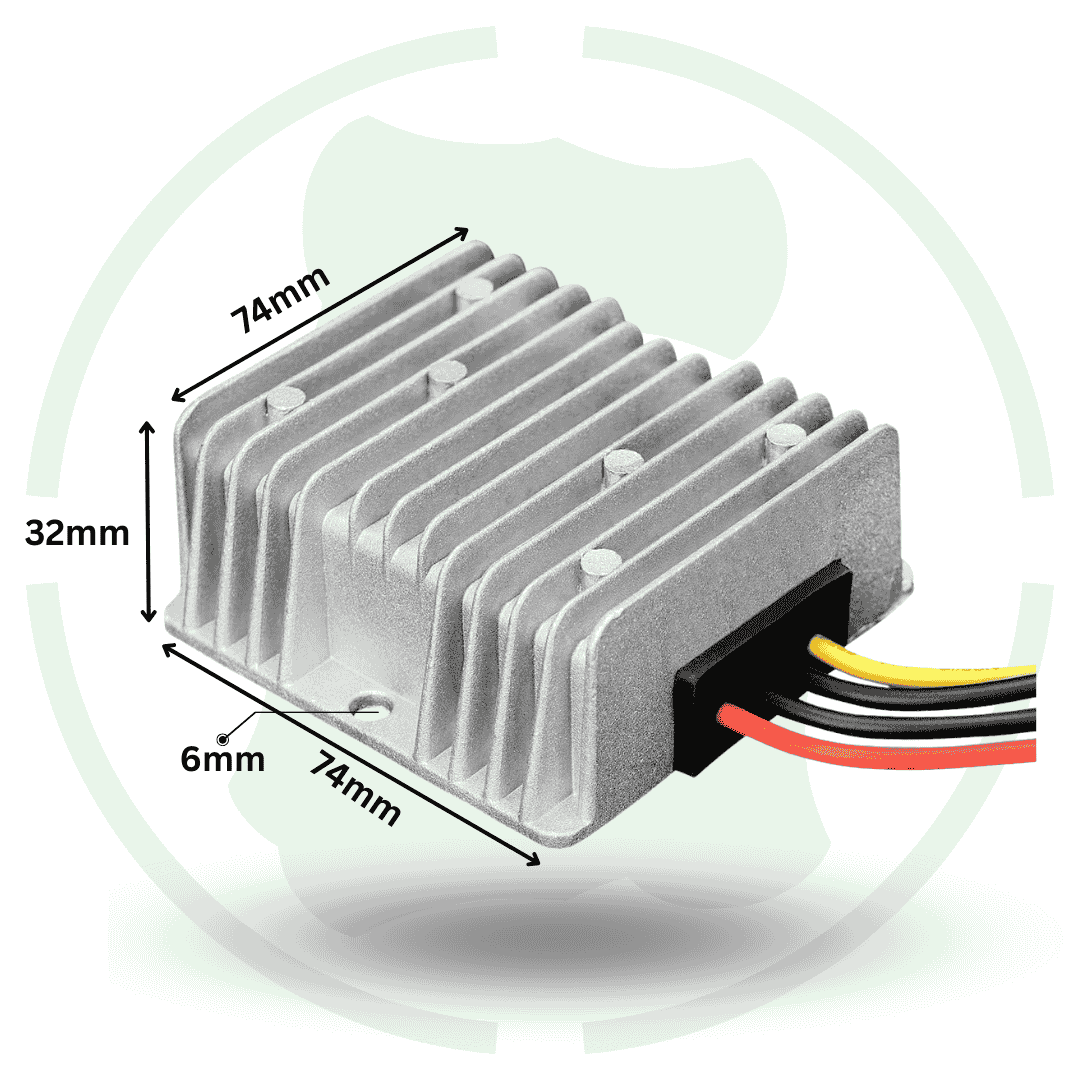

Dimensions: 74x74x32 mm

Weight: 290 g

🔌 Wiring Method:

Input Terminal: Red (+), Black (−)

Output Terminal: Yellow or White (+), Black (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of GEMSD2413820 24v to 13.8v 20a dc voltage converter
