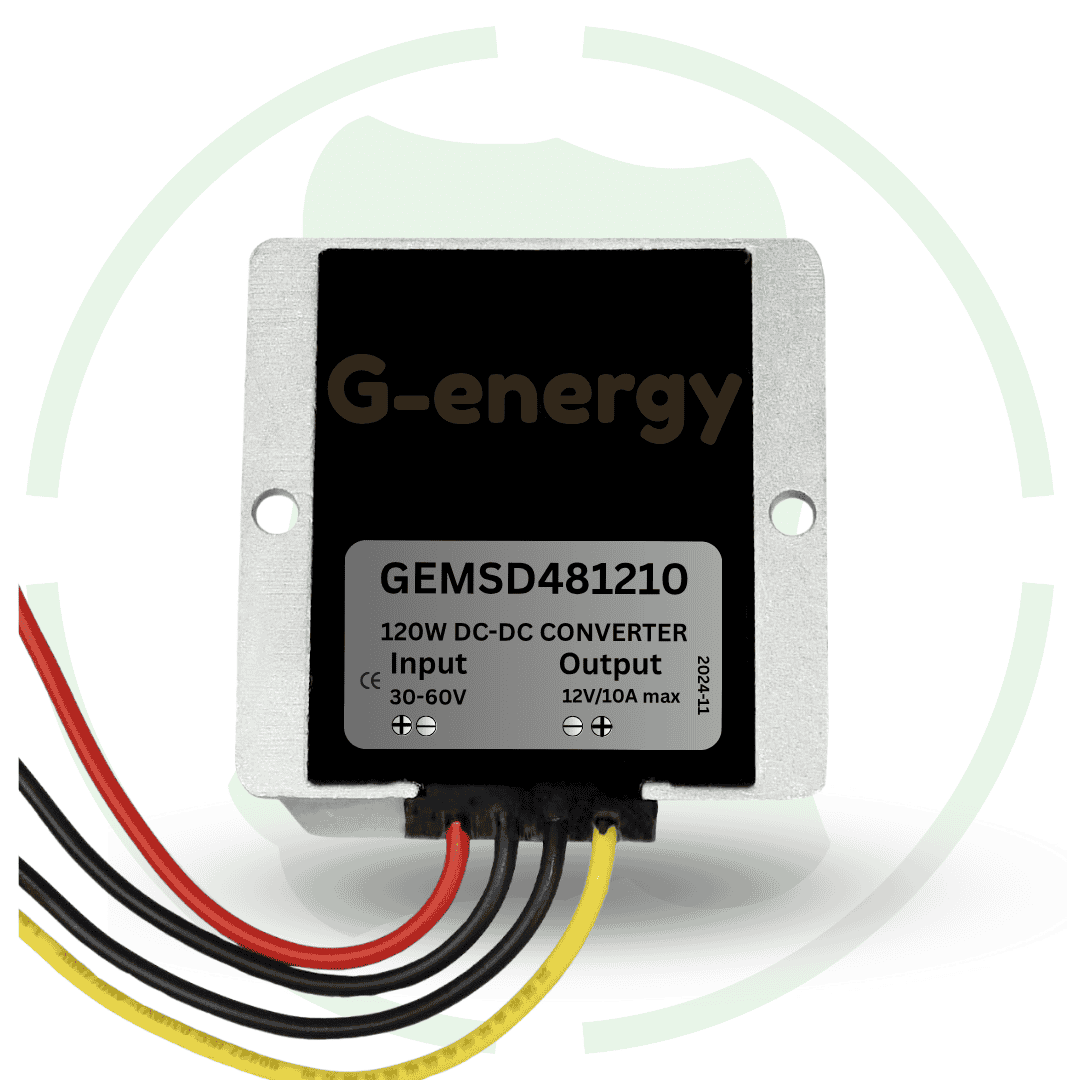

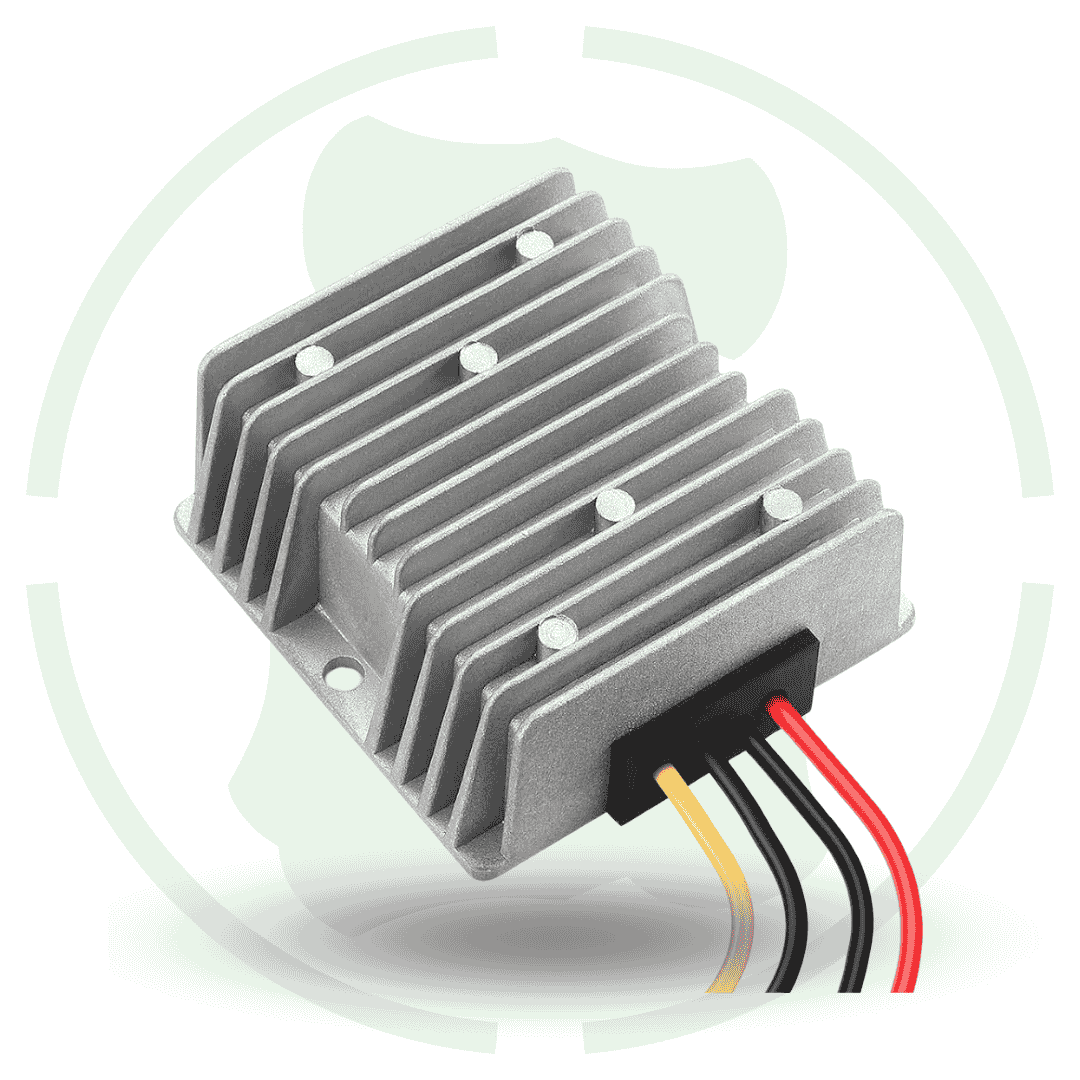

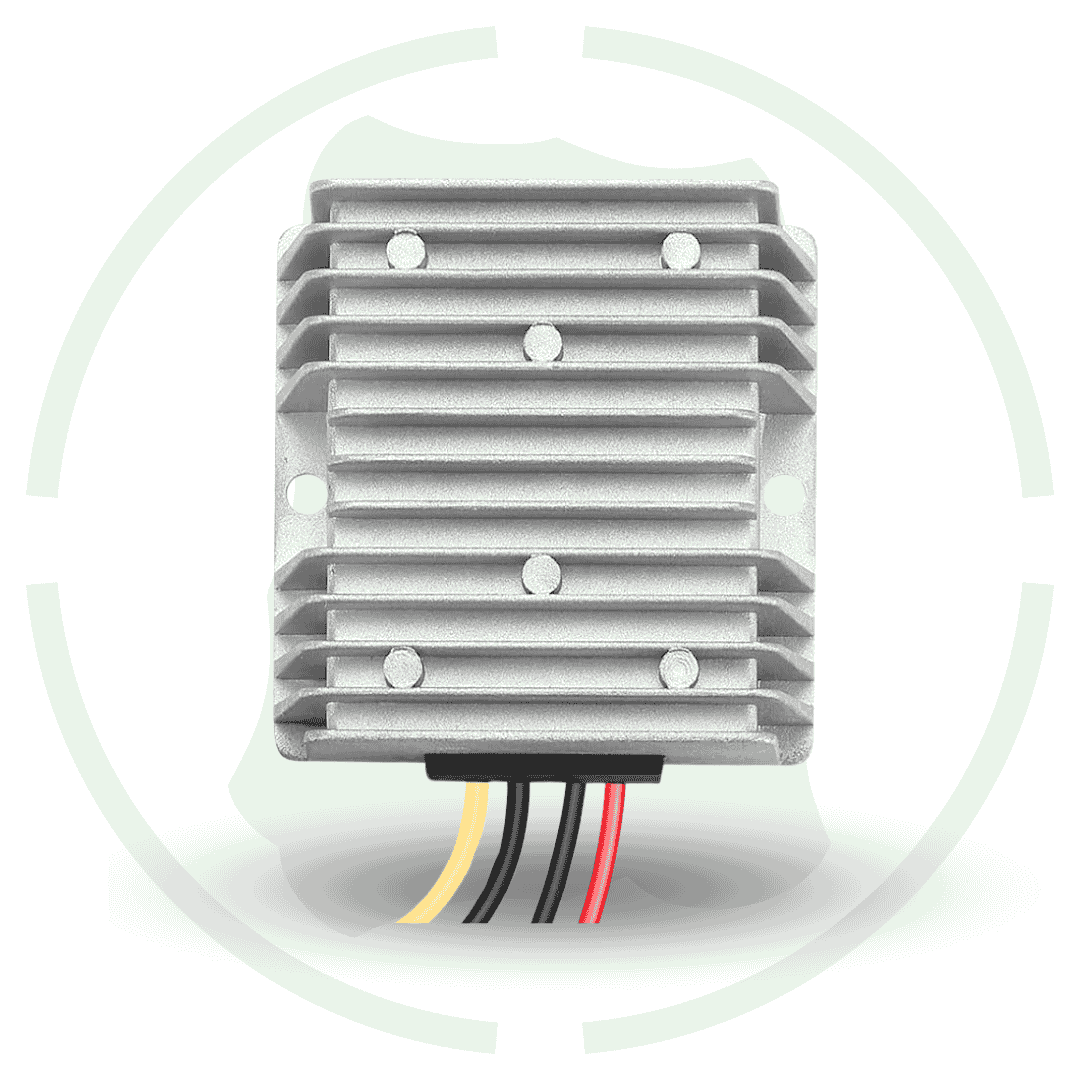

G-energy GEMSD481210 36V 48V To 12V 10A 120W Dc To Dc Converter Ip68 Step Down Converter

Overview of this 36v 48v to 12v 10a 120w dc to dc converter

Introducing g-energy dc 36v 48v to 12v 10a 120w dc to dc converter ip68 metal body step down converter at best price in India with G-energy. This 36v 48v to 12v voltage converter smoothly provide a fix 12 dc output from input voltage range from dc 30v to 60v. It also provide dc current up to 10a and maximum dc power up to 120w. And This voltage converter come with panel mount setting for easy and secure setup in any industrial equipment.

Features

Aluminium metal body: This buck converter is built with aluminium meta body frame for it long life and use in rough and tough industrial conditions.

120W Output power: It also provide up to 120w dc power with maximum dc current up to 10a.

Big input voltage range: This voltage converter is built to operate on wide input voltage range from dc 30v to 60v input voltage range.

Specification

• Input Voltage Range: 30V-60V DC

• Output Voltage: 12V DC

• Output Current: 10A

• Power Rating: 120W

• Efficiency: Up to 94%

• Operating Temperature: -40°C to +50°C

• Dimensions: 74 × 74 × 32 mm

• Weight: 252g

✅ Protection Features:

• Under-voltage Protection

• Under-voltage Recovery

• Overload Protection

• Over-current Protection

• Over-temperature Protection

• Short-circuit Protection

Datasheet of GEMSD481210 48v to 12v 10a dc voltage converter
