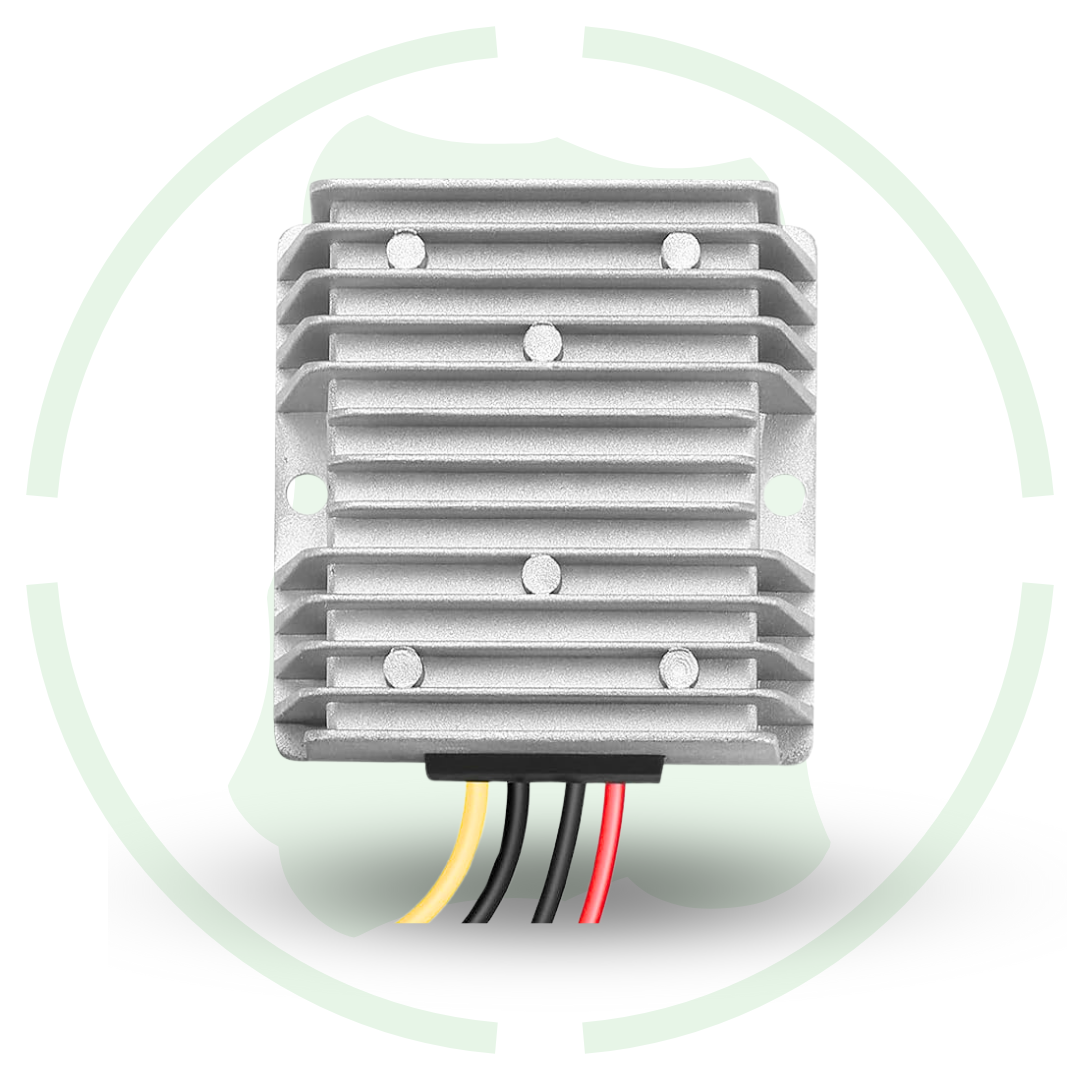

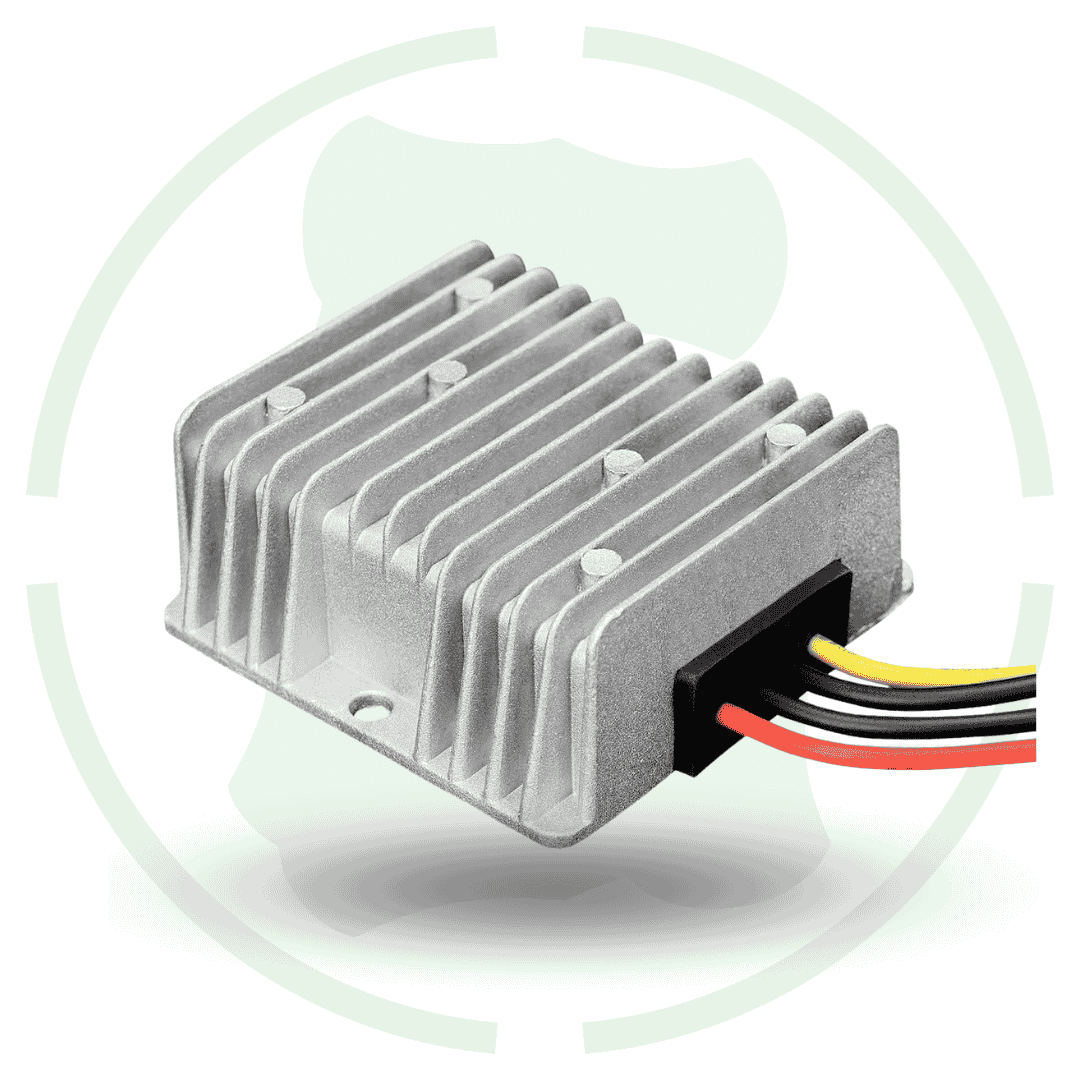

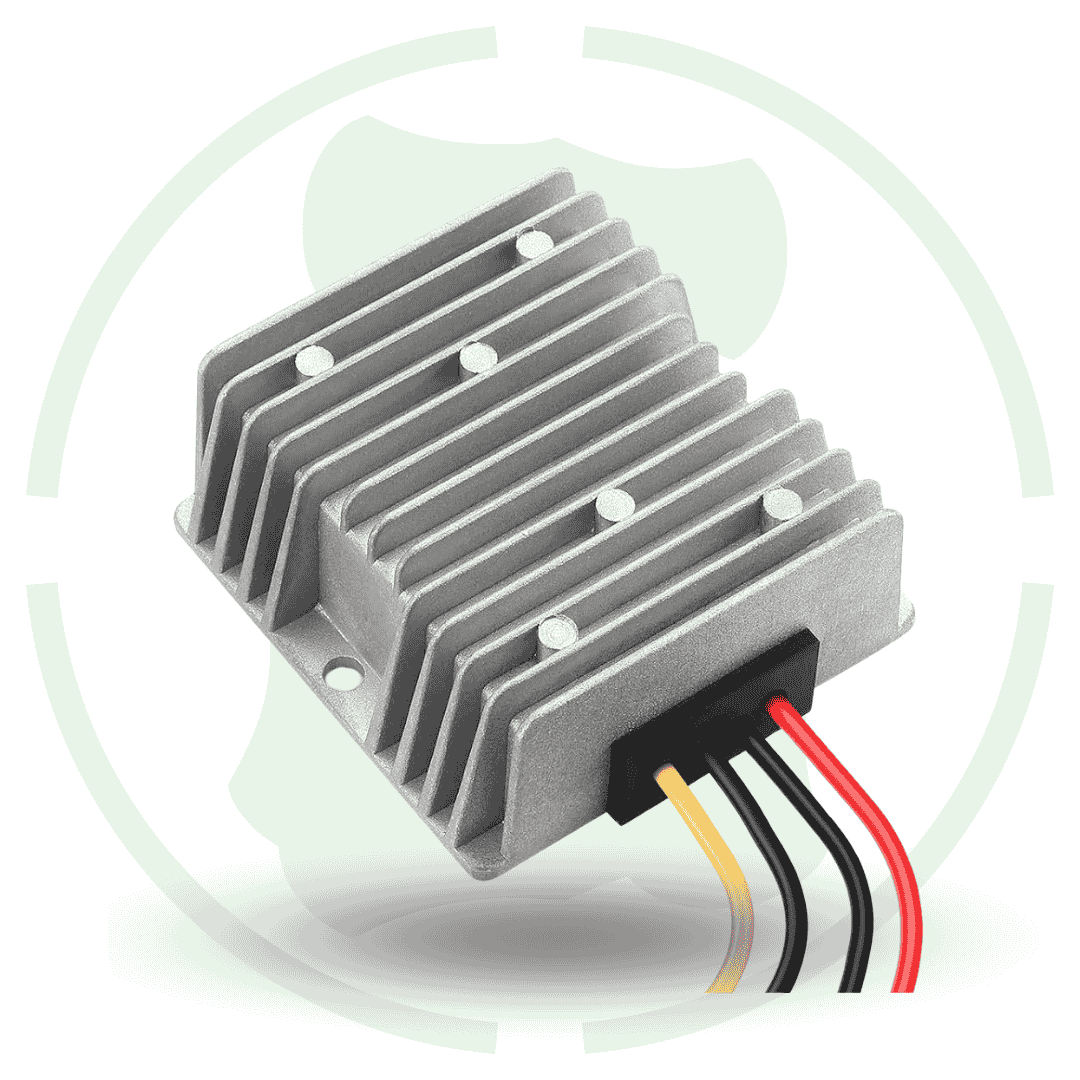

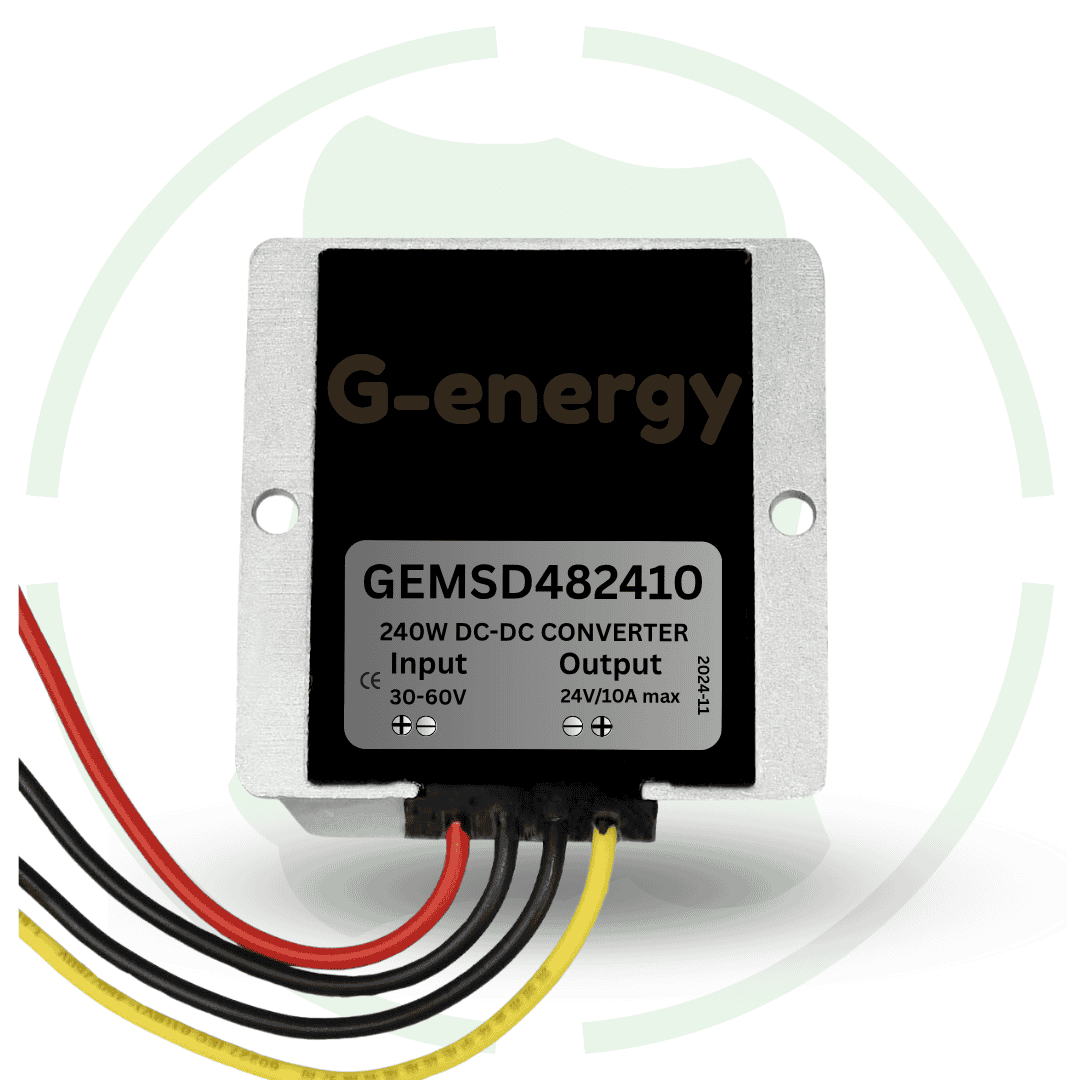

G-energy GEMSD482410 48V To 24V 10A 240W Dc To Dc Converter Ip68 Buck Converter

Overview of this 48v to 24v 10a 240w dc to dc converter

Introducing g-energy 48v to 24v 10a 240w dc to dc converter ip68 rated water proof buck converter at best price in India with g-energy. This 48v to 24v voltage converter with 240w power work on input voltage of 30v to 60v input range. It is also built with aluminum metal body and epoxy potting at base for converter long life and connected device safety.

Features

Input voltage: This 48v to 24v dc dc converter with 6amp current take input voltage range from dc 30v to 60v and provide a fix 24v dc output voltage.

240W power: It also provide up to 20a dc current and maximum power up to 240w to operate medium power dc devices.

97.2% conversion efficiency: It is built with synchronous rectification technology that help it achieve high conversion efficiency up to 97.2% energy conversion.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 24V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 240W

6. Efficiency (Typical): Up to 97.2%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

19. Dimensions: 74x74x32 mm

20. Weight: 120 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSD482410  48v to 24v 10a dc voltage converter
