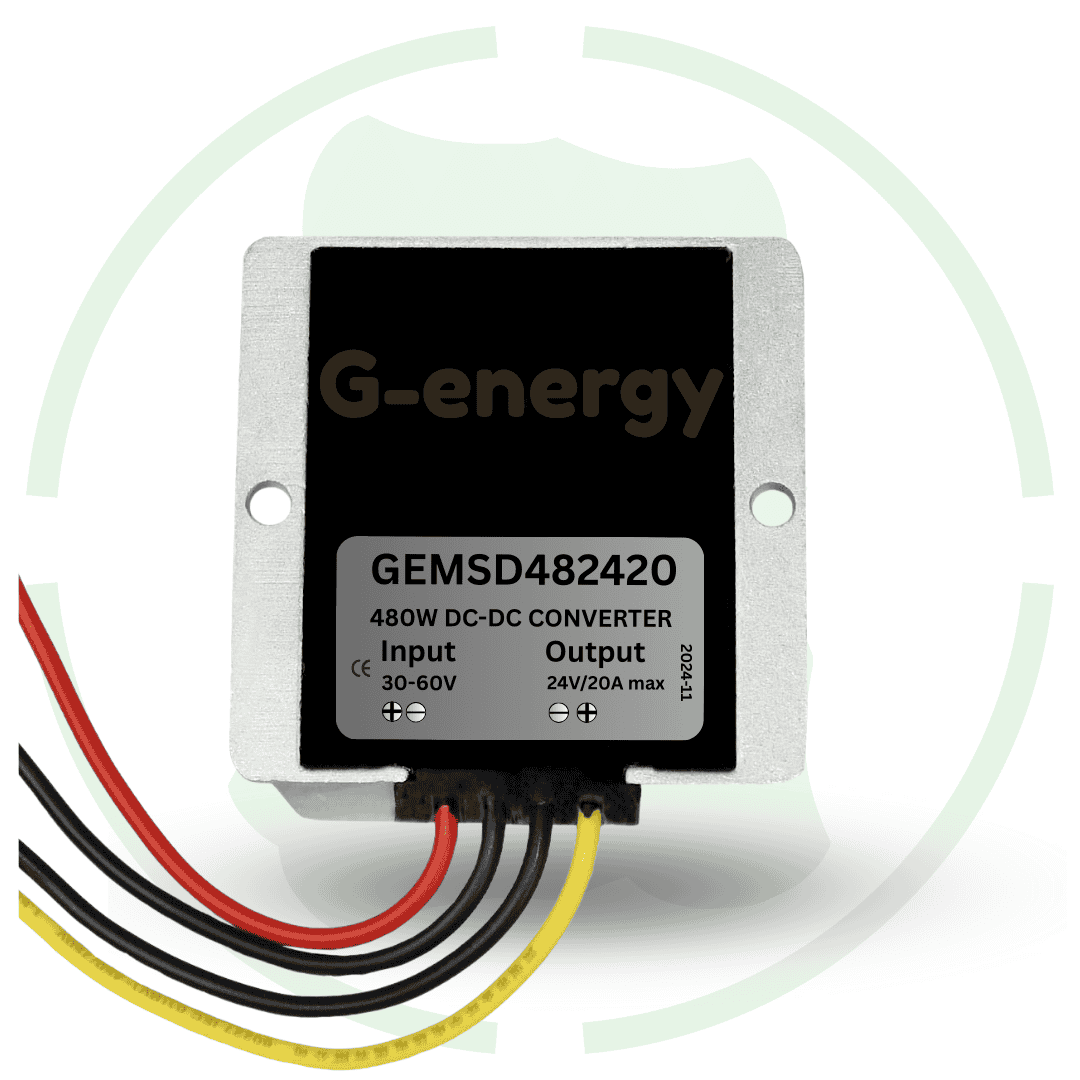

G-energy GEMSD482420 48V To 24V 20A 480W Dc To Dc Converter Ip68 Buck Converter

Overview of this 48v to 24v 20a 480w dc to dc converter

Introducing g-energy dc 48v to 24v 20a 480w dc to dc converter 97.1% high conversion efficiency buck converter at best price in India with G-energy. This step down voltage converter is built to provide a fix 24v dc output voltage with up to 20a dc current and maximum power up to 480w. It is also built with high quality input & output wire for its safe wire connection.

Features

Input range: This 48v to 24v step down converter can smoothly convert wide input voltage of 30v to 60v to a fix 24v dc output voltage with up to 480w max power.

480W high power: It also provide high dc power up to 480w and 20 amp maximum current to opera high power dc devices.

97.1% high efficiency: It is built with high conversion efficiency up to 97.1% voltage conversion that make it best choice for eco-friendly voltage conversion set-up.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 24V DC

4. Maximum Output Current: 20A

5. Maximum Output Power: 480W

6. Efficiency (Typical): Up to 97.1%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

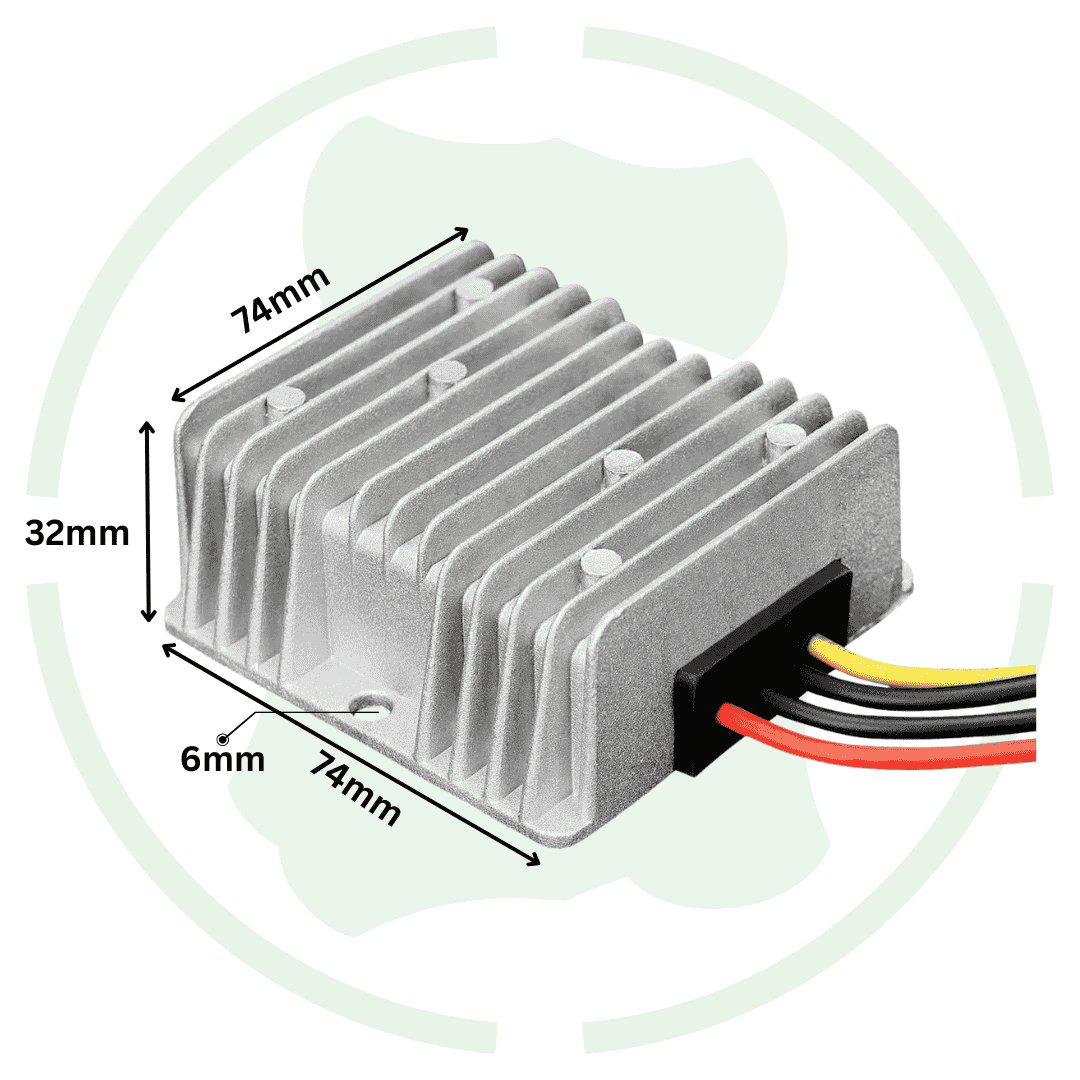

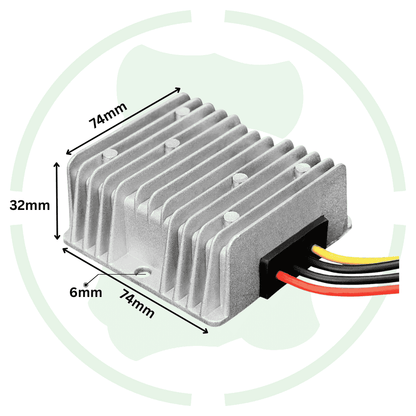

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSD482420 48v to 24v 20a dc voltage converter
