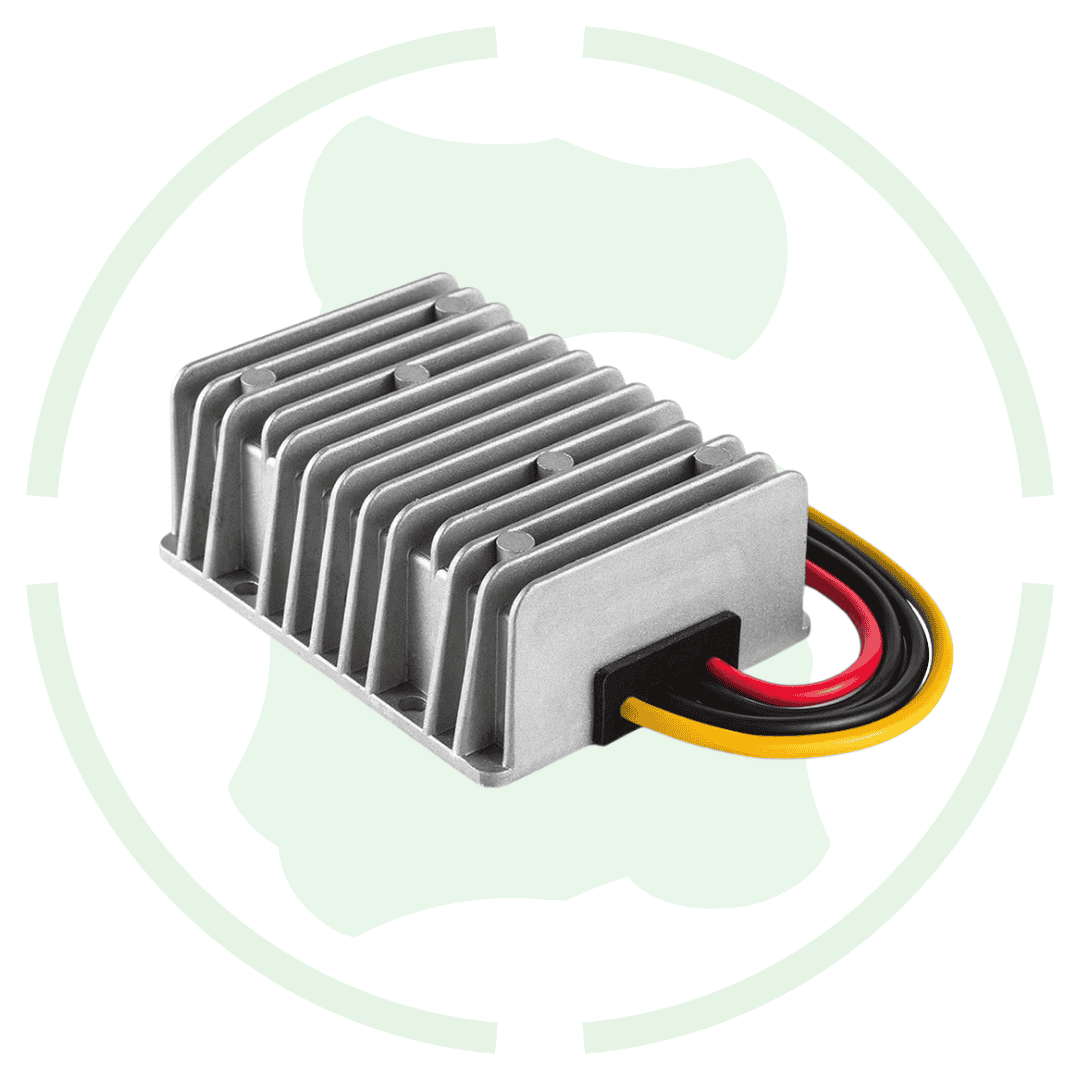

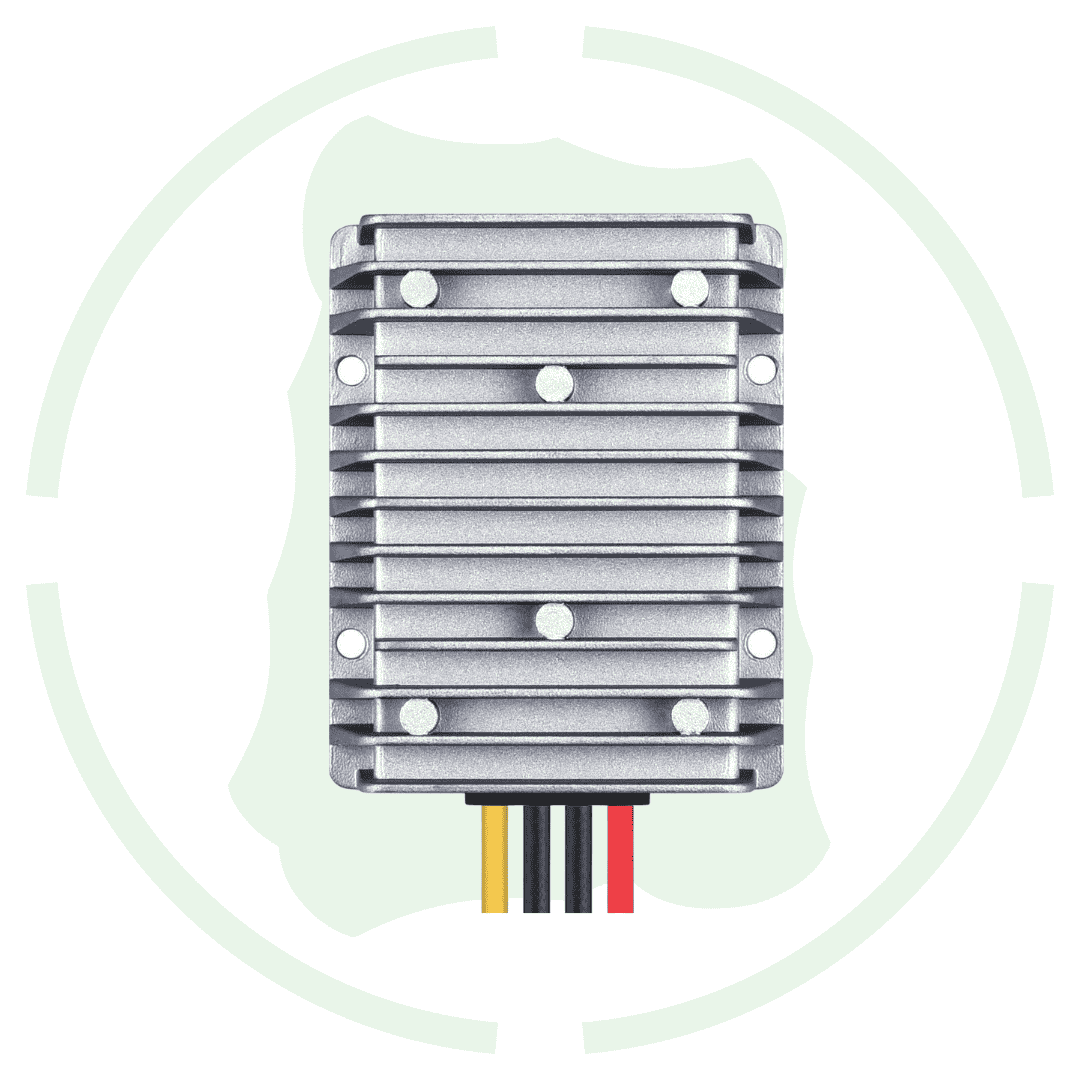

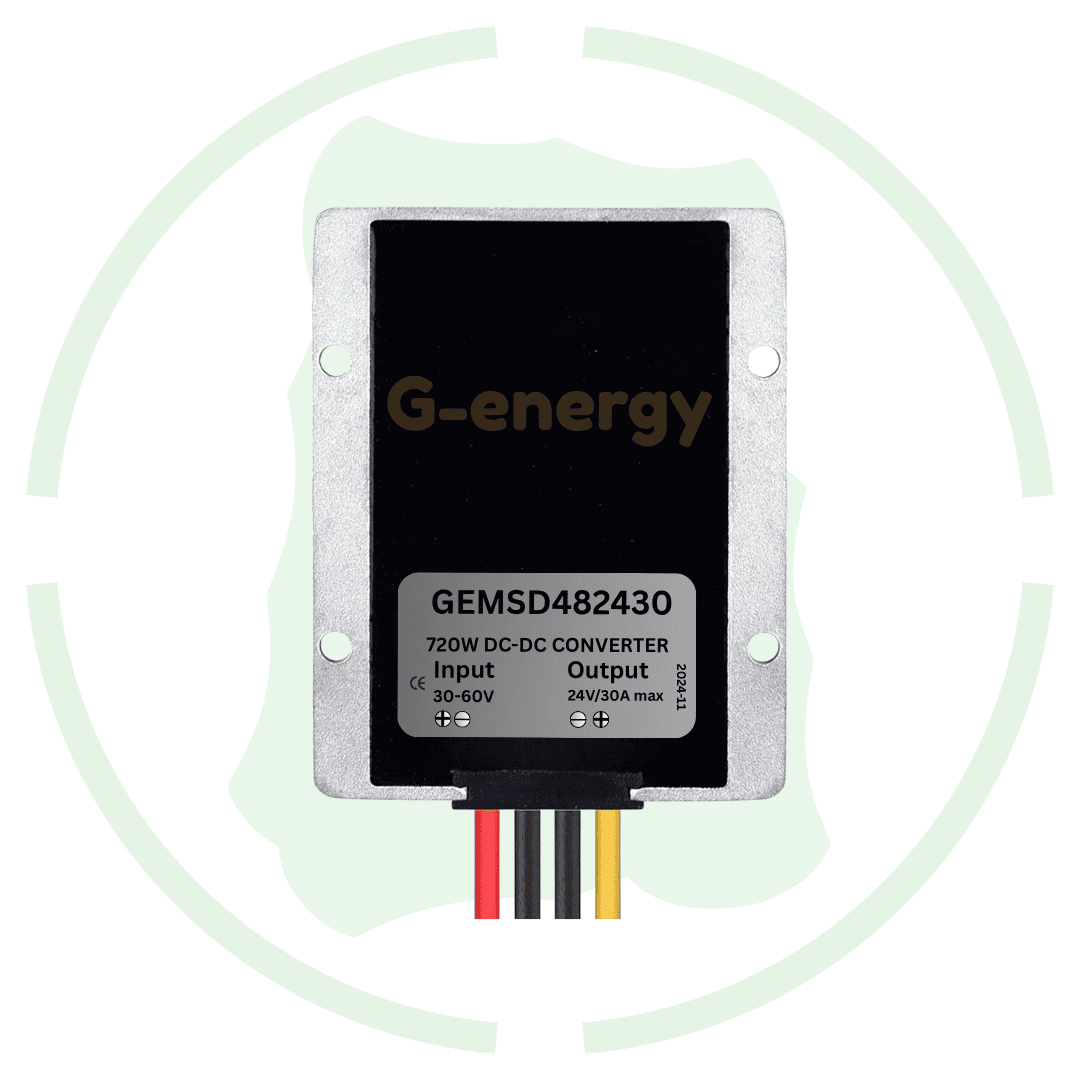

G-energy GEMSD482430 48V To 24V 30A 720W Dc To Dc Converter Ip68 Step-Down Converter

Overview of this 48v to 24v 30a 720w dc to dc converter

Introducing g-energy 48v to 24v 30a 720w dc to dc converter high efficiency step down converter at best price in India with G-energy. This voltage converter is built to work on 30v to 60v input voltage and convert it to a fix 24v with 720w max power. It also come with 3 month exchange warranty that assure its built quality for industrial set up.

Features

Input voltage: This buck converter work on 30v to 60v input voltage and make it perfect to operate on multiple standard voltage including 36v 48v 60v.

720W high power: It also provide high dc power up to 720w and 30a max dc current.

Over load protection: This converter is equipped with current limiting circuitry design that provide protection from over load and over current situation.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 24V DC

4. Maximum Output Current: 30A

5. Maximum Output Power: 720W

6. Efficiency (Typical): Up to 98.4%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP67

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

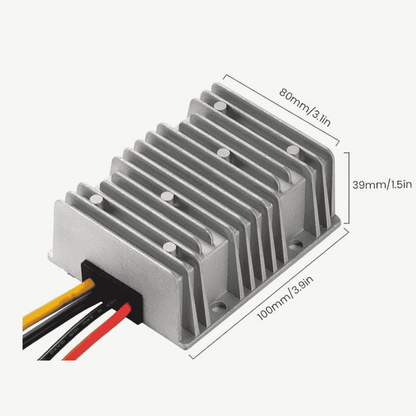

19. Dimensions: 100x80x39 mm

20. Weight: 550 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of this GEMSD482430 48v to 24v 30a dc voltage converter
