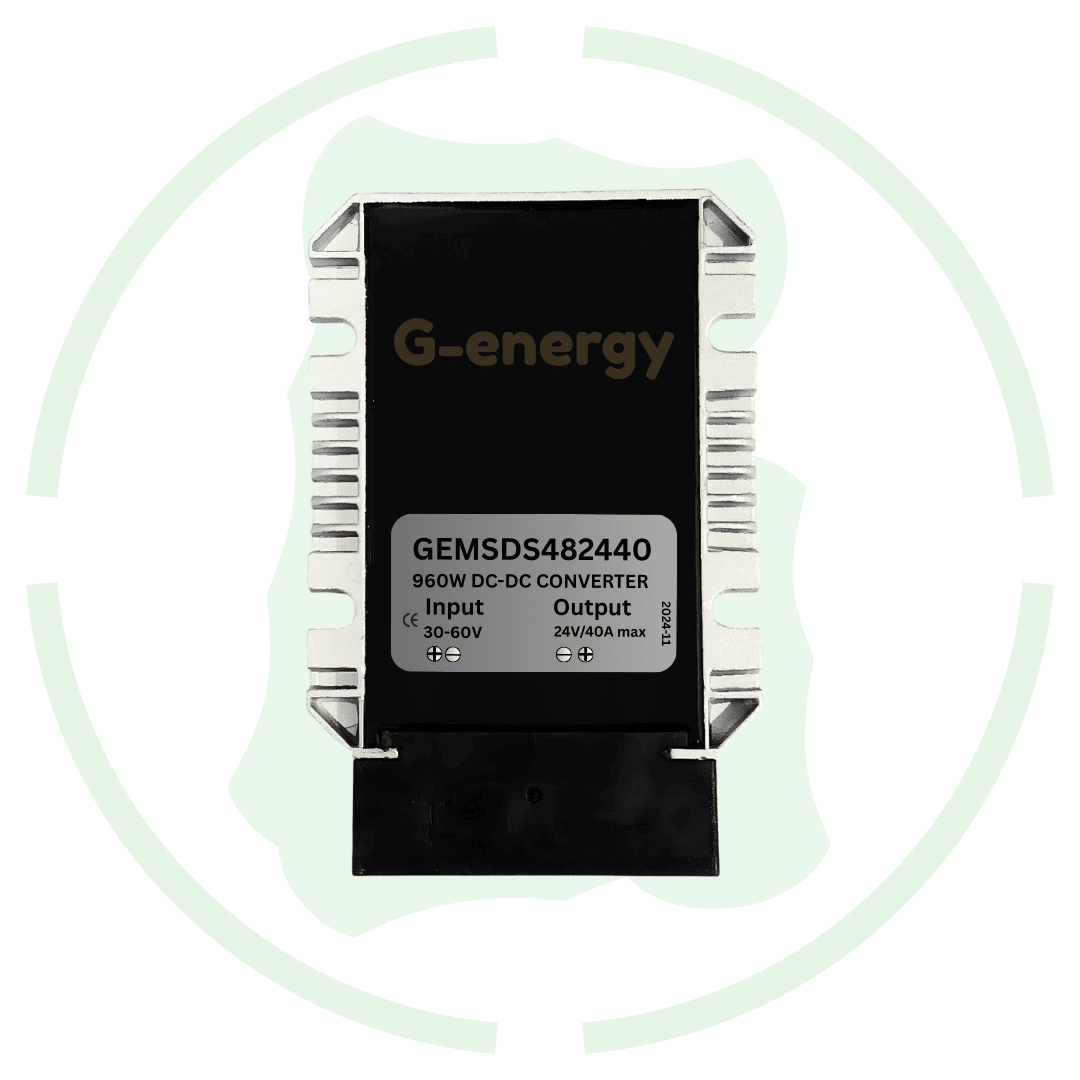

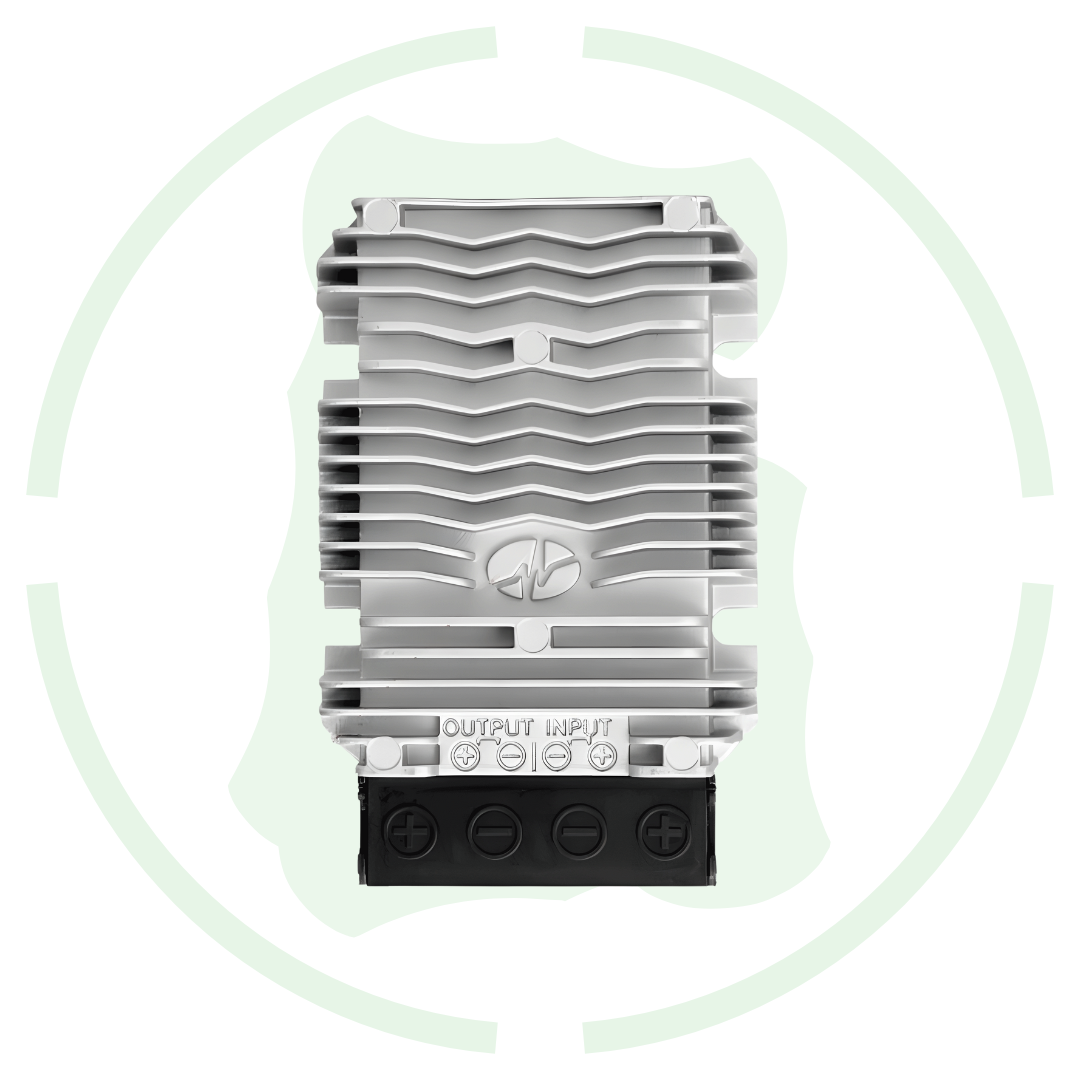

G-energy GEMSDS482440 48V To 24V 40A 960W Dc To Dc Converter Ip68 Buck Converter

Overview of this 48v to 24v 40a 960w dc to dc converter

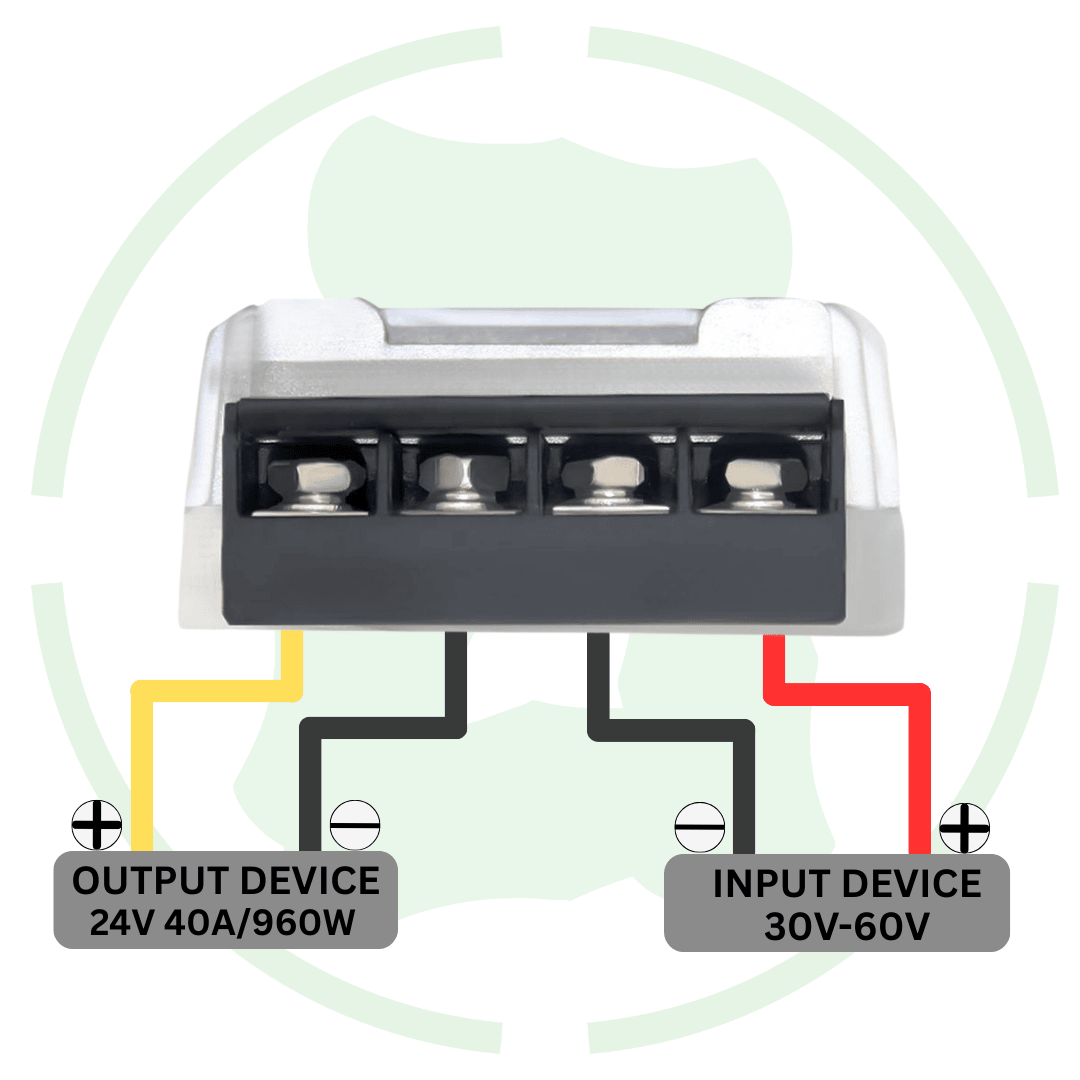

Introducing g-energy 48v to 24v 40a 960w dc to dc converter ip67 step down converter at best price in India with G-energy. This buck voltage converter take input voltage of 30v to 60 and convert it to a fix 24v output with 960w max dc power. It also come with screw terminal wire connection method for safe and secure wire connection.

Features

Input voltage: This 30v-60v to 24v step down converter can work on multiple standard input voltage of 36v 48v 60v and convert it to a fix 24v output voltage.

960w high power: It also provide high dc  power up to 960 watt with up to 40a dc current for high power industrial device set up.

Ip67 water proofing: With its metal body and epoxy potting it also provide ip67 rated water proofing for converter and connected device safety.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V – 60V DC

2. Rated Input Voltage: 36V 48V 60V DC

3. Output Voltage: 24V DC

4. Maximum Output Current: 40A

5. Maximum Output Power: 960W

6. Efficiency (Typical): Up to 98.1%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 300mV (at full load)

10. No-load Current Draw: 50mA @ 48V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP67

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

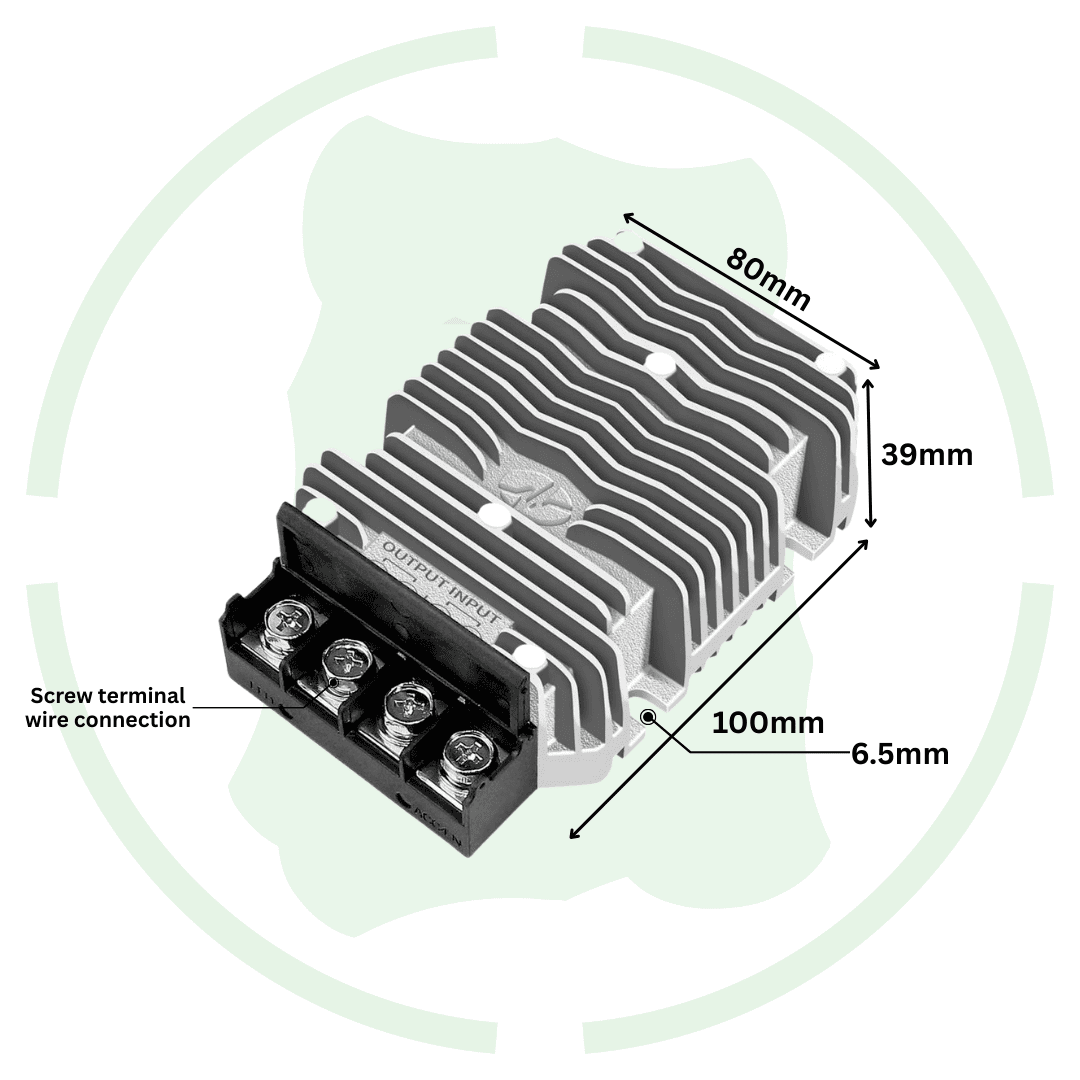

19. Dimensions: 100x80x36 mm

20. Weight: 580 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSDS482440 48v to 24v 40a dc voltage converter
