G-energy GEMSD601205 60V To 12V 5A 60W Dc To Dc Converter Ip68 Buck Converter

Overview of this 60v to 12v 5a 60w dc to dc converter

Introducing g-energy dc 60v to 12v 5a 60w dc to dc converter water proof step down converter at best price in India with G-energy. This voltage converter work on voltage range from dc 51v to 73v for its smooth use at multiple input voltage source. You can also use 60v or 72v battery as its input voltage source for converter smooth conversion.

Features

Input voltage: This 60v to 12v step down converter work on input voltage from dc 51v to 73v and convert it to a fix 12v dc output voltage.

60w dc power: It also provide up to 5a dc current and 60w maximum dc power for low power dc devices.

Ip68 water proofing: It is also built with ip68 rated water proof body for converter safety from wet and marine conditions.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 51V-73V DC

2. Rated Input Voltage: 60V 72V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 5A

5. Maximum Output Power: 60W

6. Efficiency (Typical): Up to 92%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 180mV (at full load)

10. No-load Current Draw: 80mA @ 60V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

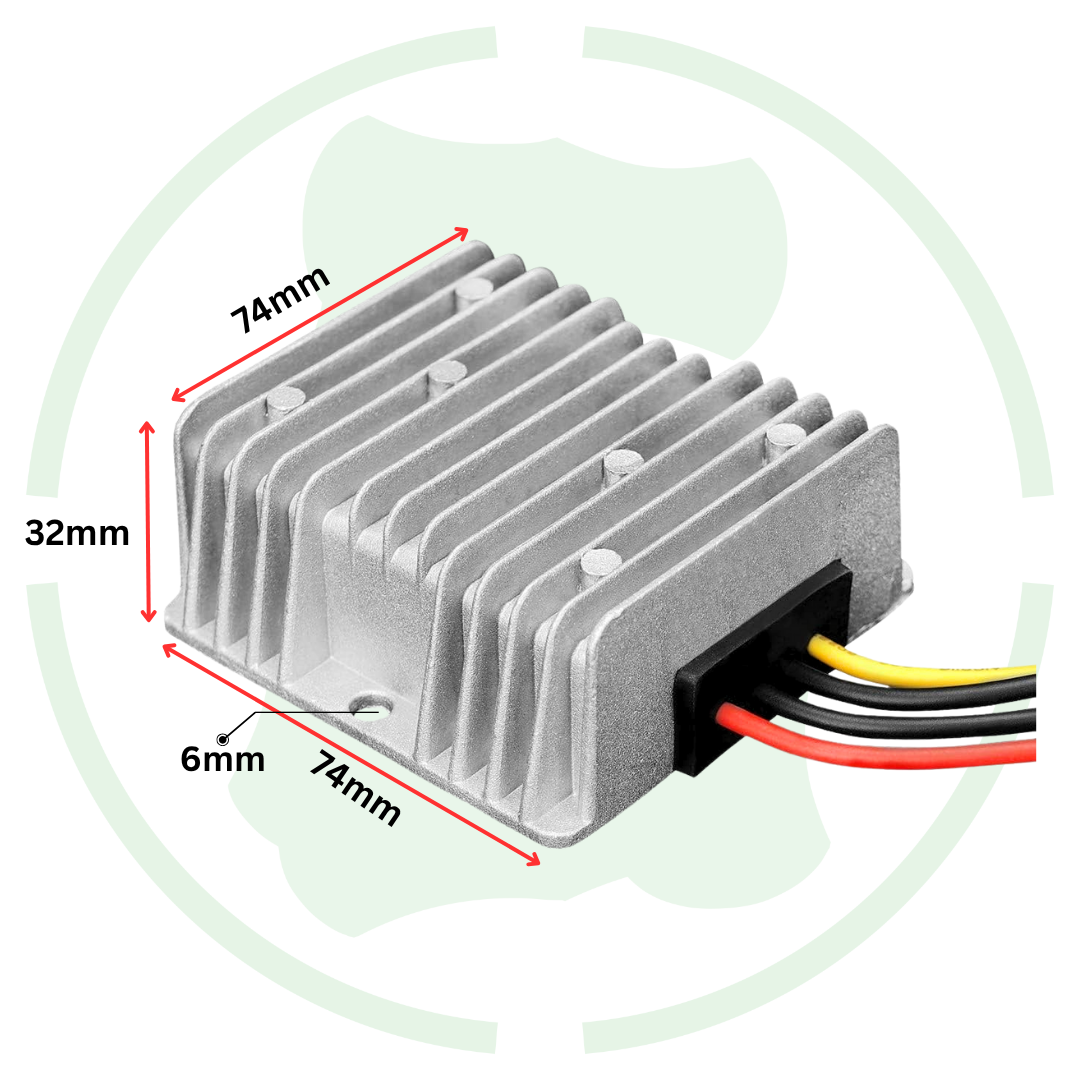

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSD601205 60v to 12v 5a dc voltage converter
