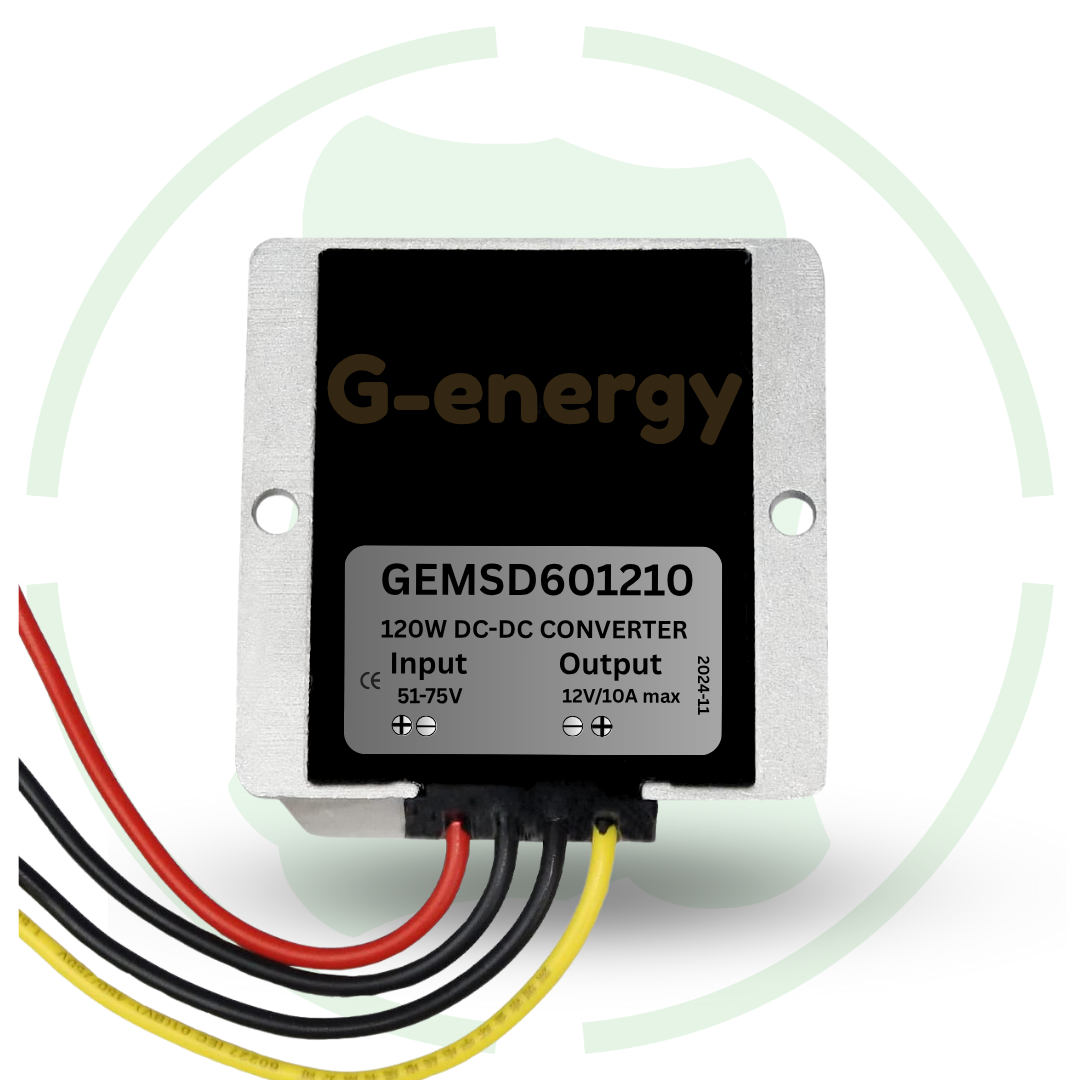

G-energy GEMSD601210 60V To 12V 10A 120W Dc To Dc Converter Ip68 Step Down Converter

Overview of this 60v to 12v 10a 120w dc to dc converter

Introducing g-energy 60v to 12v 10a 120w dc to dc converter ip68 rated water proof step down converter at best price in India with G-energy. This converter work on 51v to 75v dc input voltage range for smooth use. It also provide a fix 12v dc output voltage with up to 10a dc current and 120w max dc power for medium power industrial devices.

Features

Input voltage: This 60v to 12v converter work on multiple standard voltage of 60v and 72v dc input voltage source for its use at multiple set up.

120W dc power: It also provide a fix 12v output with up to 10a dc current and 120w dc power for any 12v operating industrial device.

94% efficiency: It is built with synchronous rectification technology for it high conversion efficiency up to 94% energy conversion.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 51V-75V DC

2. Rated Input Voltage: 60V 72V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 10A

5. Maximum Output Power: 120W

6. Efficiency (Typical): Up to 94%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 180mV (at full load)

10. No-load Current Draw: 80mA @ 60V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSD601210 60v to 12v 10a dc voltage converter
