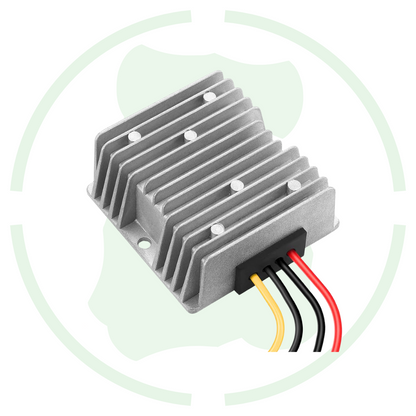

G-energy GEMSD601215 60V To 12V 15A 180W Dc To Dc Converter Ip68 Step-down Converter

Overview of this 60v to 12v 15a 180w dc to dc converter

Introducing g-energy 60v to 12v 15a 180w dc to dc converter ip68 rated step down converter at best price in India. This buck voltage converter smoothly work on 30v to 75v input voltage range. And can smoothly work on multiple standards voltage including 36V 48V 60V 72V as their input source. It also provide up to 15a dc current and up to 180w dc power for any 12v dc industrial set up.

Features

Input voltage: This 60v to 12v step down converter can work on 30v to 75v input voltage range for its wide variety.

Output voltage: It provide a fix 12v dc output voltage with up to 15a dc current and 180w max power for medium power dc industrial device.

95% Conversion efficiency: It also provide high conversion efficiency up to 95% energy conversion for energy saving industrial set up.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V-75V DC

2. Rated Input Voltage: 36V 48V 60V 72V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 15A

5. Maximum Output Power: 180W

6. Efficiency (Typical): Up to 95%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 120mV (at full load)

10. No-load Current Draw: 70mA @ 60V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Over voltage

    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)

Datasheet of GEMSD601215 60v to 12v 15a dc voltage converter
