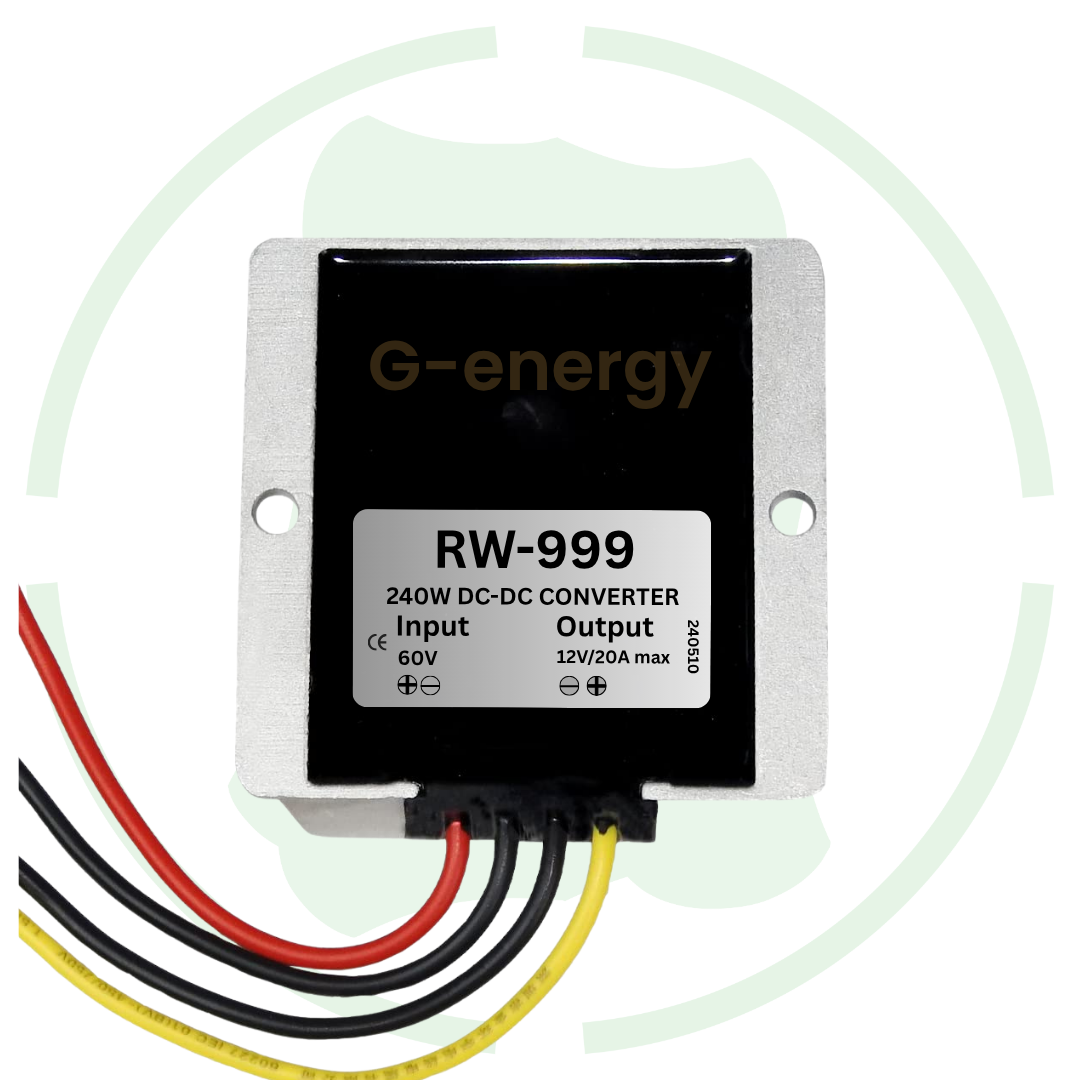

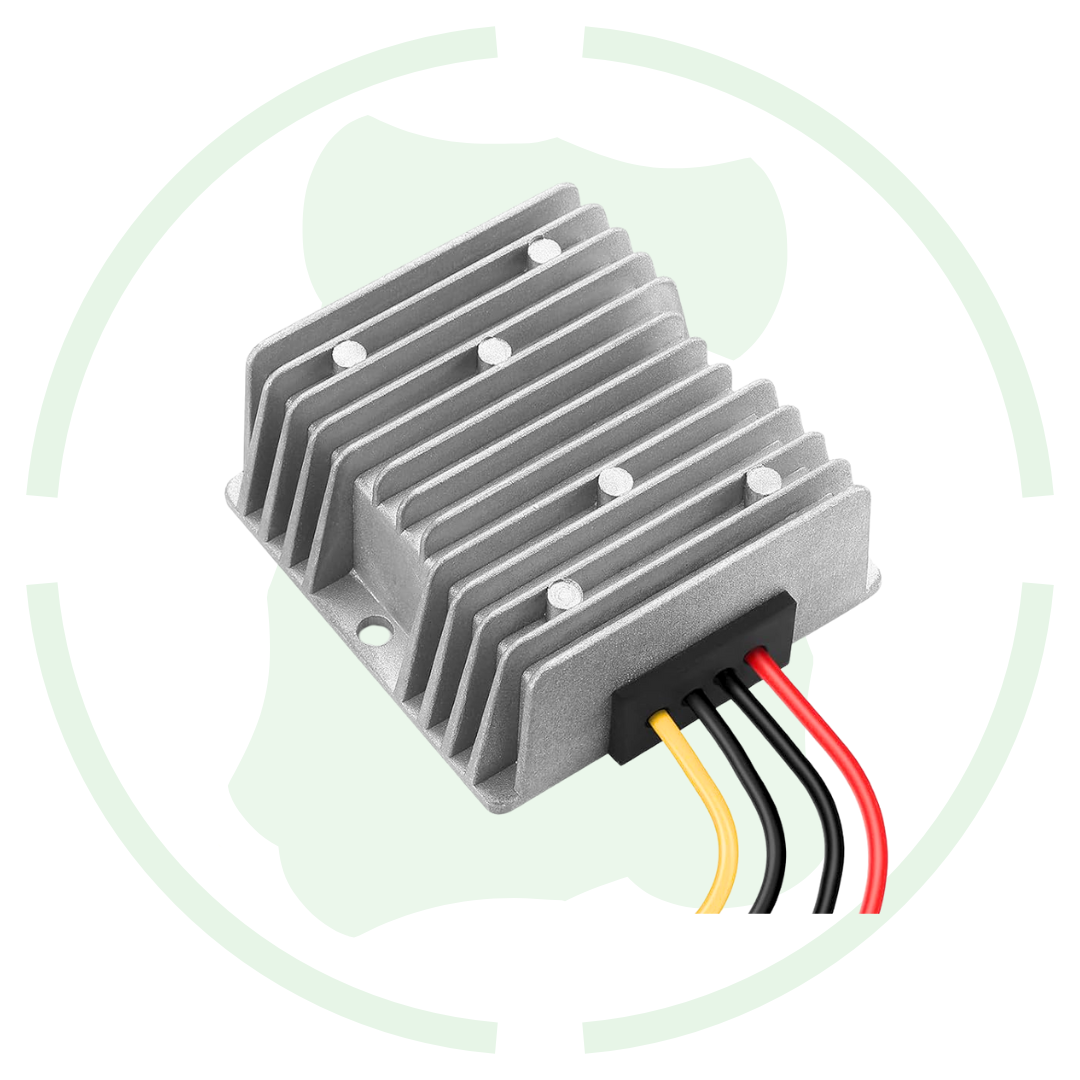

G-energy GEMSD601220 60V To 12V 20A 240W Dc To Dc Converter Ip68 Step-down Converter

Overview of this 60v to 12v 20a 240w dc to dc converter

Introducing G-energy 60v to 12v 20a 240w dc to dc converter ip68 rated water proof step down converter at best price in India with G-energy. This buck voltage converter work on input voltage from dc 30v to 75v input voltage range and convert it to a fix 12v dc output voltage. It also provide 20a dc current and 240w power to operate medium power dc devices.

Features

Input voltage: This 36v 72v to 12v converter smoothly work on 30v to 75v input voltage and convert it to a fix 12v dc output voltage.

240W dc power: It provide a up to 20a dc current and 240w max dc power for medium power dc industrial device.

95.4% efficiency: it is built with synchronous rectification that provide high energy conversion up to 95.4% for energy saving dc industrial set up.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 30V-75V DC

2. Rated Input Voltage: 36V 48V 60V 72V DC

3. Output Voltage: 12V DC

4. Maximum Output Current: 20A

5. Maximum Output Power: 240W

6. Efficiency (Typical): Up to 95.4%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 30mA @ 60V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

19. Dimensions: 74x74x32 mm

20. Weight: 290 gm

21. Cooling Method: Free air convection (no fan required)
