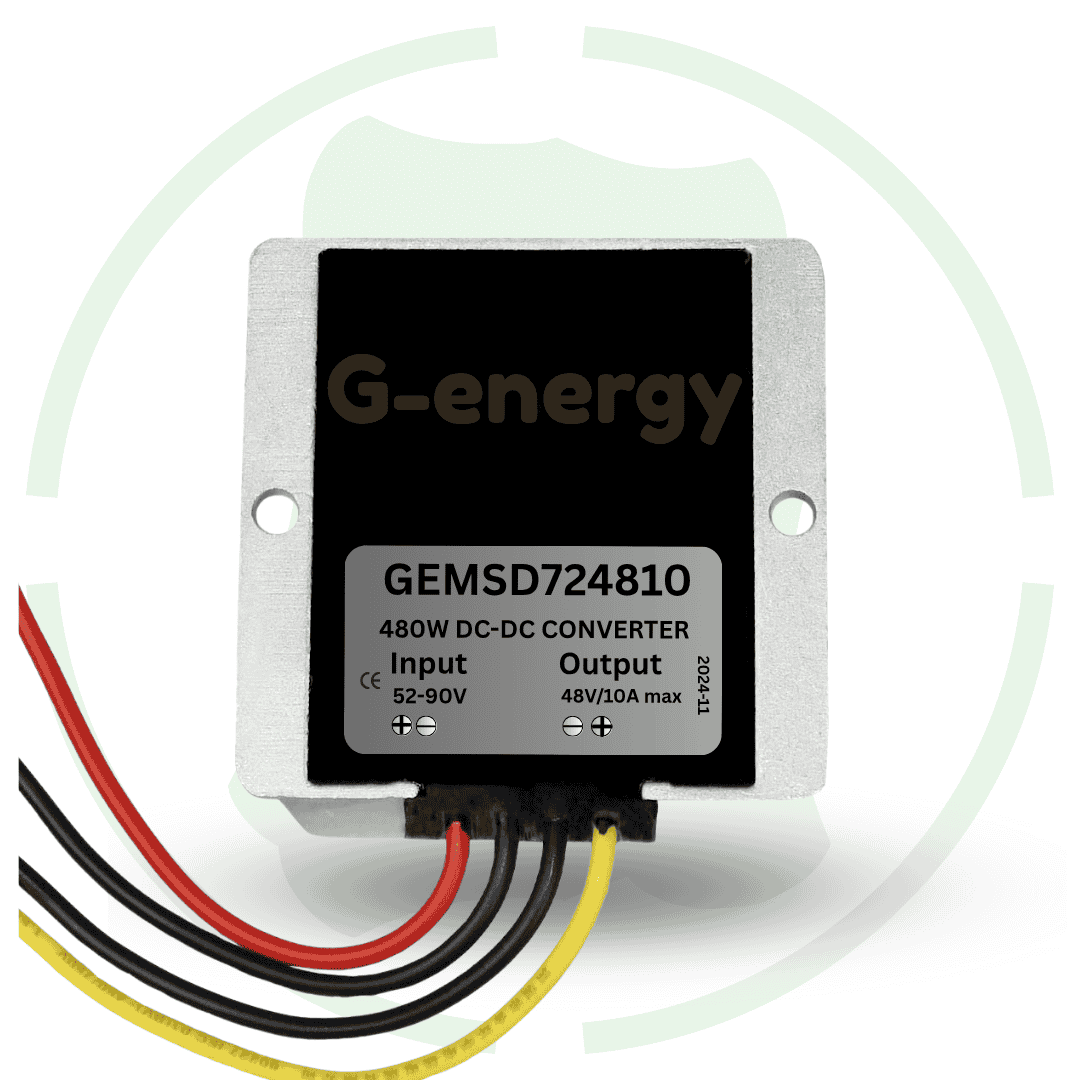

G-energy GEMSD724810 60V 72V To 48V 10A 480W Dc To Dc Converter Ip68 Buck Converter

Overview of this 60v 72v to 48v 10a 480w dc to dc converter

Introducing G-energy 60v 72v to 48v 10a 480w dc to dc converter with aluminum body with ip68 waterproofing at best price in India with G-energy. This voltage converter smoothly work on 52v to 90v dc input voltage range for its smooth performance on changing input voltage. It also come with multiple safety features like short circuit protection, under voltage protection for its long life and smooth performance.

Features

52V to 90V input range: This 72v to 48v dc dc converter can smoothly work on a wide dc input voltage range from 52v to 90v dc input voltage.

High conversion efficiency: This voltage converter is built with synchronous rectification technology and with this advance technology it can provide upto 95% voltage conversoin efficiency.

Waterproof wire connection method: This dc dc converter come with high quality wire which can handle upto 600W maximum power.

Specification

Input Voltage Range: 52V – 90 V DC

Output Voltage: 48 V DC

Output Current: 10 A

Output Power: 480 W

Conversion Efficiency: Up to 95 %

Ripple & Noise: ≤ 100 mV

Start-up Time: ≤ 1 second

Cooling Method: Natural air cooling (passive)

Protection Rating: IP68 (Waterproof & Dustproof)

Input Reverse Polarity Protection: Yes

Operating Temperature: -40 °C to +80 °C

Storage Temperature: -40 °C to +85 °C

Housing Material: Aluminum alloy

Dimensions: 77 mm × 74 mm × 28 mm

Weight: Approx. 250 g
