G-energy GEMSDF724810 60V 72V To 48V 10A 480W Dc To Dc Converter With Fuse

Overview of this 60v 72v to 48v 10a 480w dc to dc converter

Introducing G-energy 60v 72v to 48v 10a 480w dc to dc converter with fuse for over voltage protection at best price in India with G-energy. This dc voltage converter is built with multiple safety features including short circuit protection, under voltage protection, for converter and connected device. It is built with aluminum metal body with screw terminal wire connection method for easy and secure input/output connection.

Features

Wide input voltage: This voltage converter can smoothly work in wide input voltage range from 60v to 90v and convert it to a stable 48v dc output voltage.

Safety protection: This 72v to 48v dc converter come with additional pug in fuse that provide multiple protection like input short circuit protection, under voltage protection, over voltage protection, and over load protection.

480W Max Power: This 72v to 48v buck converter provide a max current upto 10a and 480w maximum high power for its high powered industrial use.

Specification

• Input Voltage Range: 60V to 80V DC

• Output Voltage: 48V DC

• Output Current: 10A

• Output Power: 480W

• Conversion Efficiency: Up to 95%

• Ripple and Noise: ≤ 150mV

• Input/Output Isolation: Yes (Isolated)

• Protection Features:

  • Over-voltage protection

  • Over-current protection

  • Short-circuit protection

  • Integrated fuse for over-current protection

• Cooling Method: Natural air cooling

• Protection Rating: IP65 (Waterproof and Dustproof)

• Operating Temperature Range: -40°C to +85°C

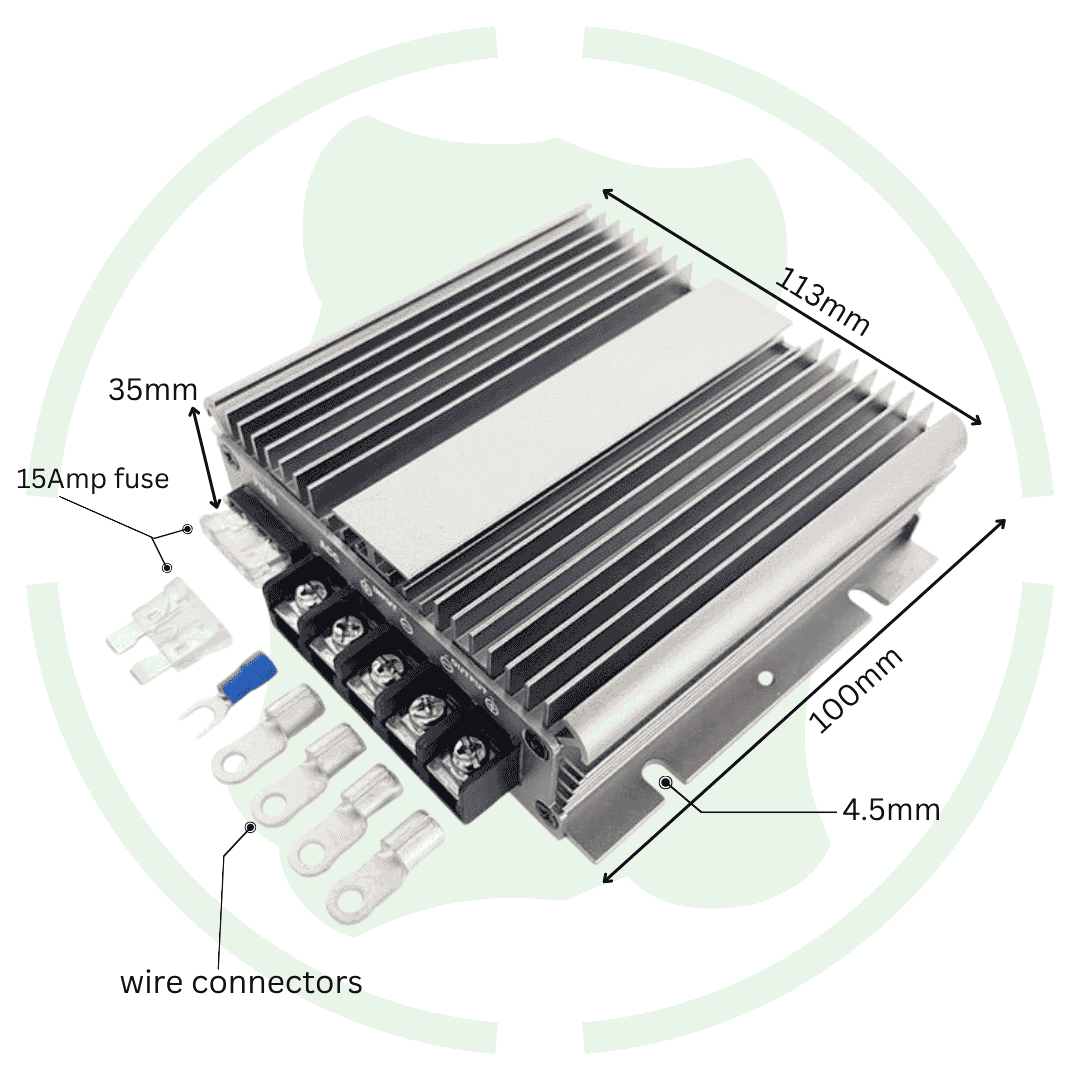

• Dimensions: 117mm x 113mm x 35mm

• Weight: 630 grams
