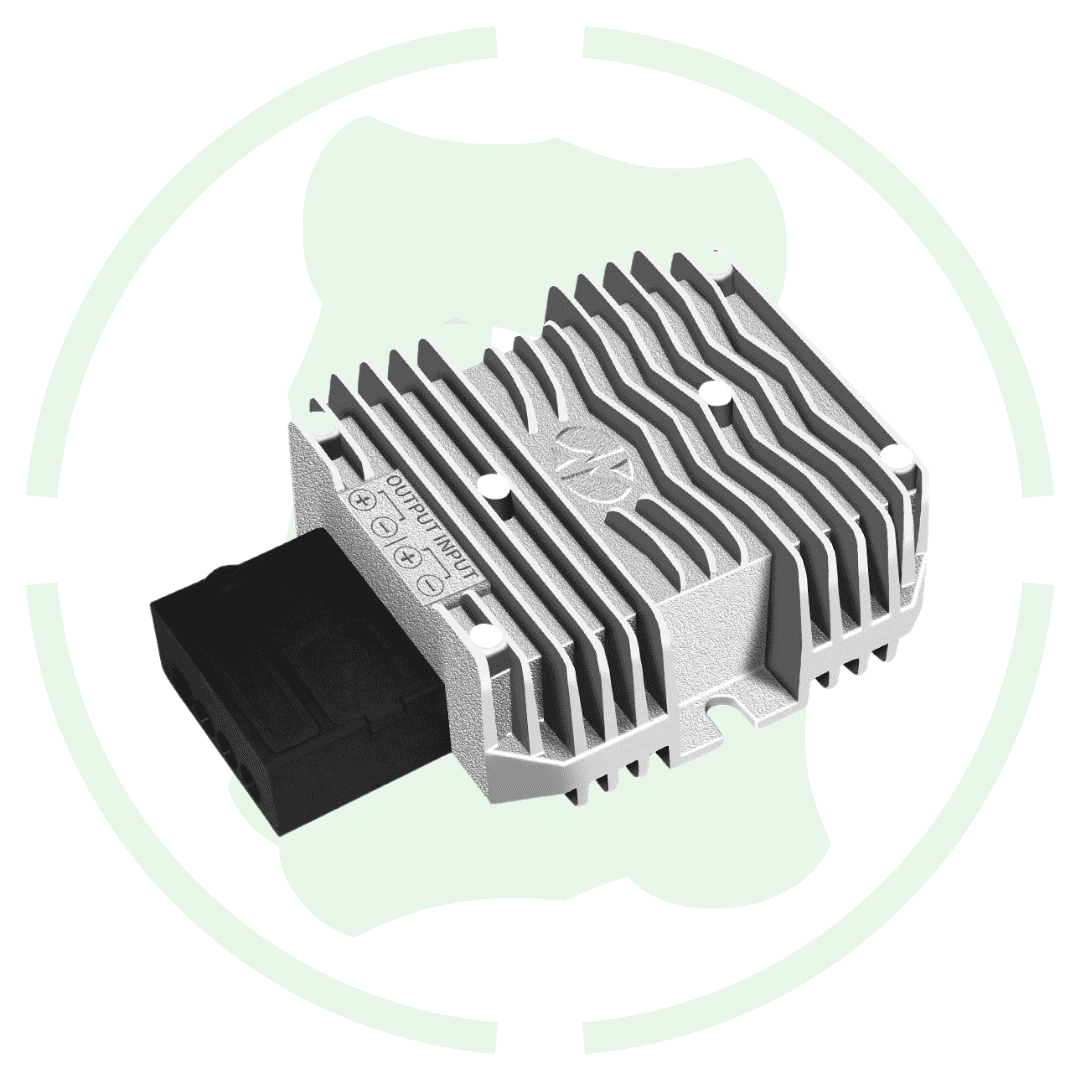

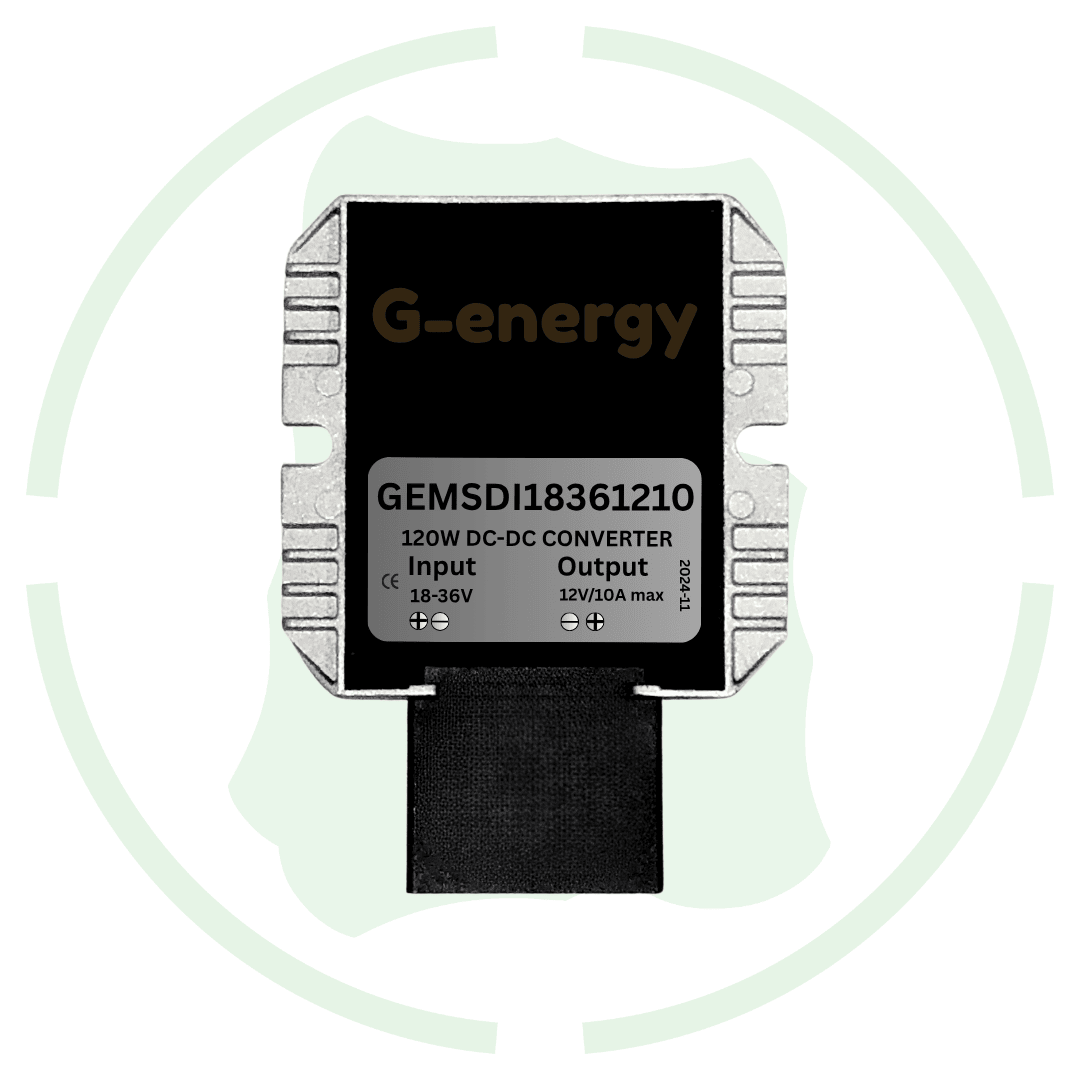

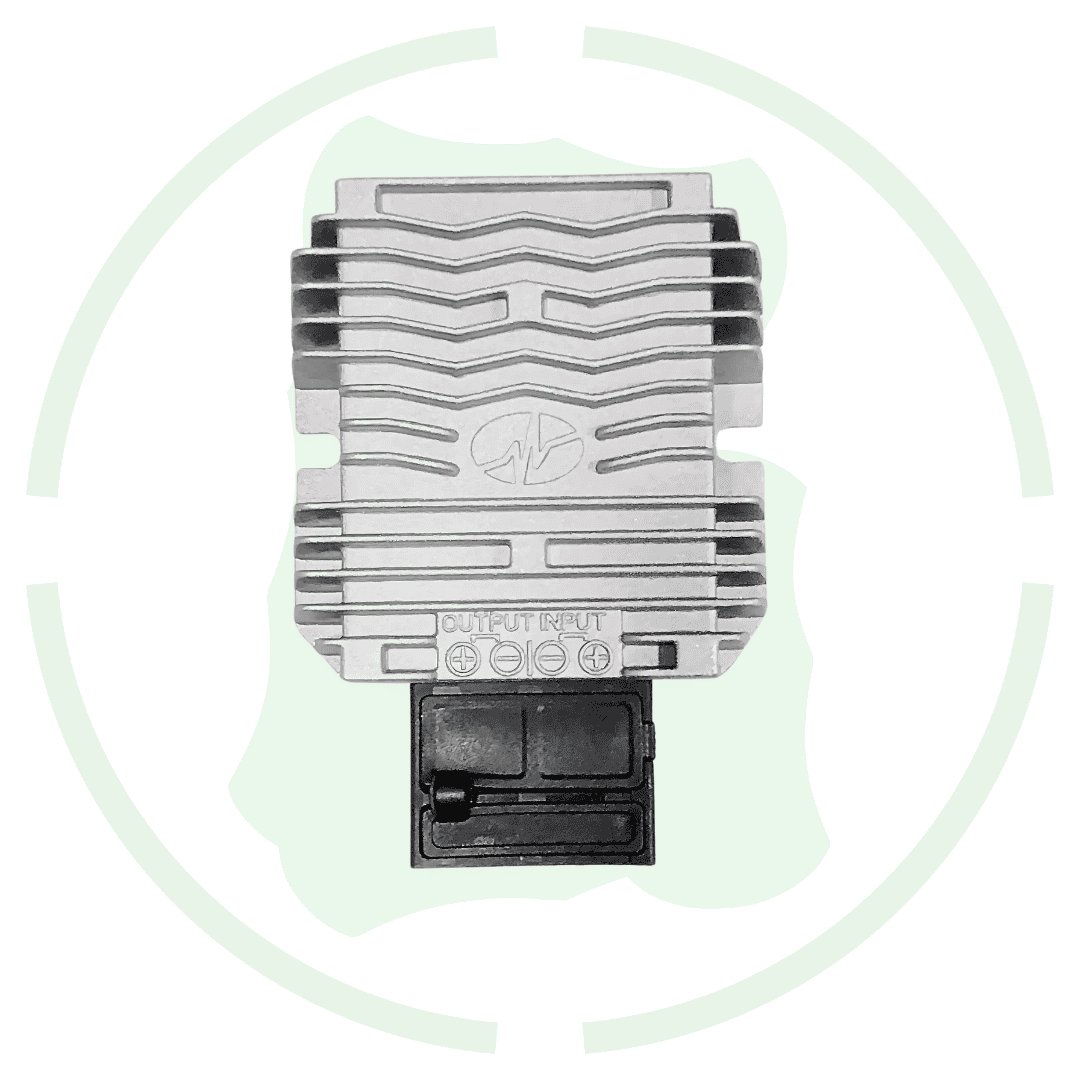

G-energy GEMSDI241210 18V 24V 36V To 12V 10A 120W Dc To Dc Converter Isolated Buck Converter

Overview of this 18v 24v 36v to 12v 10a 120w dc to dc converter

Introducing G-energy 18v 24v 36v to 12v 10a 120w dc to dc converter isolated buck converter module at best price in India with G-energy. This dc isolated dc dc converter smoothly work on a wide input voltage range from dc 18v to 36v dc input range. It also provide a fix 12v dc output with a max current up to 10a and 120w max power.

Features

Fix 12v dc output: This 18v-36v to 12v isolated dc converter provide a fix 12v dc output voltage for industrial application use.

Reverse polarity protection: This dc dc converter is

Ip68 water proof rating: This dc dc converter is designed with ip68 rated water proofing for its safety from water and short circuit.

Specification'

• Input Voltage: 18–36V DC

• Output Voltage: 12V DC (±2%)

• Output Current: 10A max

• Power Output: 120W

• Efficiency: Up to 92%

• Protections: Over voltage, Over current, Over temperature, Short circuit, Reverse polarity

• Under voltage Cutoff: Shuts below 17.2V, recovers at 17.5V

• Size: 74 × 74 × 29.5mm

• Weight: ≤290g

• Cooling: Natural air

• Waterproof: IP67

• Temp Range: -40°C to +55°C

• Isolation Voltage: ≥1500V

• MTBF: ≥100,000 hours

• Remote ON/OFF (CNT Pin): Optional

• No fan needed, high reliability

Datasheet of GEMSDI241210 18v 24v 36v to 12v 10a dc voltage converter
