G-energy GEMSDS723640 48V 72V To 36V 40A 1440W Dc To Dc Converter

Overview of this 48v 72v to 36v 40a 1440w dc to dc converter

Introducing g-energy 48v 72v to 36v 40a 1440w dc to dc converter at best price in India with g-energy. This voltage converter smoothly work on 40v to 96v input voltage range and convert it to a fix 36v input voltage. It also provide high dc current up to 40a and max dc power up to 1440w dc power for high power dc devices.

Features

Input voltage: This 72v to 36v step down converter smoothly work on 40v to 96v input voltage range and convert it to a fix 36v dc output voltage.

1440W high power: It also provide high dc power up to 1440w with max dc current up to 40a a fix 36v dc output voltage.

High quality built: It is built with high quality metal body that can easily use at any harsh industrial set up.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 40-96V DC

2. Rated Input Voltage: 48V 60V 72V 90V DC

3. Output Voltage: 36V DC

4. Maximum Output Current: 40A

5. Maximum Output Power: 1440W

6. Efficiency (Typical): Up to 95.4%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 96mV (at full load)

10. No-load Current Draw: 30mA @ 60V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

15. Smart Chip Protection: Yes

16. Synchronous Rectification Technology: Yes

17. Non-Isolated Converter: Yes

📦 Mechanical & Physical

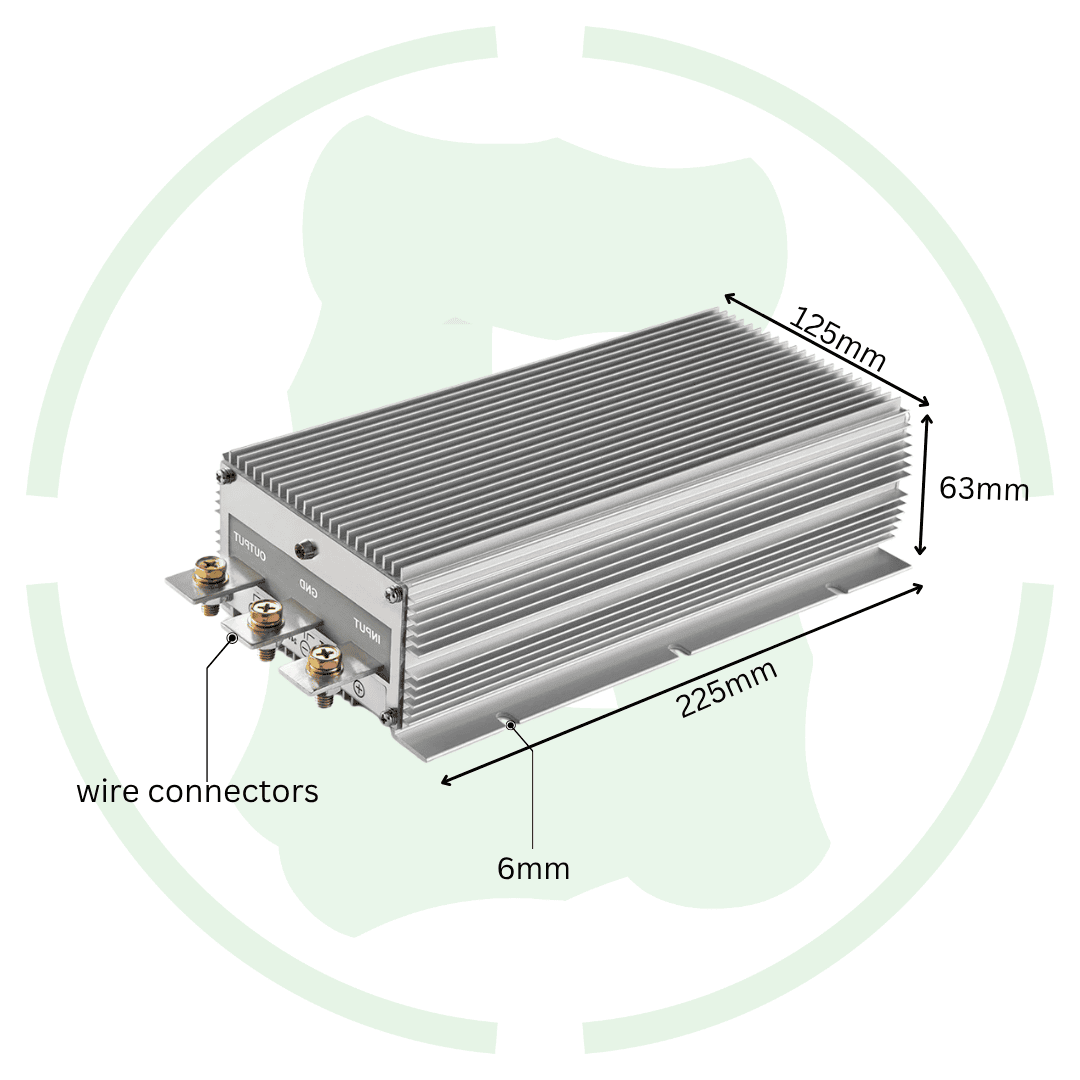

19. Dimensions: 225x125x63mm

20. Weight: 1500 gm

21. Cooling Method: Free air convection (no fan required)
