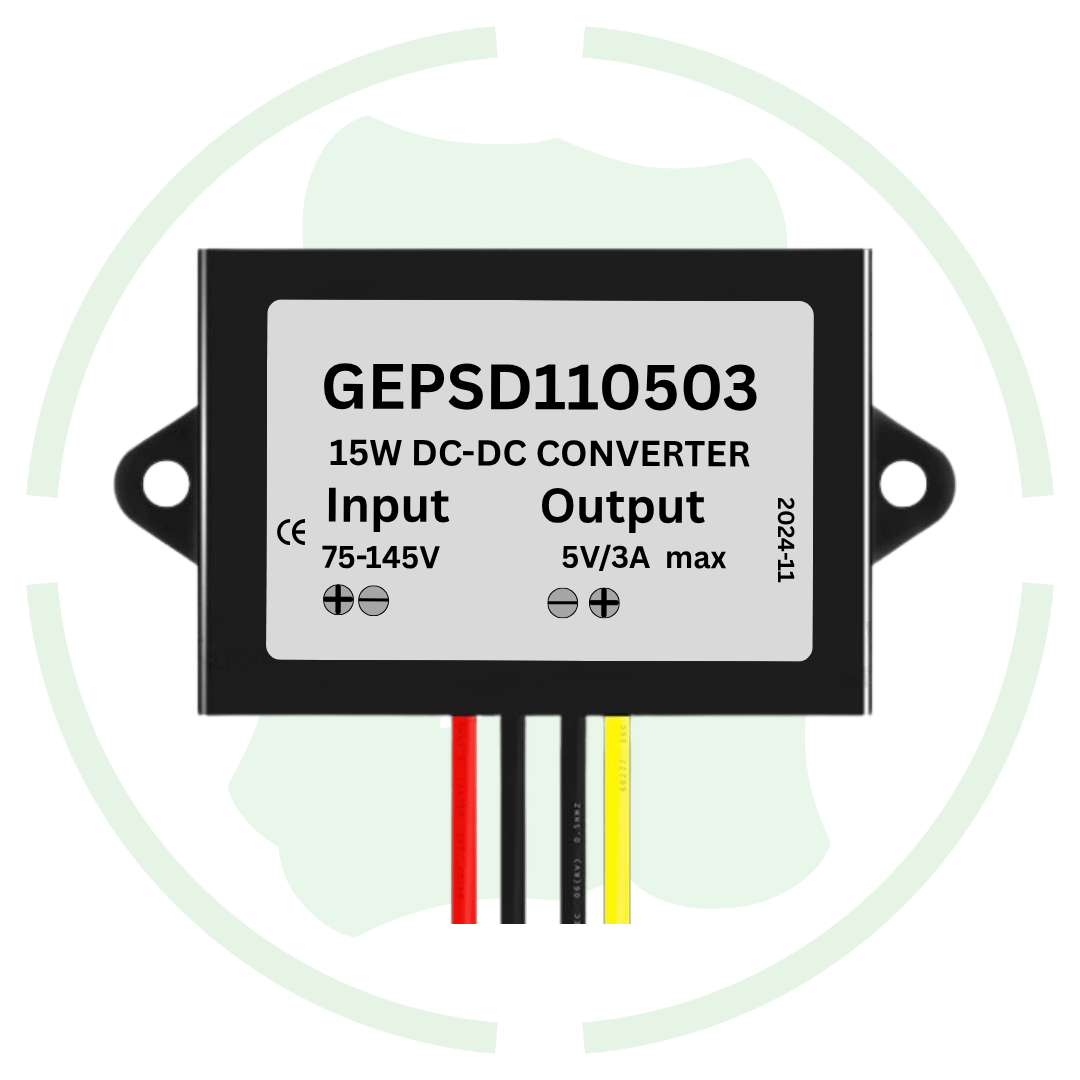

G-energy GEPSD110503 90V 110V To 5V 3A 15W Dc To Dc Converter Ip68 Waterproof Buck Converter

Overview of this 90v 110v to 5v 3a 15w dc to dc converter

Introducing g-energy 90v 110v to 5v 3a 15w dc to dc converter ip68 waterproof buck converter at best price in India with G-energy. This voltage converter is built with high quality abs plastic body for its use in any rough industrial condition. It is also built with high quality input output wire that can smoothly work on high voltage up to 600v.

Features

Big input voltage: This converter work on 75v to 145v input voltage range for its use at high voltage input source.

Ip68 water proof design: It is designed with ip68 rated water proof design for converter safety from water and wet industrial conditions.

Small and light weight design: It is designed with small metal body and light weight designed for its easy use in any small industrial conditions.

Specification

• Input Voltage Range: 75V – 145V DC

• Rated Input Voltage: 90V/110V

• Output Voltage: 5V DC

• Maximum Output Current: 3A

• Maximum Output Power: 15W

• Efficiency: >88%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• No-Load Loss: 5mA

• Ripple Noise: 300mV (Full Load)

🌡️ Environmental Specifications

• Working Temperature: -40°C to +55°C

• Storage Temperature: -40°C to +80°C

• Humidity Range: 10% – 90% RH

• Cooling Method: Free Air Convection

🛡️ Protection & Design Features

• Protection Features:
  ✅ Short Circuit
  ✅ Over current
  ✅ Over temperature
  ✅ Under voltage

• Technology: Synchronous Rectification

• Build Features:
  ✅ Organic Silicone Encapsulation
  ✅ Anti-shock, Anti-drop, Anti-moisture, Anti-dust

• Waterproof Rating: IP68

• Weight: 70gm
