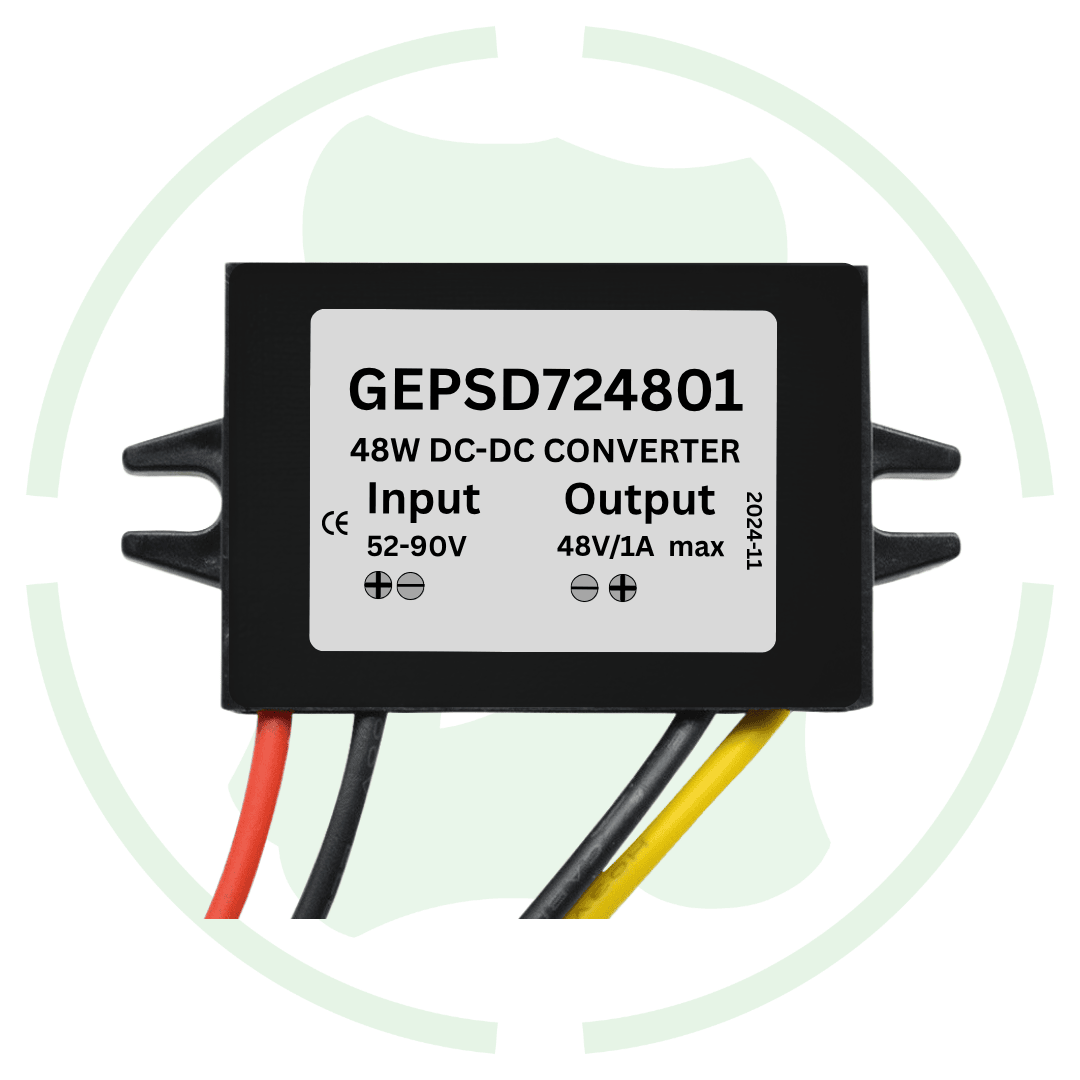

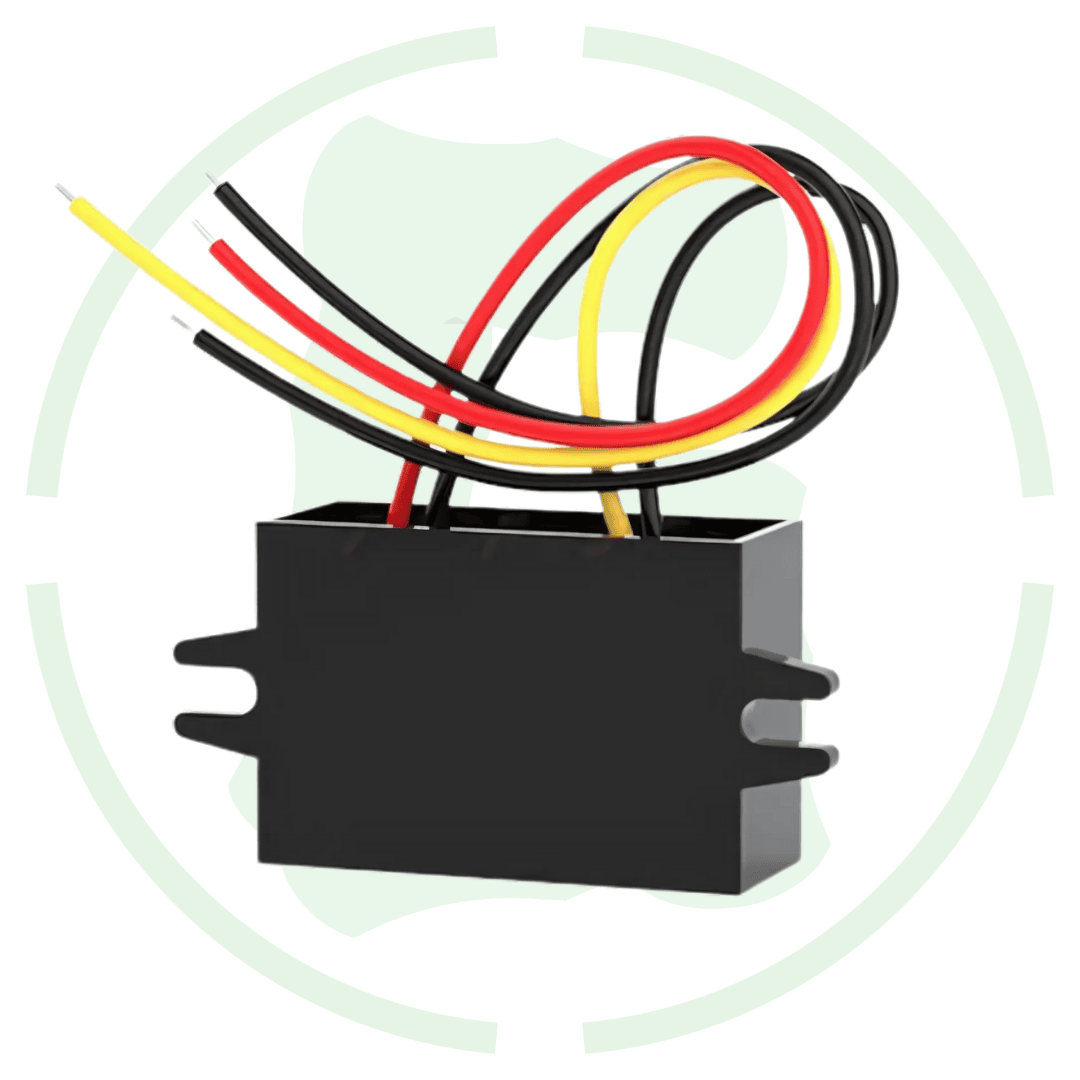

G-energy GEPSD724801 60V 72V To 48V 1A 48W Dc To Dc Converter Plastic Body Buck Converter

Overview of this 60v 72v to 48v 1a 48w dc to dc converter

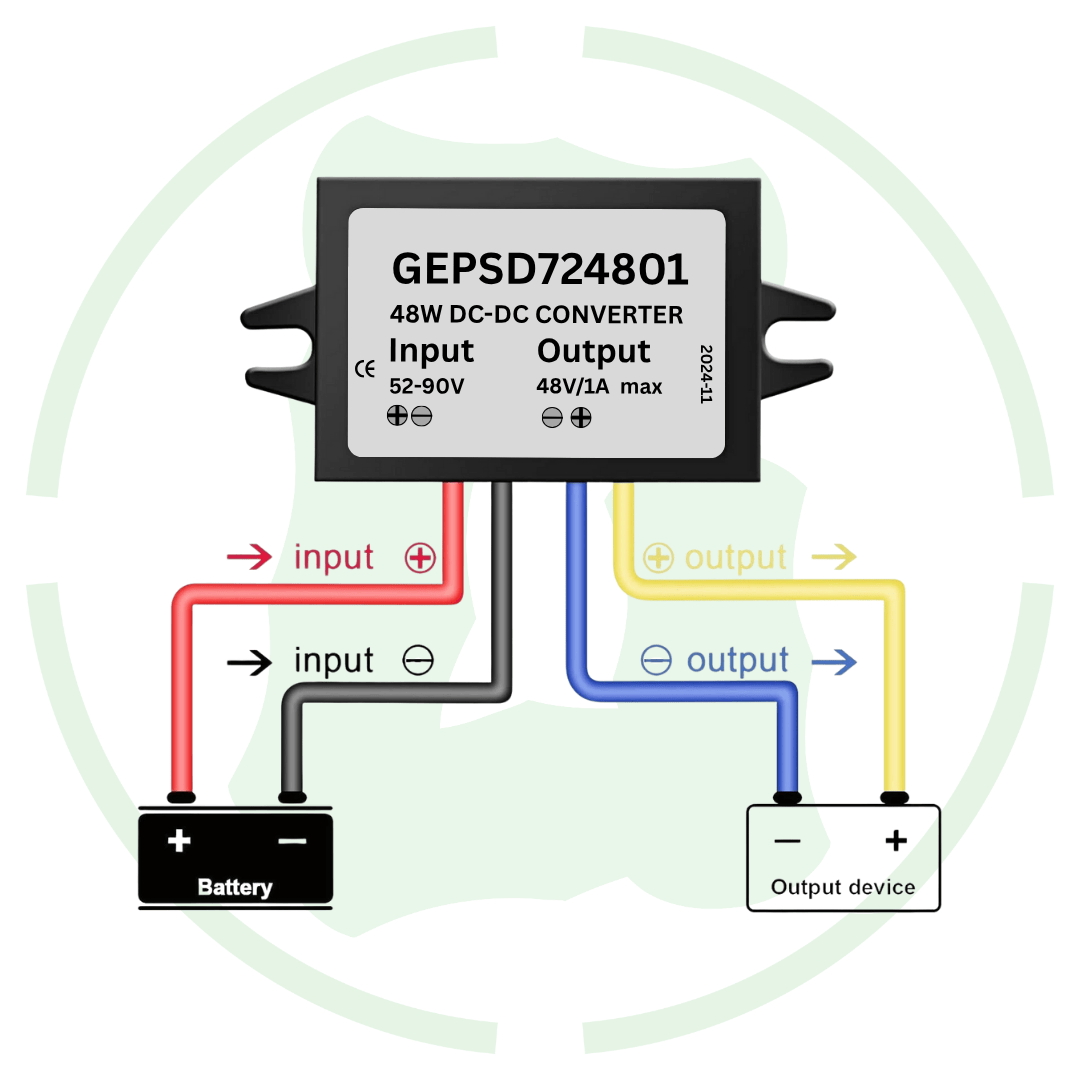

Introducing G-energy dc 60v 72v 90v to 48v 1a 48w dc to dc converter with high quality ip68 water proof plastic body. This dc voltage converter work on a big dc input voltage range from 52v to 90v for its use with multiple devices. This 72v to 48v buck converter i designed on advance synchronous rectification technology that provide its high efficiency upto 91% voltage conversion.

Features

Safety features: This voltage converter is built with multiple safety features including under voltage protection, short circuit protection for circuit and connected device safety.

Wide input voltage range: This dc dc buck converter can easily work within a big dc input voltage range from 52v to 90v dc input voltage.

Panel mount with screw: This voltage converter come with panel mount screw connection for tight & secure mounting on pcb board.

Specification

• Module Type: Buck Converter

• Input Voltage Range: 52V to 90V DC

• Output Voltage: 48V DC

• Output Current: 1A

• Output Power: 48W

• Conversion Efficiency: Up to 92%

• Load Regulation: ±1%

• Ripple and Noise: <150mV

• Cooling Method: Natural cooling (passive cooling)

• IP Rating: IP68 (Waterproof and Dustproof)

• Operating Temperature: -40°C to +85°C

• Mounting Method: Panel mounting with screw holes

• Applications: Industrial, Automotive, and Renewable Energy Systems

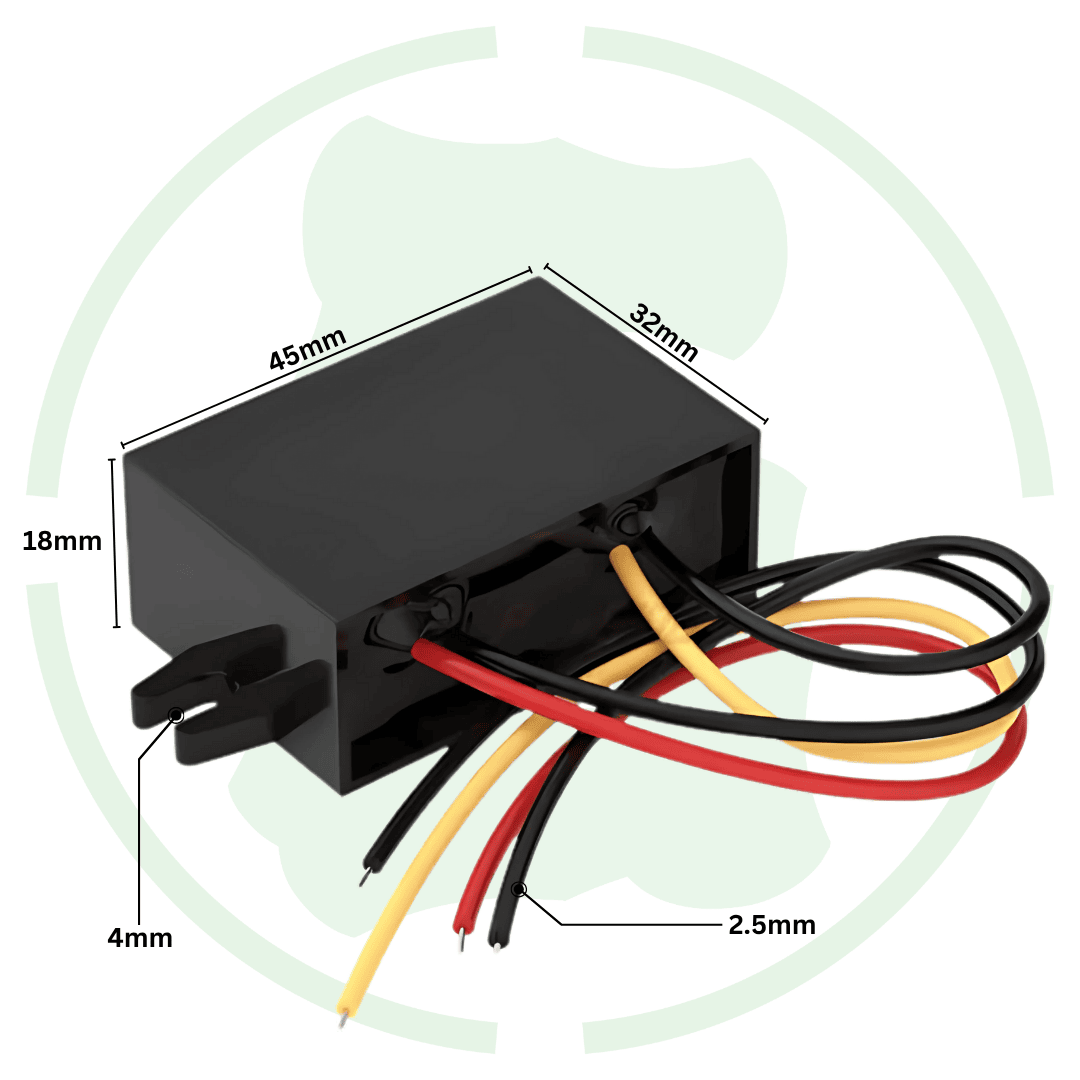

• Dimensions: 45x32x18 mm

• Weight: Approximately 70g
