G-energy GEMSU124820 12V To 48V 20A 960W Dc To Dc Converter Ip68 Step Up Converter

Overview of this 12v to 48v 20a 960w dc to dc converter

Introducing g-energy dc 12v to 48v 20a 960w dc to dc converter ip68 rated water proof boost converter at best price in India with G-energy. This step up converter take input voltage of 10v to 20v and convert it to a fix 24v dc output voltage with up to 960w max dc power. It is also built with metal body for high quality and smoothly work in harsh industry condition with temperature range up to -40 to 55 degree celsius.

Features

Input voltage: This 12v to 24v step up converter smoothly work on input range of 10v to 20v input voltage for it easy use with changing input voltage source.

960W High power: It also provide high dc power up to 960w and 20a max dc current with a fix 12v dc output voltage for high power dc device.

96.8% conversion efficiency: It is also built to provide high conversion efficiency up to 96.8% energy conversion for efficient conversion set ups.

Specification

🔧 Electrical Specifications

1. Input Voltage Range: 10-20V DC

2. Rated Input Voltage: 12V DC

3. Output Voltage: 48V DC

4. Maximum Output Current: 20A

5. Maximum Output Power: 960W

6. Efficiency (Typical): Up to 96.8%

7. Voltage Regulation: ±1%

8. Load Regulation: 2%

9. Ripple & Noise: 700mV (at full load)

10. No-load Current Draw: 200mA @ 12V input

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current


    • Over temperature

    • Under voltage recovery

16. Smart Chip Protection: Yes

17. Synchronous Rectification Technology: Yes

18. Non-Isolated Converter: Yes

📦 Mechanical & Physical

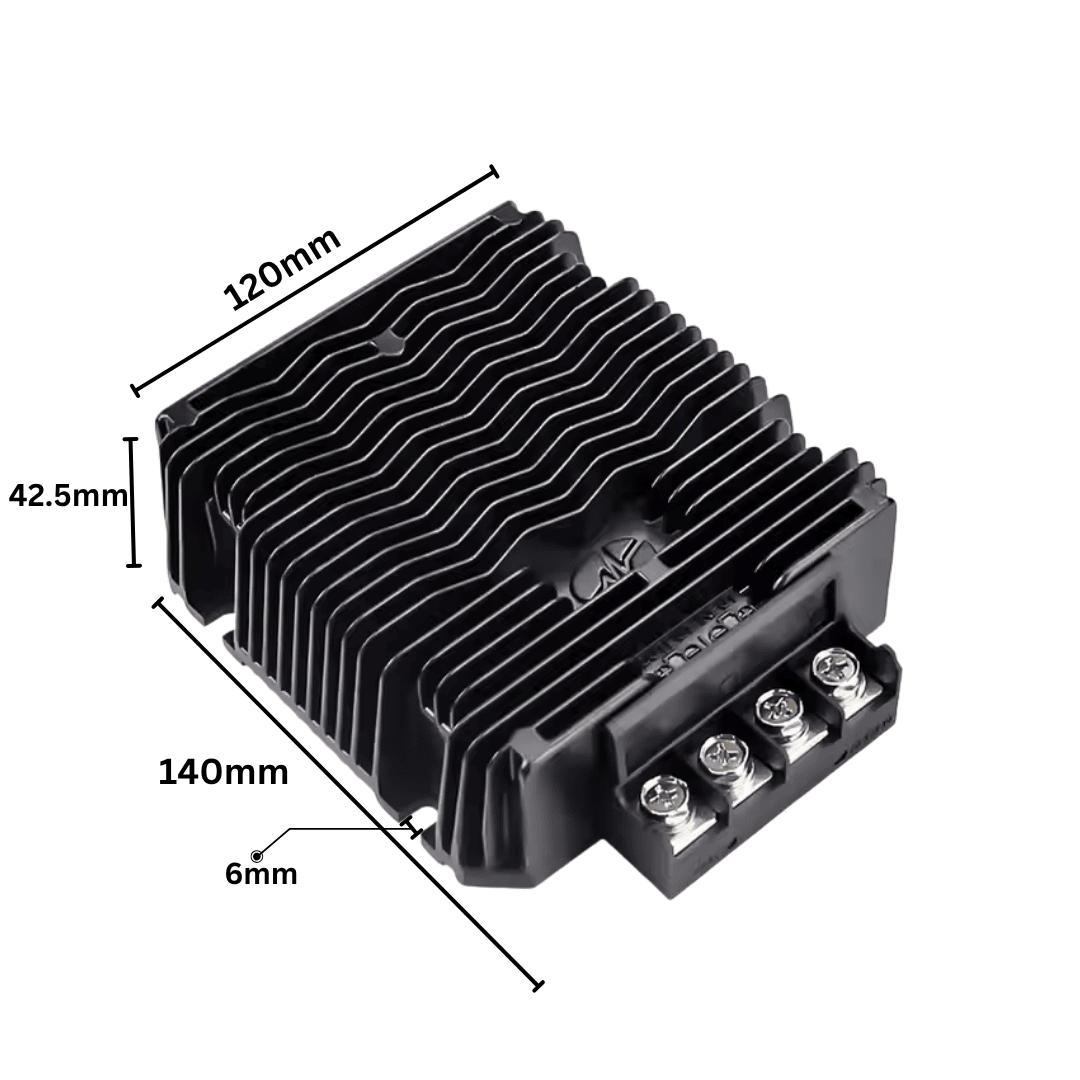

19. Dimensions: 140x120x42.5 mm

20. Weight: 1200 gm

21. Cooling Method: Free air convection (no fan required)
