G-energy GEMSD1101210 90V 110V To 12V 10A 120W Dc To Dc Converter Ip68 Buck Converter

Overview of this 90v 110v to 12v 10a 120w dc to dc converter

Introducing G-energy 90v 110v to 12v 10a 120w dc to dc converter ip68 buck converter at best price in India with G-energy. This dc voltage converter come with wide dc input voltage range from 75 to 145 dc voltage. And its ip68 aluminium metal body with epoxy to make it waterproof and more usable for harsh industrial condition.

Features

High 120W output power: This 110v to 12v dc dc converter can provide upto 10a 120w high power for stable industrial device.

High 91% efficiency: This dc converter is built with synchronous rectification and provide high efficiency upto 91% for energy savimg.

Fix 12V output: This voltage converter can also used to provide a stable 12v from 75-145v dc input voltage.

Specification

• Input Voltage Range: 75–145V

• Rated Input Voltage: 120V

• Output Voltage: 12V

• Maximum Output Current: 10A

• Maximum Output Power: 120W

• Efficiency: Up to 91%

• Voltage Regulation: ±1%

• Load Regulation: 2%

• Ripple Noise (Full Load): 300mV

• No-Load Loss: 70mA

• Operating Temperature: -40°C to 80°C

• Storage Temperature: -40°C to 100°C

• Operating Humidity: 10% to 90% RH

• Short Circuit Protection: Yes

• Overcurrent Protection: Yes

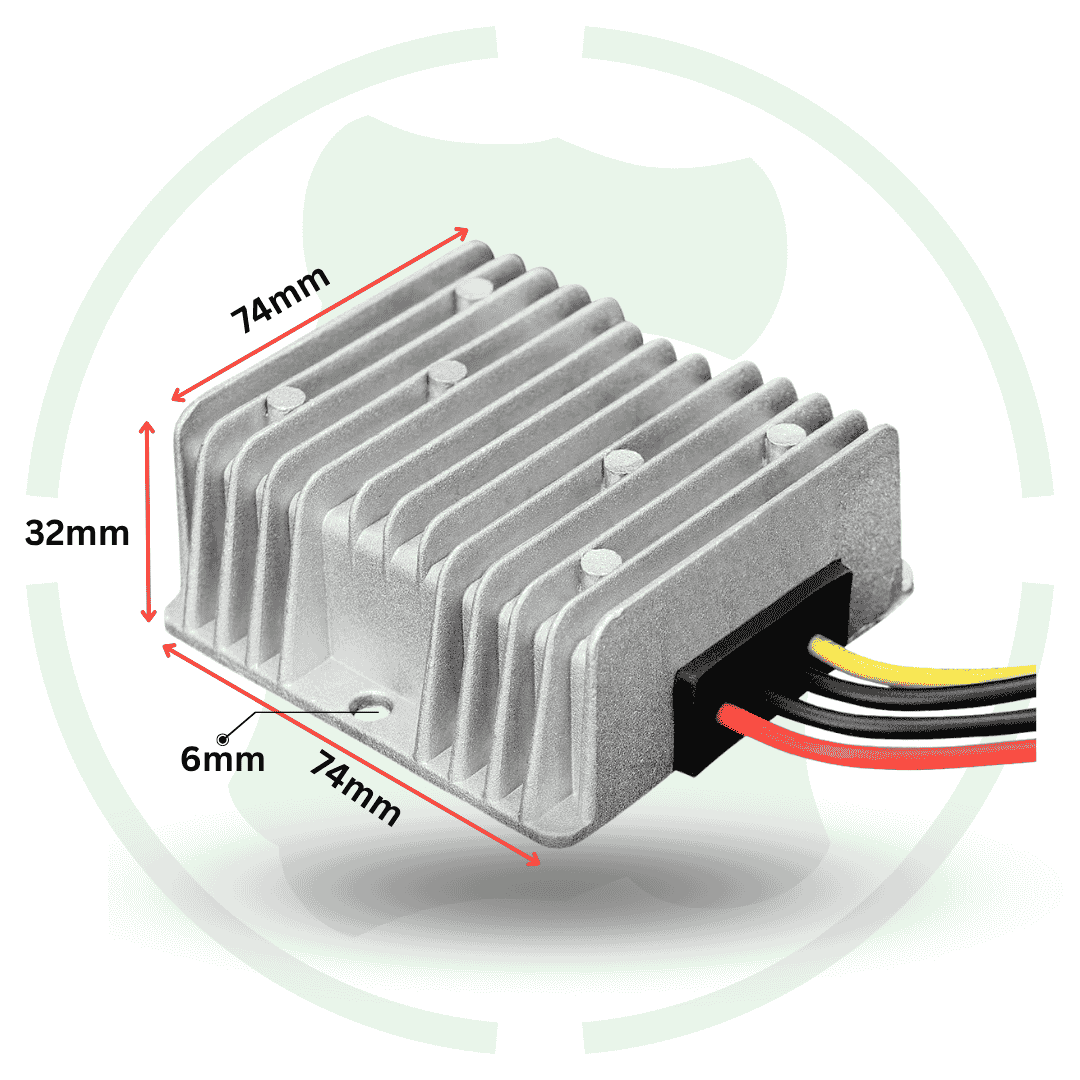

• Dimensions: 74 × 73.5 × 30 mm

• Weight: 253 g

• Waterproof Rating: IP68
