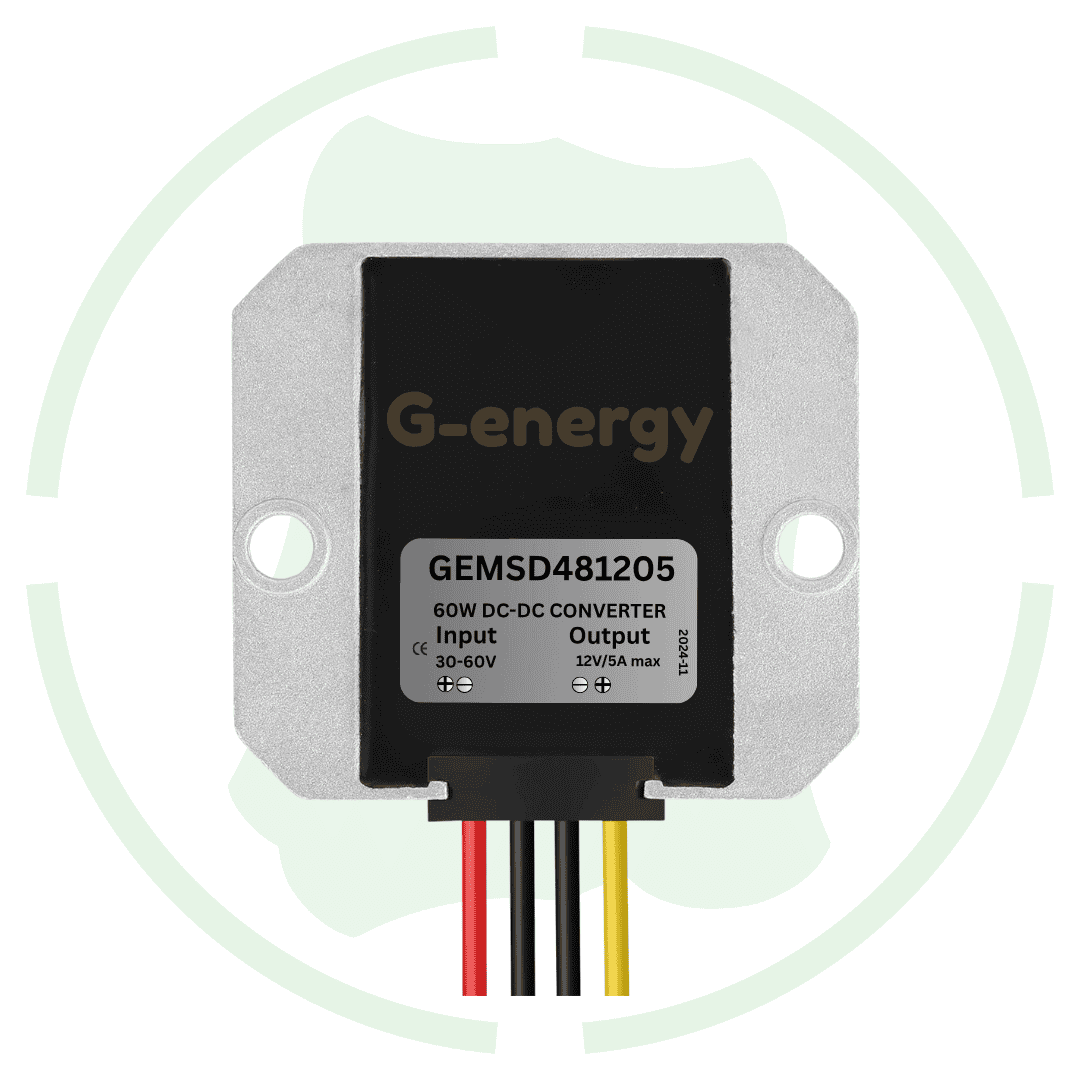

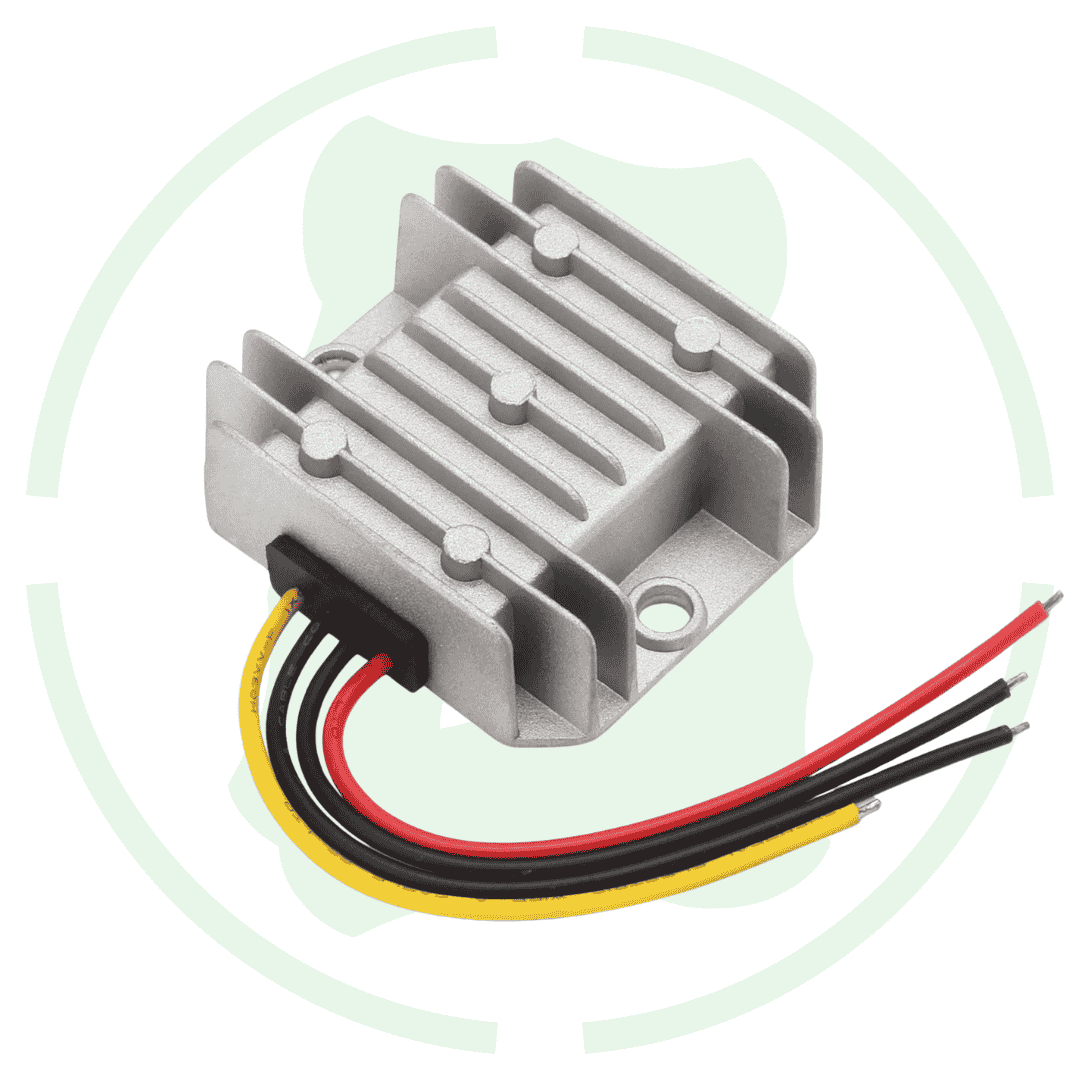

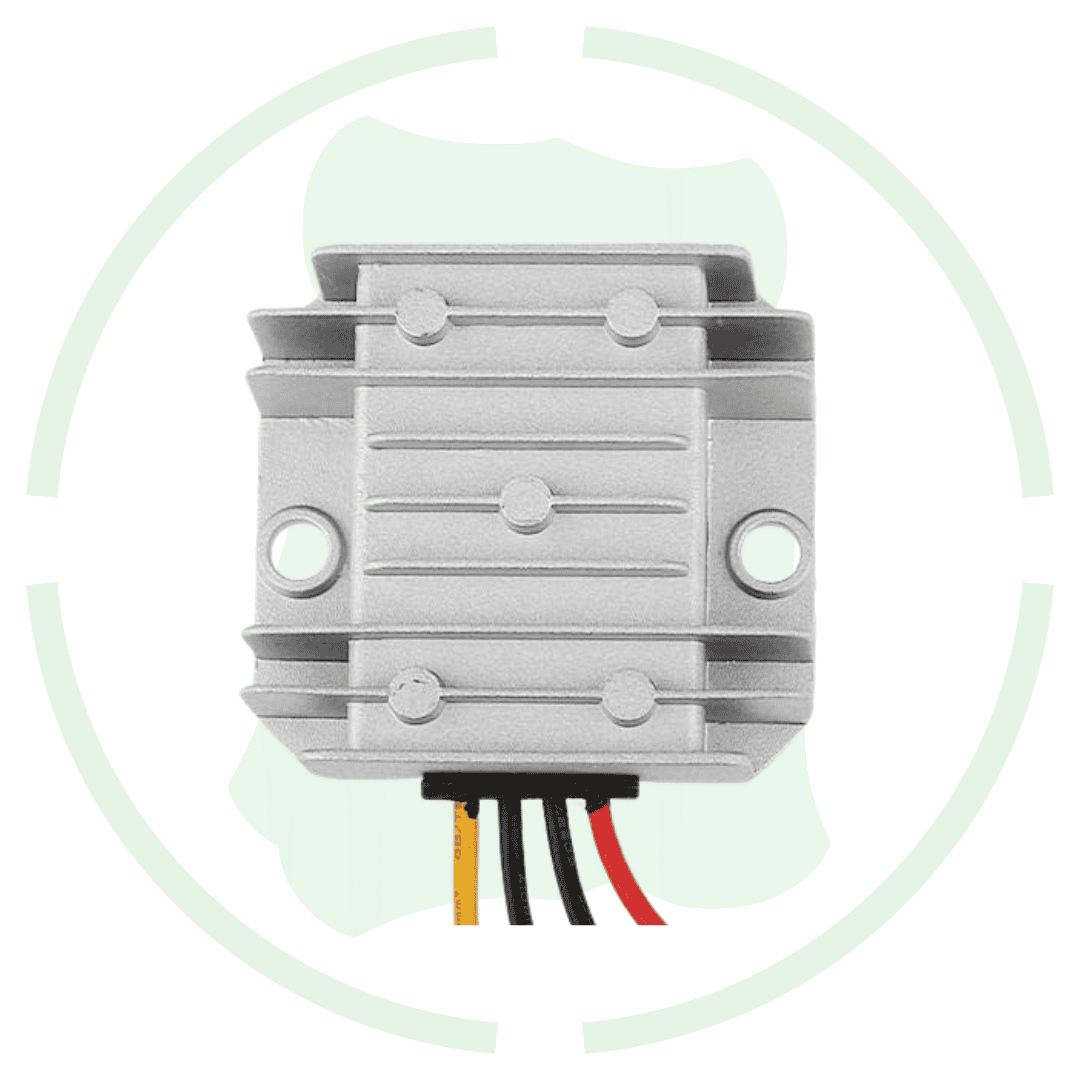

G-energy GEMSD481205 36V 48V To 12V 5A 60W Dc To Dc Converter Ip68 Buck Converter

Overview of this 36v 48v to 12v 5a 60w dc to dc converter

Introducing g-energy 36v 48v to 12v 5a 60w dc to dc converter at best price in India with G-energy. This voltage converter work on input voltage range from dc 30v to 60v and convert it to a fix 12v output voltage. It also come with multiple safety features like short circuit protection, under voltage protection, and over load protection.

Features

High conversion efficiency: This 36v 48v to 12v buck converter is designed with synchronous rectification technology that help it to achieve conversion efficiency up to 94% energy conversion.

Best for harsh condition: This dc dc converter is designed to smoothly work on harsh conditions like -40 to 55 degree celsius operating temperature range.

60W power: This voltage converter can provide dc current up to 5a and dc power up to 60w power.

Specification

• Input Voltage Range: 30V – 60V DC

• Output Voltage: 12V DC

• Output Current: 5A

• Power Output: 60W

• Conversion Efficiency: Up to 92.8%

• Operating Temperature Range: -40°C to +80°C

• Connection Method: Screw terminals for easy wiring

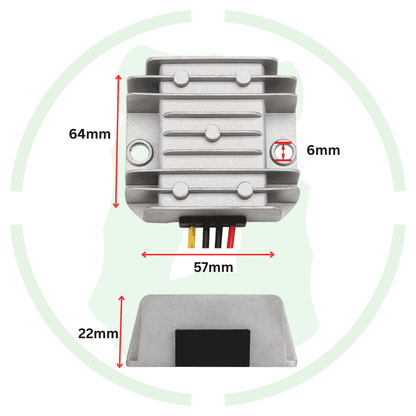

• Dimensions: 64 × 57 × 22 mm

• Weight: 120g

✅ Protection Features:

• Short Circuit Protection

• Over-current Protection

• IP68 Rated: Waterproof & Dustproof

Datasheet of GEMSD481205 48v to 12v 5a dc voltage converter
