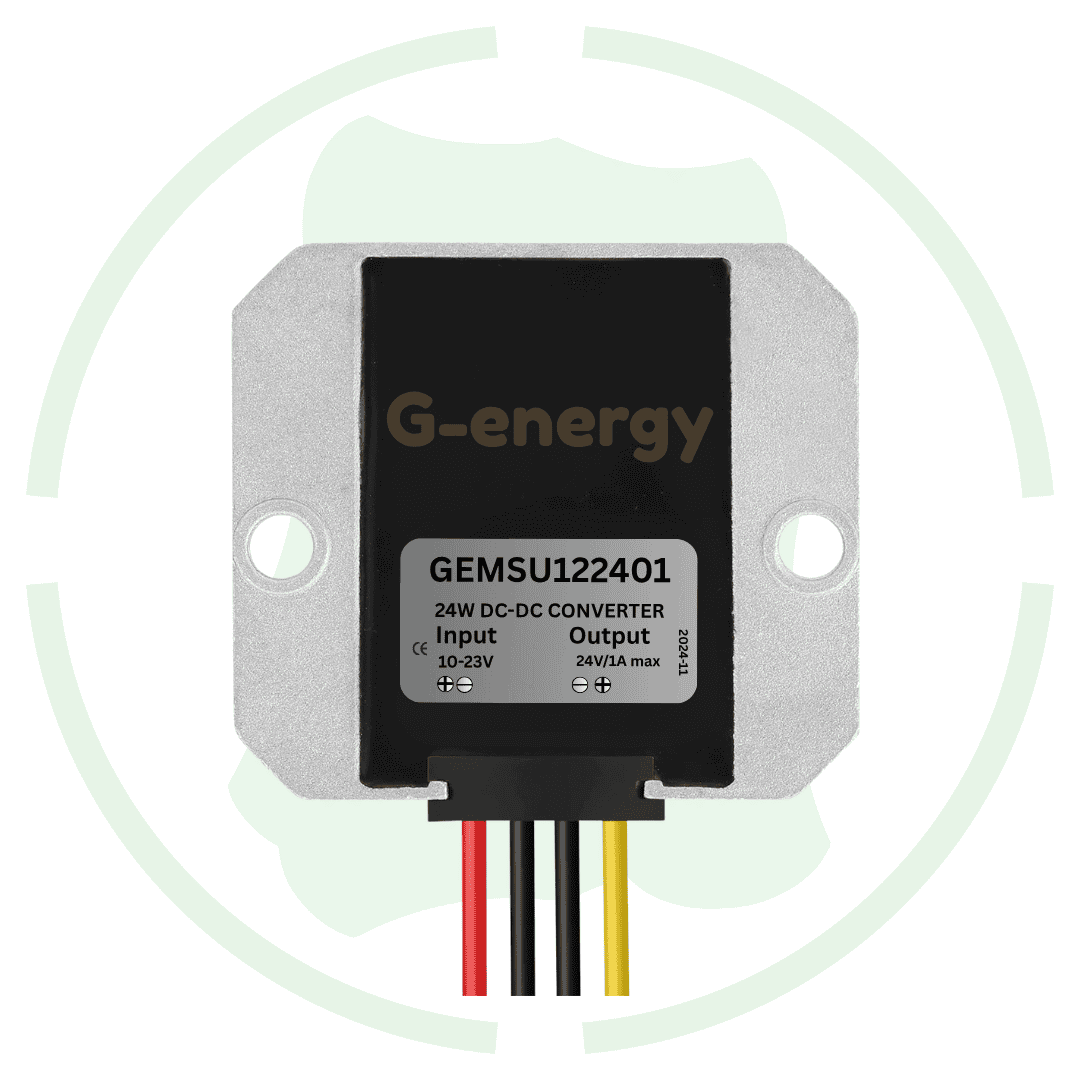

G-energy GEMSU122401 12V To 24V 1A 24W Dc To Dc Converter Ip68 Boost Converter

Overview of this 12v to 24v 1a 24w dc to dc converter

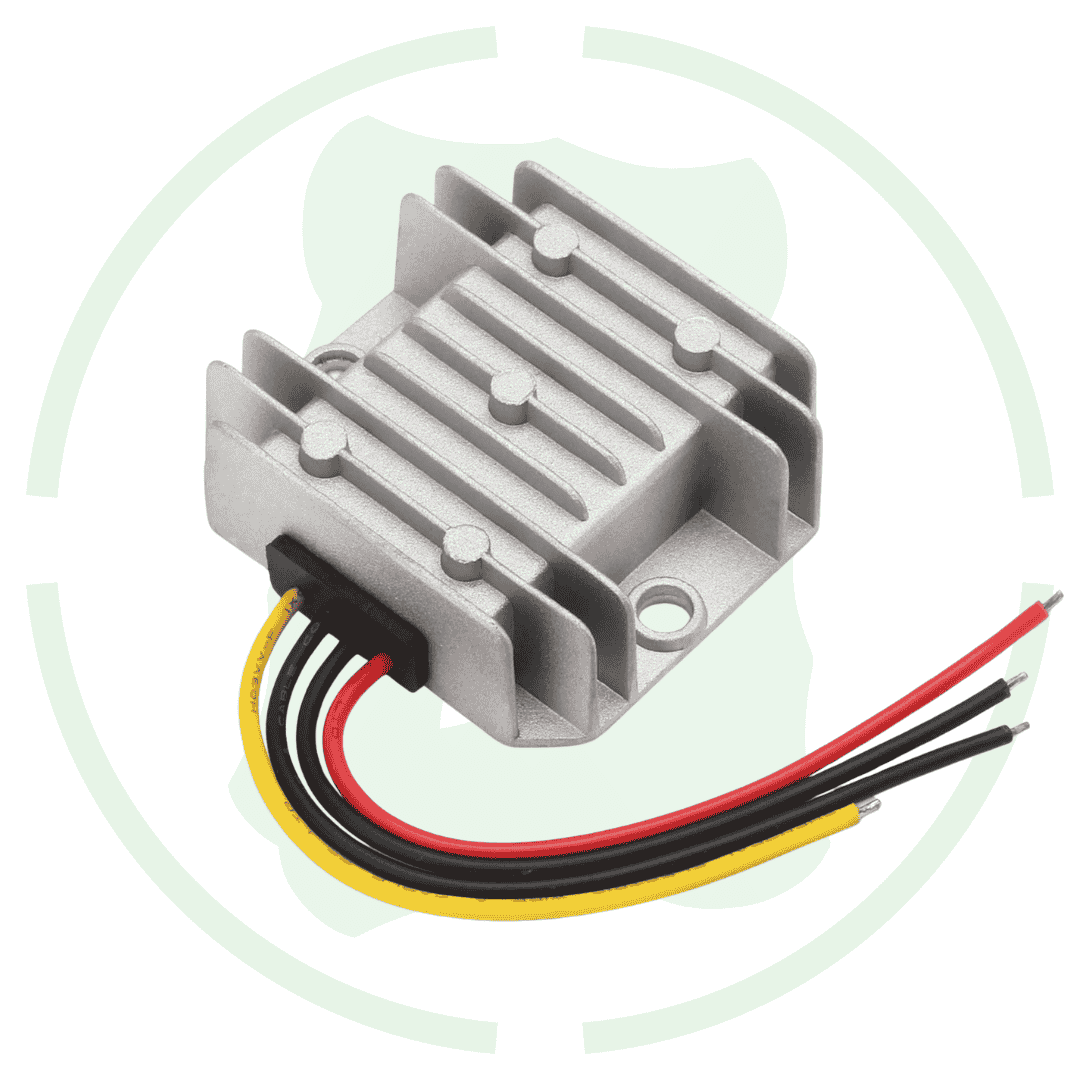

Introducing g-energy 12v to 24v 1a 24w dc to dc converter ip68 metal body water proof dc boost voltage converter at best price in India with g-energy. This voltage converter is designed with light weight aluminium metal body for its reliable use in rough industrial condition. It can easily survive harsh temperature range from -40 to 55 degree celsius.

Features

Big input voltage range: This voltage converter can easily work on a big input voltage range from dc 10v to 23v dc input voltage.

24V Fix output voltage: This 12v to 24v boost converter provide a fix 24v dc output voltage and with max dc power up to 24w dc power.

High conversion efficiency: This dc dc converter is designed with synchronous rectification technology that help it get high conversion efficiency up to 96.5% energy conversion.

Specification

• Input Voltage Range: 10V – 23V DC

• Standard Input Voltage: 12V DC

• Output Voltage: 24V DC

• Output Voltage Accuracy: ±1%

• Output Current: 1A

• Power Rating: 24W

• Conversion Type: Step-Up (Boost Converter)

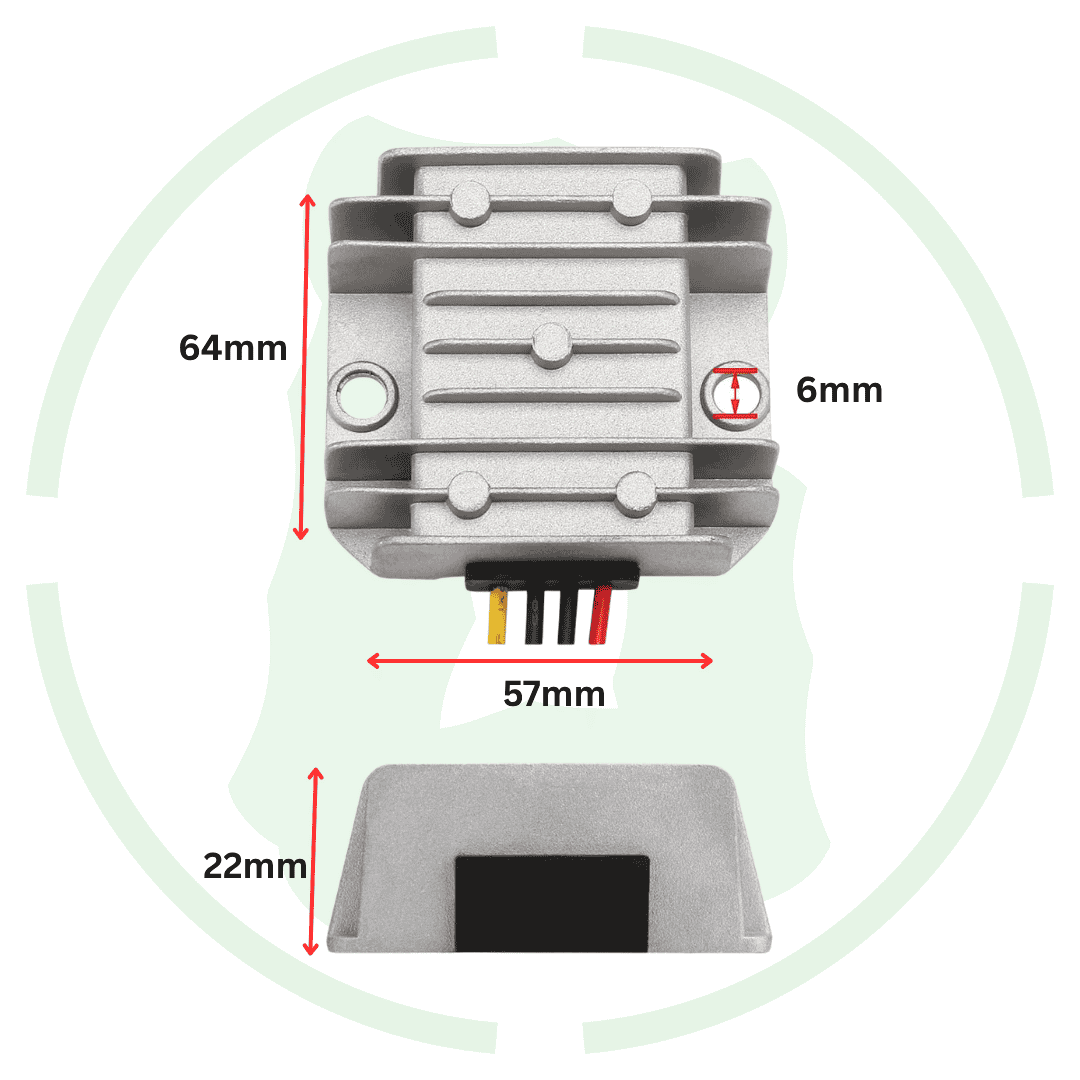

• Dimensions: 64 × 57 × 22 mm

• Weight: 120g

Protection Features:

• ✅ Under-voltage Protection

• ✅ Under-voltage Recovery

• ✅ Overload Protection

• ✅ Short-circuit Protection

Datasheet of GEMSU122401 12v to 24v 1a dc voltage converter
