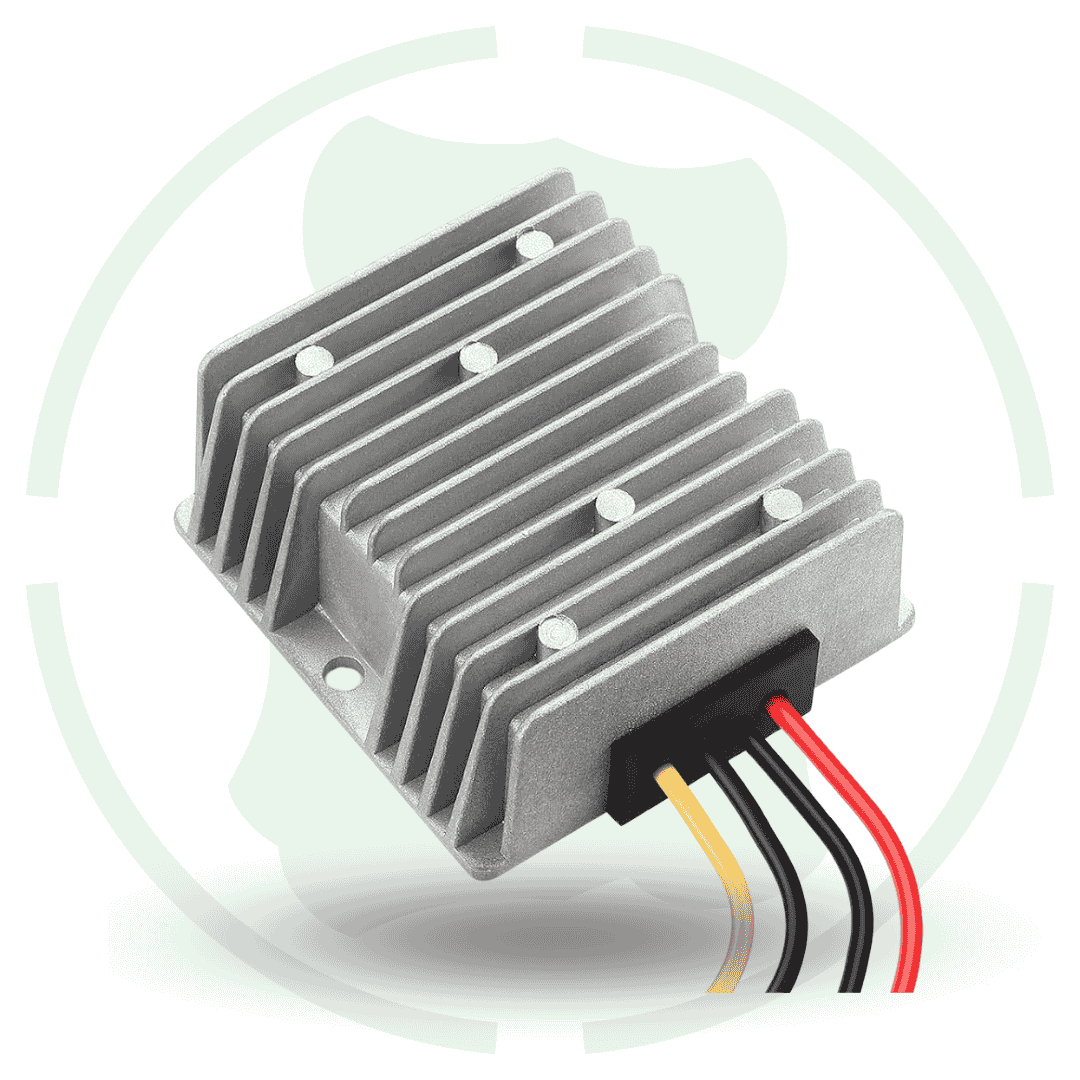

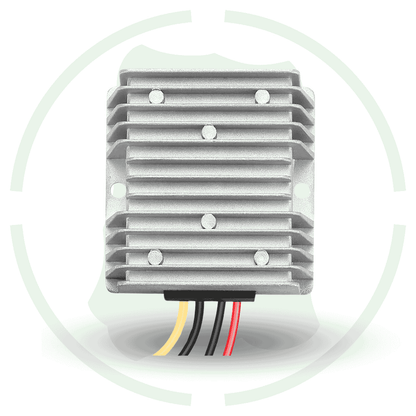

G-energy GEMSU122405 12V To 24V 5A 120W Dc To Dc Converter Ip68 Boost Converter

Overview of this 12v to 24v 5a 120w dc to dc converter

Introducing G-energy 12v to 24v 5a 120w dc to dc converter water proof ip68 step-up converter at best price in India with G-energy. It provide a fix 24v output voltage from dc 10v-23v input voltage range and provide maximum current up to 5a and maximum power up to 120w. It also provide high conversion efficiency up to 94% energy conversion.

Features

High quality built: This converter can easily operate on temperature range from -40 to 55 degree celsius.

3 Month warranty: This voltage converter also come with 3 month exchange warranty and you can claim free exchange in case of any defect in converter in this time period.

Ip68 water proofing: It is also built with ip68 rated water proofing for converter safety and its long life.

Specification

• Input Voltage Range: 10V to 23V DC

• Output Voltage: 24V DC

• Output Current: 5A

• Output Power: 120W

• Conversion Efficiency: Up to 95%

• Ripple & Noise: < 150mV

• Operating Temperature Range: -40°C to +50°C

• Cooling Method: Natural Air Cooling

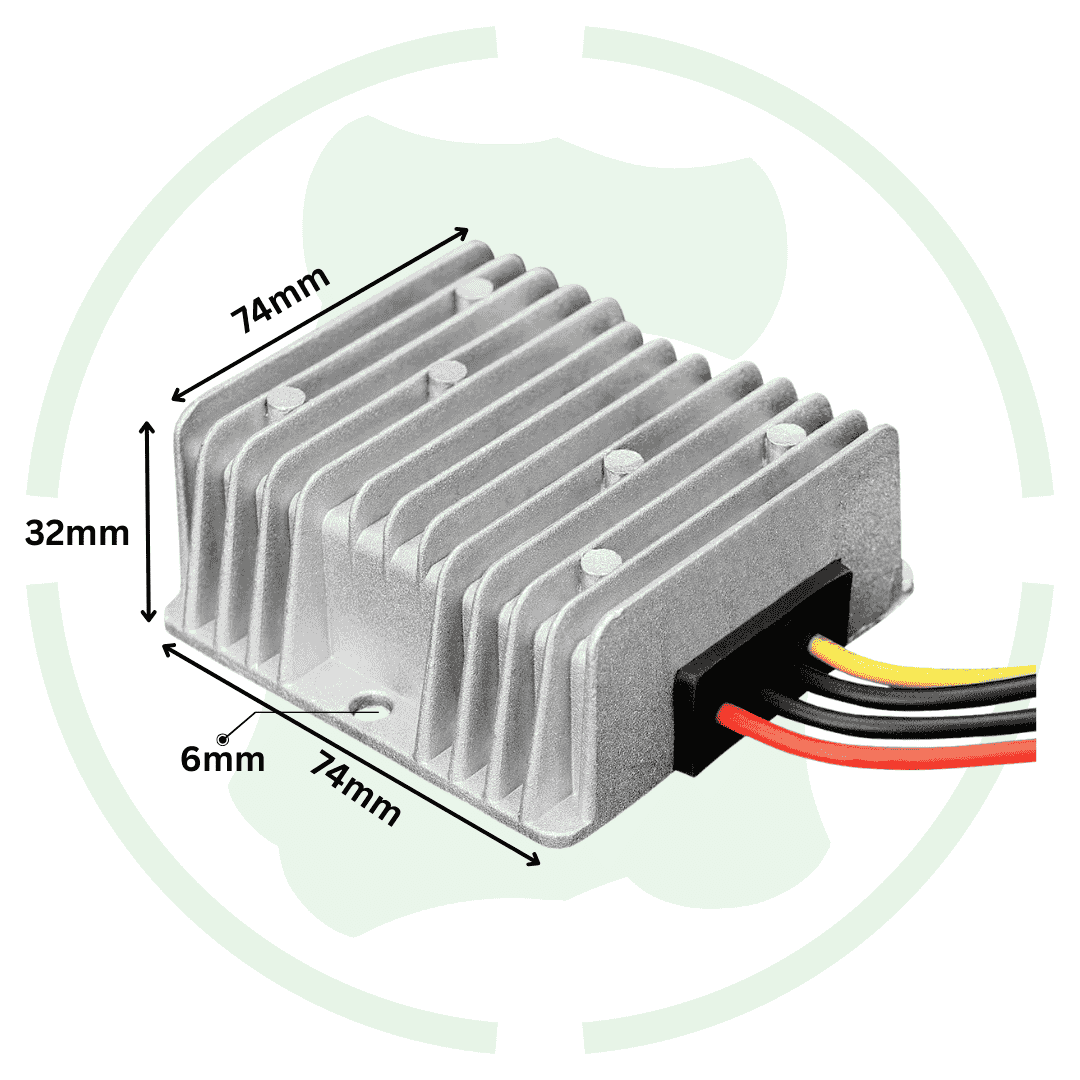

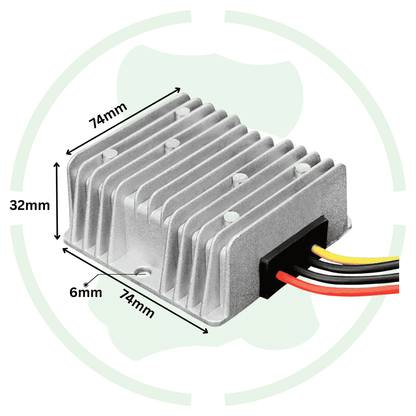

• Dimensions: 74 × 74 × 53 mm

• Weight: 234g

• Material: Aluminum Alloy Shell

✅ Protection Rating:

• IP68: Waterproof and Dustproof

⚠️ Protection Features:

• Short Circuit Protection: No

• Over-Current Protection: No

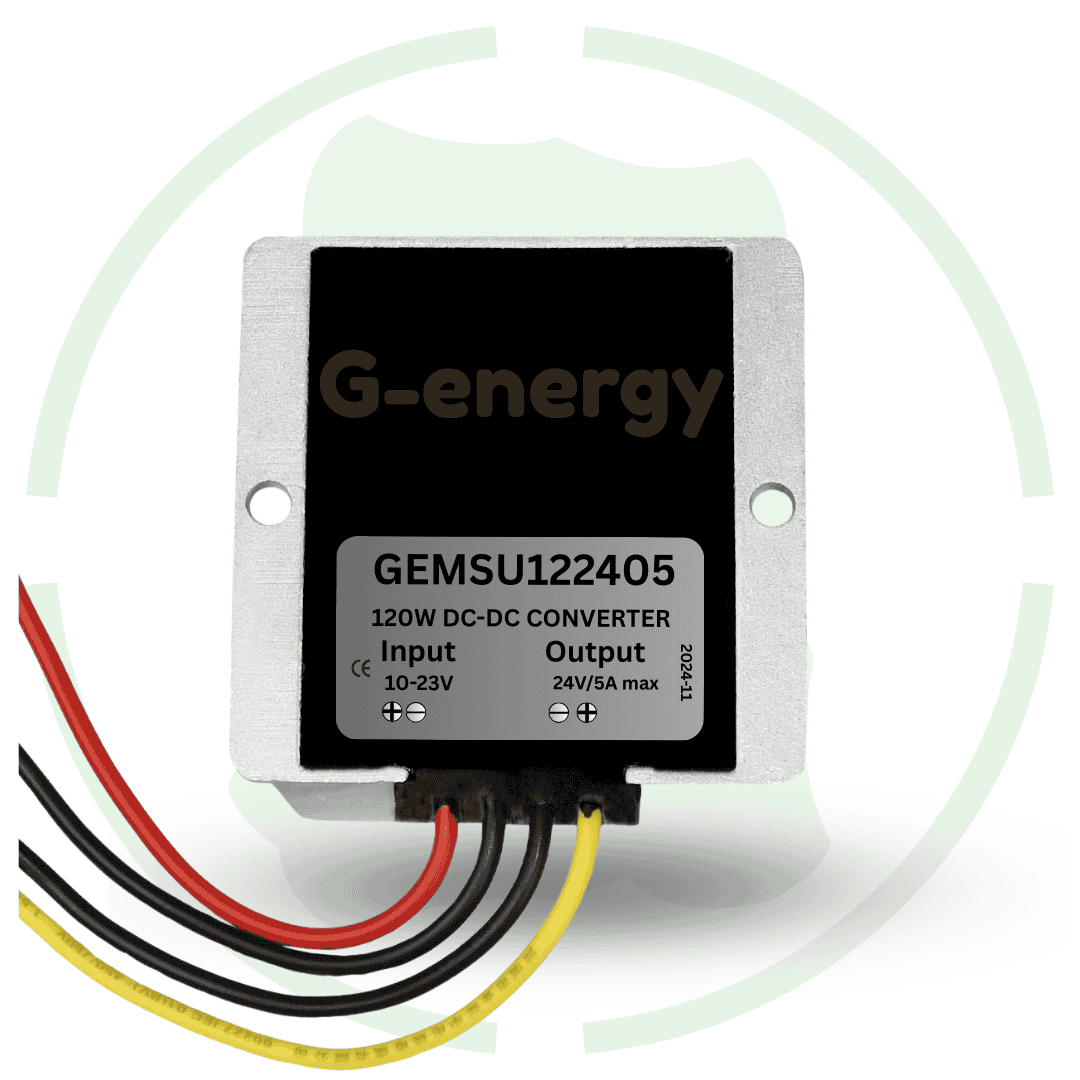

🔌 Wiring Instructions:

• Input: Red (+), Black (–)

• Output: Yellow (+), Black (–)

Datasheet of GEMSU122405 12v to 24v 5a dc voltage converter
