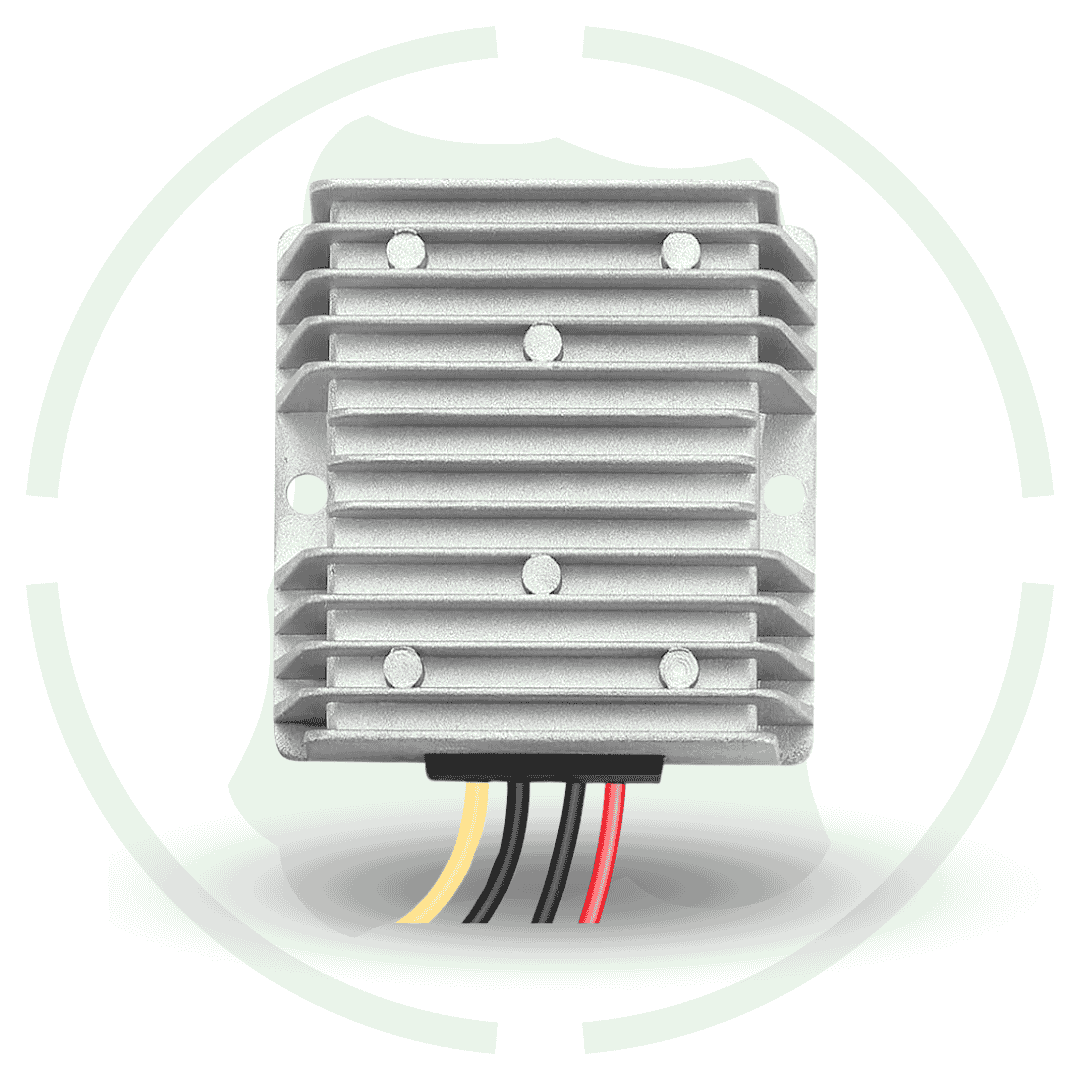

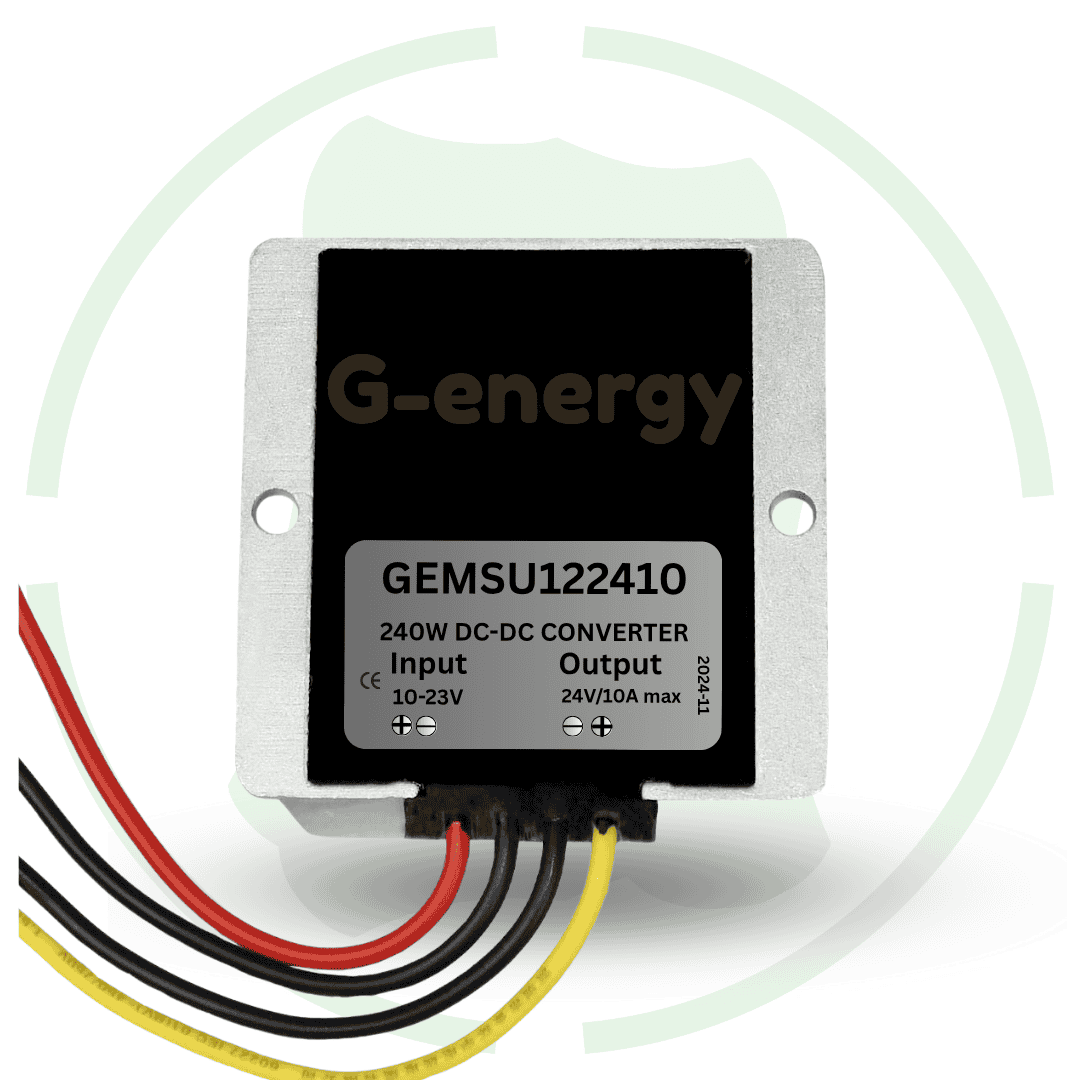

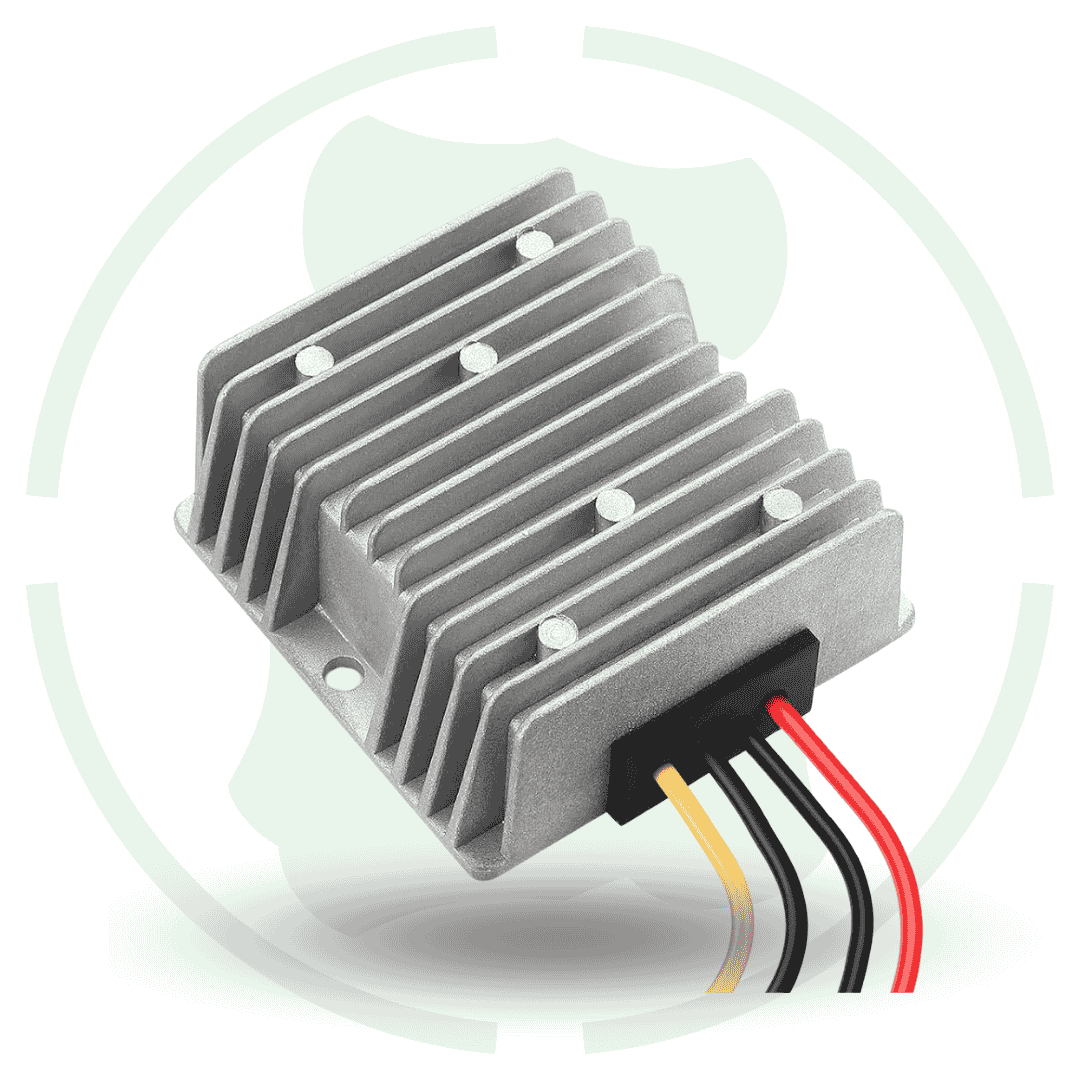

G-energy GEMSU122410 12V To 24V 10A 240W Dc To Dc Converter Ip68 Boost Converter

Overview of this 12v to 24v 10a 240w dc to dc converter

Introducing G-energy 12v to 24v 10a 240w dc to dc converter ip68 water proof boost converter at best price in India with G-energy. This boost voltage converter work on input voltage range from dc 10v to 23v input and provide a fix 24v output with maximum dc current up to 10a and maximum dc power up to 240w. This 12v to 24v boost converter is built with synchronous rectification technology that help it to provide high conversion efficiency up to 96% energy conversion.

Features

Fix 24v output: This 12v to 24v boost converter provide a fix 24v dc output voltage from dc input voltage range from 10v to 23v input voltage.

Short circuit protection: This voltage converter also come with short circuit protection for converter safety from short circuit.

Automatic under voltage recovery: This voltage converter come with automatic recover from under voltage, it automaticly get on once its input voltage go between its input voltage.

Specification

• Input Voltage: 10V-23V DC

• Output Voltage: 24V DC

• Output Current: 10A

• Output Power: 240W

• Conversion Efficiency: Up to 96%

• Operating Temperature Range: -40°C to +85°C

• Dimensions: 74x74x32 mm

• Weight: 258g

✅ Protection Features:

• Under-voltage Protection

• Under-voltage Recovery

• Overload Protection

• Over-current Protection

• Over-temperature Protection

• Short-circuit Protection

Datasheet of GEMSU122410 12v to 24v 10a dc voltage converter
