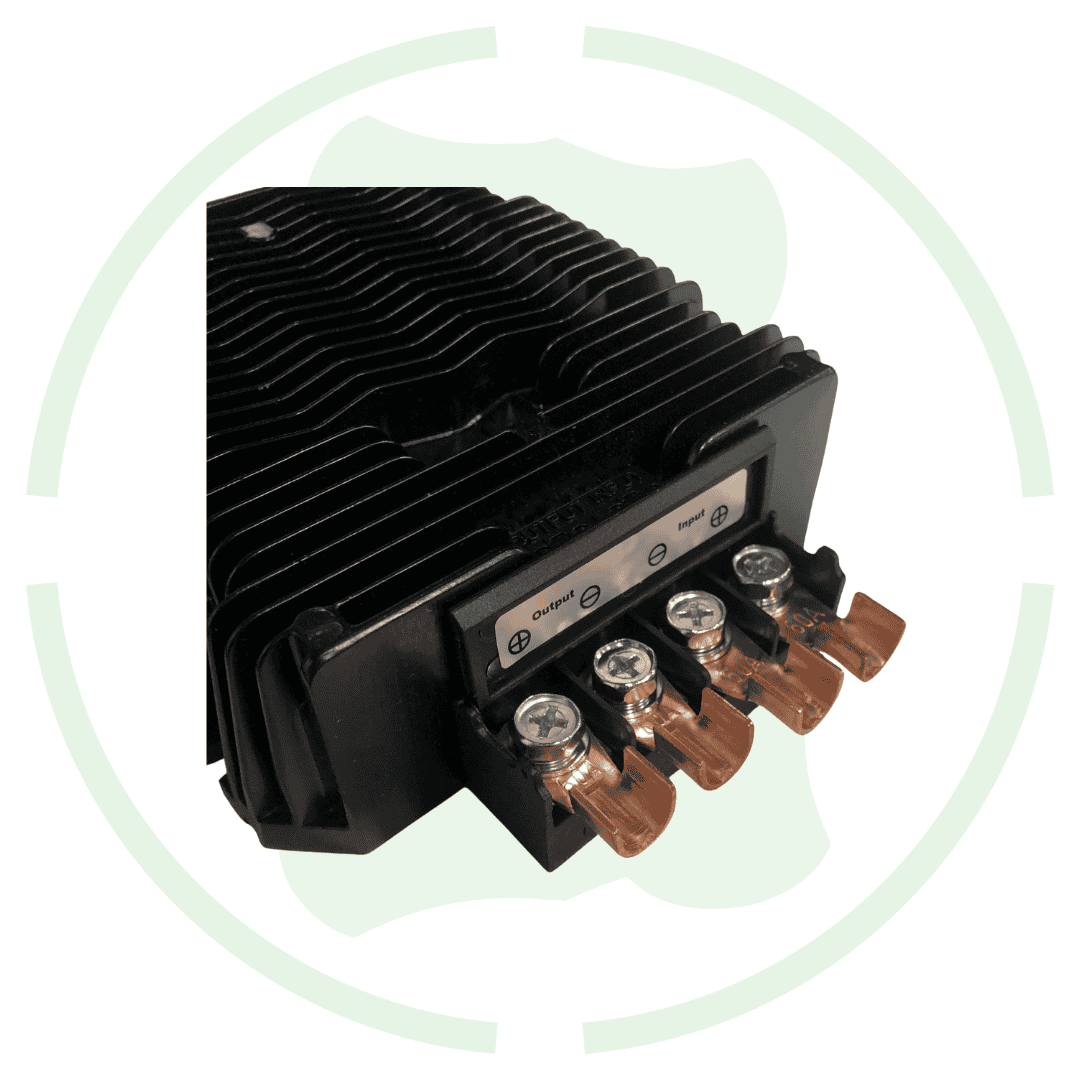

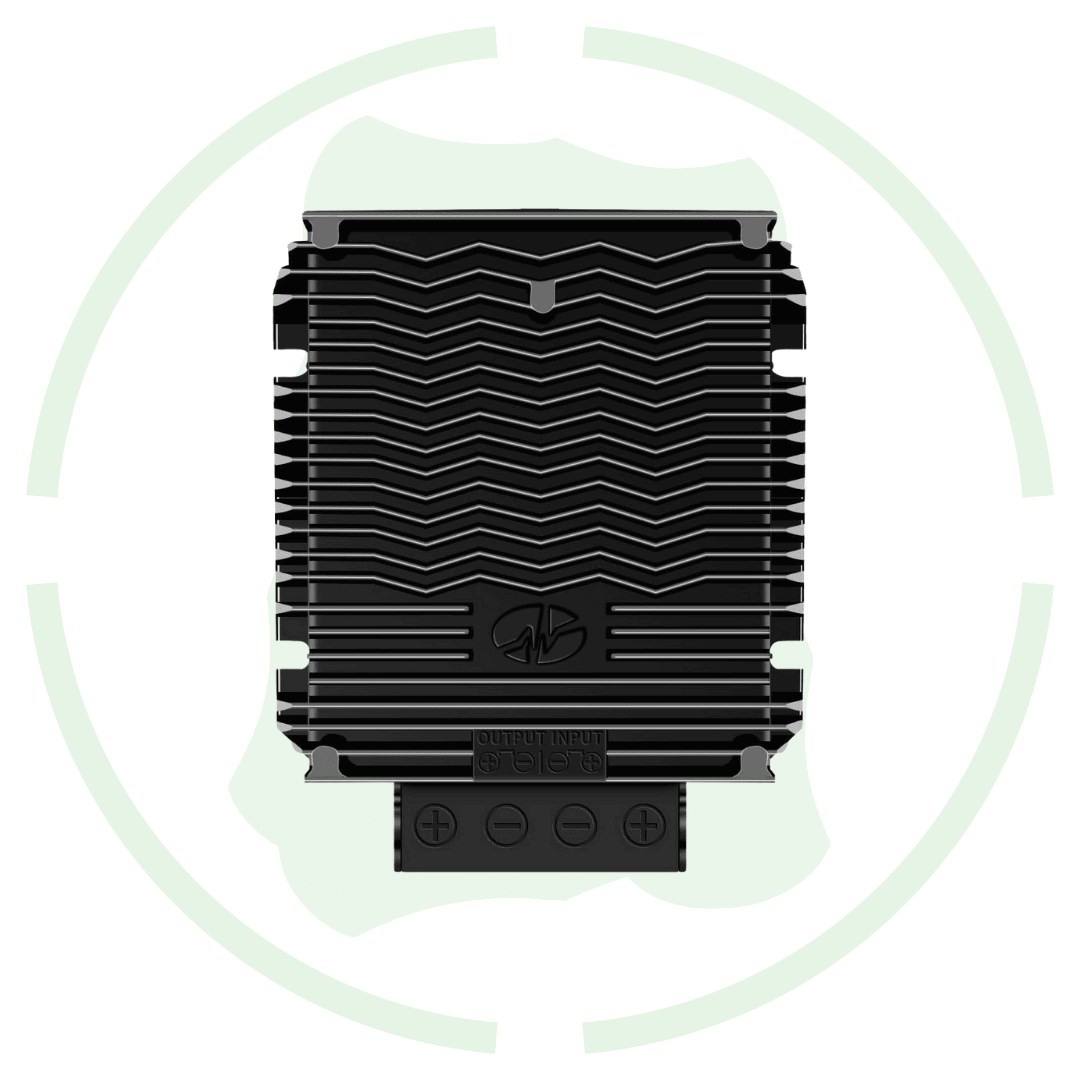

G-energy GEMSU122430 12V To 24V 30A 720W Dc To Dc Converter Screw Terminal Boost Converter

Overview of this 12v to 24v 30a 720w dc to dc converter

Introducing G-energy dc 12v to 24v 30a 720w dc to dc converter screw terminal boost converter at best price in India with G-energy. This dc dc boost converter is built with synchronous rectification technology that help it to achieve upto 95% high voltage conversion efficiency. It is designed as to survive 200,000 hour mean time between failure for its long life use.

Features

Under voltage recovery: This converter is come with under voltage protection and under voltage recovery also. In case its input voltage go below its input range than circuit will get close and automatically recover when input voltage go above 10v dc.

High quality built: This converter is built with high quality aluminium case that that provide most efficient operation in harsh temperature range from -40 to 55 degree celsius.

Fix 24v output: This dc dc converter provide fix 24v output voltage with less than +-2% voltage change on output based on operating conditions.

Specification

• Input Voltage Range: 10V – 20V DC

• Output Voltage: 24V DC

• Output Current: 30A

• Output Power: 720W

• Efficiency: Up to 95.6%

• Operating Temperature Range: -40°C to +85°C

• Storage Temperature Range: -55°C to +125°C

• IP Rating: IP68 (Waterproof & Dustproof)

• Cooling Method: Natural convection (passive cooling)

• Dimensions (L×W×H): 140 × 120 × 42.5 mm

• Weight: 1045 g

Datasheet of this GEMSU122430 12v to 24v 30a dc voltage converter
