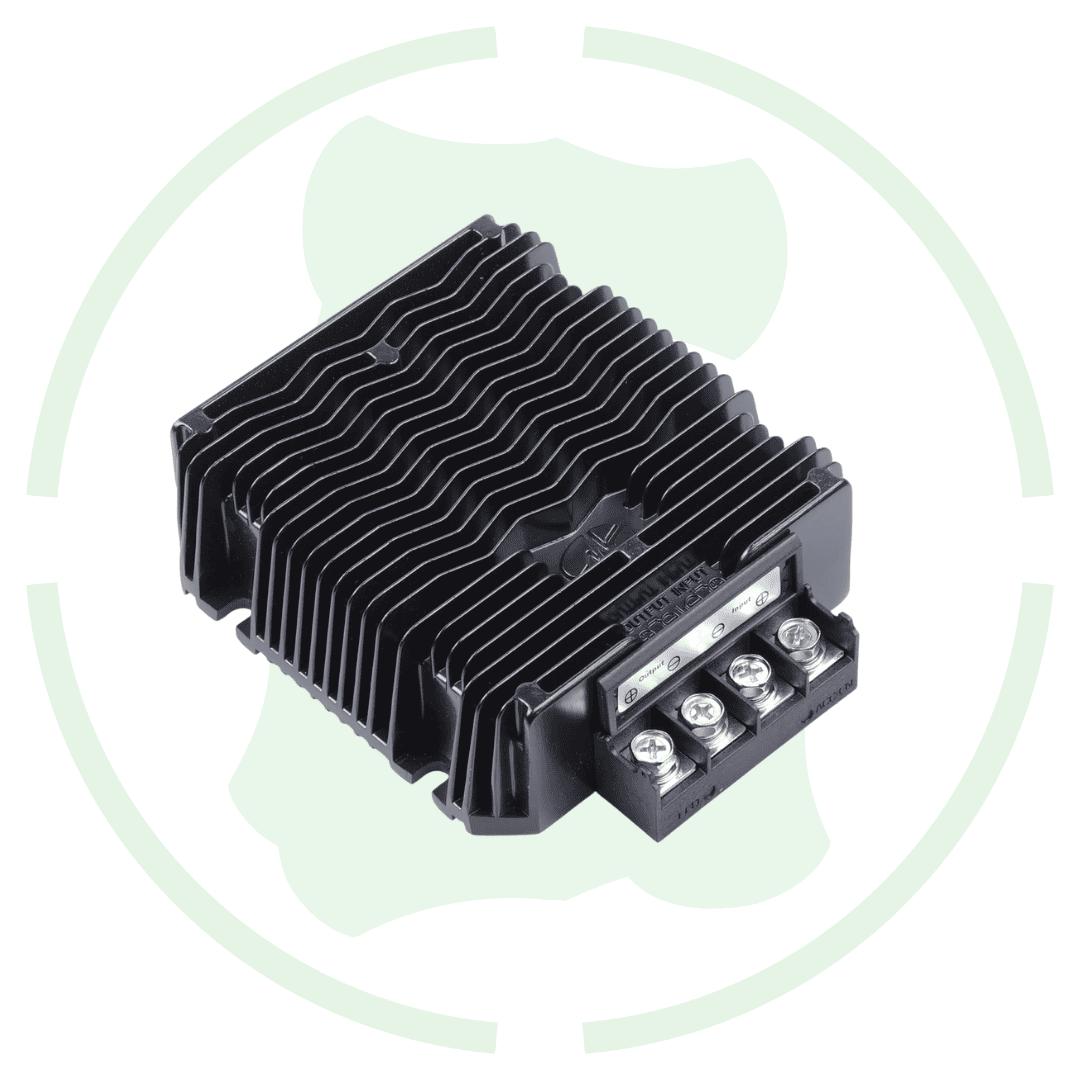

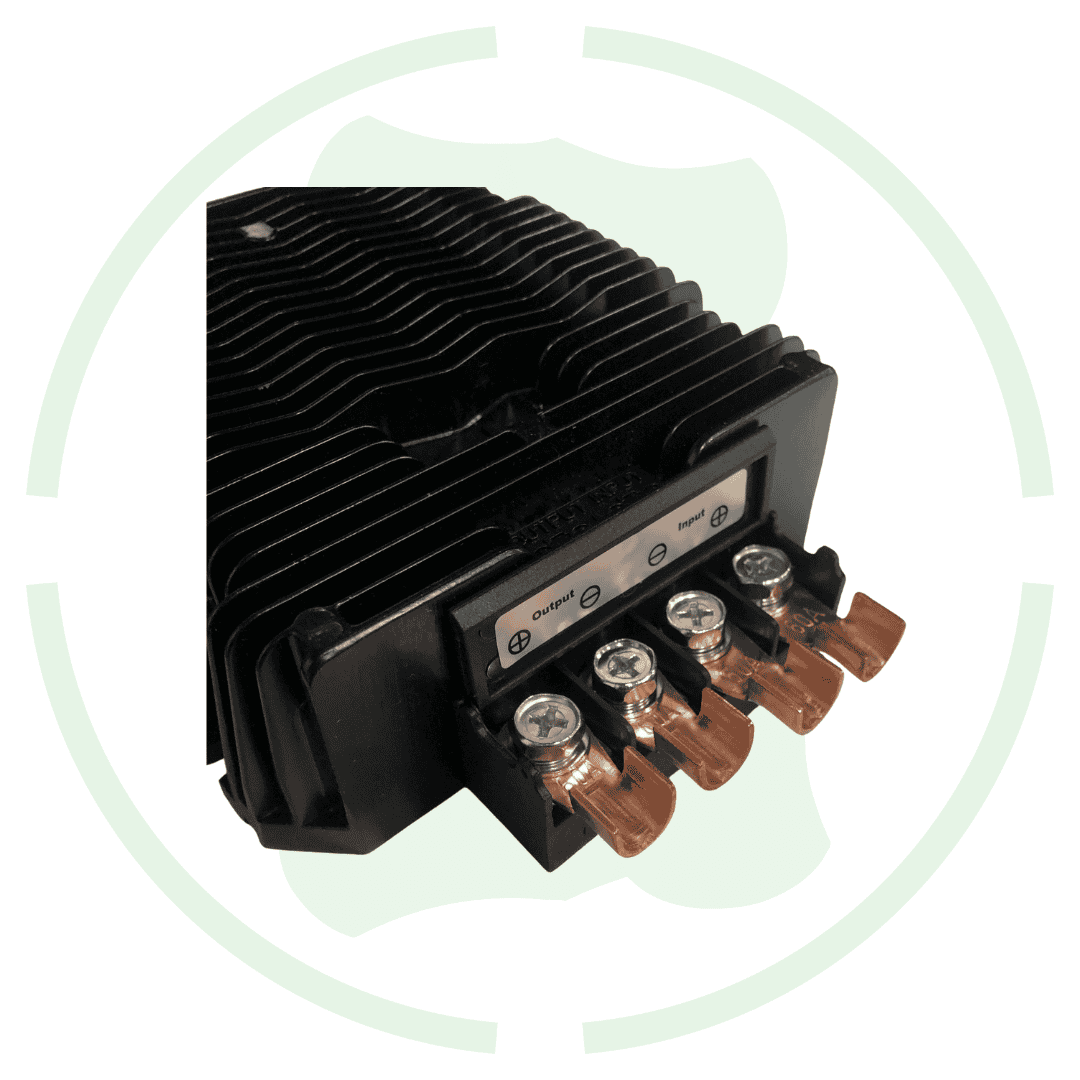

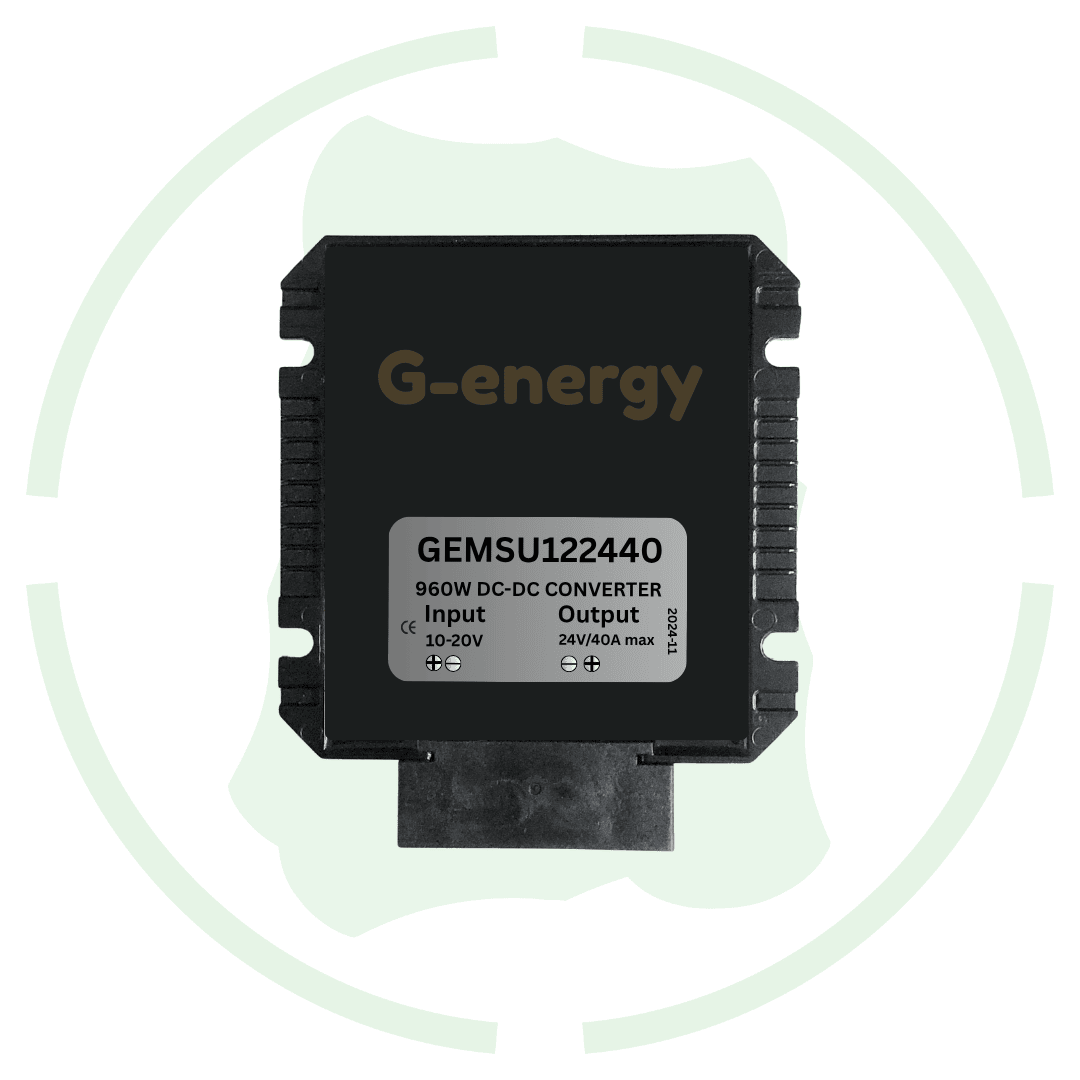

G-energy GEMSU122440 12V To 24V 40A 960W Dc To Dc Converter Screw Connection Boost Converter

Overview of this 12v to 24v 40a 960w dc to dc converter

Introducing g-energy 12v to 24v 40a 960w dc to dc converter with screw terminal wire connection method at best price in India with G-energy. This dc dc converter can smoothl work on a wide dc input voltage range from dc 10v to 20v input voltage. And It can easily provide maximum current up to 40a and 960w maximum power.

Features

Under voltage protection: This 12v to 24v boost converter come with under voltage and automatic recovery feature in case if input voltage go below its input range and if input voltage come between its input range then it automatically on.

3 Month warranty: This boost converter also come with 3 month exchange warranty and in that time period get faulty we will replace it without any extra cost.

Fix 24v output: This dc dc converter provide a fix 24v dc output voltage for smooth industrial operations.

Specification

Input Voltage Range: 10V – 20V DC

Output Voltage: 24V DC

Output Current: 40A

Output Power: 960W

Efficiency: Up to 94%

Operating Temperature Range: -40°C to +85°C

Storage Temperature Range: -55°C to +125°C

IP Rating: IP68 (Waterproof & Dustproof)

Cooling Method: Natural convection (passive cooling)

Dimensions (L × W × H): 120 × 100 × 42 mm

Weight: 1150 g

Datasheet of this GEMSU122440 12v to 24v 40a dc voltage converter
