G-energy GEMSU122450 12V To 24V 50A 1200W Dc To Dc Converter Screw Terminal Boost Converter

Overview of this 12V to 24v 50a 1200w dc to dc converter

Introducing G-energy 12v to 24v 50a 1200w dc to dc converter screw terminal boost converter at best price in India with G-energy. This dc voltage converter smoothly work on a wide input voltage range from 10v to 20v input voltage range. It is also built with over temperature protection, low voltage protection and over load protection for safety features.

Features

Light weight and small design: This dc converter is small aluminium metal case with light weight body design that make it perfect for use in small industrial device setups.

Input under voltage protection: This converter automatically shut down as input voltage go below input voltage range.

Output over current protection: This 12v to 24v boost converter is designed with current limiting circuitry design design that provide safety from in case if output current goes over its max power and make it safe from out put short circuit.

Specification

Model Number: 12V to 24V 50A 1200W

Input Voltage: 10V – 20V DC

Output Voltage: 24V DC

Output Current: 50A

Output Power: 1200W

Efficiency: 97.8%

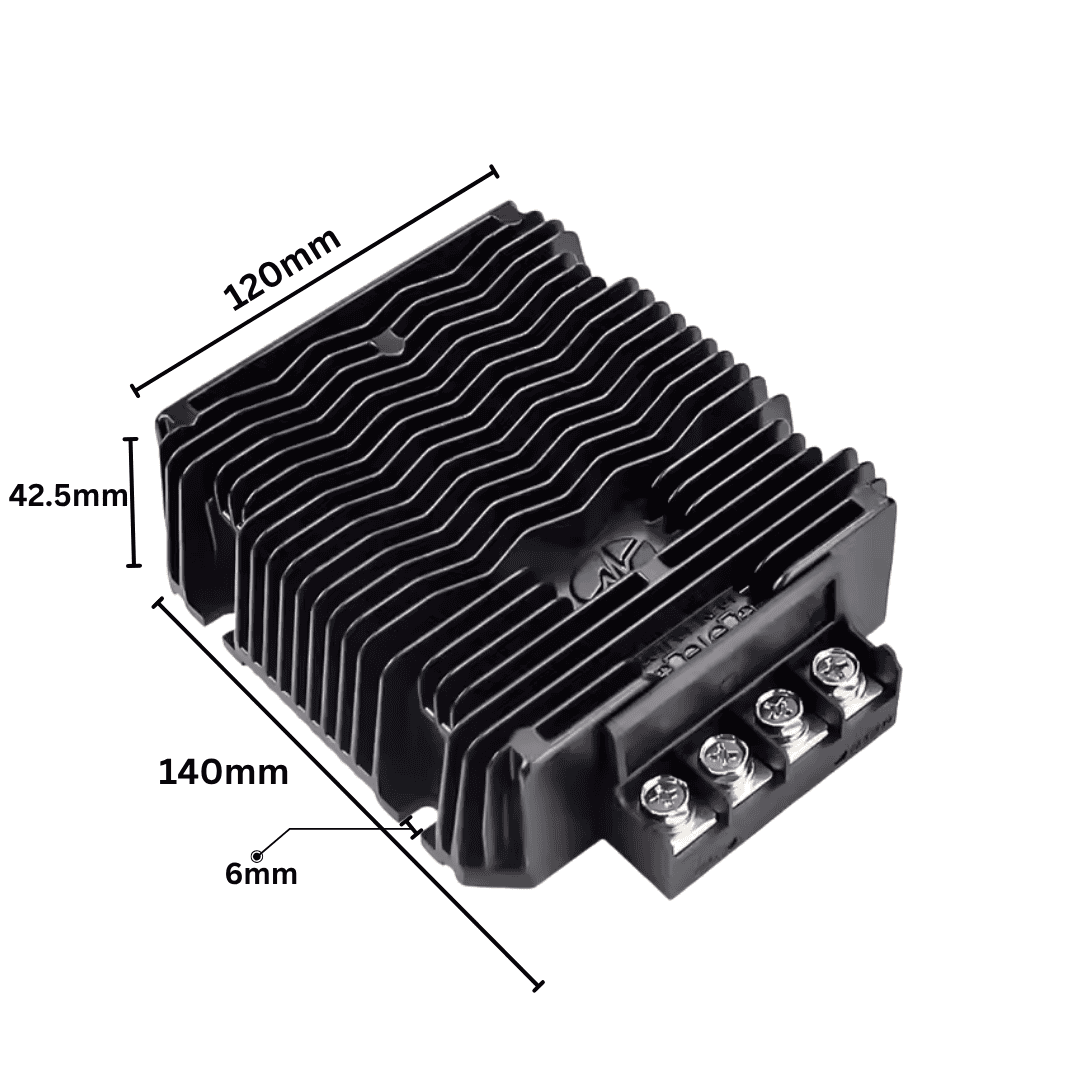

Dimensions: 140mm × 120mm × 42.5mm

Weight: ≤ 1045 g

Operating Temperature: -30°C to +50°C

Storage Temperature: -55°C to +100°C

IP Rating: IP67 (Waterproof)

Cooling Method: Natural cooling

Protection Features: Overtemperature, Low Voltage, Overcurrent

Altitude Tolerance: Up to 4000 meters

MTBF (Mean Time Between Failures): ≥ 200,000 hours (at Vin = 12V, Iout = 50A)

Datasheet of GEMSU122450 12v to 24v 50a dc voltage converter
