G-energy GEMSU124801 12V to 48V 1A 48w Dc Dc Converter ip68 Boost Converter

Overview of this 12V to 48V 1A 48V Dc Dc Converter

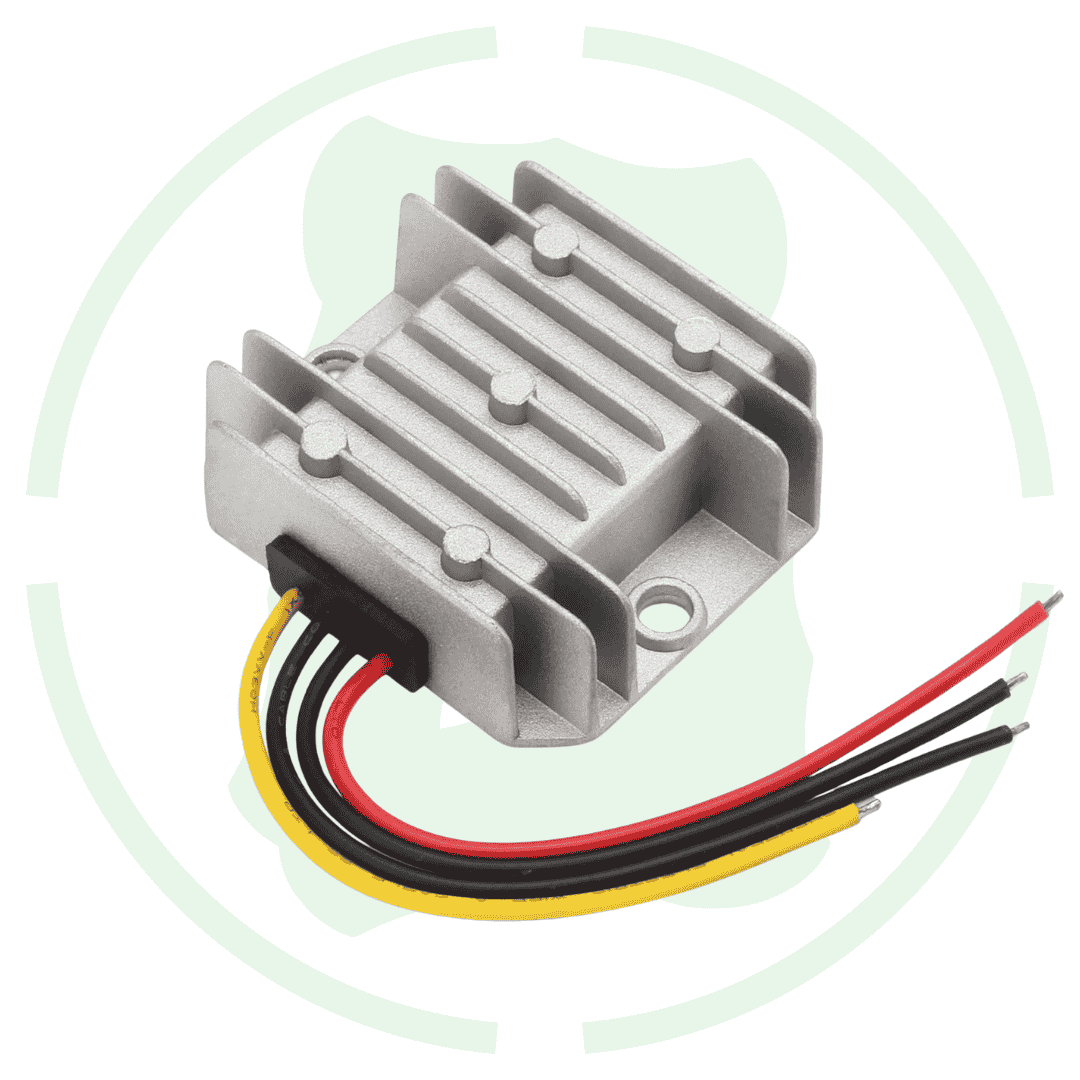

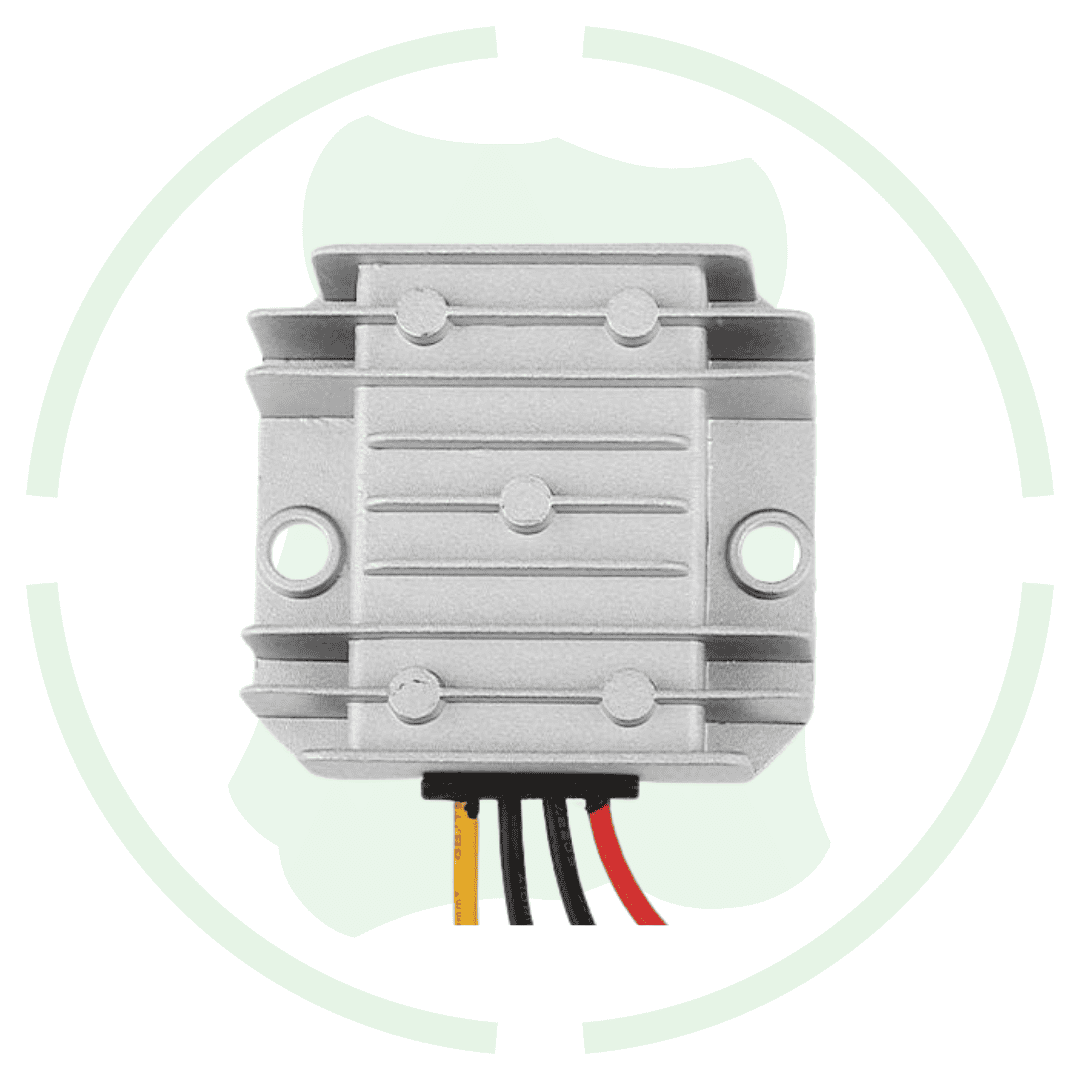

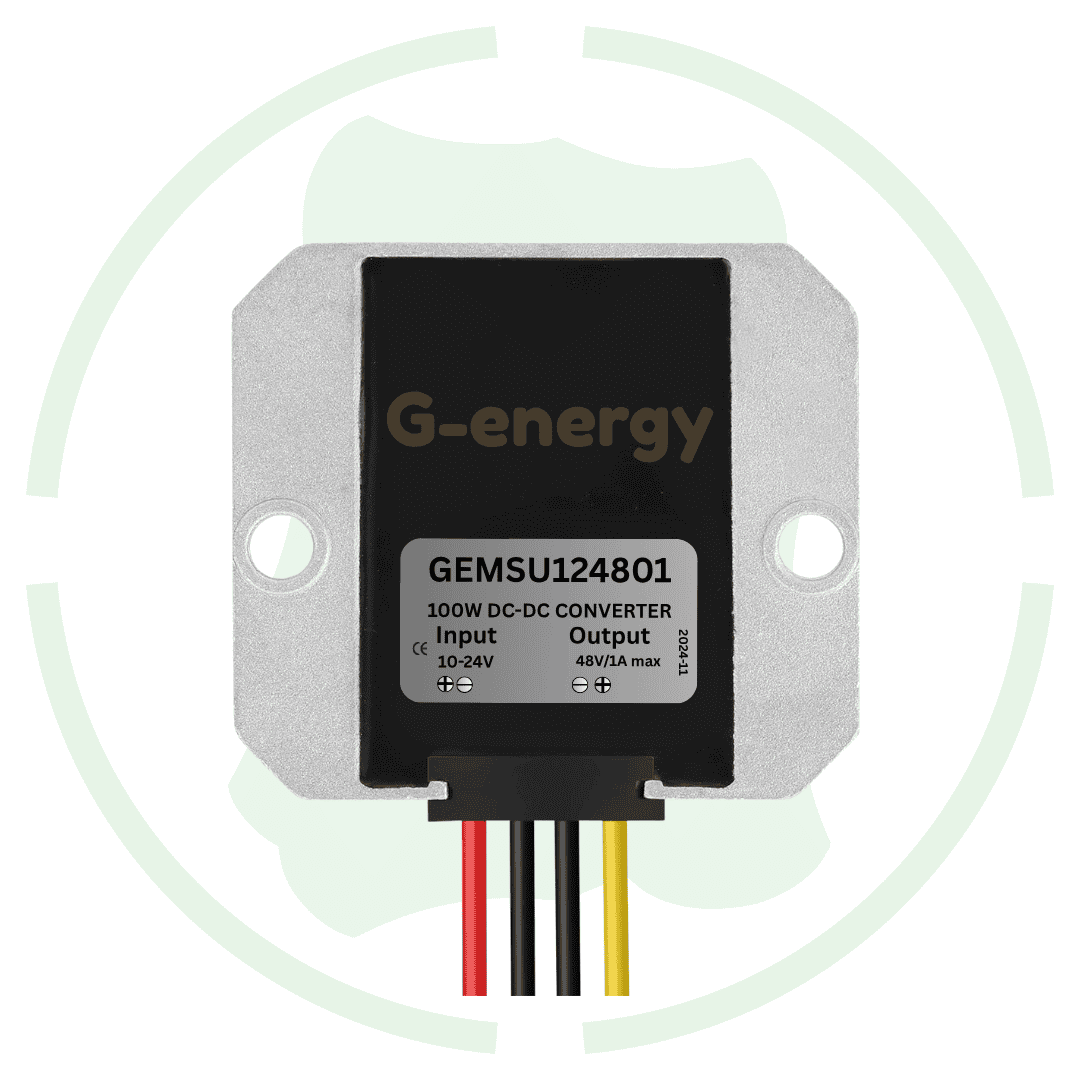

Introducing 12v to 48v dc dc converter 1a 48w ip68 boost converter at best price in India with G-energy. This 12v to 48v boost converter is built with aluminium metal shell and epoxy for its water proofing. And due to its high quality built and high efficiency it is used at multiple device for voltage conversion.

Features

High efficiency: This voltage converter is built with synchronous technology and this latest technology provide upto 94% voltage conversion efficiency.

Wide input voltage: This voltage converter can easily work on wide input voltage range from 10v to 24v dc input voltage.

Built for harsh condition: this 12v to 48v 1a dc dc converter can use at any harsh industrial condition with upto -40 to 80 degree celsius operating temperature.

Specification

• Input Voltage Range: 10V – 24V DC

• Output Voltage: 48V DC

• Output Current: 1A

• Output Power: 48W

• Efficiency: Up to 90%

• Operating Frequency: 150kHz

• Protection: Under voltage, Over current, Short Circuit

• Cooling Method: Passive Cooling (Heat Sink)

• Operating Temperature: -40°C to 85°C

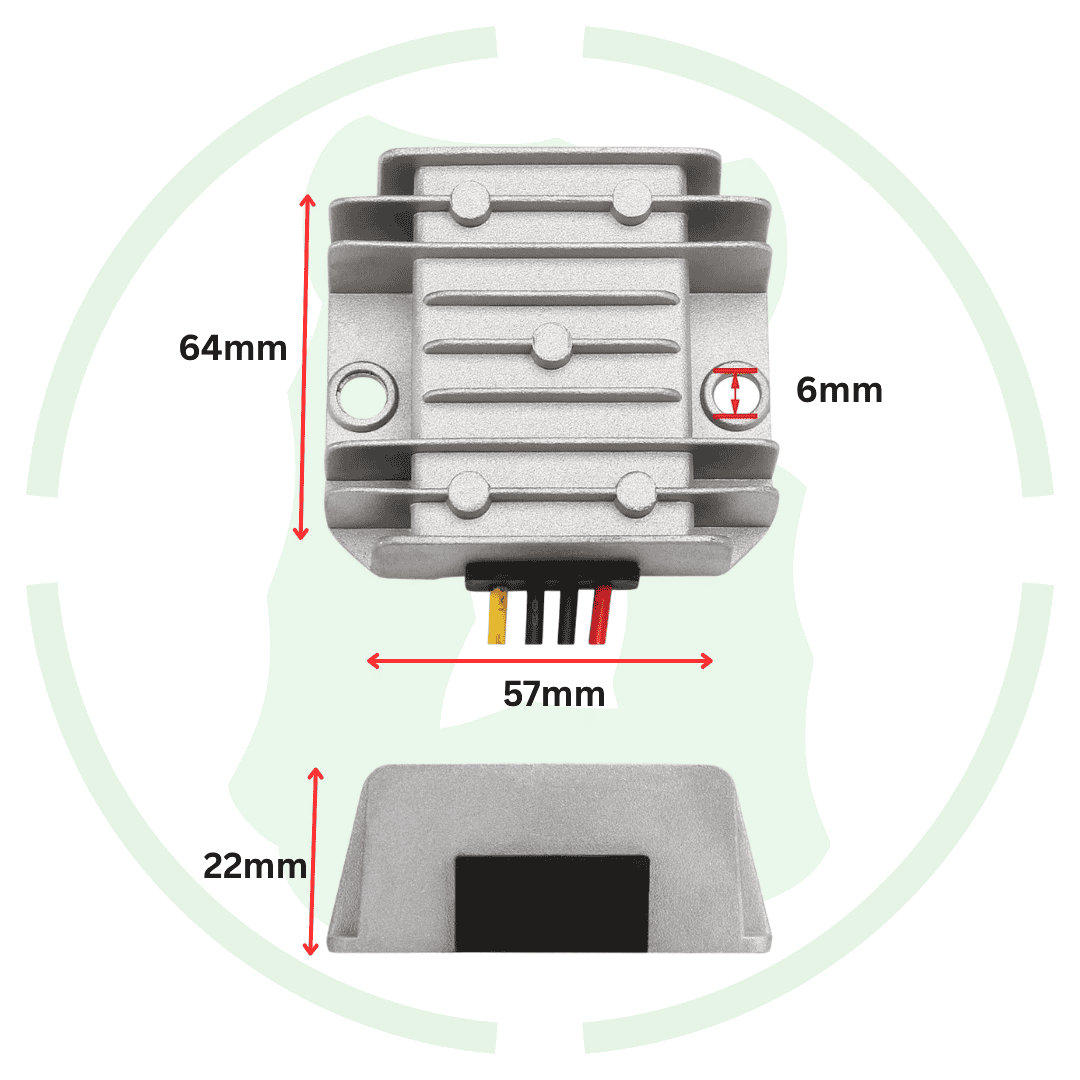

• Dimensions: 64mm × 57mm × 22mm

• Weight: 121g

Datasheet of this GEMSU124801 12v to 48v 1a dc voltage converter
