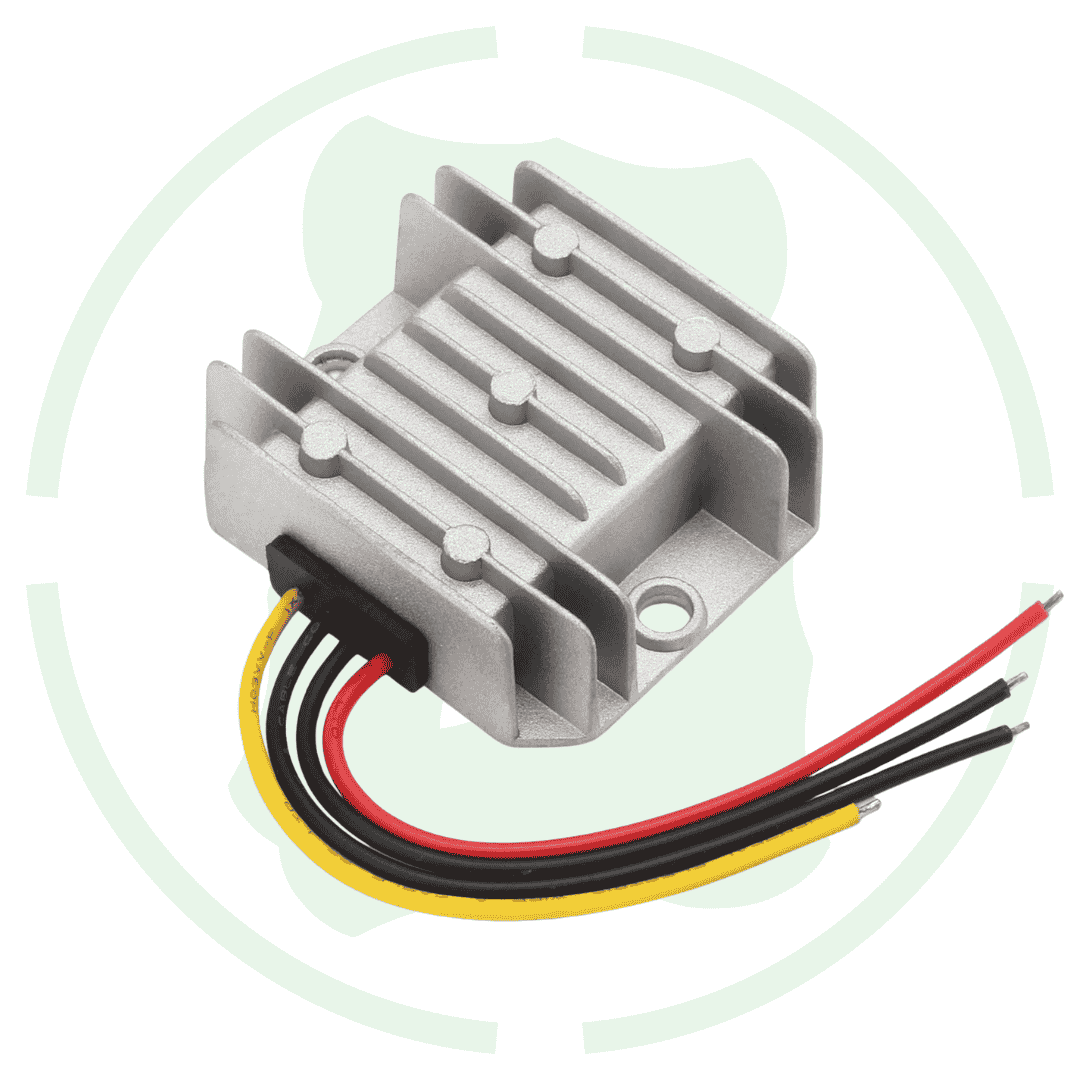

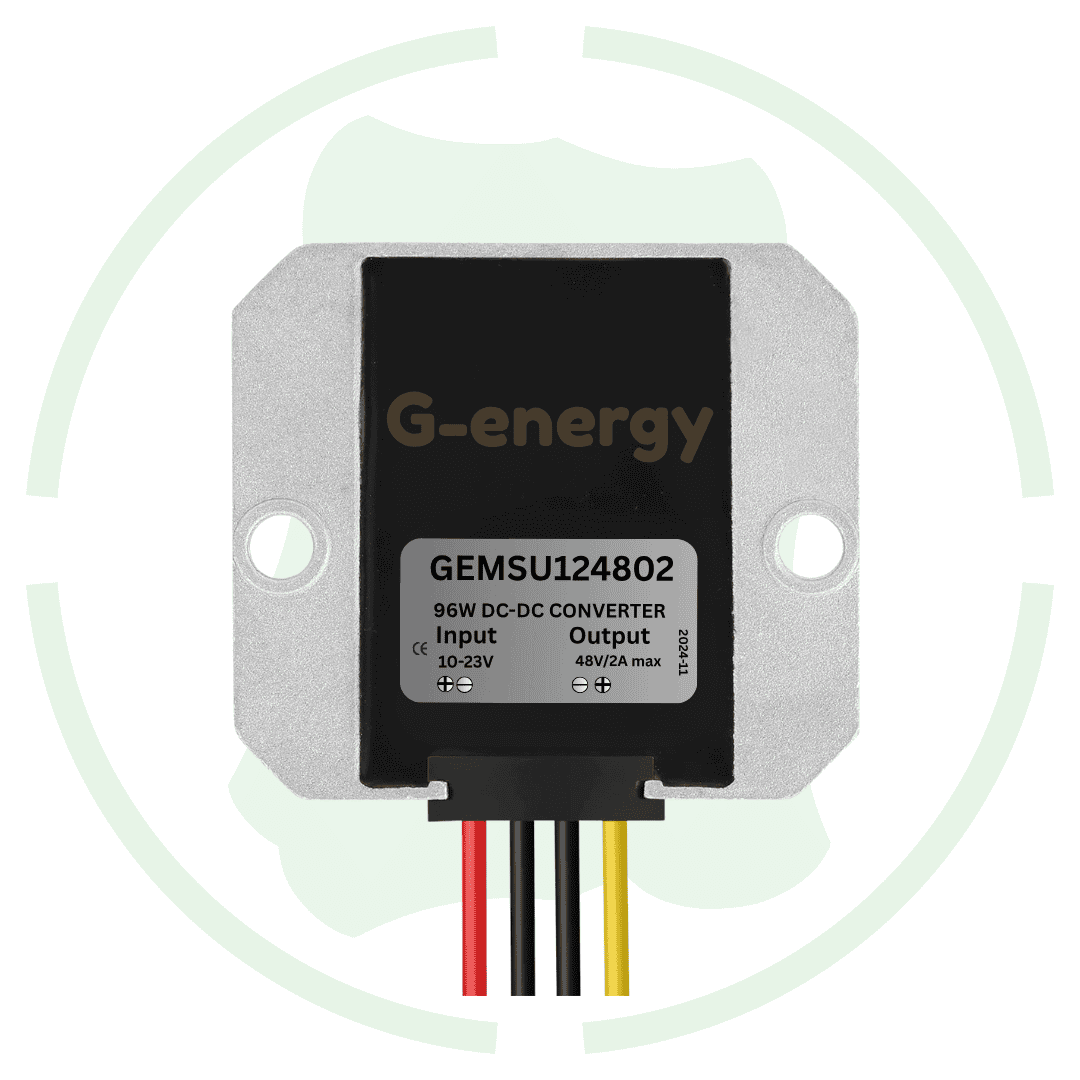

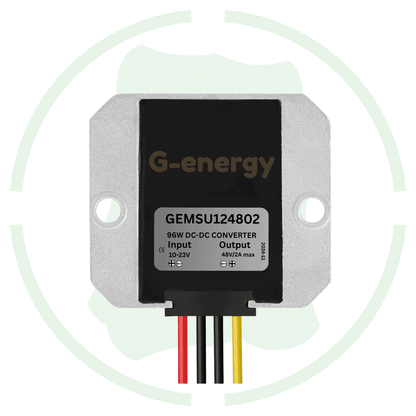

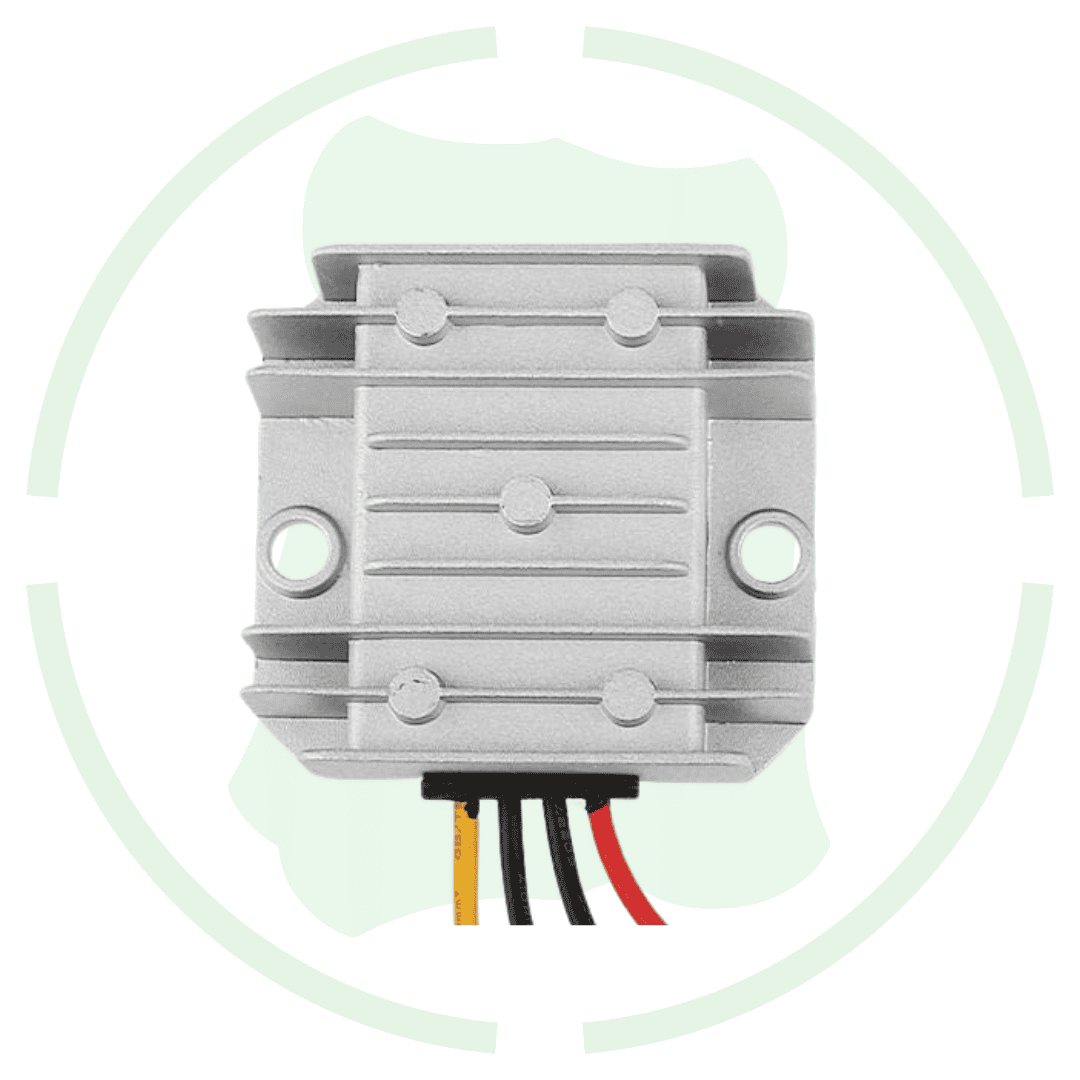

G-energy GEMSU124802 12V To 48V 2A 96W Dc To Dc Converter Step-up Converter

Overview of this 12v to 48v 2a 96w dc to dc converter

Introducing g-energy 12v to 48v 2a 96w dc to dc converter ip68 step-up converter at best price in India with g-energy. This converter is designed with high quality light weight aluminium body for its easy set up in any industrial set up. It can easily convert temperature range from 10-24v to a stable 48v input voltage for smooth operation of device running in 48v dc input voltage.

Features

Under voltage protection: It also come with under voltage protection and automatic under voltage recovery for converter safety fro changing input voltage.

Short circuit protection: It also come with short circuit protection for converter and connected device safety from short circuit protection.

Over current protection: This converter is also equipped with current limiting circuitry to provide protection from output over current situation.

Specification

• Input Voltage Range: 10V to 23V DC

• Output Voltage: 48V DC

• Output Current: 2A

• Output Power: 96W

• Conversion Efficiency: Up to 94%

• Ripple & Noise: < 150mV

• Operating Temperature Range: -40°C to +50°C

• Cooling Method: Natural Air Cooling

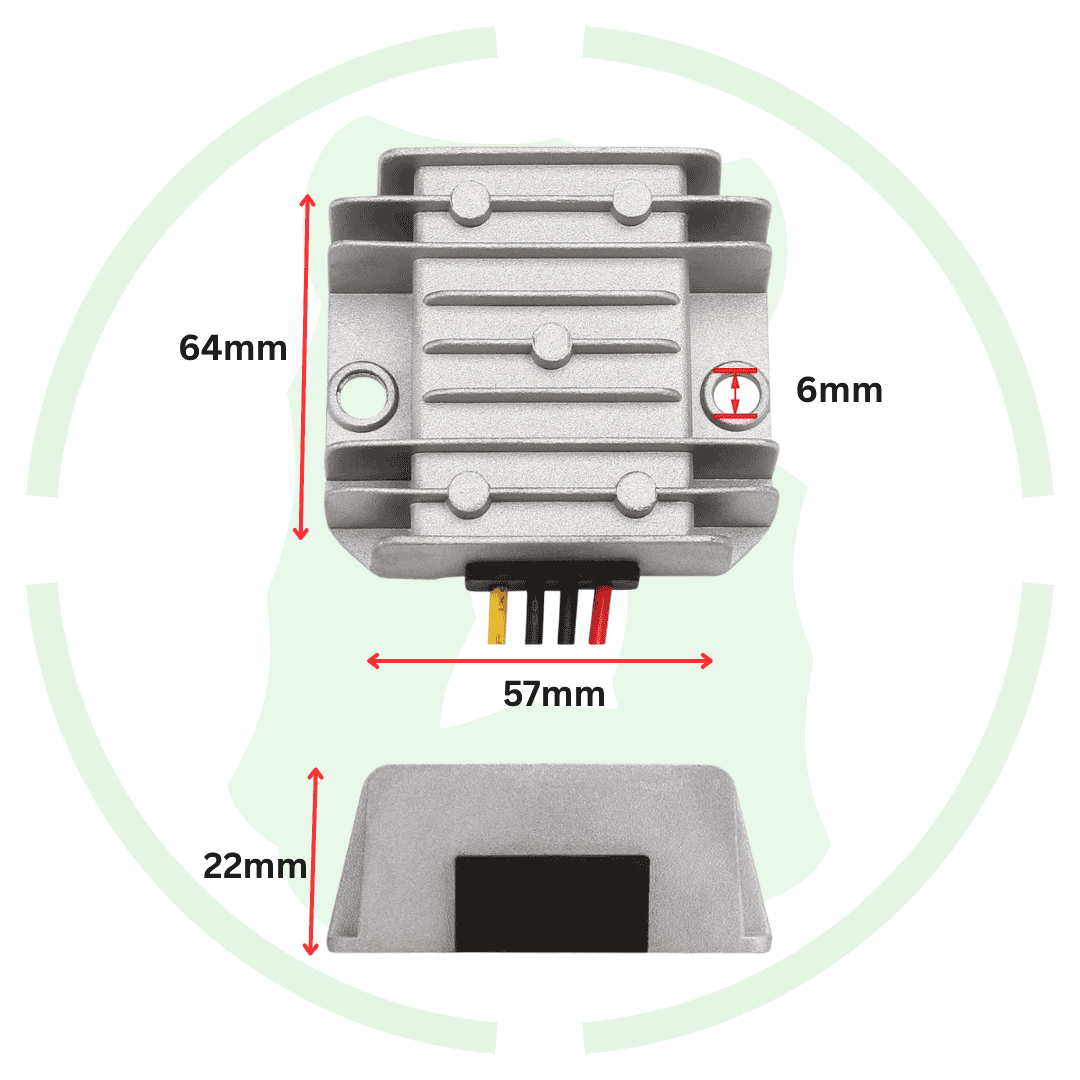

• Dimensions: 57 × 62 × 22 mm

• Weight: 127g

• Material: Aluminum Alloy Shell

✅ Protection Rating:

• IP68: Water proof and Dust proof

⚠️ Protection Features:

• Short Circuit Protection:Yes

• Over-Current Protection:Yes

• Under voltage protection: Yes

🔌 Wiring Instructions:

• Input: Red (+), Black (–)

• Output: Yellow (+), Black (–)

Datasheet of GEMSU124802 12v to 48v 2a dc voltage converter
