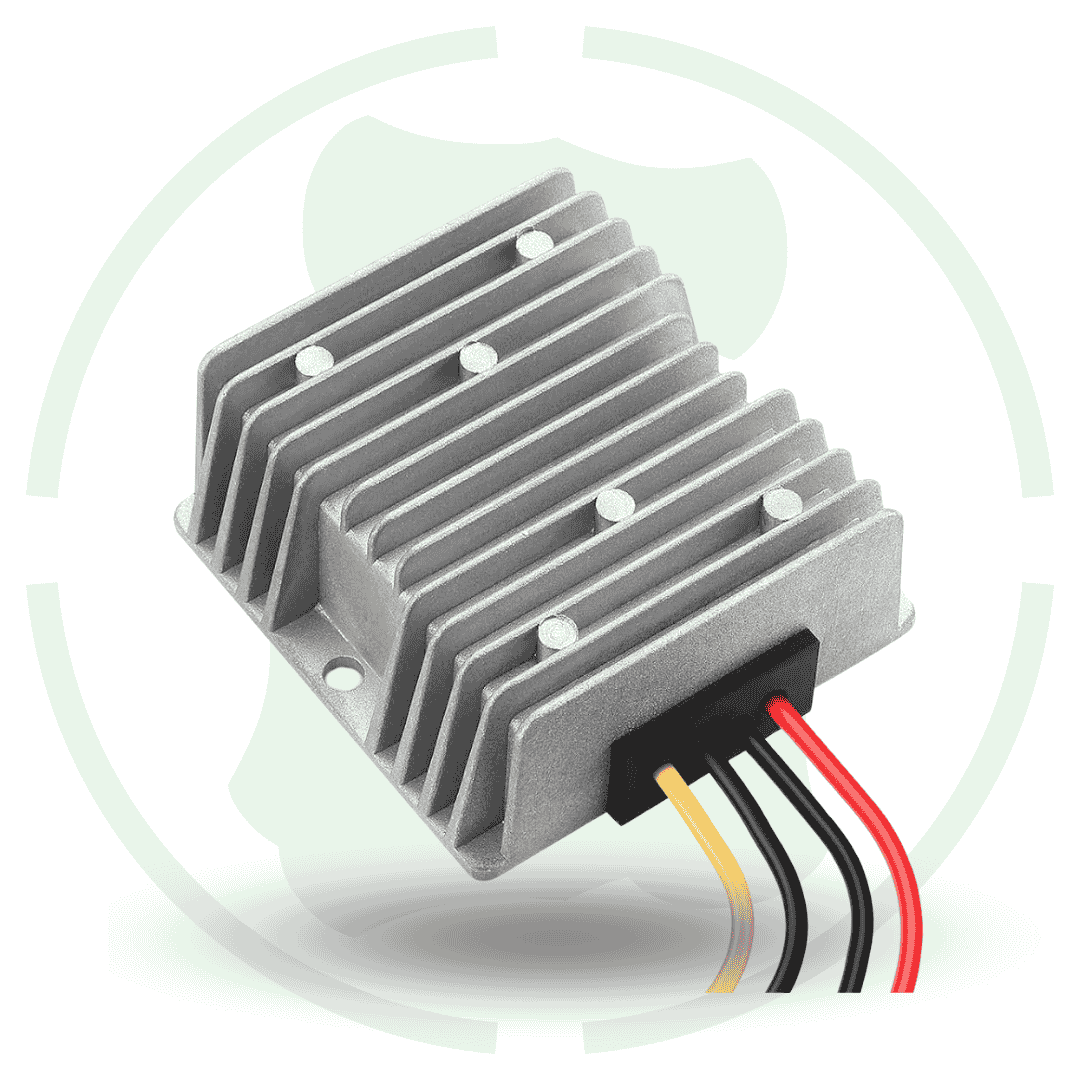

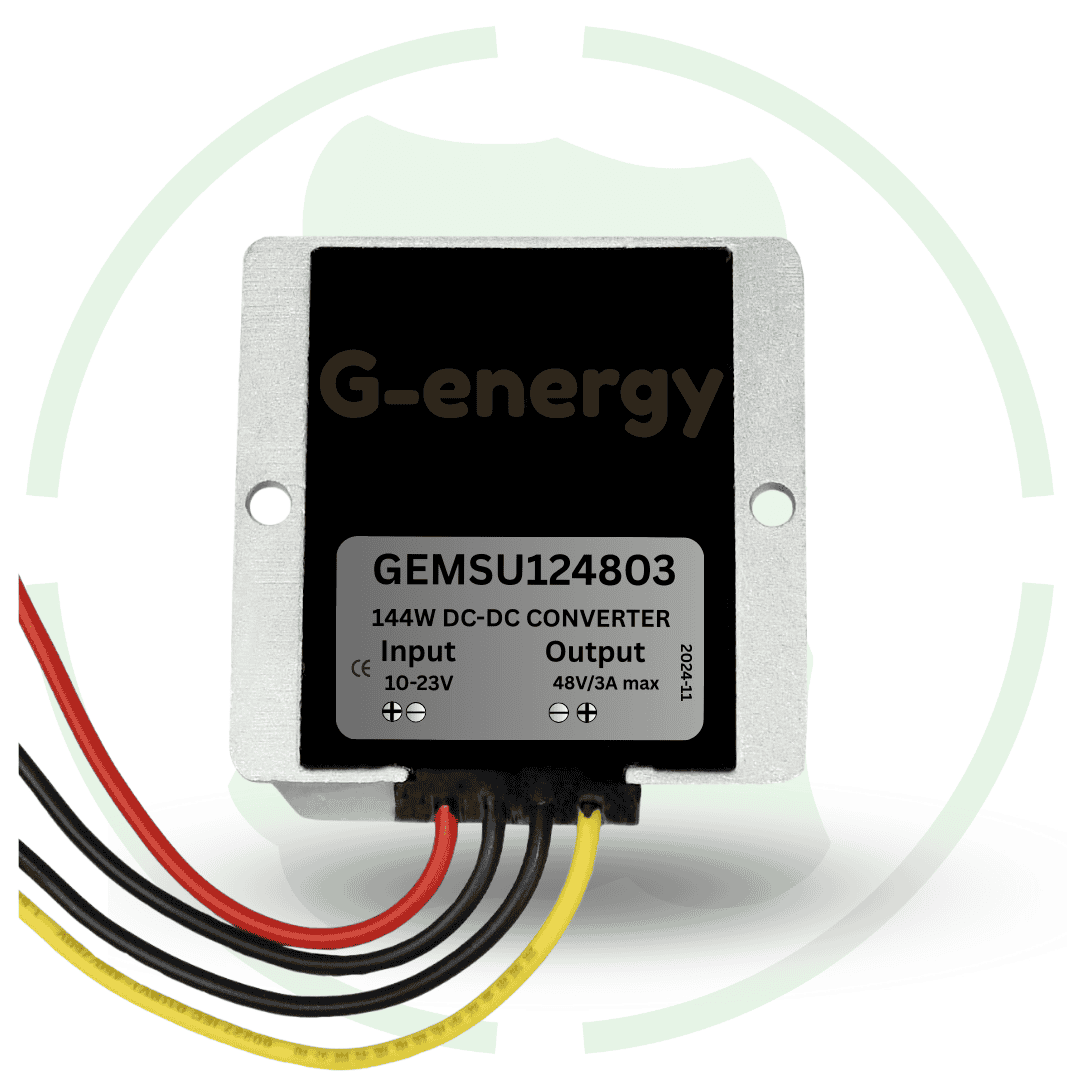

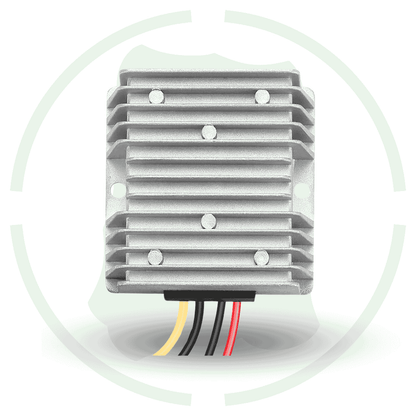

G-Energy GEMSU124803 12V to 48V 3A 144W Dc To Dc Converter Ip68 Step Up Module

Overview of this 12V to 48V 3A 144W dc to dc converter

Introducing g-energy 12v to 48v 3a 144w dc to dc converter ip68 rated water proof boost converter at best price in India with G-energy. This dc voltage converter take 10v to 23v input voltage and convert it to a fix 48v dc output with up to 3a dc current. It also provide 144w dc power with high conversion efficiency up to 95% energy conversion for its smooth Industrial use.

Features

Input voltage range: This 12v to 48v boost converter smoothly work on 10v to 23v input voltage range for its use in wide applications.

Fix 48v output voltage: It also provide a fix 48v dc output for stable voltage and smooth operations.

Up to 95% high conversion efficiency: This dc dc converter is built with synchronous rectification technology for its high energy conversion & less energy loss.

Specification

1. Input Voltage Range: 10-23V

2. Output Voltage: 48V

3. Output Power: 144W

4. Output Current: 3A

5. Efficiency: 95%

6. Conversion Type: Boost Converter

7. Operating Temperature Range: –40 °C to +85 °C

8. Over voltage Protection: No

9. Short Circuit Protection: Yes

10.Under Voltage Protection: Yes

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

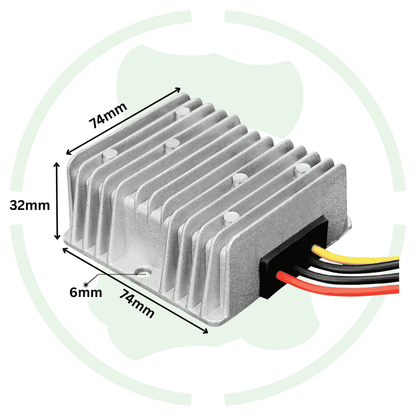

16. Dimensions: 74x74x32mm

17. Weight: 330 gm

18. Cooling Method: Free air convection (no fan required)

Datasheet of this GEMSU124803 12v to 48v 3a dc voltage converter
