G-energy GEMSU244803 24V To 48V 3A 144W Dc To Dc Converter Ip68 Boost Converter

Overview of this 24v to 48v 3a 144w dc to dc converter

Introducing g-energy 24v to 48v 3a 144w dc to dc converter ip68 rated boost converter at best price in India with G-energy. It can smoothly operate on 19v to 36v dc input voltage range & convert it to a fix 36v dc output with up to 144w max dc output power. It is also built with epoxy potting die cast aluminum metal shell body for converter safety and long life.

Features

Input voltage: This 24v to 48v converter is designed to work on wide input voltage range from dc 19v to 36v input voltage range.

Operating temperature: With its high quality built it can smoothly work on wide input voltage range from dc 19v to 36v input voltage range.

Fix 48v output: This 24v to 48v dc dc converter provide a fix 48v dc output with up to 3a dc current and maximum power up to 144w dc power.

Specification

Item Type: DC Power Converter

Model: 24V to 48V 3A 144W

Input Voltage Range: 19V-36V DC

Compatible Input Voltages: 24V DC

Output Voltage: 48V DC

Output Current: 3A

Output Power: 144W

Conversion Efficiency: Up to 97.8%

Material: Aluminum Alloy

Dimensions: 74x74x32 mm

Weight: 300 g

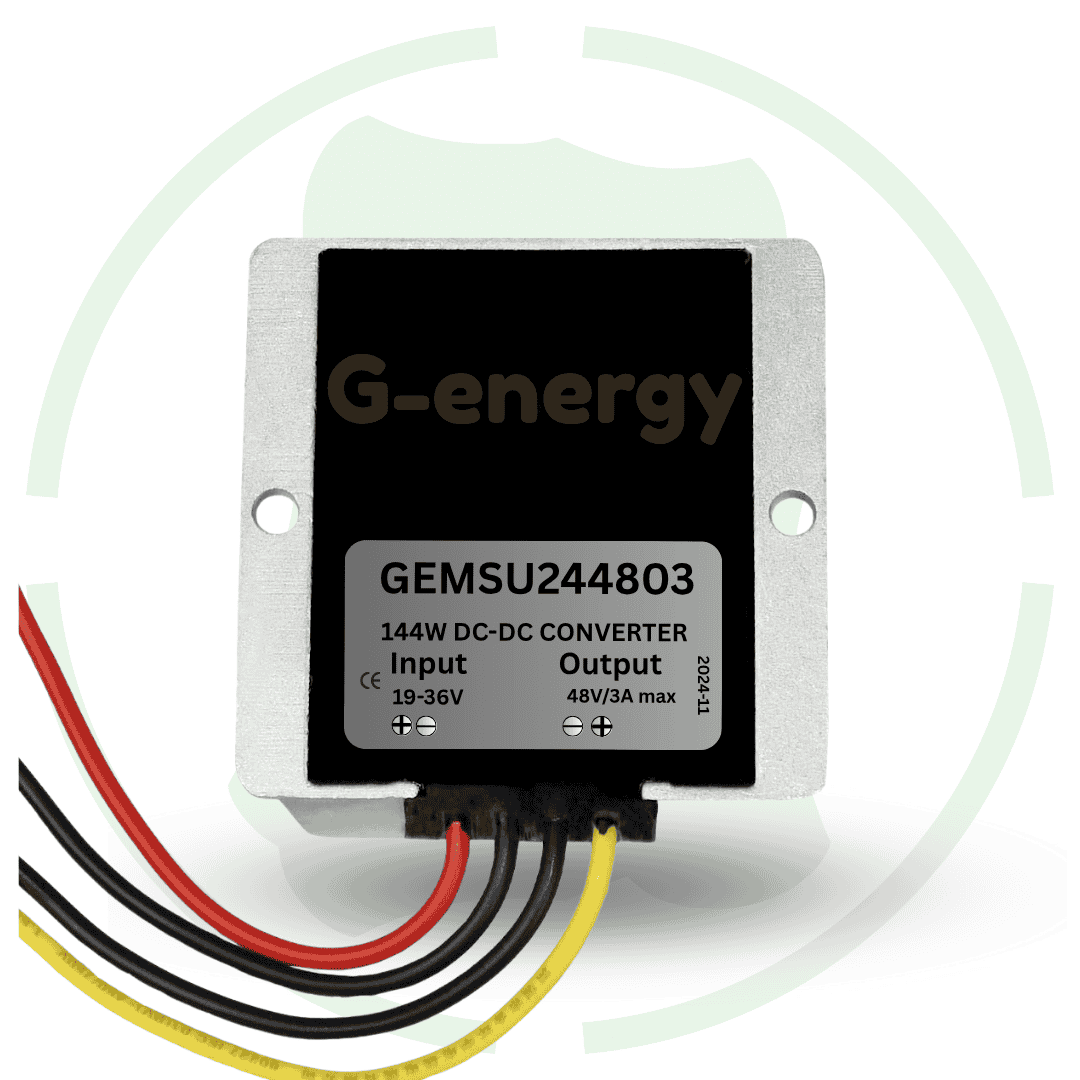

🔌 Wiring Method:

Input Terminal: Red wire (+), Black wire (−)

Output Terminal: Yellow (or White) wire (+), Black wire (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of this GEMSU244803 24v to 48v 3a dc voltage converter
