G-energy GEMSU244805 24V To 48V 5A 240W Dc To Dc Converter Ip68 Boost Converter

Overview of this 24v to 48v 5a 240w dc to dc converter

Introducing g-energy 24v to 48v 5a 240w dc to dc converter ip68 rated water proof boost converter at best price in India with G-energy. This voltage converter is designed with die cast aluminum shell metal body for its outer build quality and epoxy potting for its water proofing and converter pcb safety. It also come with 3 month free exchange warranty for converter quality assurance.

Features

Input voltage range: This voltage converter is designed to operate on a wide input voltage range from dc 19v to 36v input voltage range.

High built quality: This converter is designed with high quality aluminum material and can smoothly handle high temperature range from -40 to 55 degree celsius.

Output over current protection: This voltage converter is designed with current limiting circuitry design that provide protection form output over load & short circuit protection.

Specification

Item Type: DC Power Converter

Model: 24V 36V to 48V 3A 144W

Input Voltage Range: 19V-36V DC

Compatible Input Voltages: 24V DC

Output Voltage: 48V DC

Output Current: 5A

Output Power: 240W

Conversion Efficiency: Up to 98.2%

Material: Aluminum Alloy

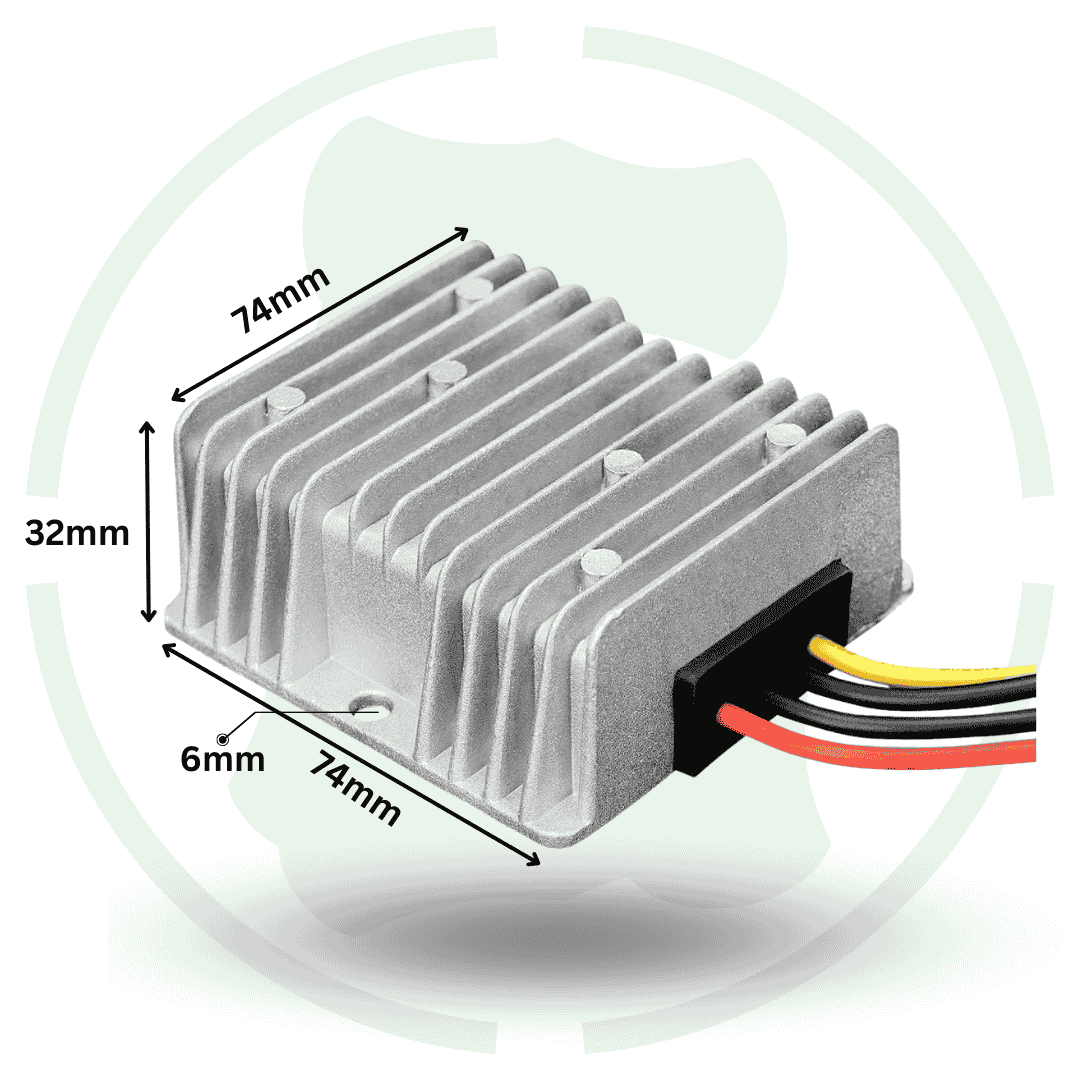

Dimensions: 74x74x32 mm

Weight: 300 g

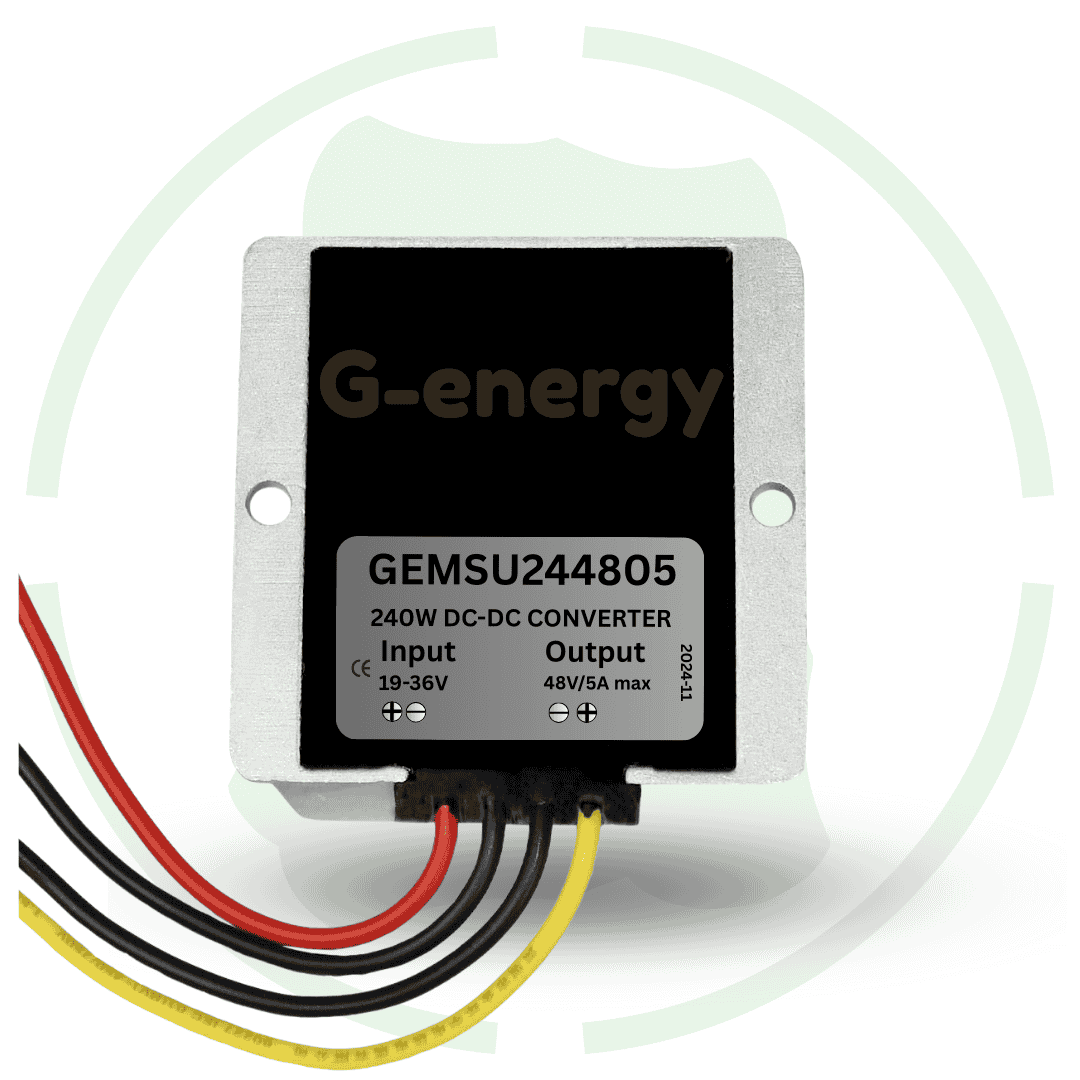

🔌 Wiring Method:

Input Terminal: Red wire (+), Black wire (−)

Output Terminal: Yellow (or White) wire (+), Black wire (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of GEMSU244805 24v to 48v 5a dc voltage converter
