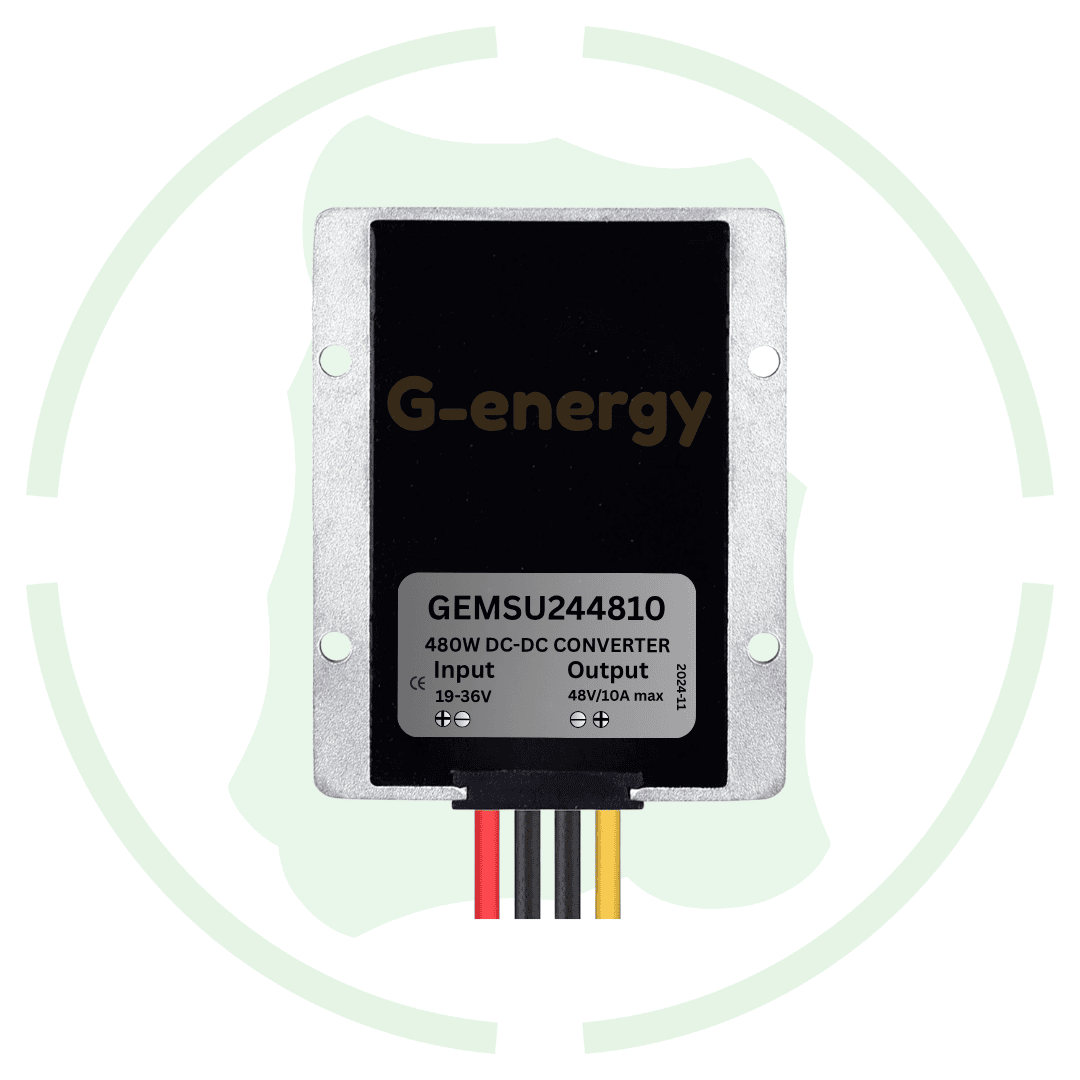

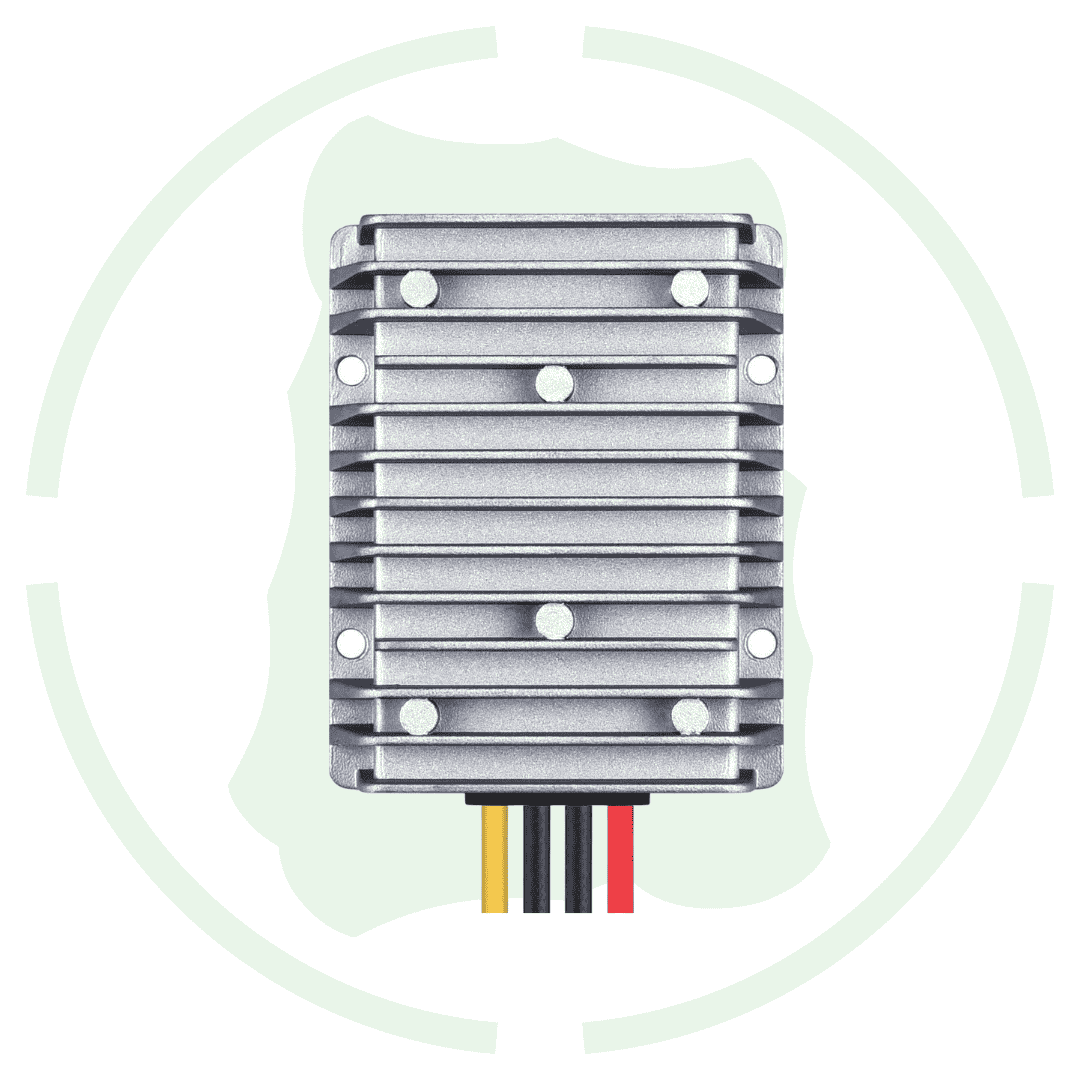

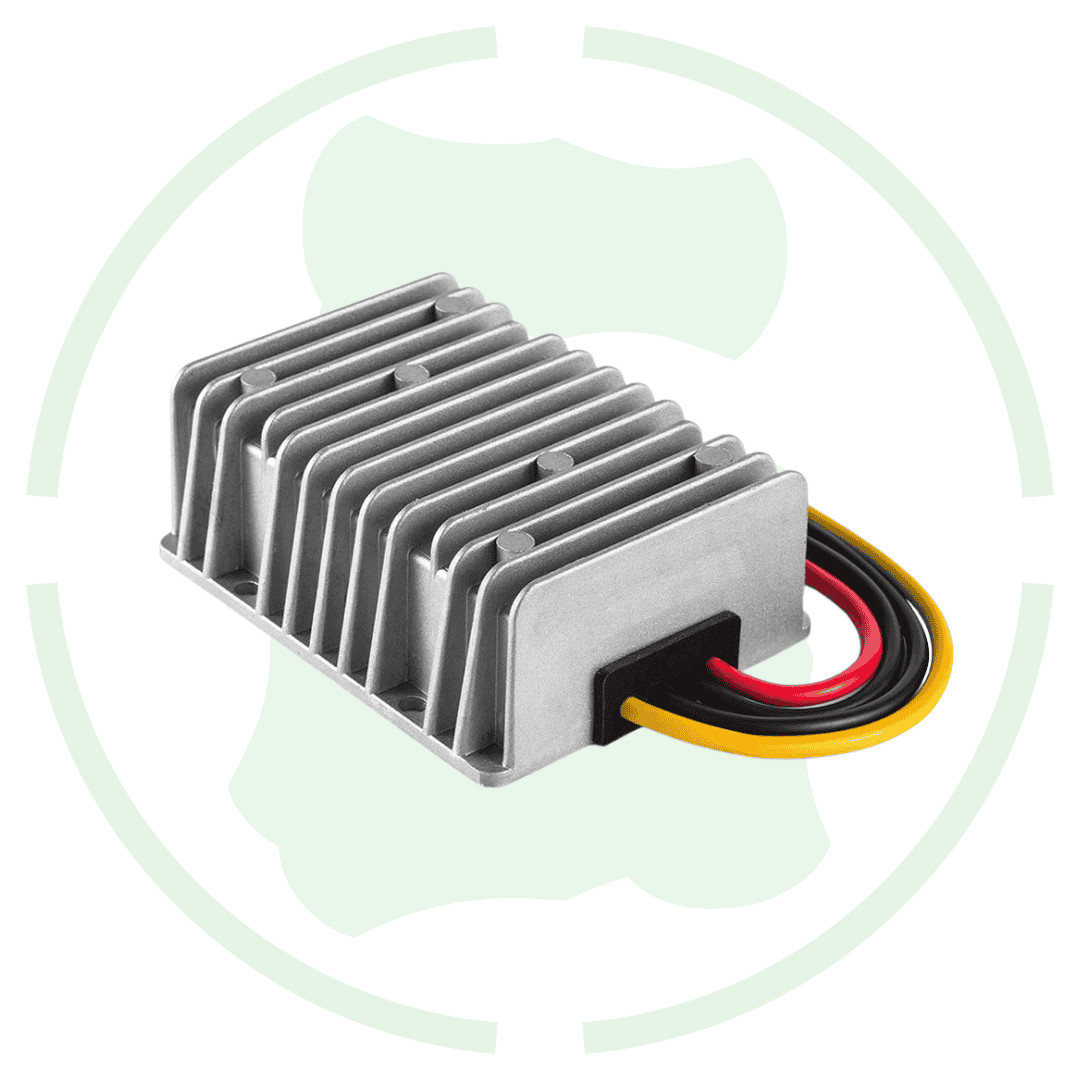

G-energy GEMSU244810 24V To 48V 10A 480W Dc To Dc Converter Ip68 Step-up Converter

Overview of this 24v to 48v 10a 480w dc to dc converter

Introducing g-energy dc 24v to 48v 10a 480w dc to dc converter ip68 step up converter at best price in India with G-energy. This voltage converter is designed to operate on input voltage range from dc 18v to 36v and convert it to a fix 48v dc output voltage. It also provide dc current up to 10a and maximum dc power up to 480w to operate medium power dc devices.

Features

Input voltage: This 24v to 48v dc dc converter provide big input voltage of dc 19v to 36v input voltage range.

Output power: This voltage converter provide a fix 48v dc output with 10a maximum current and up to 480w dc power.

Safety features: It also come with multiple safety features including overload protection, Under voltage protection, over temperature protection.

Specification

Item Type: DC Power Converter

Model: 24V to 48V 10A 480W

Input Voltage Range: 19V-36V DC

Compatible Input Voltages: 24V DC

Output Voltage: 48V DC

Output Current: 10A

Output Power: 480W

Conversion Efficiency: Up to 97.8%

Material: Aluminum Alloy

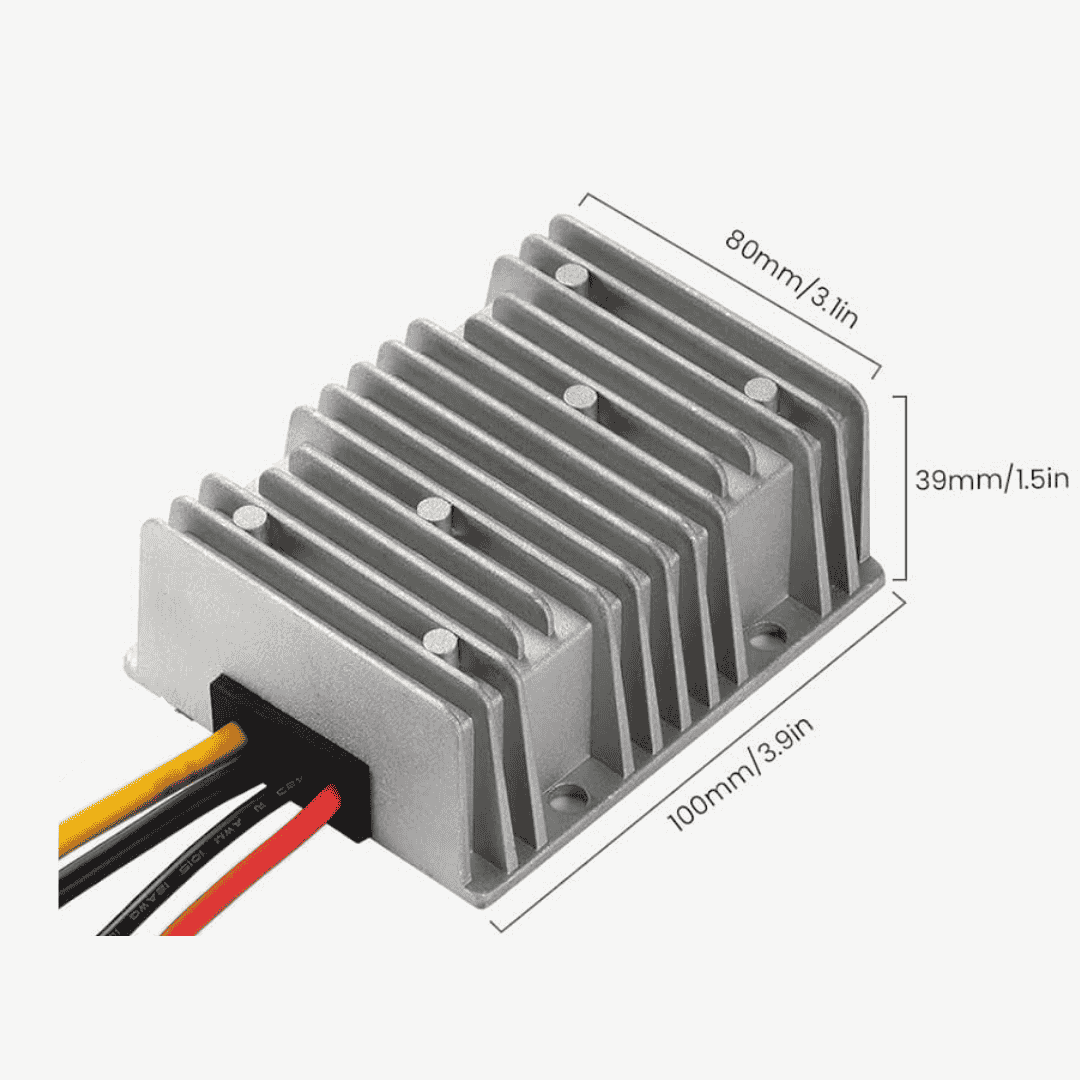

Dimensions: 100x80x39 mm

Weight: 550 g

🔌 Wiring Method:

Input Terminal: Red wire (+), Black wire (−)

Output Terminal: Yellow (or White) wire (+), Black wire (−)

✅ Protection Features:

Under-voltage Protection

Under-voltage Recovery

Overload Protection

Over-temperature condition

Ip68 water-proof Protection

Datasheet of this GEMSU244810 24v to 48v 10a dc voltage converter
