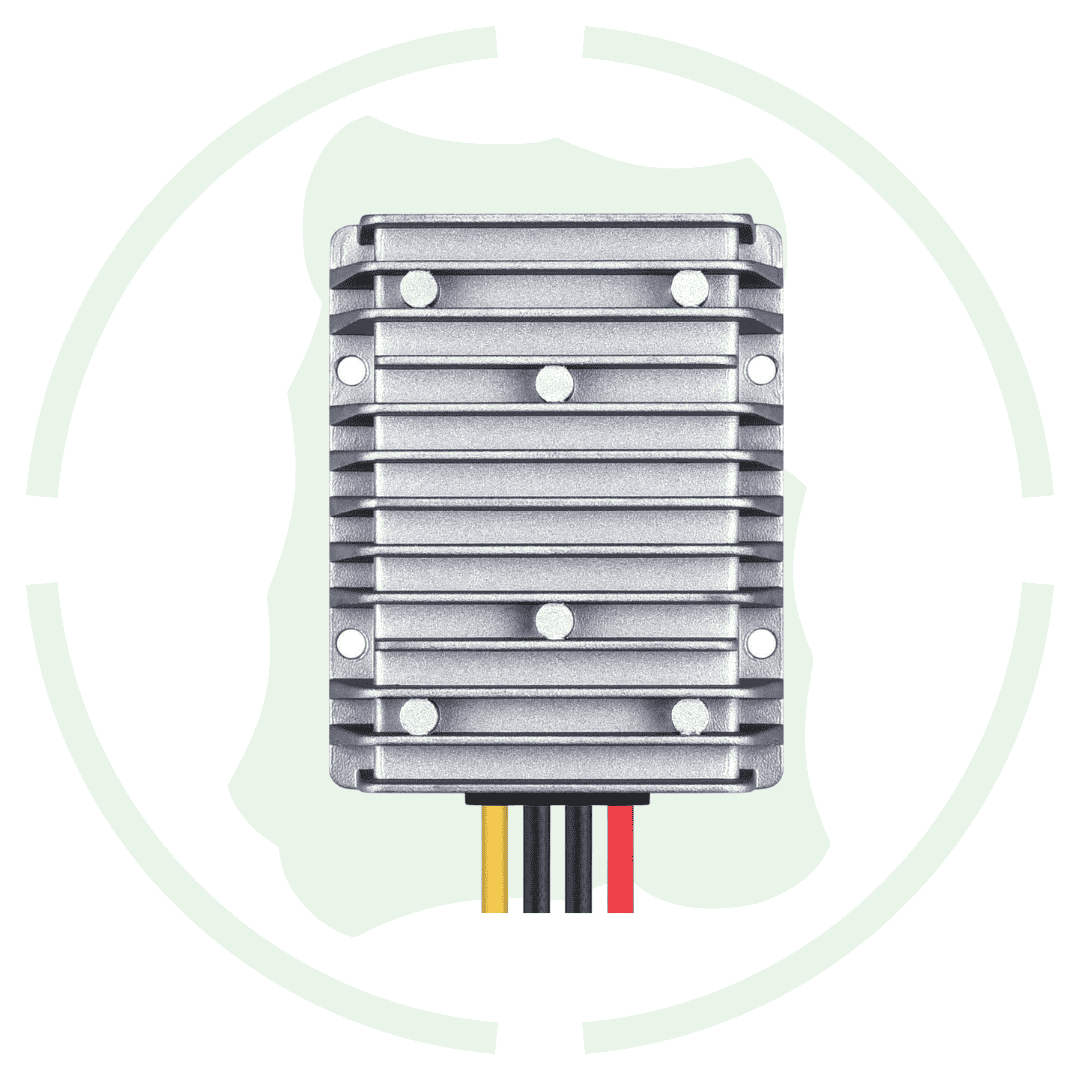

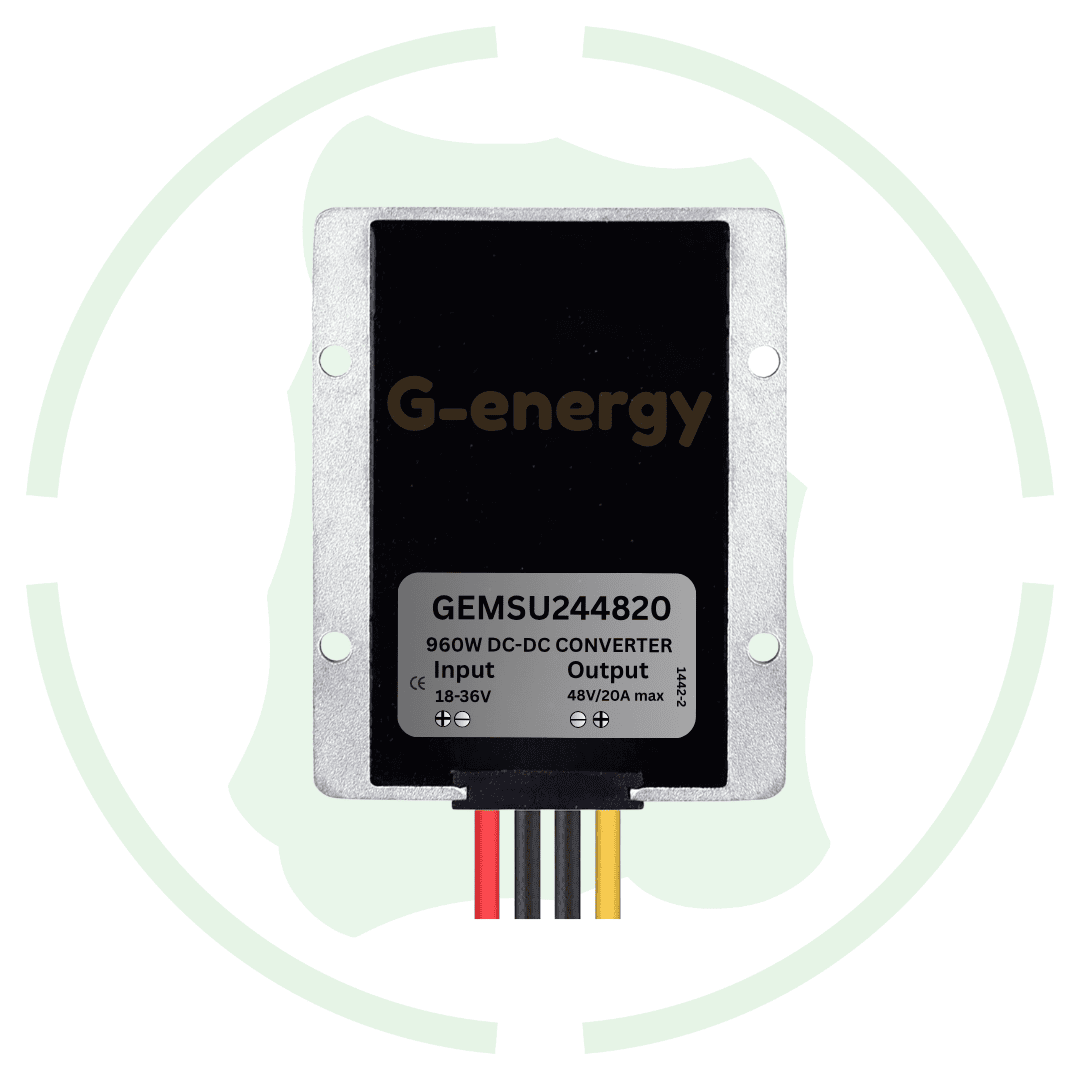

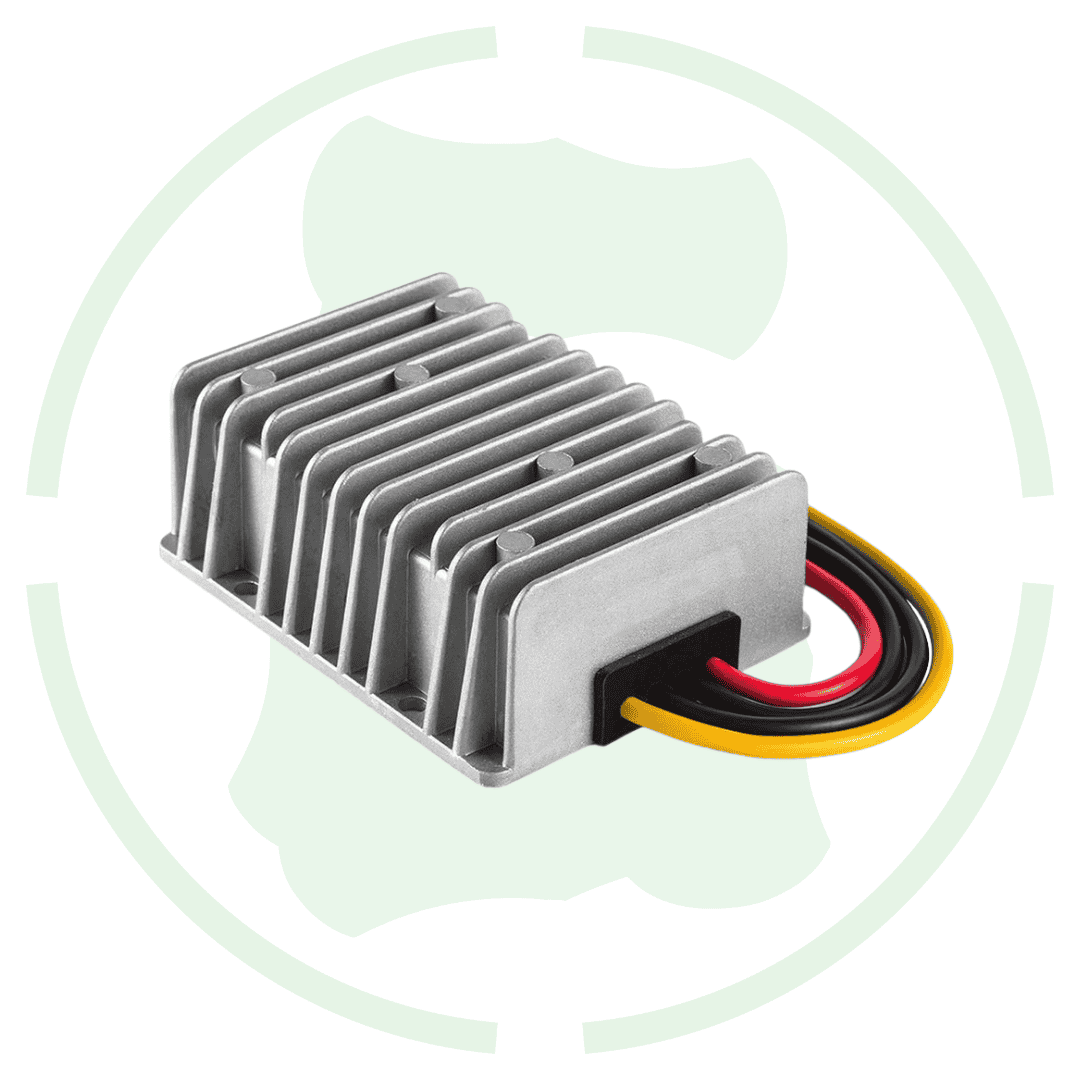

G-Energy GEMSU244820 24V To 48V 20A 960W Dc to Dc Converter Ip68 Boost Converter

Overview of this G-energy 24v to 48v 20a 960w dc to dc converter ip68 boost converter

Introducing g-energy 24v to 48v 20a 960w dc to dc converter with ip68 waterproof rating at best price in India this 24v to 48v boost converter come with advance synchronous rectification technology for advance & more efficient energy conversion. And it provide maximum power 960W and make it best choice for heavy industrial devices.

Features

960W High Power: This 24V to 48V dc dc converter provide maximum power upto 960W & maximum current upto 40a for heavy power industrial device which operate on dc voltage.

Long Input voltage range: This 24v to 48v dc to dc converter can work on input voltage range from 18v to 36v which make it more useful for multiple input source devices.

Fix 48v stable voltage: It also provide a fix 48v output voltage without any change which make it more stable power source industrial equipements.

Specification

Brand: G-Energy

Conversion Type: Step-Up (Boost Converter)

Input Voltage: 18V – 36V DC

Output Voltage: 48V DC

Output Current: 20A

Output Power: 960W (Max)

Efficiency: ≥ 95% (typical)

Waterproof Rating: IP68

Cooling Method: Passive (Aluminum Heat Sink)

Protection Features: Overcurrent, Overvoltage, Overheat, Short-Circuit

Operating Temperature: -40°C to +80°C

Mounting Type: Chassis Mount

Dimensions: Approx. 80mm x 110mm x 36mm

Weight: ~950g

Datasheet of 24v to 48v 20a 960w dc dc converter datasheet
