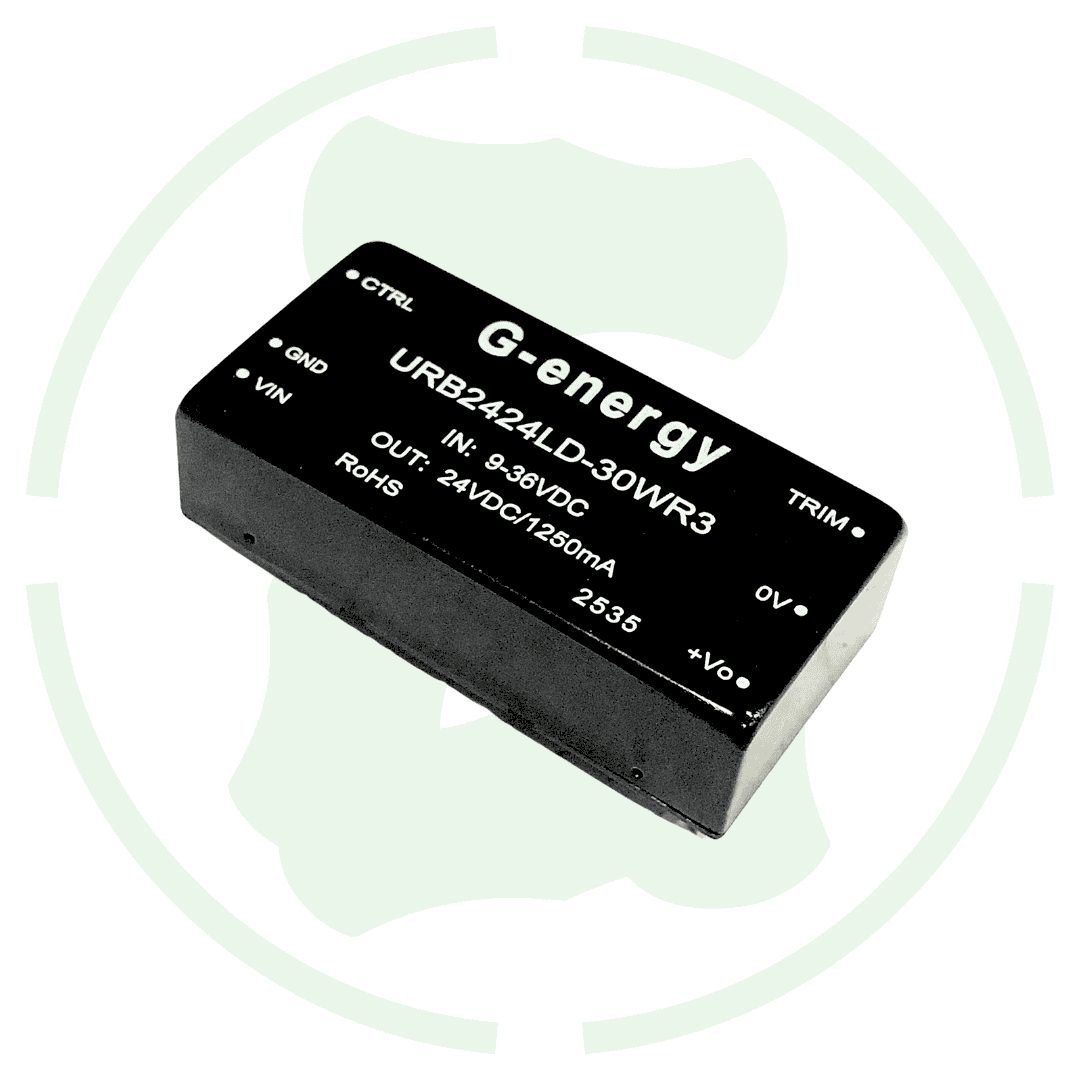

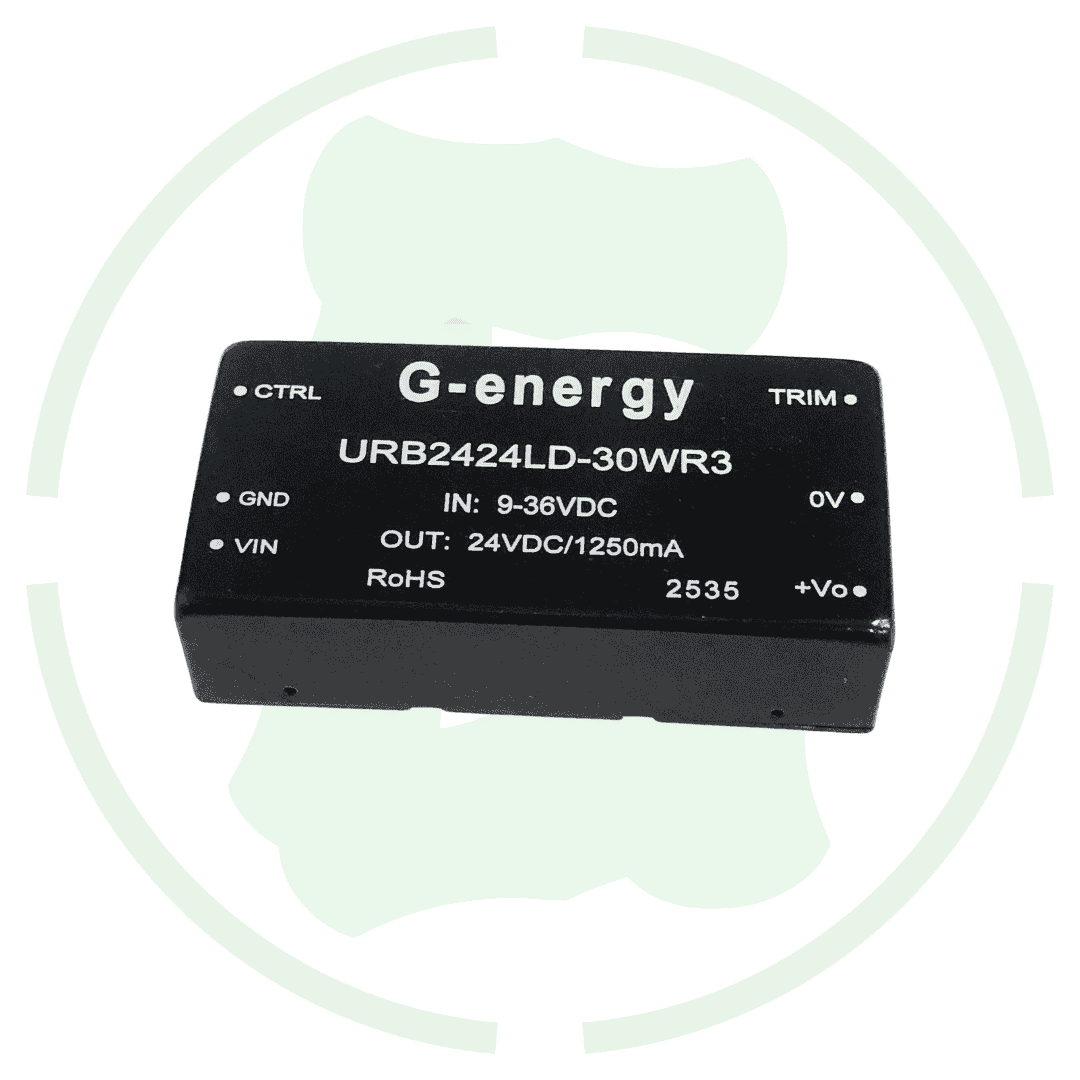

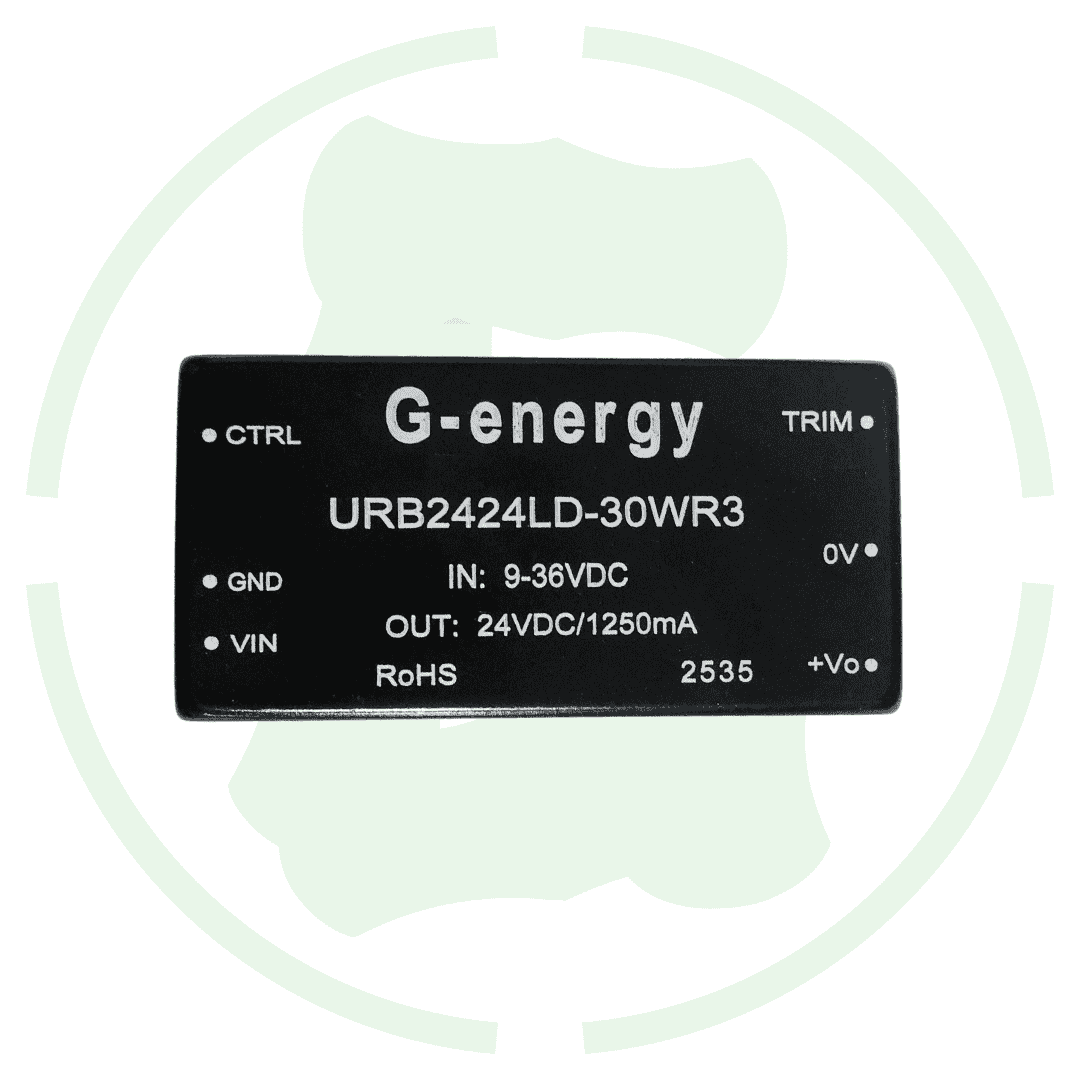

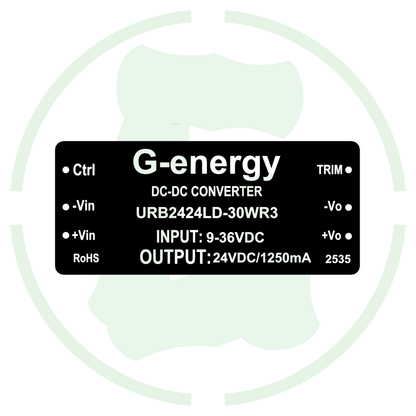

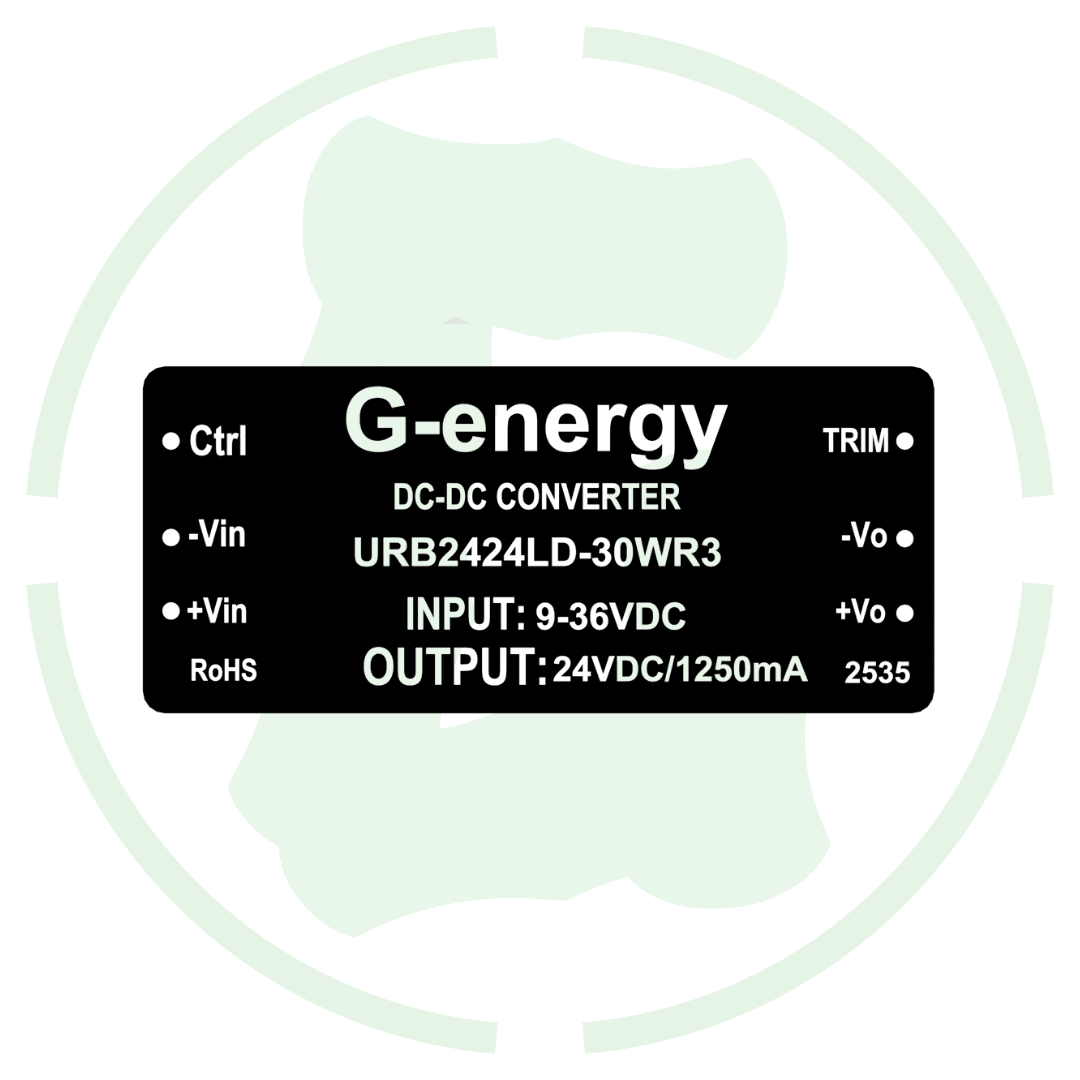

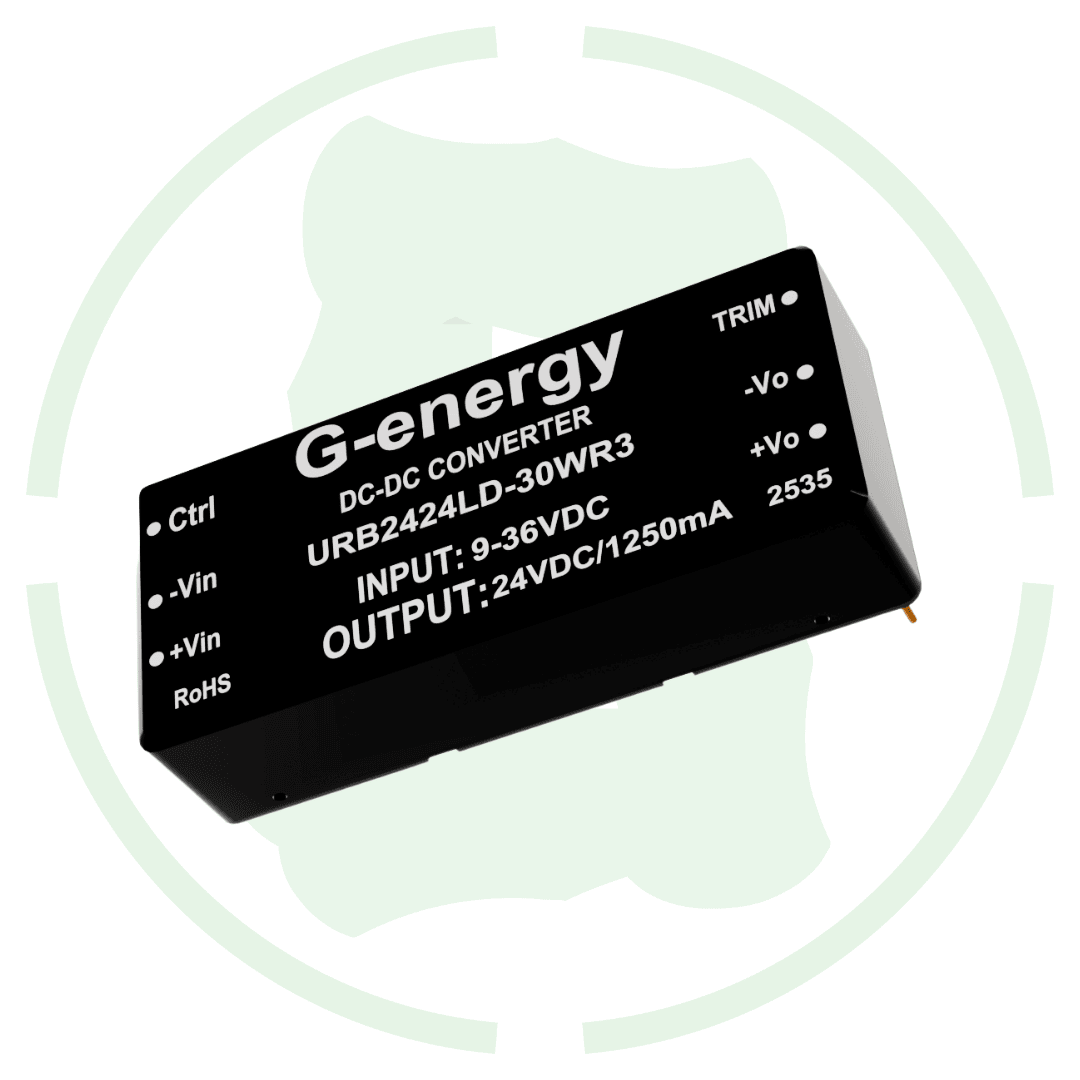

G-energy URB2424LD-30WR3 24V To 24V 30W 1.25A Dc-Dc Converter Isolated Power Module

Overview of this G-energy URB2424LD-30WR3 24V To 24V 30W 1.25A Dc-Dc Converter

Introducing G-energy URB2424LD-30WR3 24V To 24V 30W 1.25A dc-dc converter at the best price in India with g-energy. This buck boost converter takes an input of 9-36V DC and converts it into a fix 24V DC output and make it perfect to power 24V device from a higher voltage source. This converter is designed with IP68 waterproof and dust proof protection for its use in harsh outdoor environment, vehicles, or industrial sites.

Features

DIP Package Design: This URB2424LD-30WR3 converter built with dual In-line package  for easy to mount on PCBs.

High Efficiency: This buck boost converter gives up to 85% high efficiency and converts power with minimal loss & reduce heat and saving energy.

Wide input voltage: This voltage converter can smoothly work on big input voltage range of 9v to 36v dc input voltage.

Specification

1.Input Voltage Range: 9-36V

2. Output Voltage: 24V DC

3. Output Current: 1250mA

4. Output Power: 30W

5. Efficiency: 80%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 50-80mVp-p

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

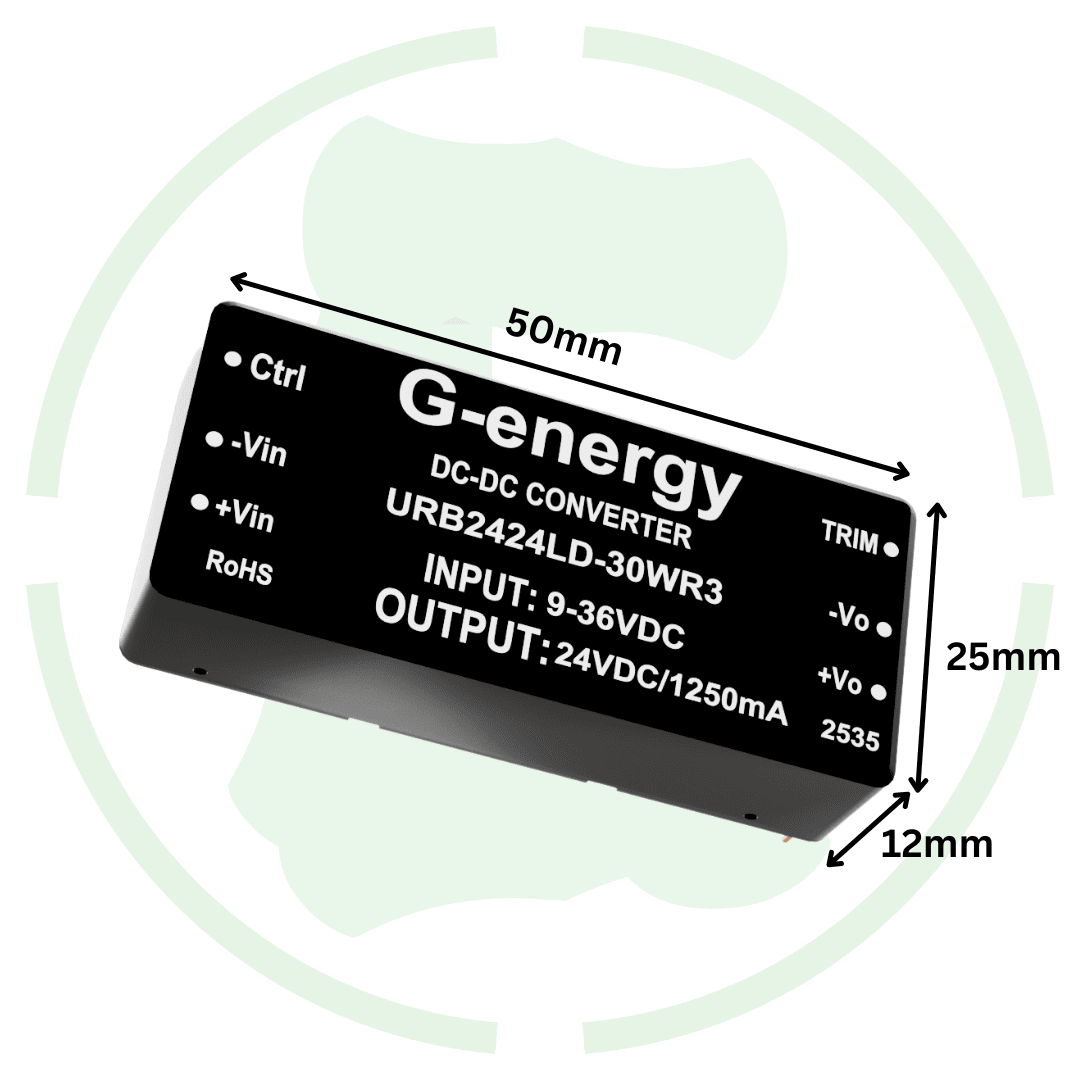

16. Dimensions: 50mm × 25mm × 13mm

17. Weight: 24 gm

18. Cooling Method: Free air convection (no fan required)
