G-Energy URB2424YMD-6WR3 24V to 24V 6W DC-DC Converter IP68 Buck Boost Converter

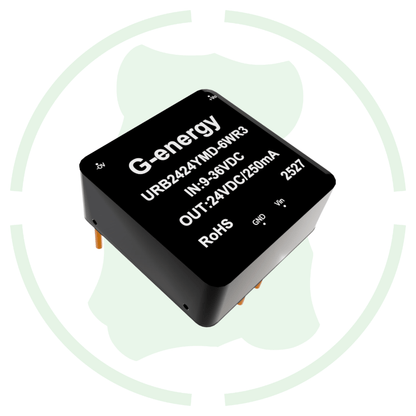

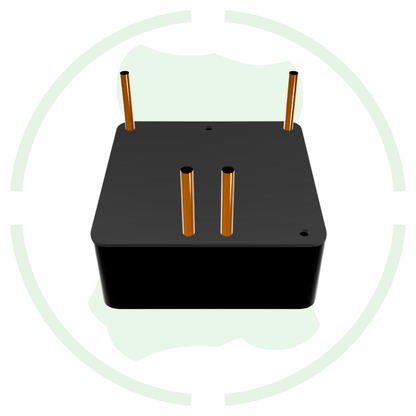

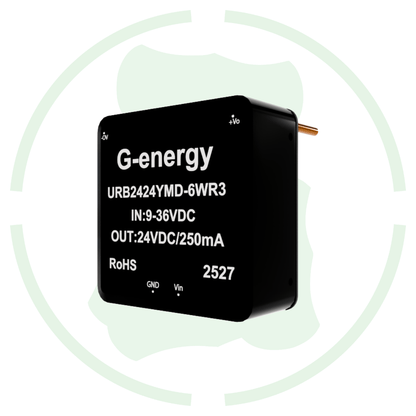

Overview of G-Energy URB2424YMD-6WR3 24V to 24V 6W  DC-DC Converter

Introducing of G-Energy URB2424YMD-6WR3 24V to 24V 6W  DC-DC Converter at the best price in India with G-energy. This voltage converter take a 9-36V input range and give a steady 24V output with up to 6W power and make it perfect to power sensitive electronic. It also provide up to max 250mA output current with 6W dc power.

Features

Wide input voltage: This URB2424YMD-6WR3 voltage converter smoothly work on wide input voltage of 9v to 36v input voltage.

24V Fix output voltage: It also provide a fix 24v dc output voltage from changing input voltage with up to 250mA dc current & 6W max dc power.

Up to 91% conversion efficiency: It use advance conversion technology for it high conversion efficiency up to 91% energy conversion & energy saving set ups.

Specification

1.Input Voltage Range: 9-36V

2. Output Voltage: 24V DC

3. Output Current: 250mA

4. Output Power: 6W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 250m

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 12mm × 12mm × 6mm

17. Weight: 12 gm

18. Cooling Method: Free air convection (no fan required)

G-energy URB2424YMD-6WR3 dc dc converter datasheet
