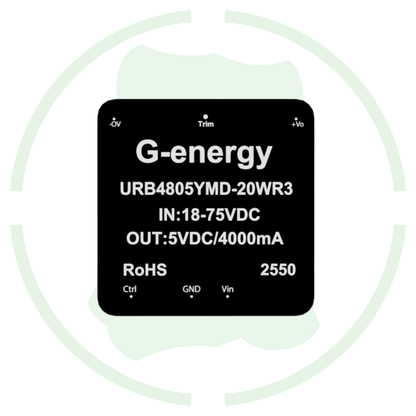

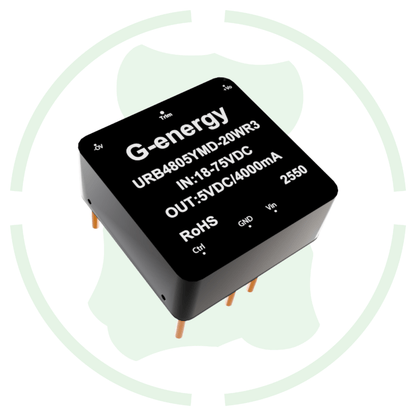

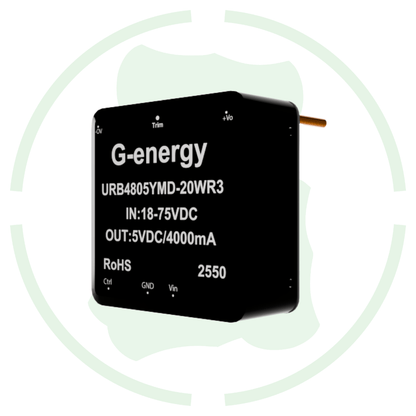

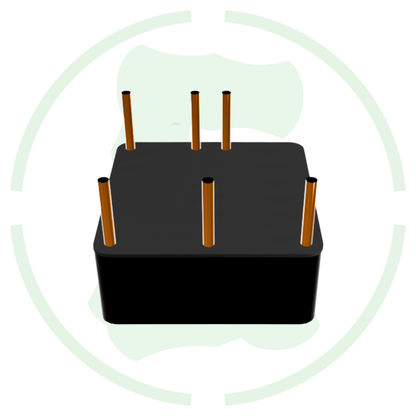

G-energy URB4805YMD-20WR3 48V To 5V 20W Dc Dc Converter

Wide input voltage: This URB4805YMD-20WR3 voltage converter smoothly work on wide input voltage of 18v to 75v input voltage.

5V Fix output voltage: It also provide a fix 5v dc output voltage from changing input voltage with up to 250mA dc current & 20W max dc power.

Up to 91% conversion efficiency: It use advance conversion technology for it high conversion efficiency up to 91% energy conversion & energy saving set ups.

Specification

1.Input Voltage Range: 18-75V

2. Output Voltage: 5V DC

3. Output Current: 4000mA

4. Output Power: 20W

5. Efficiency: Up to 91%

6. Isolation Voltage: 1500V DC

7. Line Regulation: ±0.2% (Max)

8. Load Regulation: ±0.5% (Max)

9. Ripple and Noise: 250m

10. Nominal Input Voltage: 24V

🌡 Environmental Specifications

11. Operating Temperature Range: -40°C to +80°C

12. Storage Temperature Range: -40°C to +100°C

13. Humidity Range: 10% to 90% RH

🛡 Protections and Features

14. Waterproof Rating: IP68

15. Protections Included:

    • Short Circuit

    • Over current

    • Under voltage

    • Over temperature

    • Under voltage recovery

📦 Mechanical & Physical

16. Dimensions: 25mm × 25mm × 12mm

17. Weight: 15 gm

18. Cooling Method: Free air convection (no fan required)
